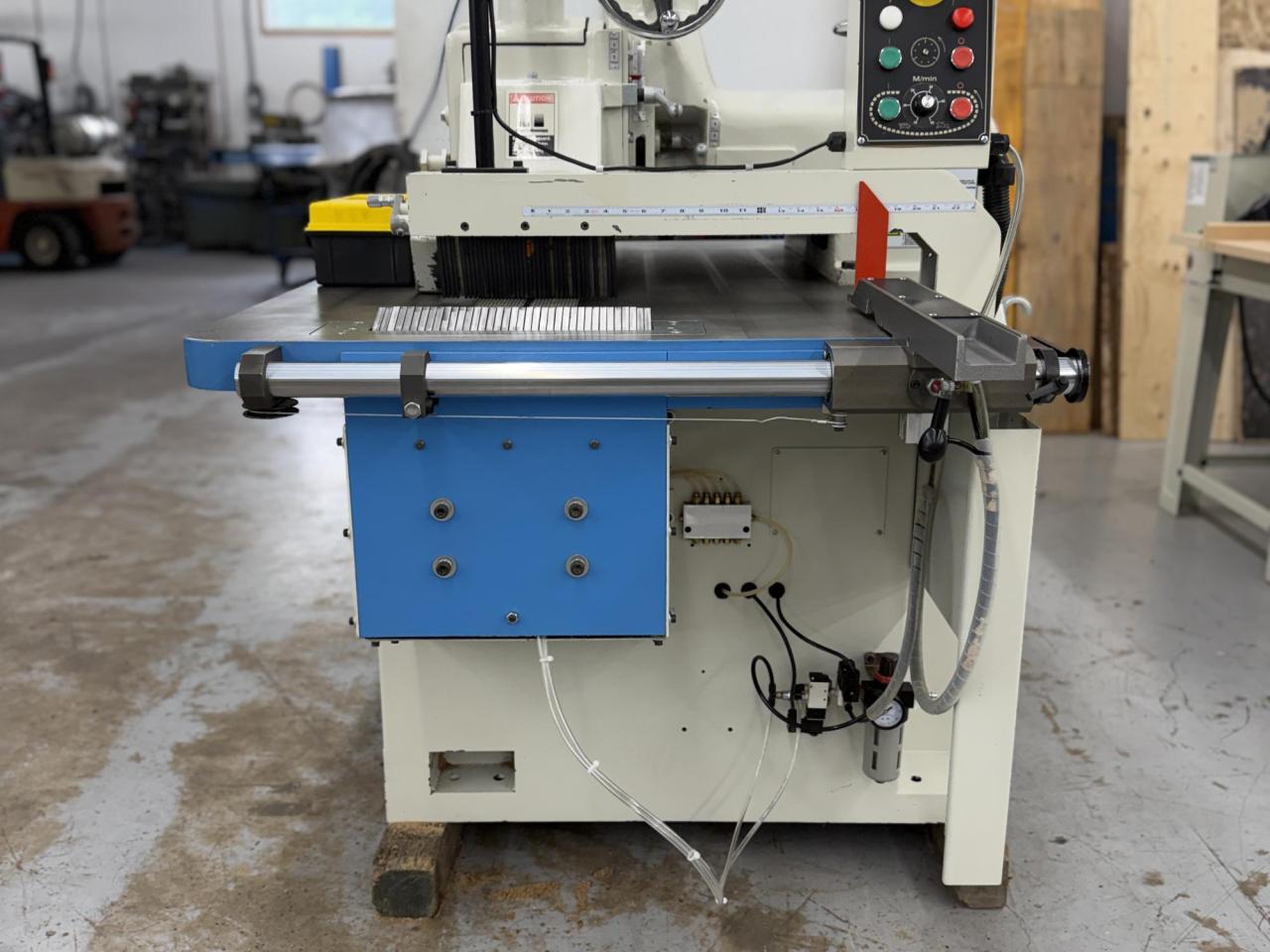

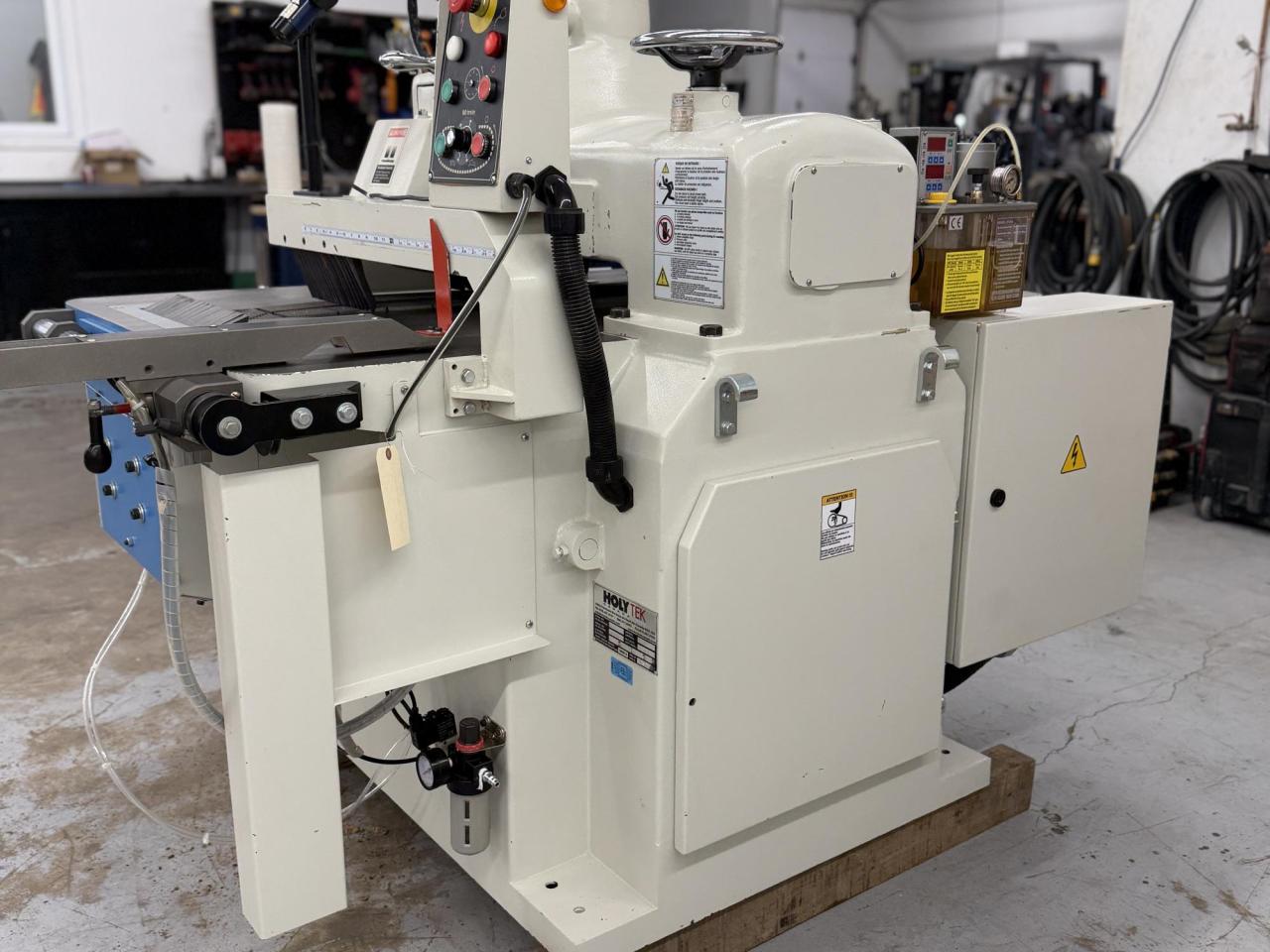

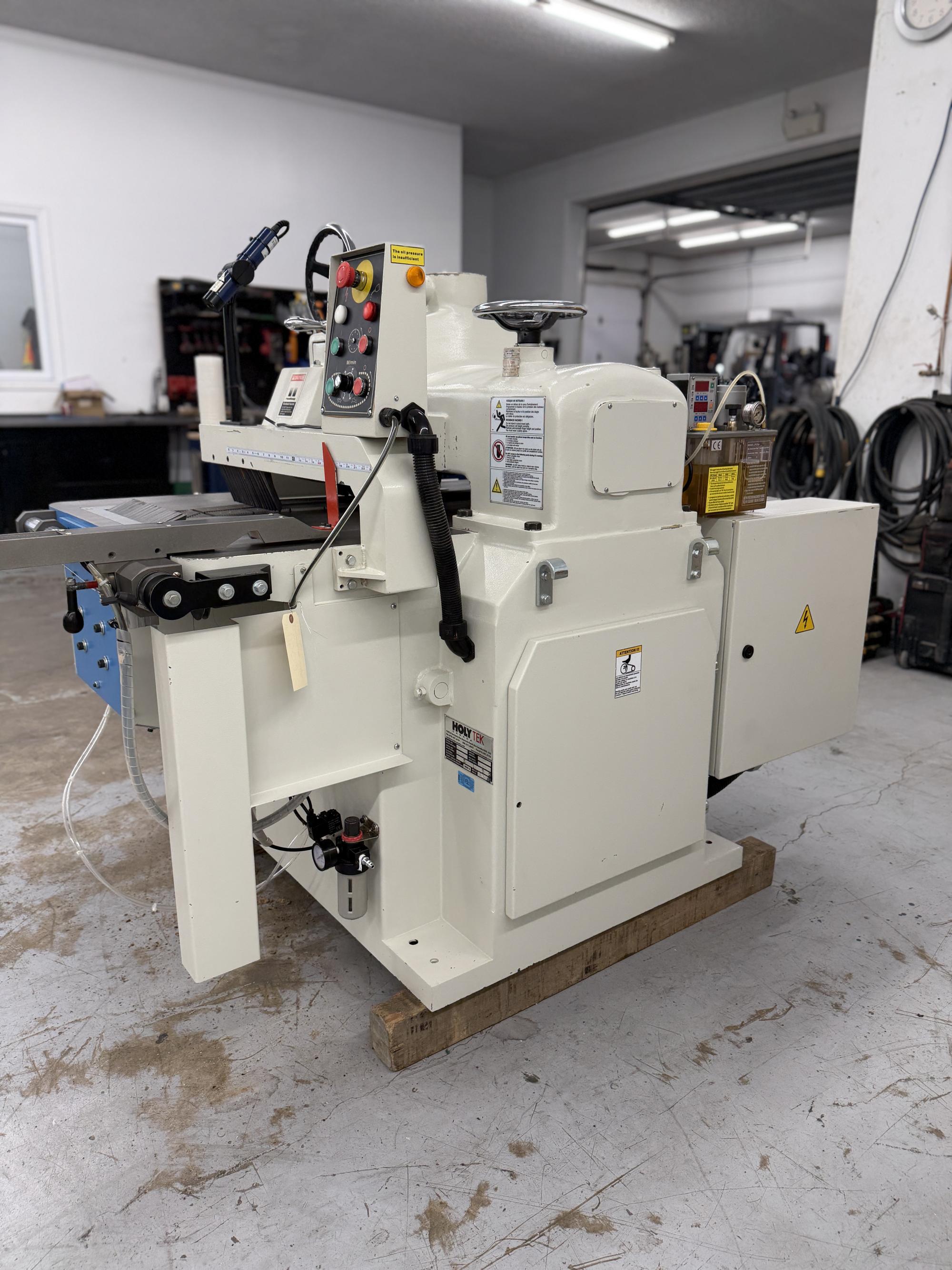

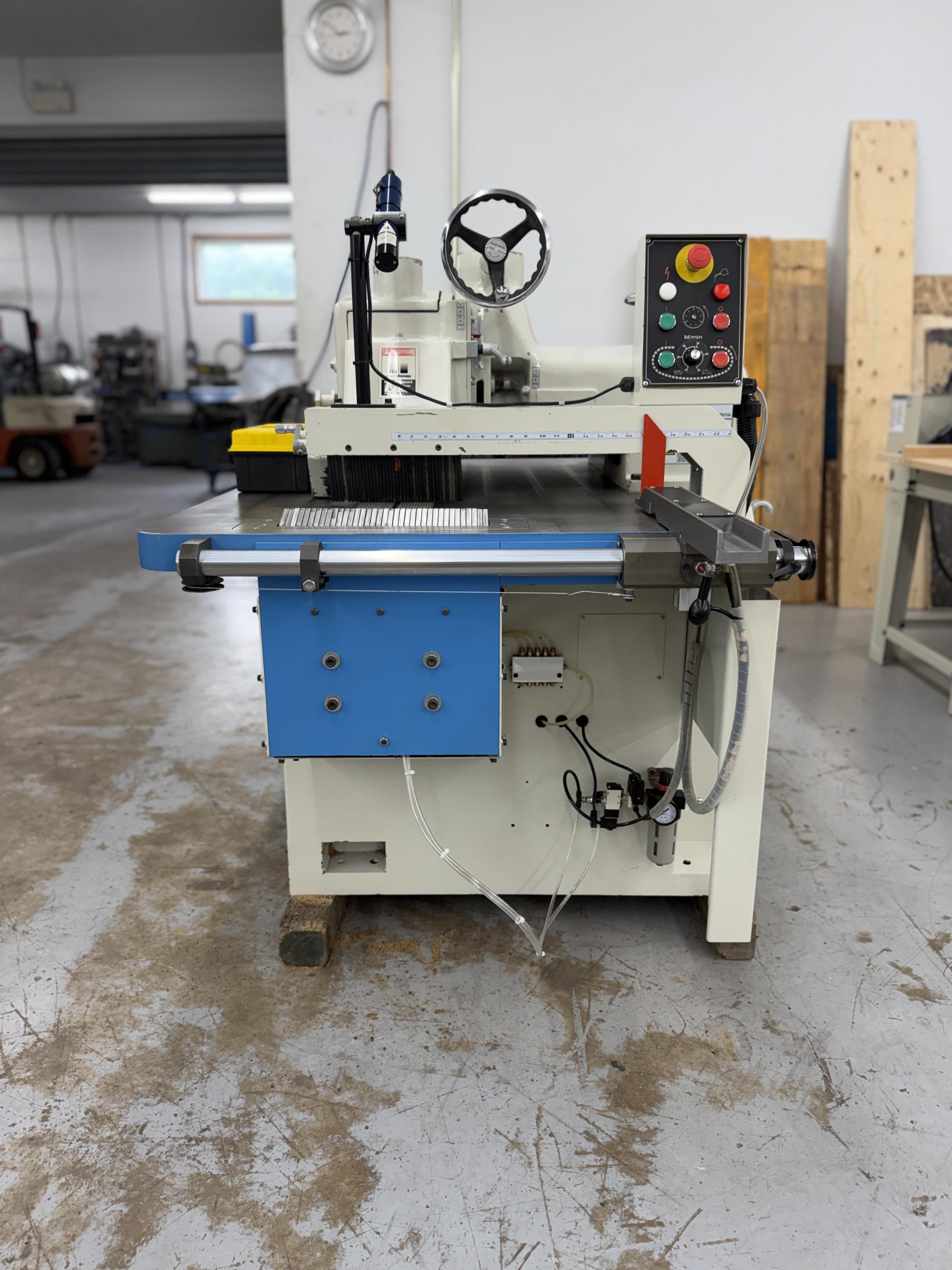

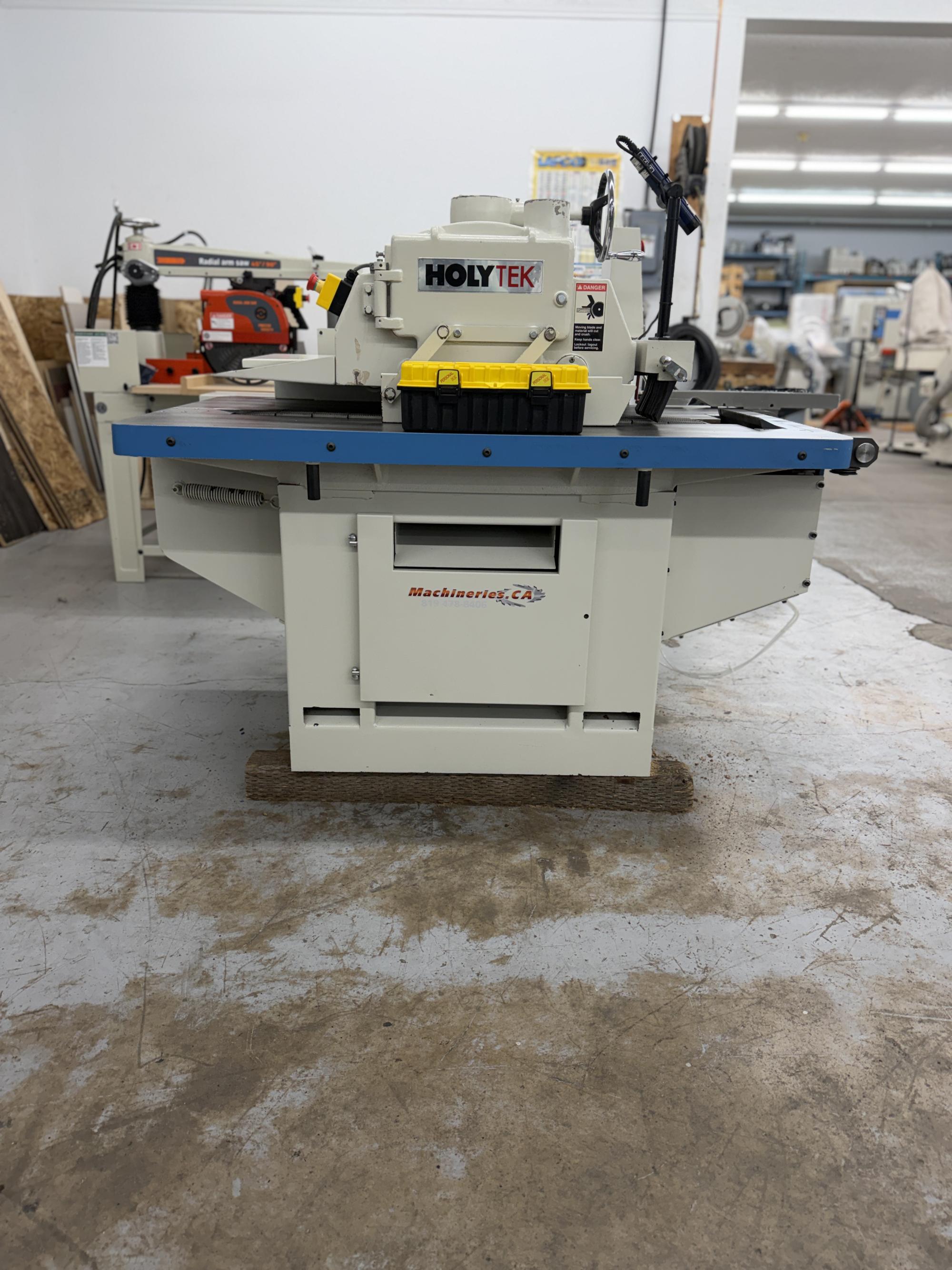

Model FR-12-PGF-600
600V / 60Hz / 3Ph
Electrical Current: 17A
Pneumatic fence
Motors:
-Main motor: 15 HP
-Feed motor: 2 HP
Cutting Capacity:
-Maximum cutting thickness: 85 mm
-Minimum working length: 310 mm
Saw Arbor:
-Arbor diameter: 1"
-Saw arbor speed: 4,500 RPM
Feed System:
-Feed speed: 17 ~ 40 m/min

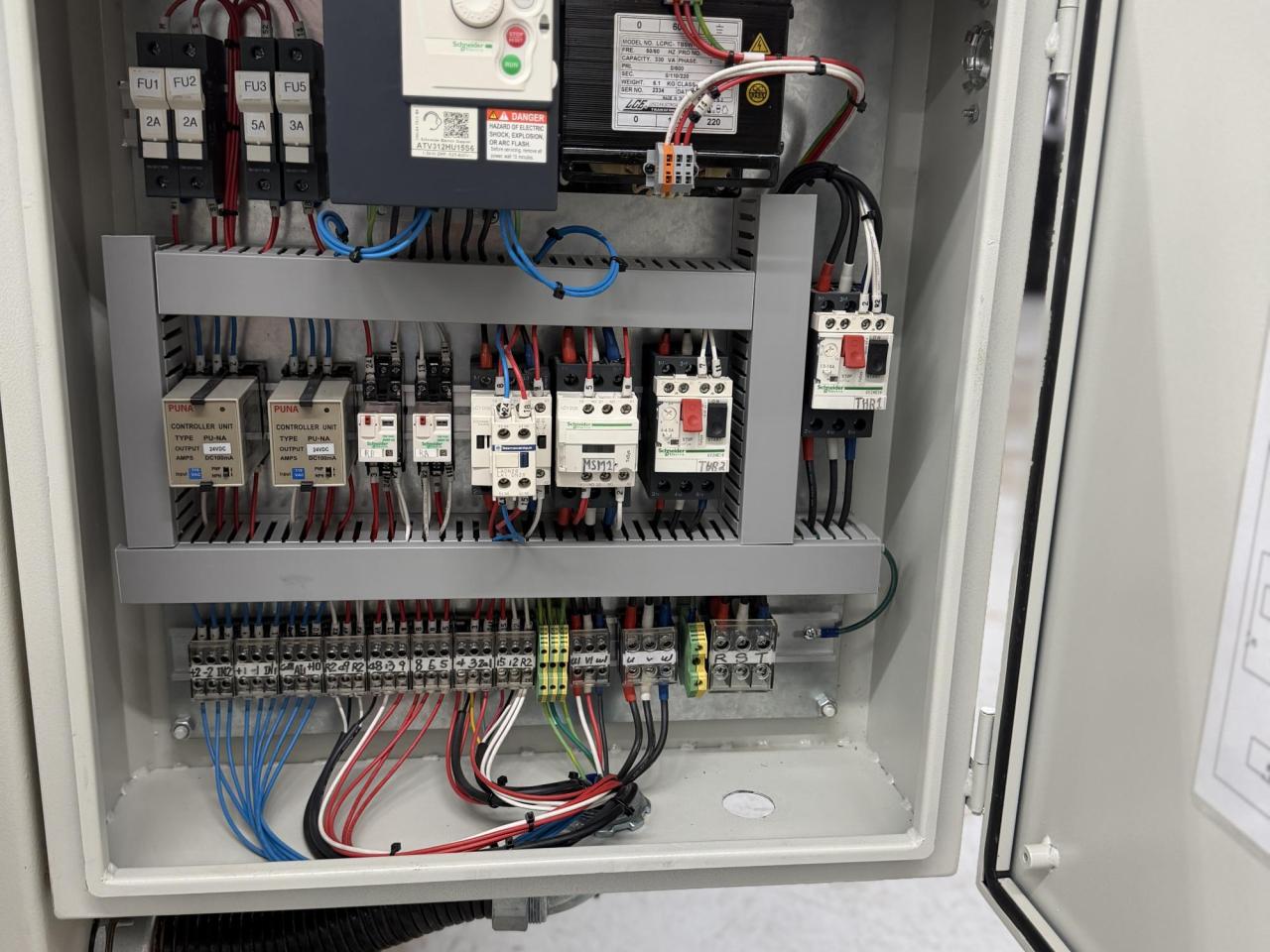

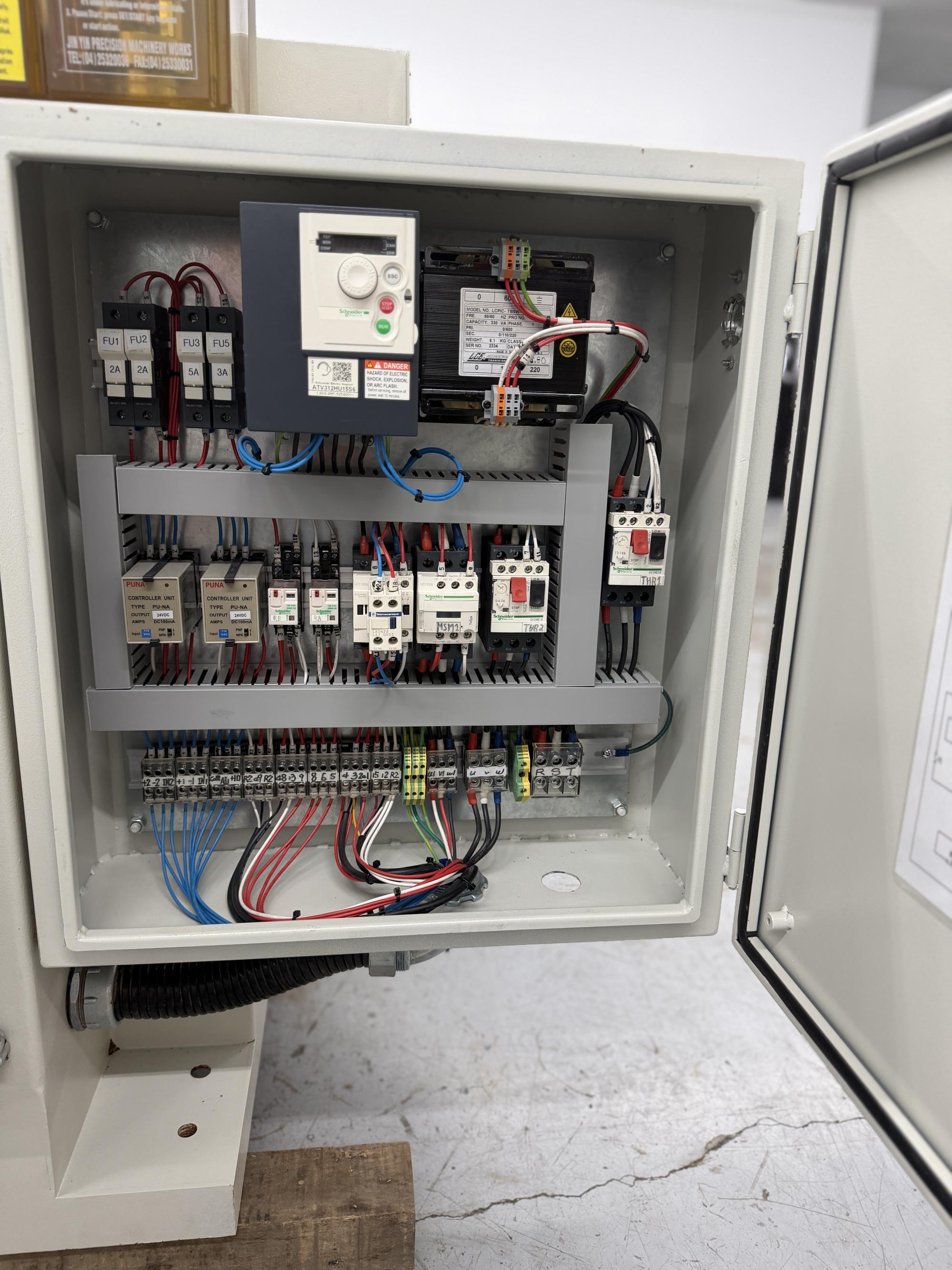

-Frequency inverter drive

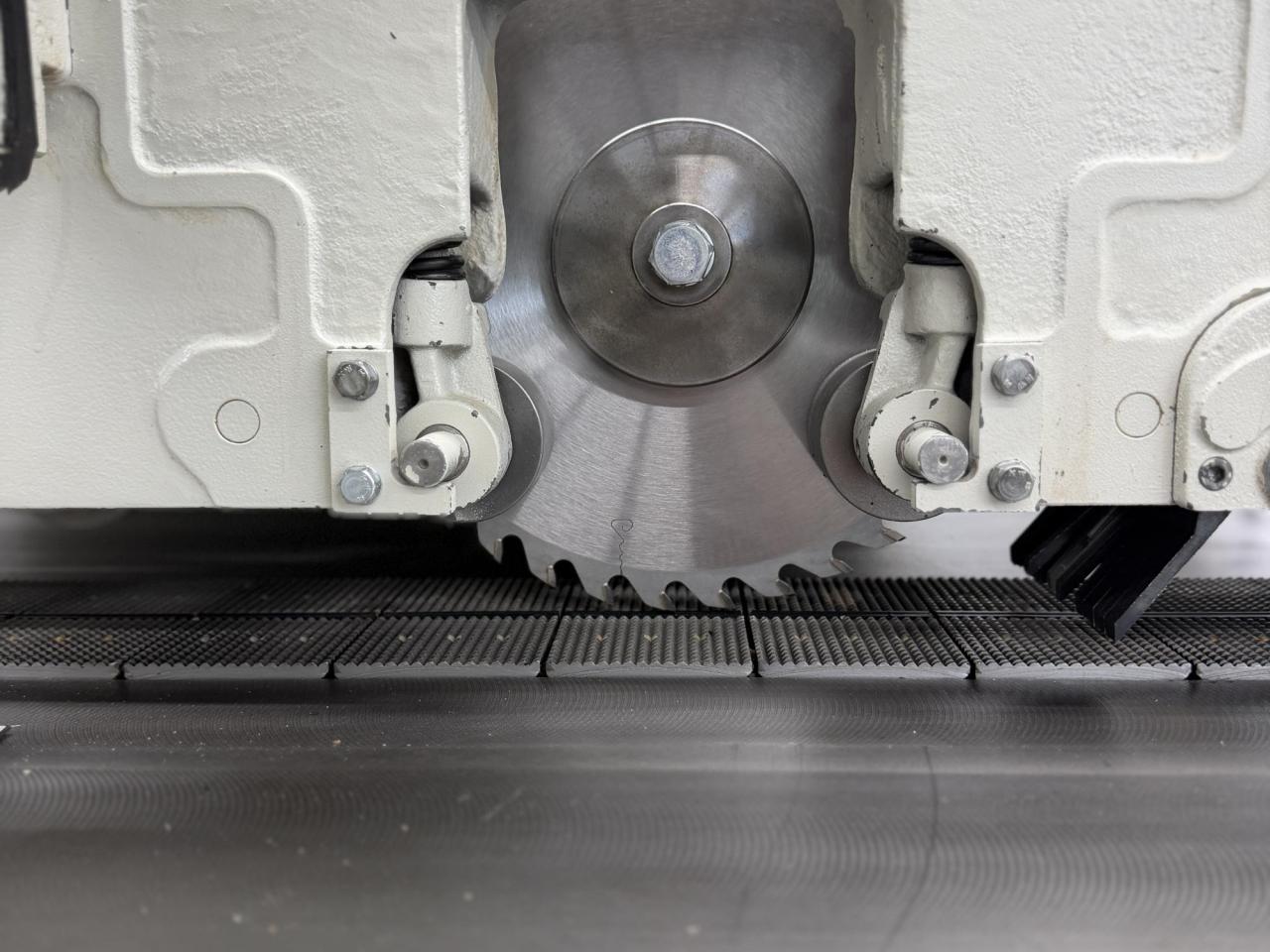

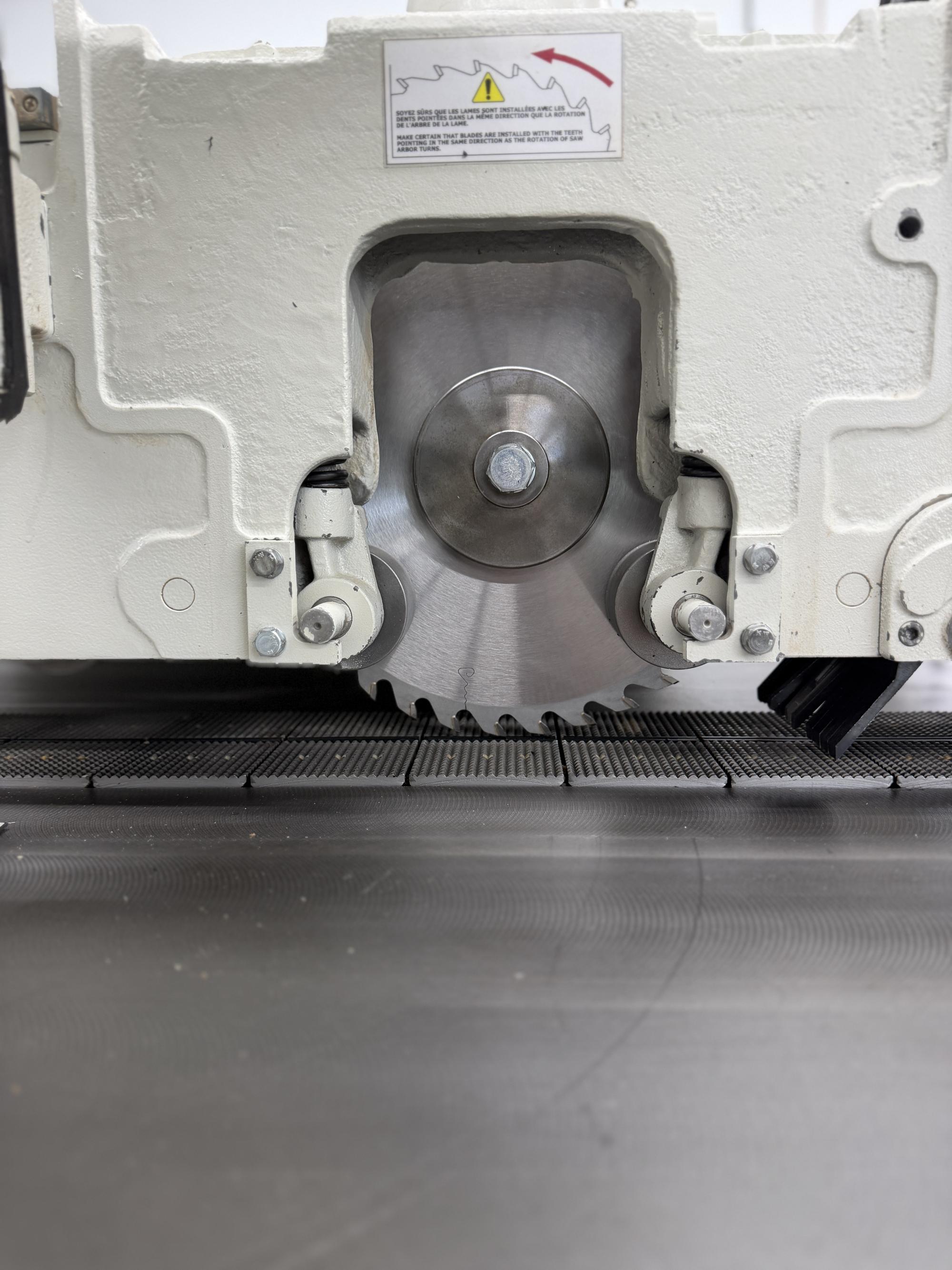

Saw Blade:
-Blade diameter: 305 mm
-Blade included: 2" (D) × 4 mm (TT) × 3 mm (T) × 1" (B) – 50T
Table:
-Distance from blade to column: 460 mm
-Table size: 950 mm × 1450 mm X 800 mm (height)
Additional Features:

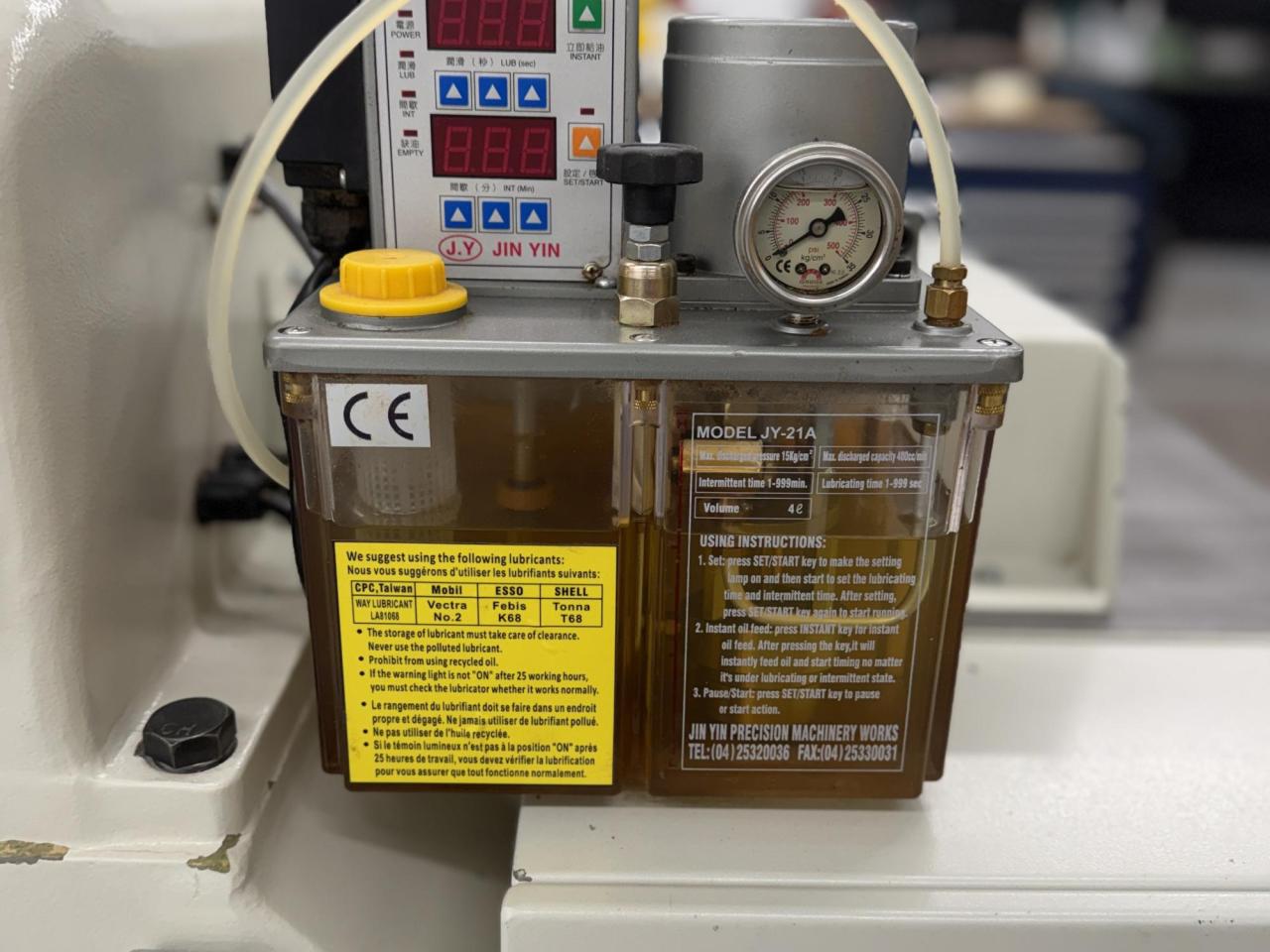

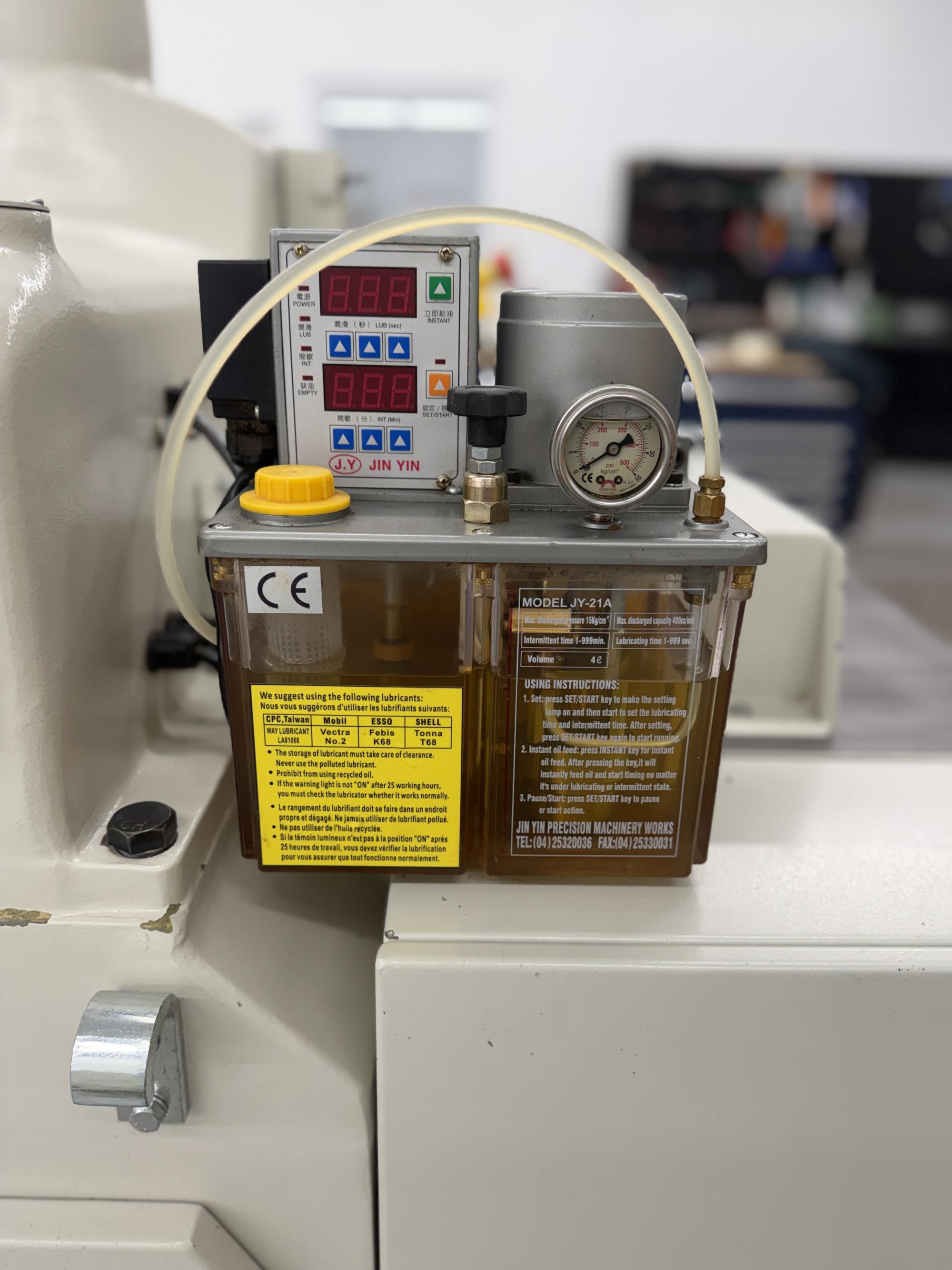

-Programmable electronic lubrication system
-Dust collection port diameter: 100 mm (4")
-Elevation handwheel with crank
-Additional safety guards (CSST)
-Machine Dimensions: 1150 mm (L) × 1830 mm (D) × 1400 mm (H)
-Gross Weight: 1150 kg / 2530 lb
**Z40R laser alignment system included
