Semi-automatic rotary stretch wrapper

Maximum load size: 58” (W) x 58” (L) x 80” (H) (maximum load diagonal = 82”)

Weight capacity: Unlimited (floor loaded)

Utilities: 115V / 1 / 60 – 15 A

Rotary tower:

• 20” diameter precision ring bearing tower support

Tower drive:

• Heavy-duty ANSI chain and sprocket drive
• 0–14 RPM variable tower speed
• Electronically adjustable acceleration/deceleration (soft start)
• Variable speed drive motor
• Positive home position alignment feature

Control features:

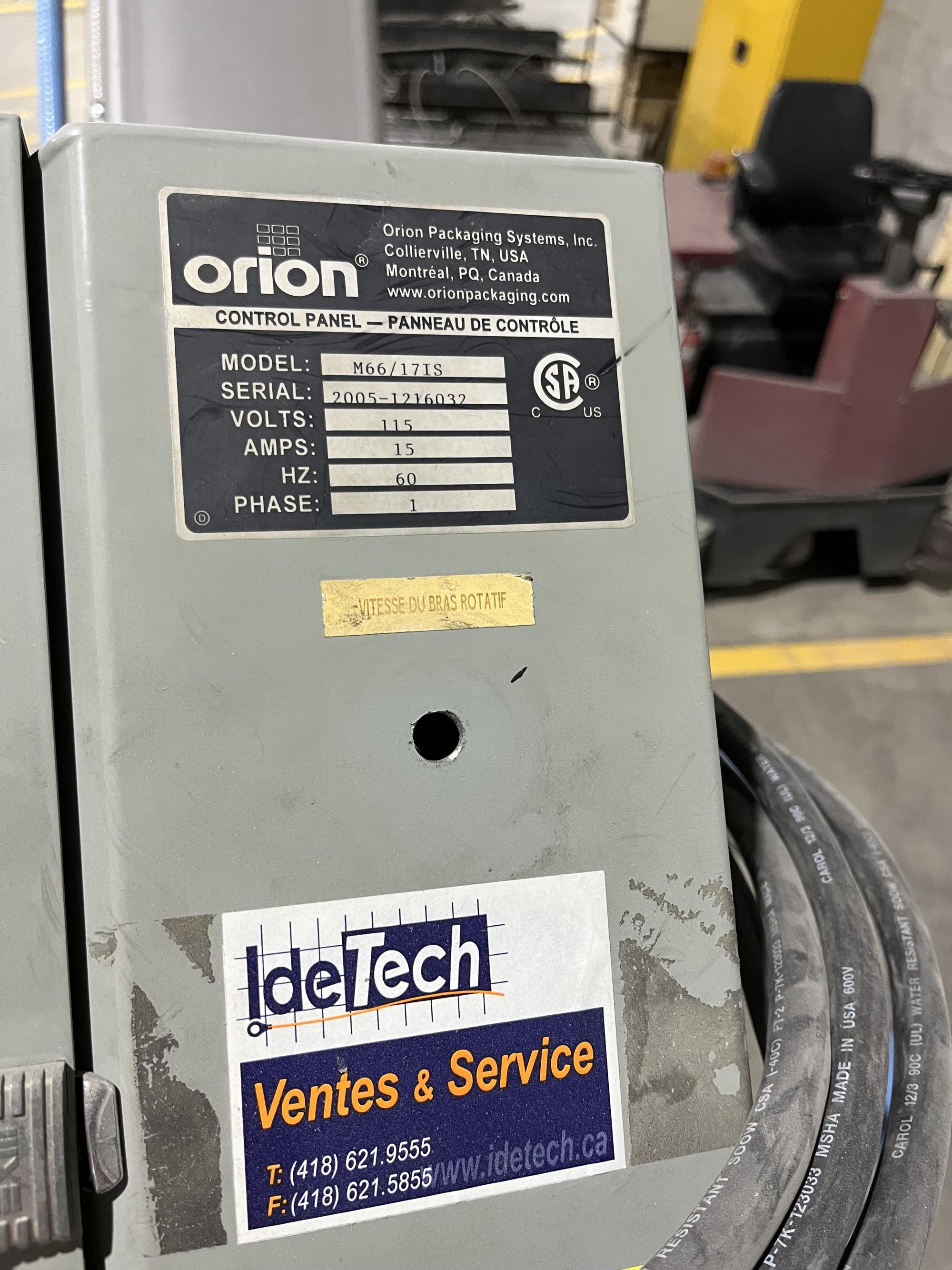

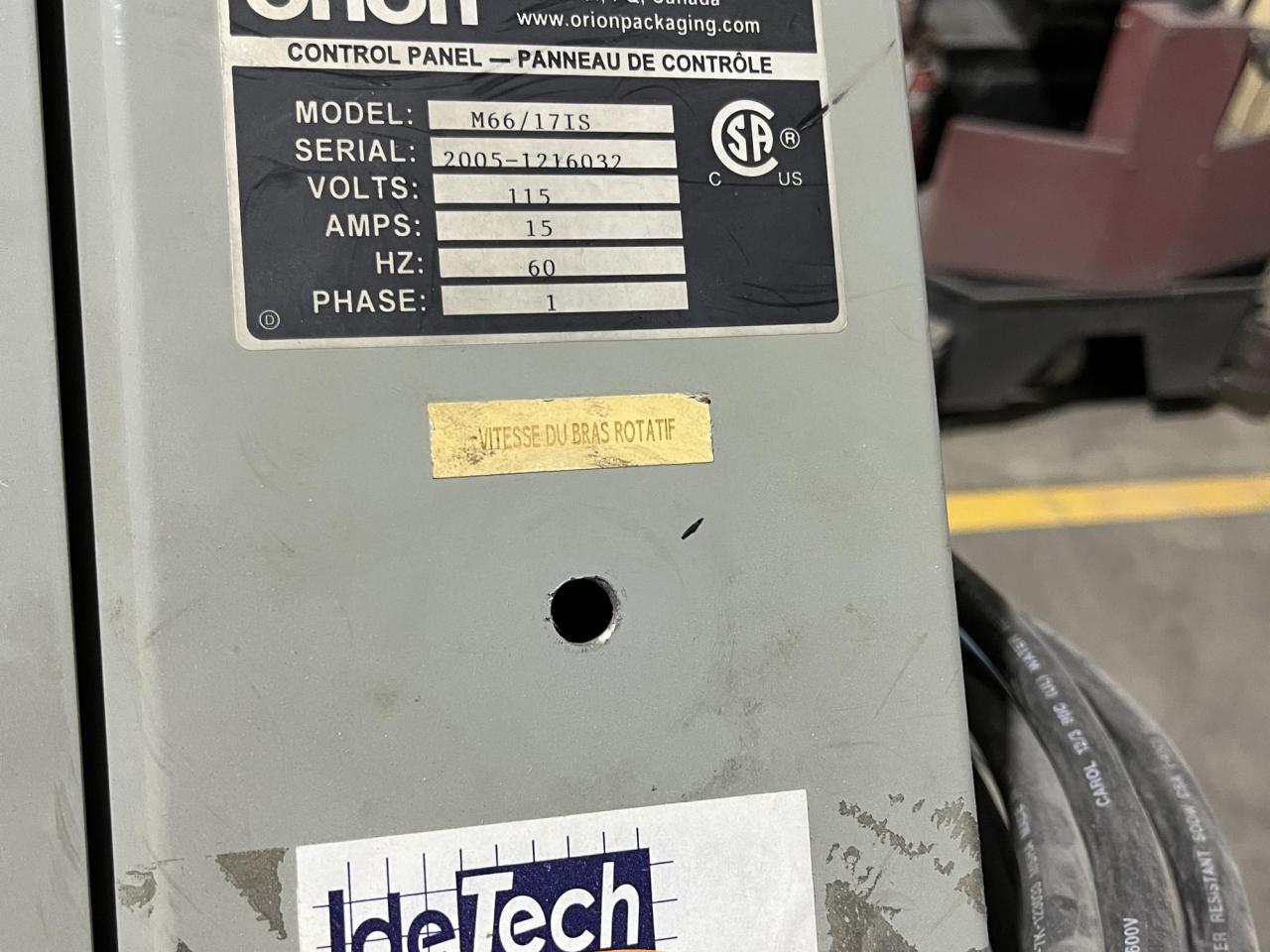

• CSA approved, NEMA 12 control panel
• State-of-the-art Allen Bradley Micrologix programmable logic controller
• User-friendly controls with pushbuttons and switches
• Revo-Logic exact wrap counting technology
• Load/personnel safety stop photocell
• Electronic film tension control adjustment on the panel
• End-of-cycle film force release
• Separate top and bottom wrap count selectors
• Variable speed and separate film carriage up/down controls
• Film carriage raise/lower switch (manual)
• Cycle pause for stopping the wrap cycle without resetting
• Reinforce wrap for banding
• Photocell for automatic load height detection with ON/OFF switch tower jog pushbutton

Film delivery:

• 20” Orion Insta-Thread powered prestretch film delivery system
• Outward-facing carriage for ease of film roll change
• Precision ground polyurethane pre-stretch rollers for consistent, maximum film yield
• 245% standard pre-stretch ratio (maximum 395%)
• Easy and safe-to-operate self-threading carriage design
• Electronic film tension control adjustment on the panel
• Heavy-duty ANSI chain and sprocket ratio control

Film carriage elevator drive:

• Heavy-duty ANSI chain carriage lift
• Variable speed drive motor
• Multi-point UHMW precision carriage guidance system

Estimated shipping weight:

• 2500 lb

**Protective safety cage included (not shown in photos)**
