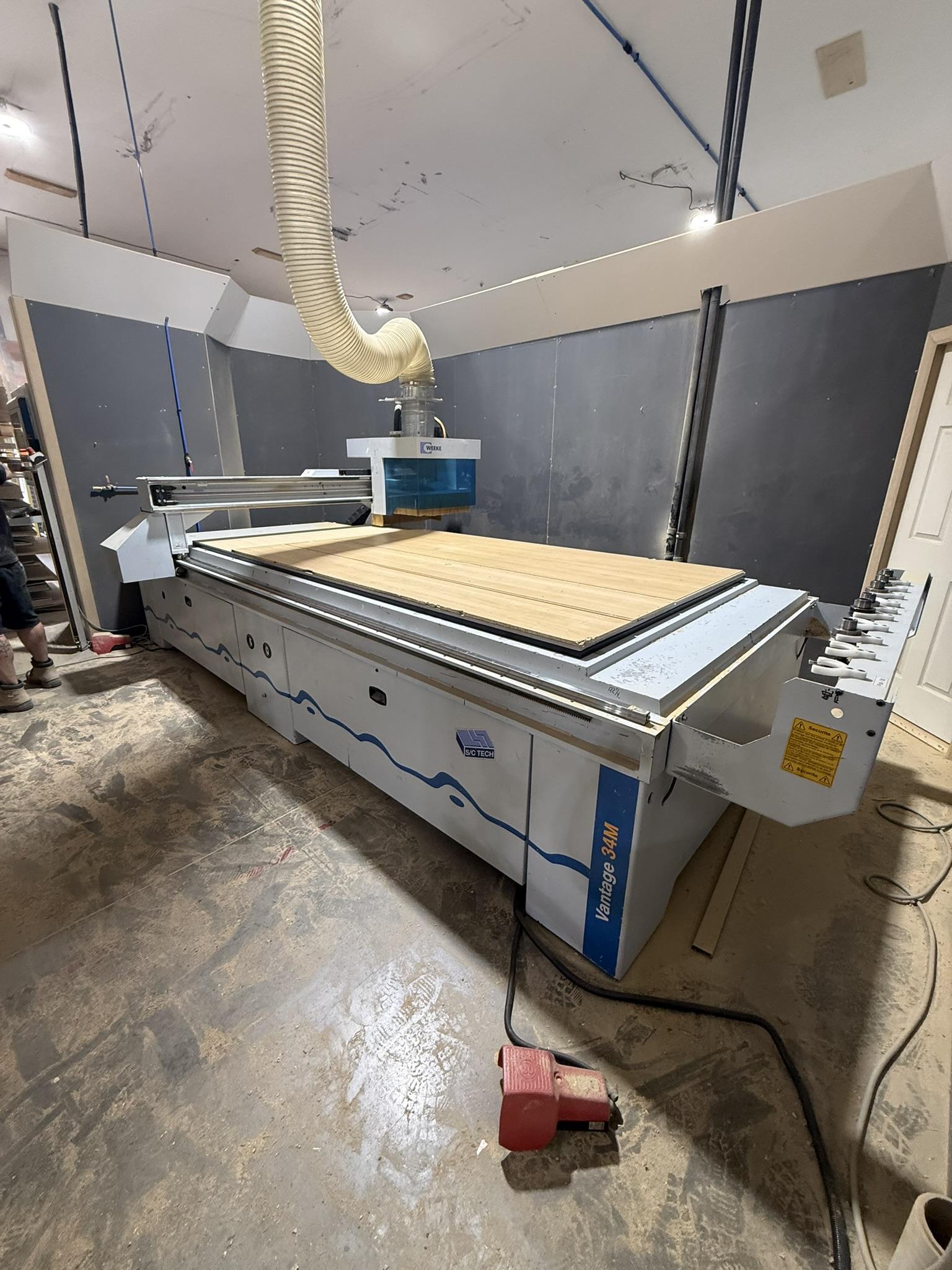

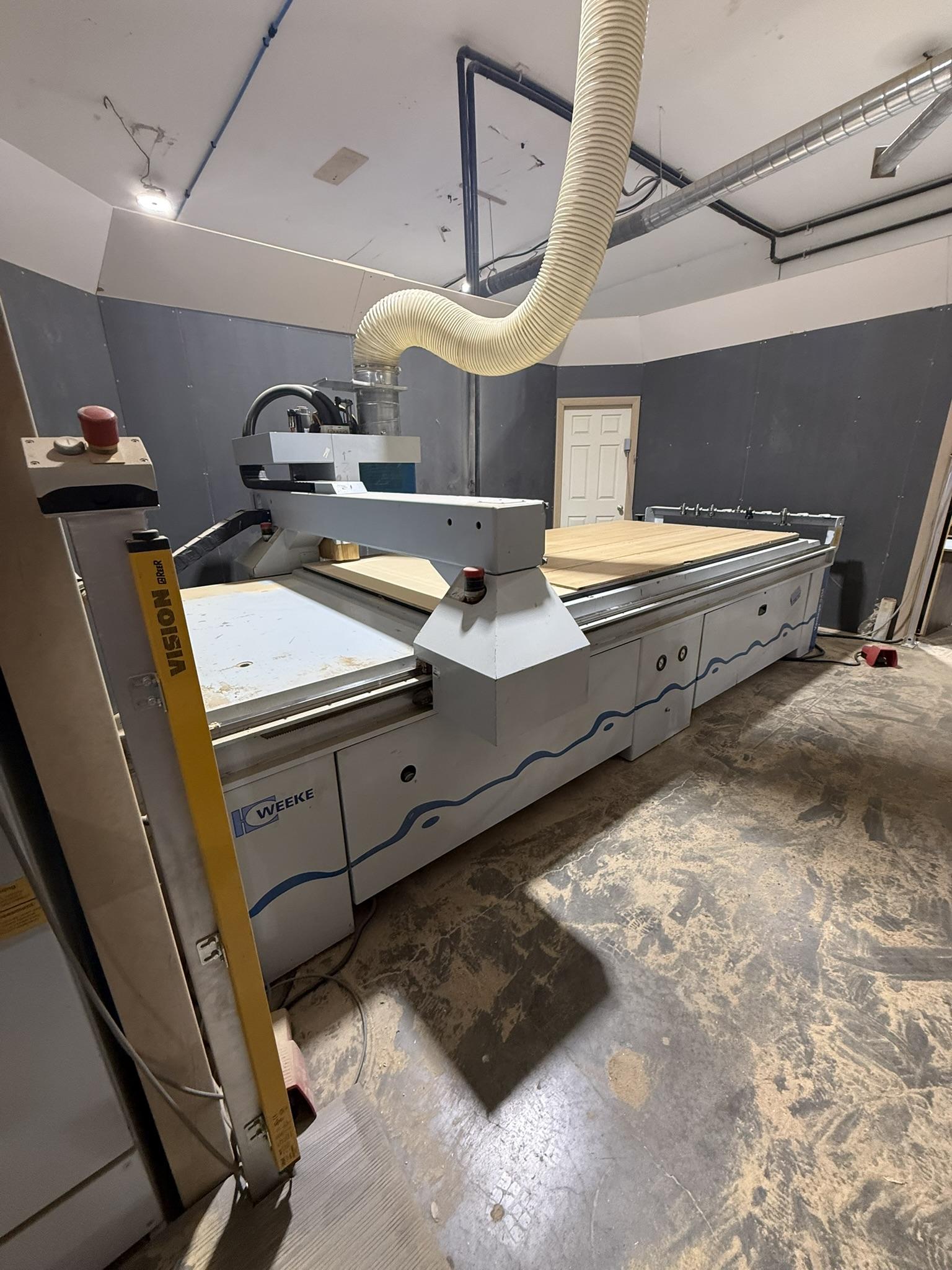

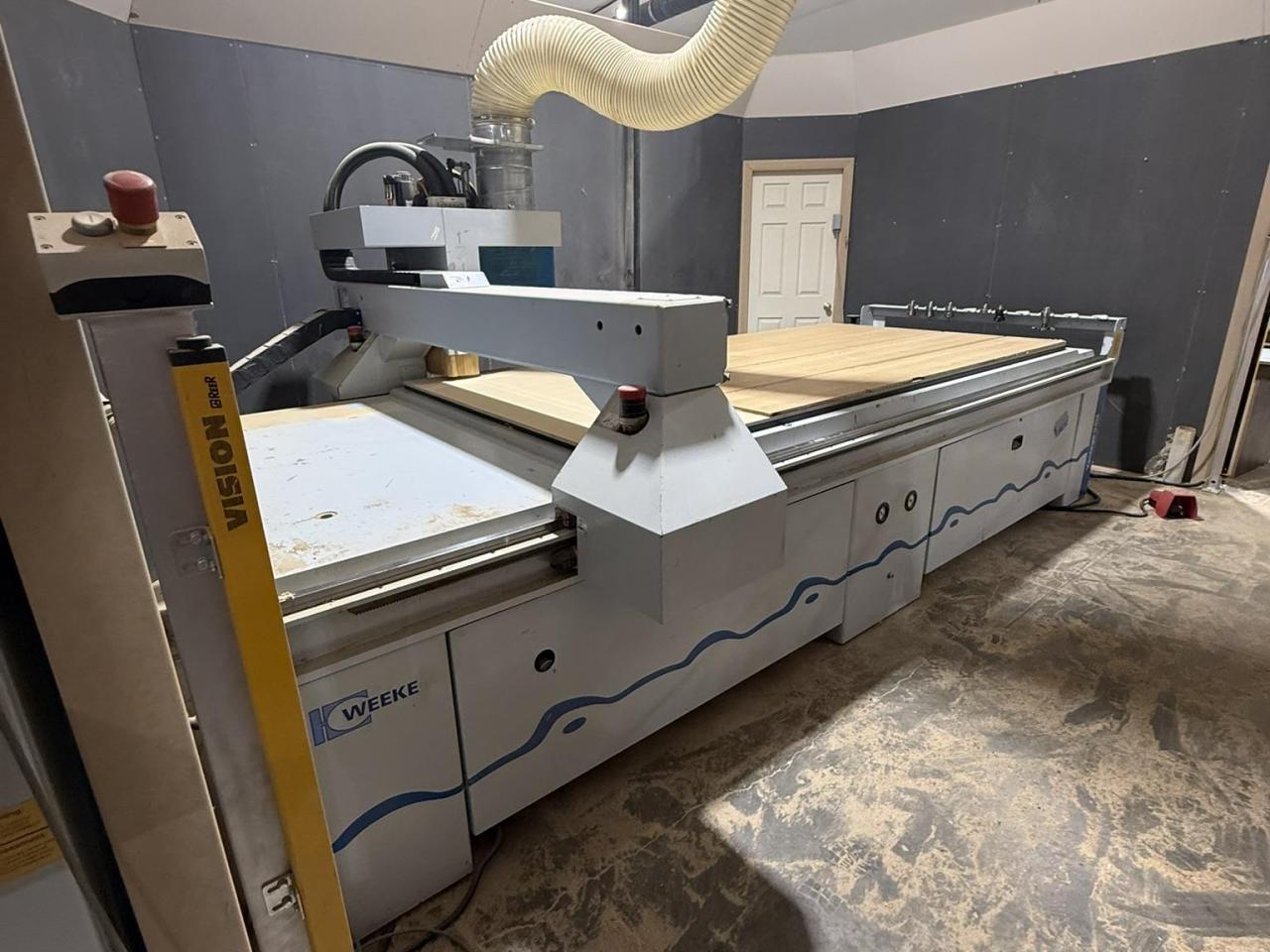

Phenolic Matrix Table 5’ x 10’

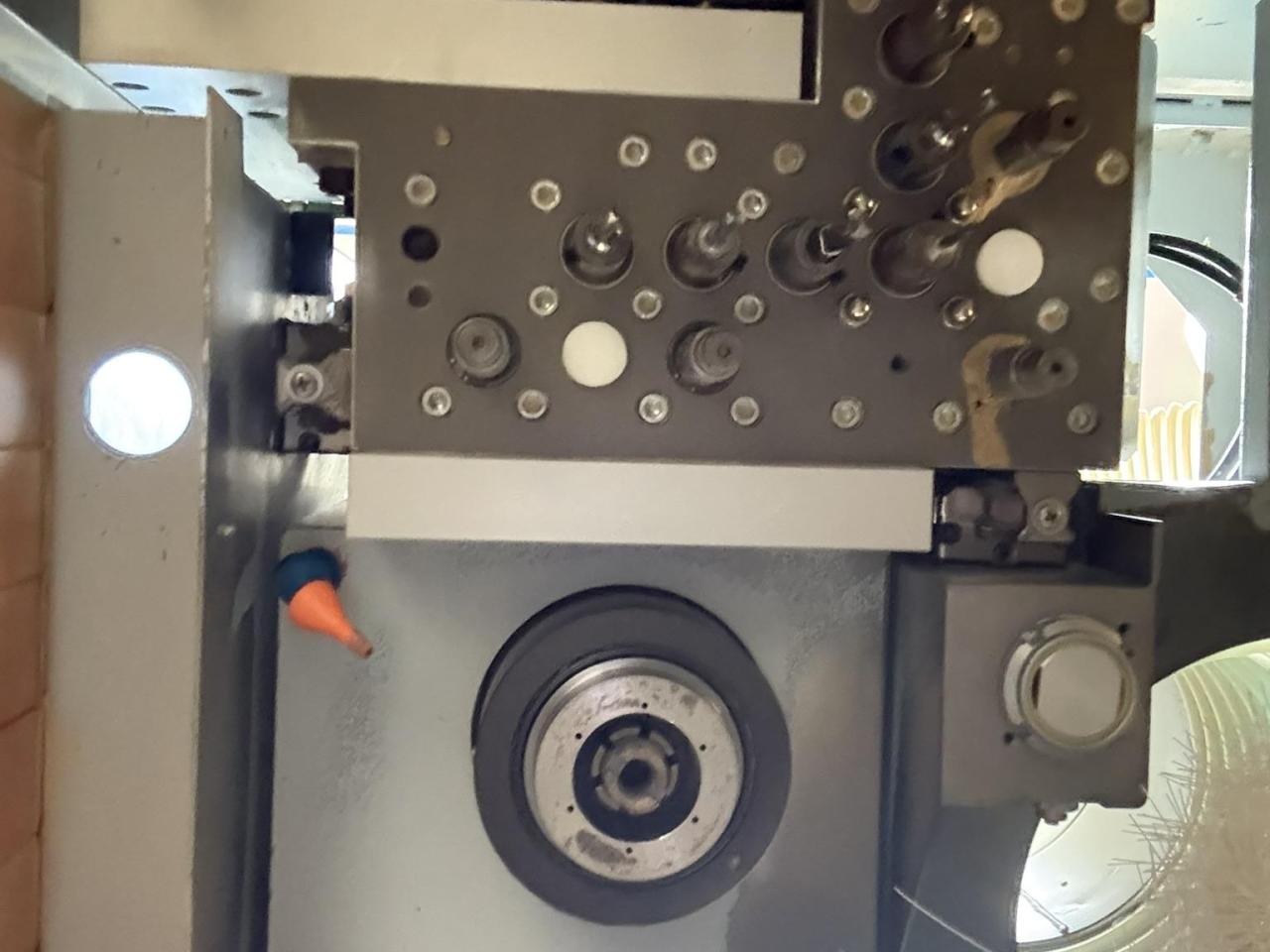

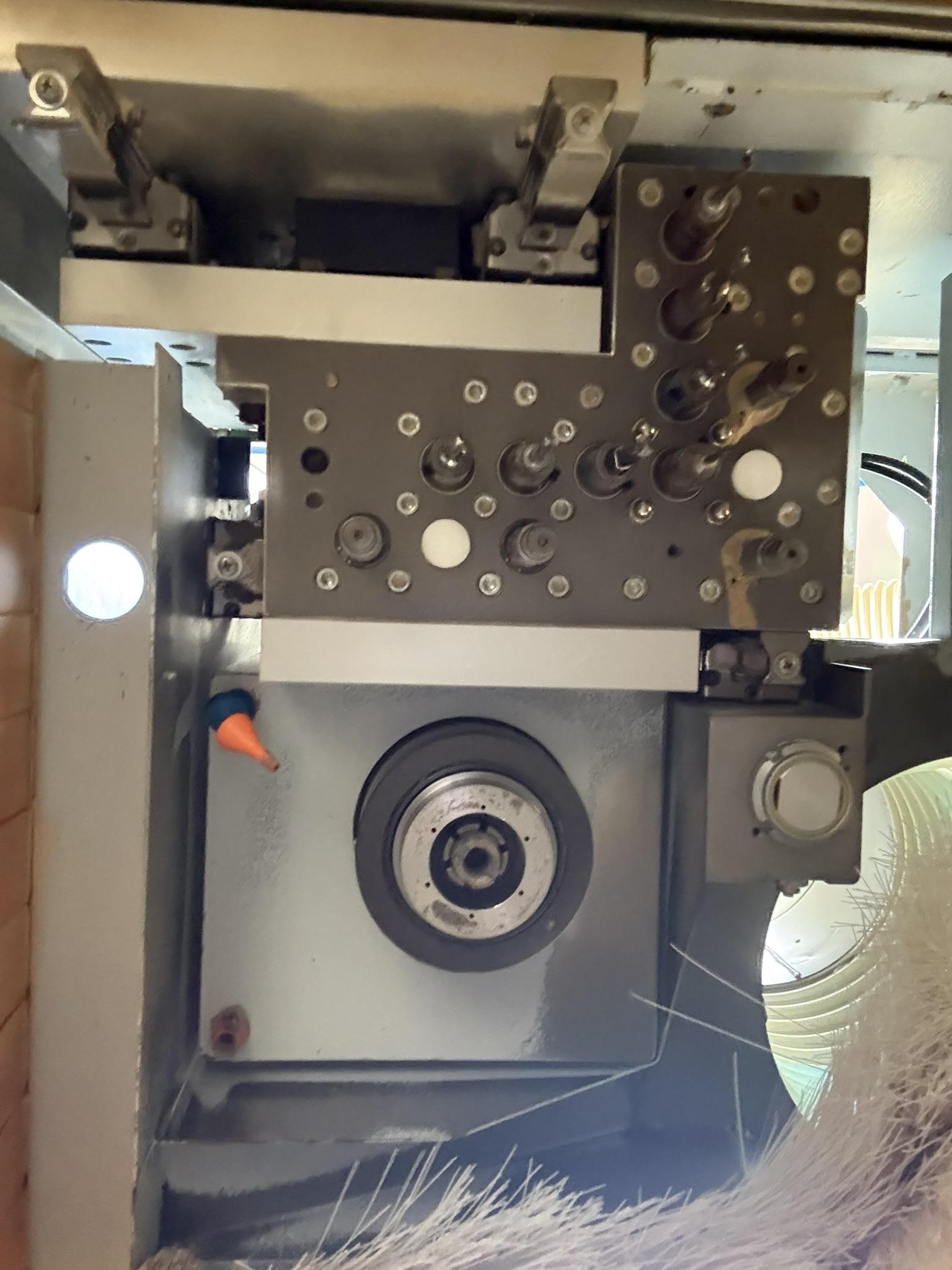

Drilling unit with 10 vertical spindles
10-position tool changer
12 HP motor / 1000 to 24000 RPM / HSK F63
Work of Field X-Y-Z
Maximum Z height: 3.1"
Maximum X length: 122"
Maximum Y width: 61''
Vector speed of X and Y axes: 96 m/min.
Maximum Z-axis downward speed: 25 m/min.
Dust outlet: 10"
Weight: 10,000 lb
Overall dimensions: 240" x 182" x 69" (H)
600V / 60Hz / 50 Amps
Included: One (1) vacuum pump (*specifications to come)
