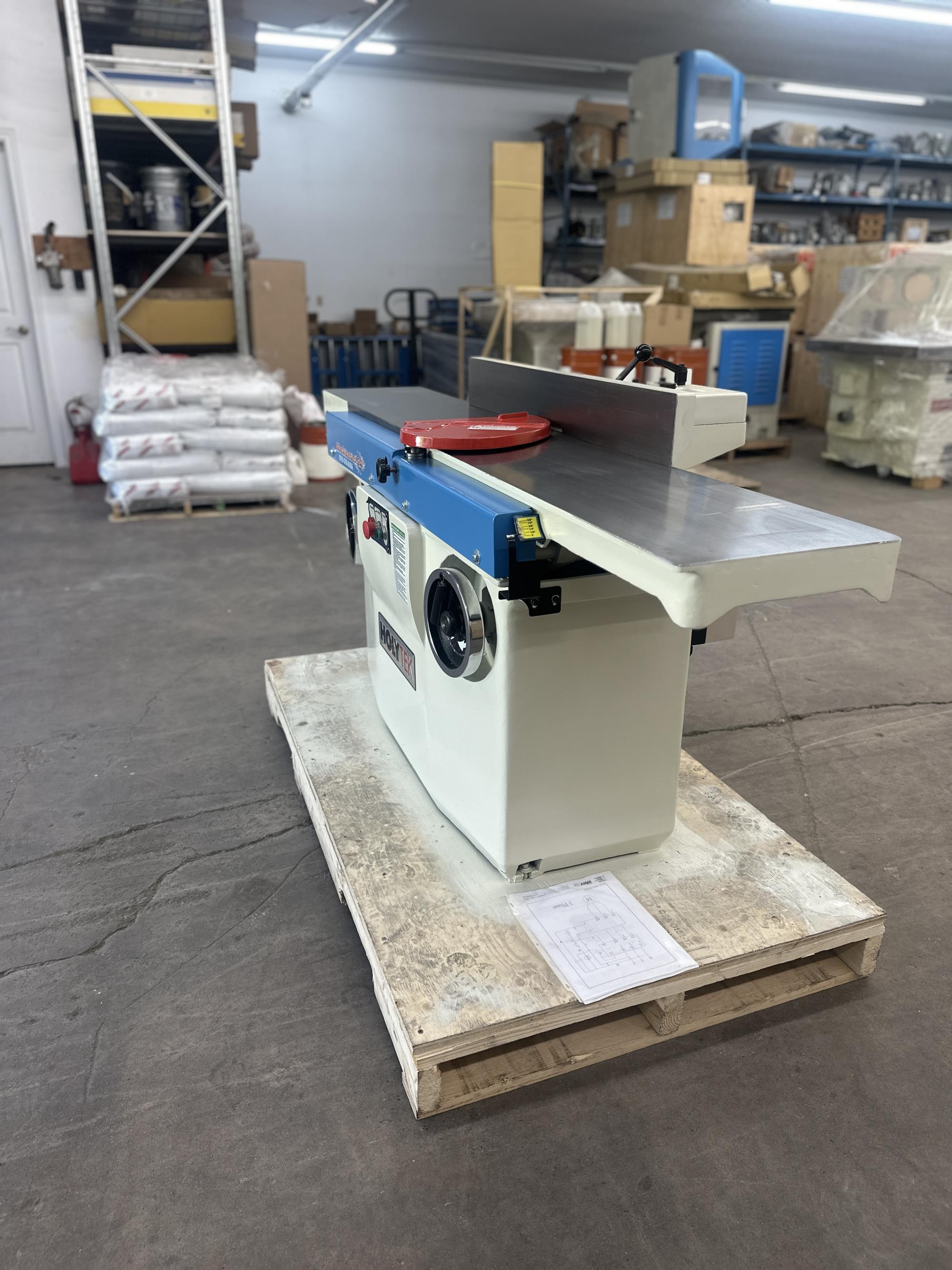

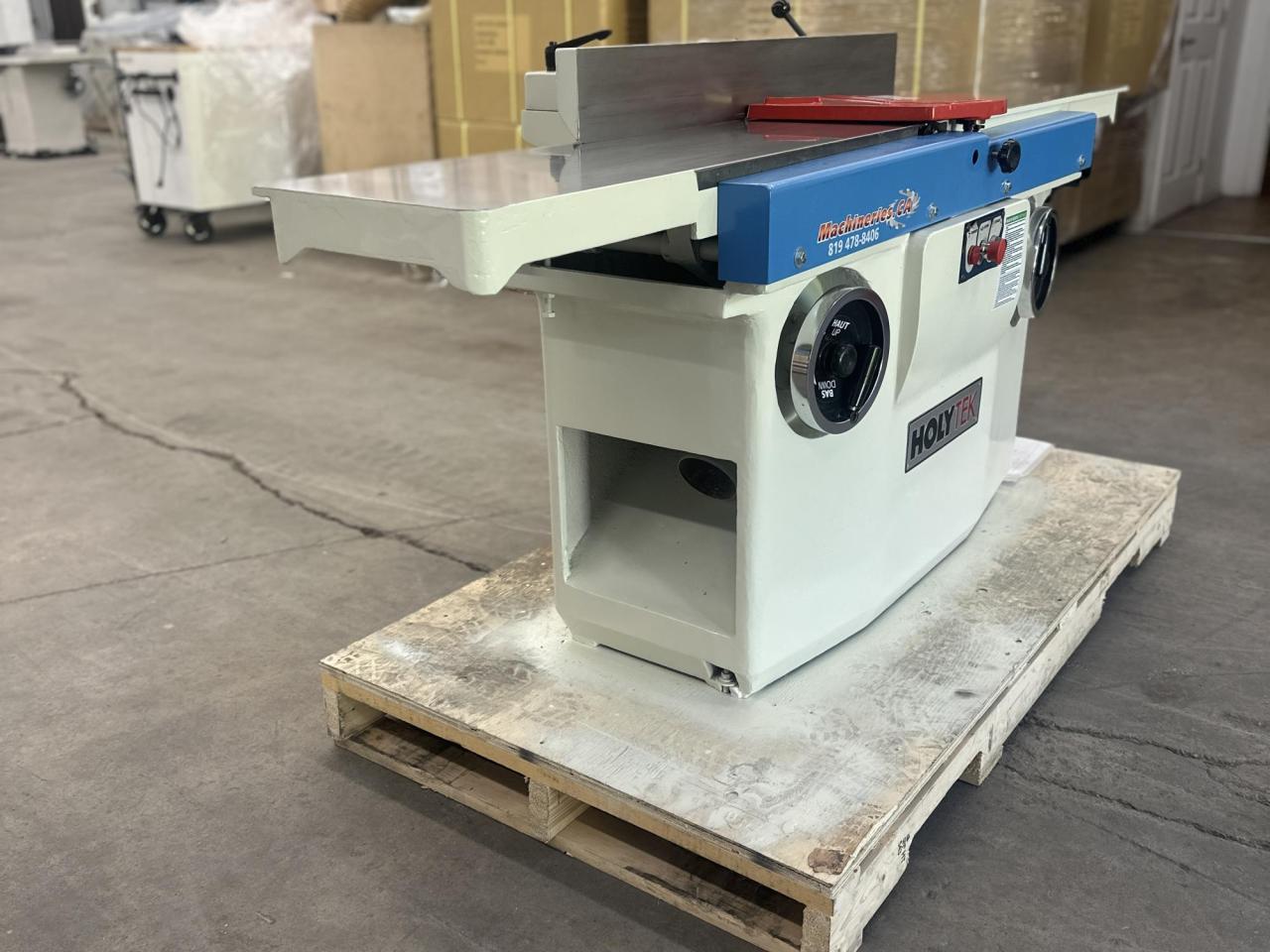

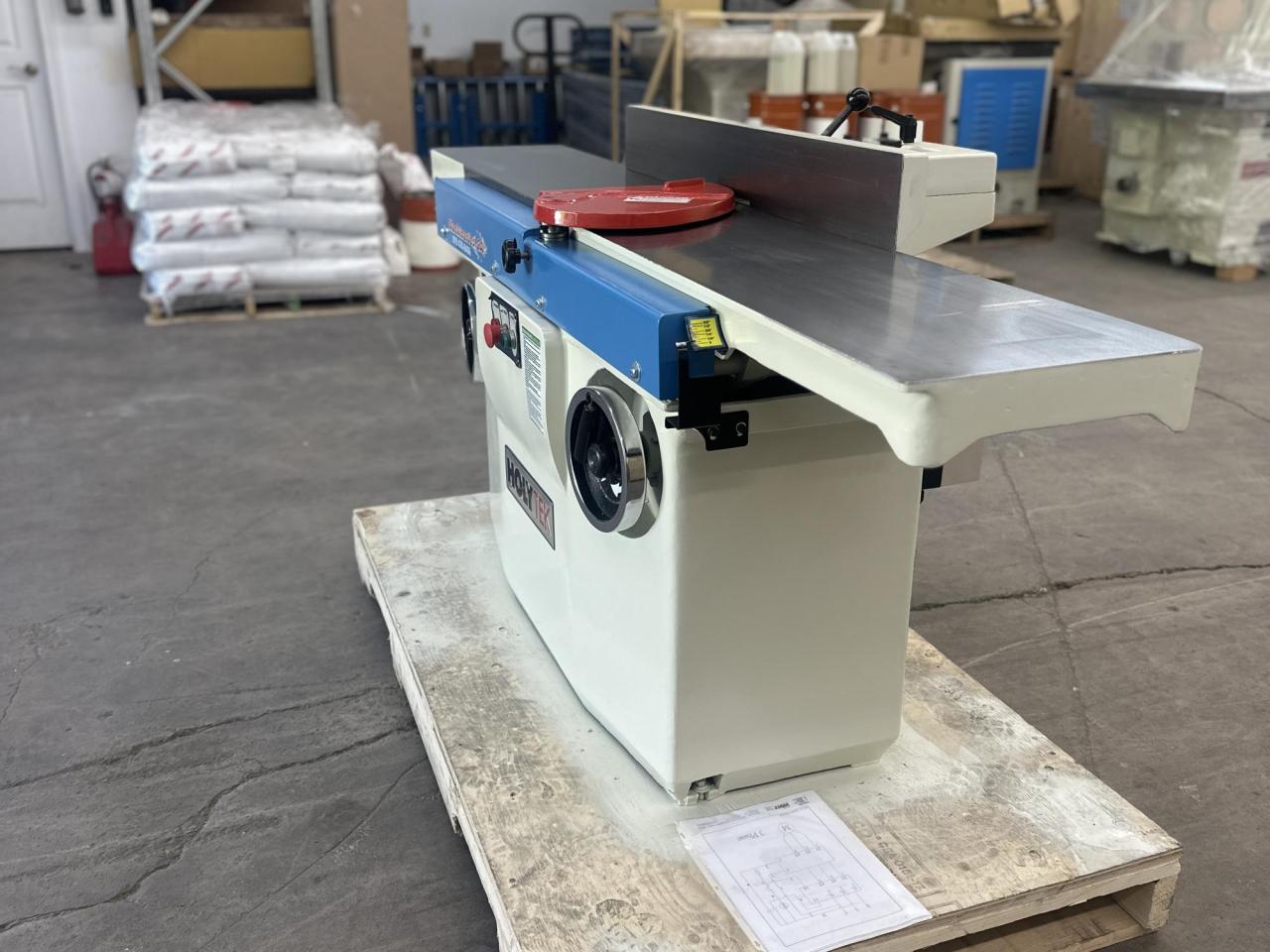

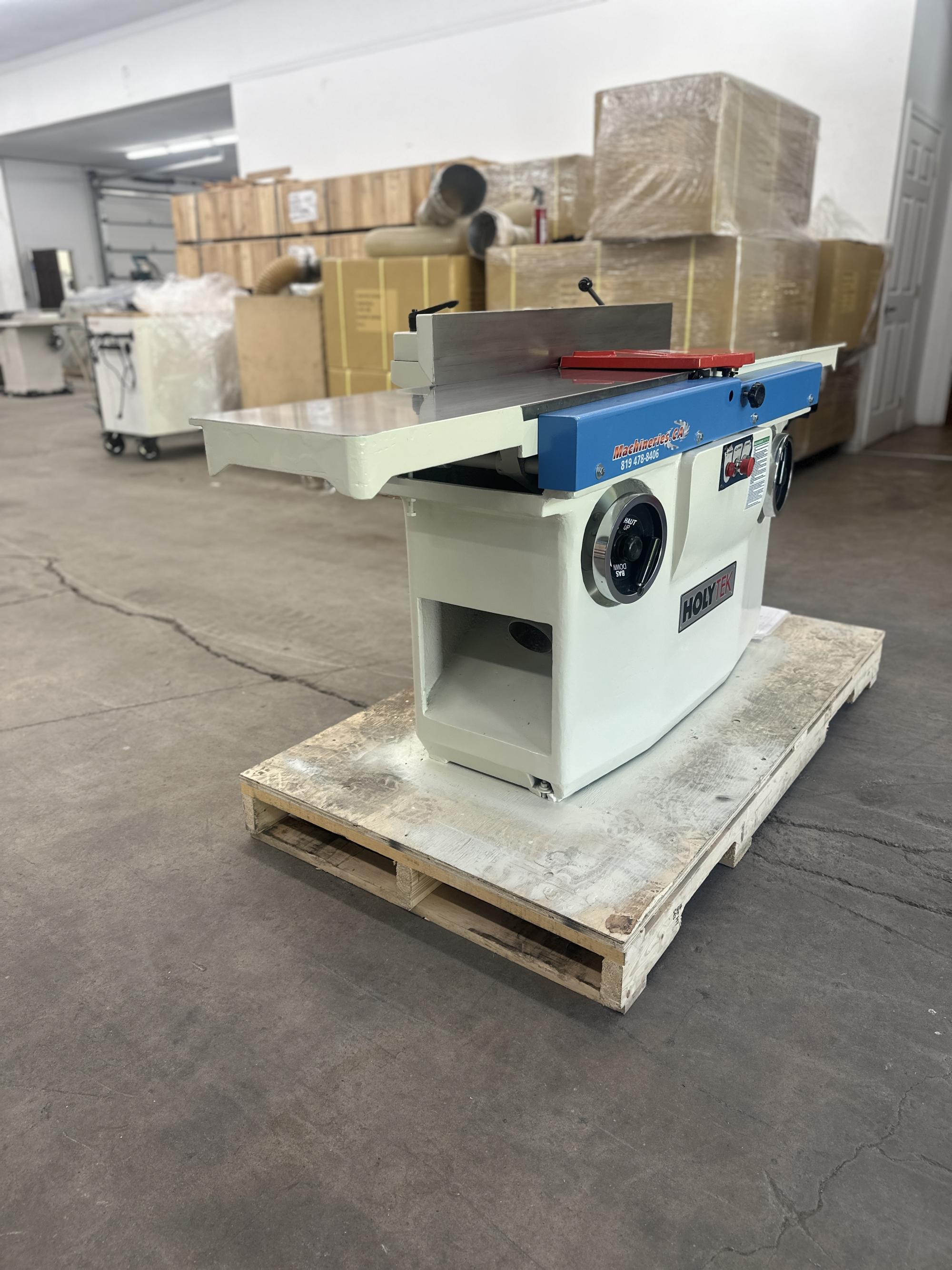

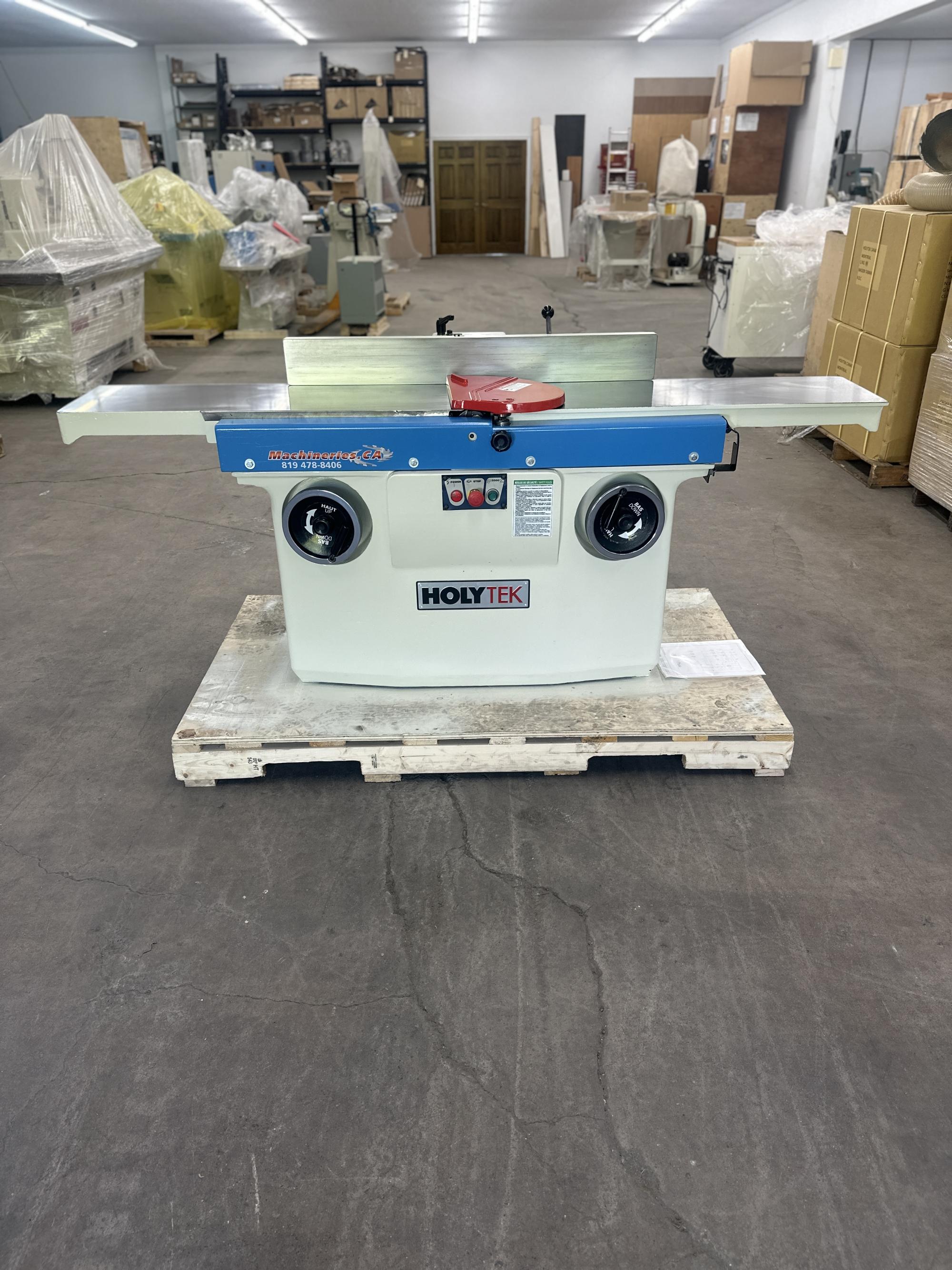

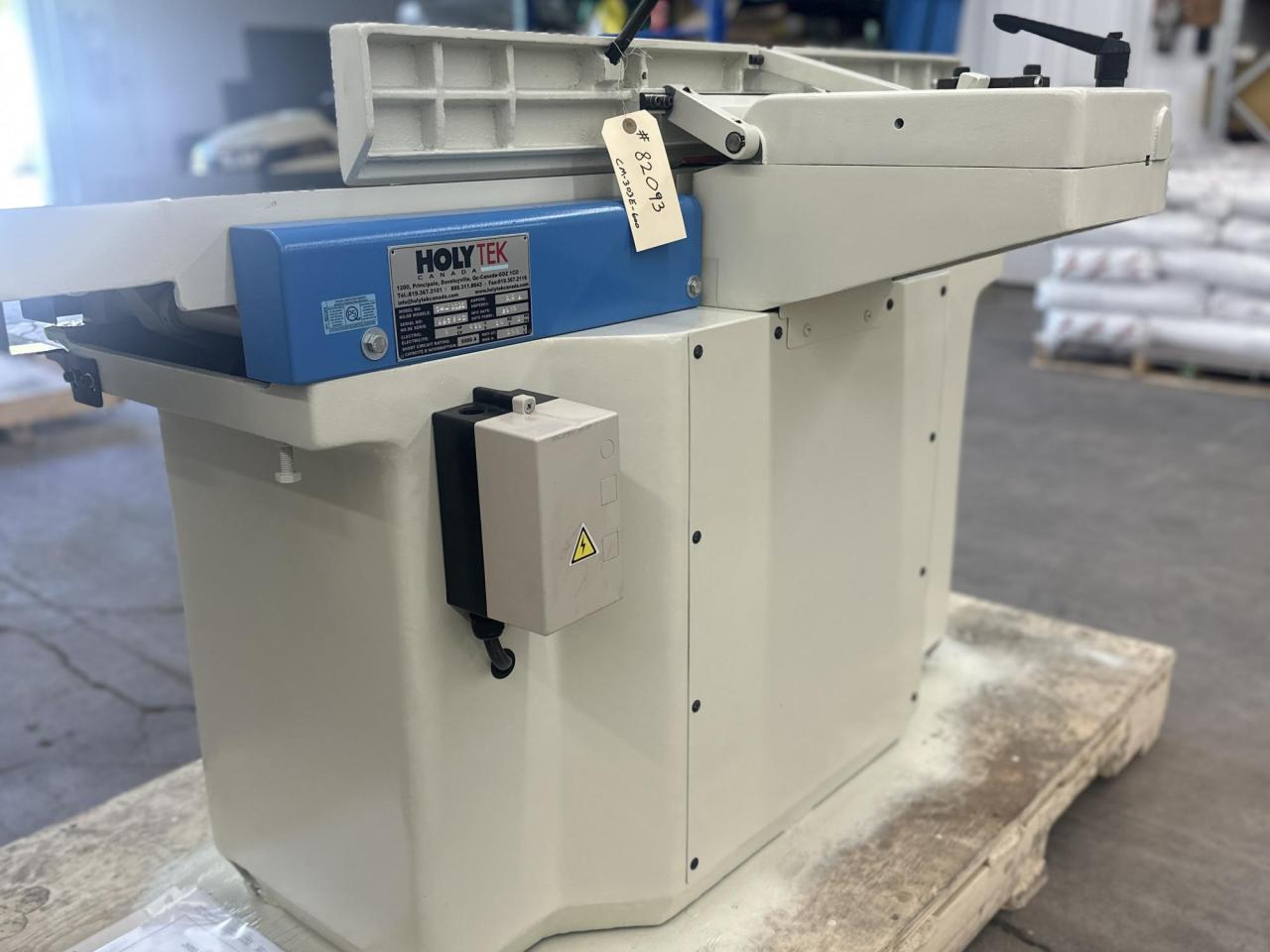

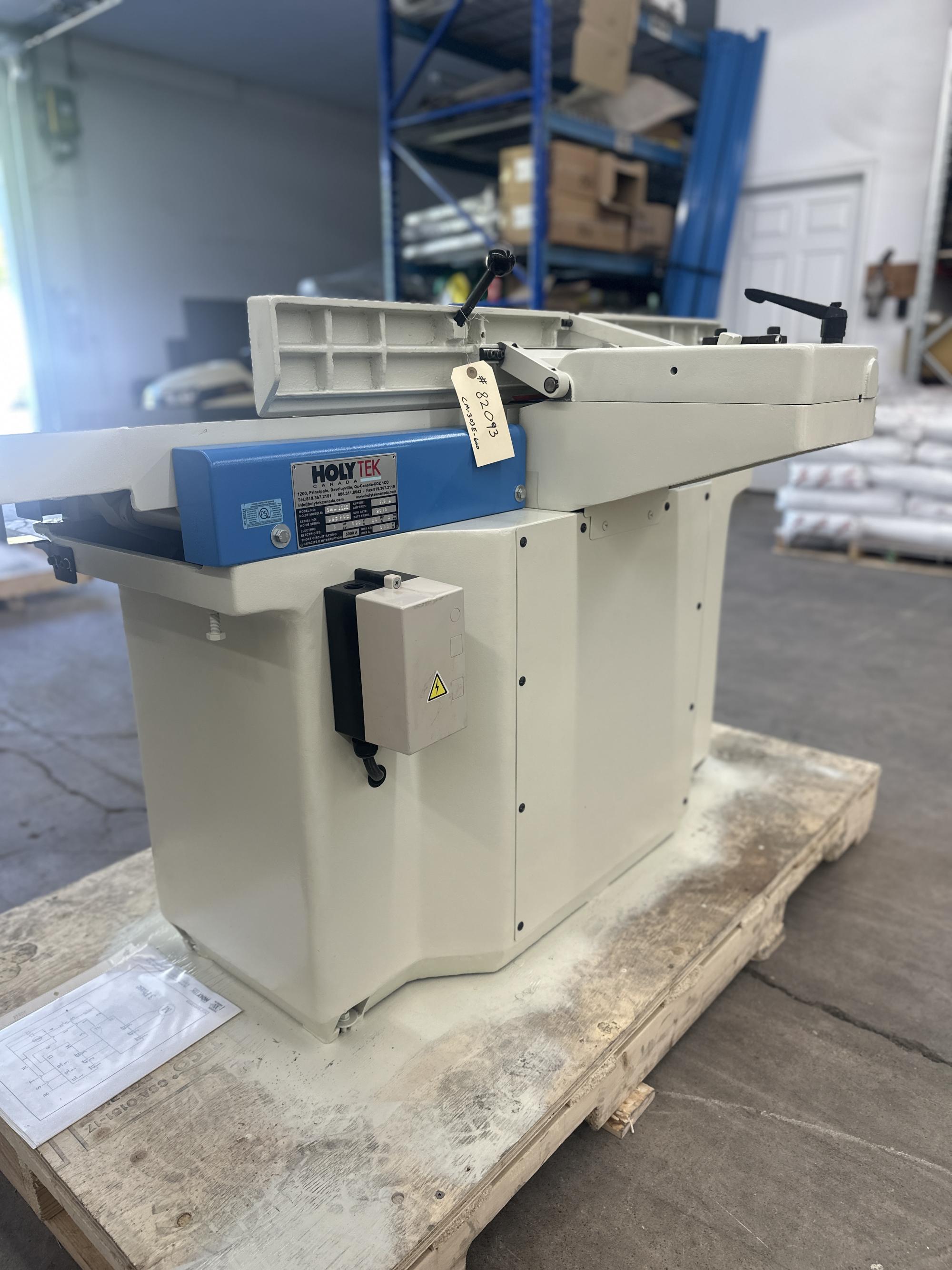

12" Holytek hand jointer model CM-303E-600

600V/60Hz/3Ph

Motor: 5 HP

• Speed: 3450 RPM

Maximum working width: 300 mm
Maximum depth of cut: 15 mm

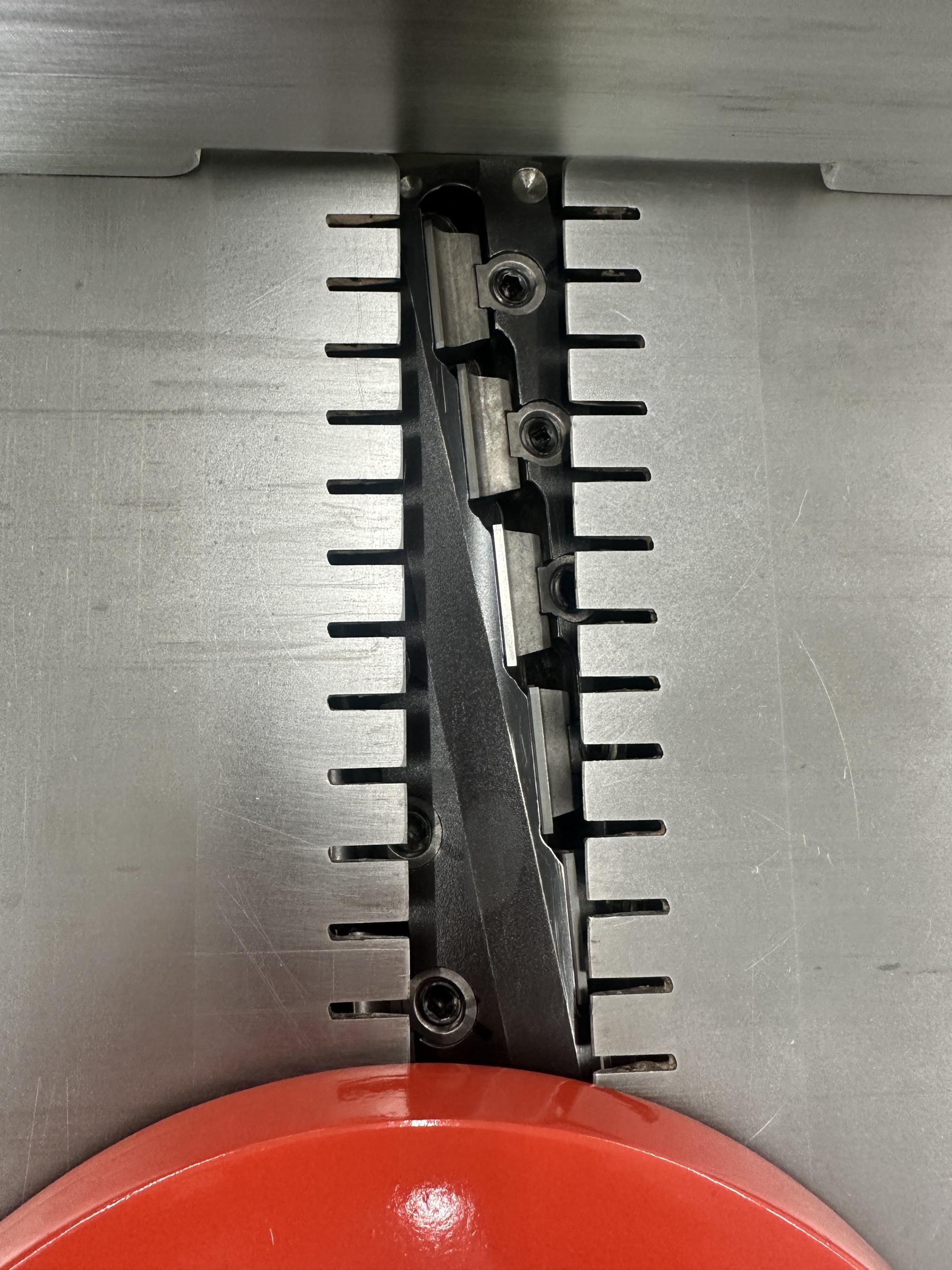

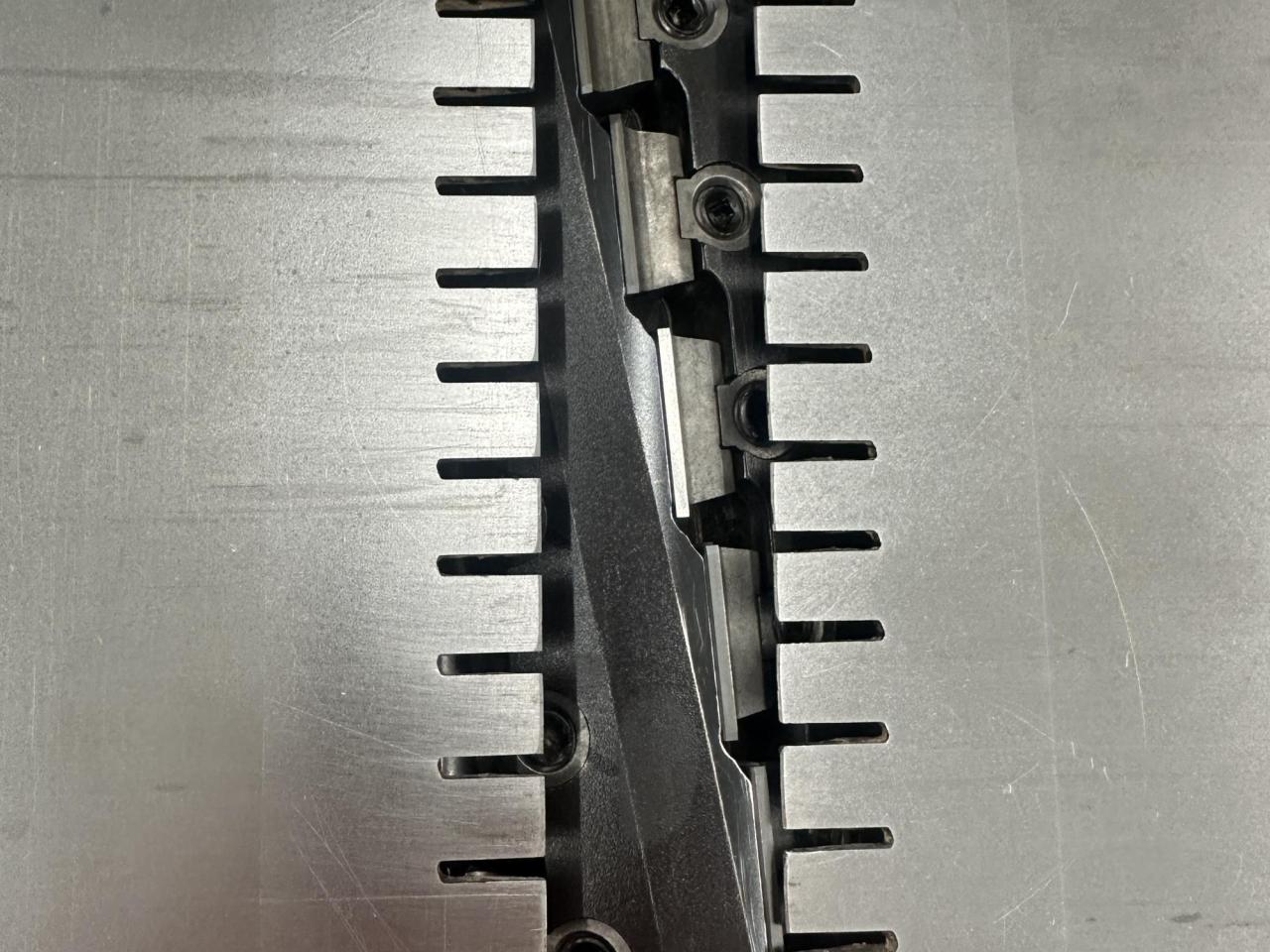

HPB 1220 Helical Cutterhead - 6T

• 100 mm(Dia.) x 300 mm(L)
• Speed: 5000 RPM
• Inserts 30 x 12 x 1.5 mm: 48

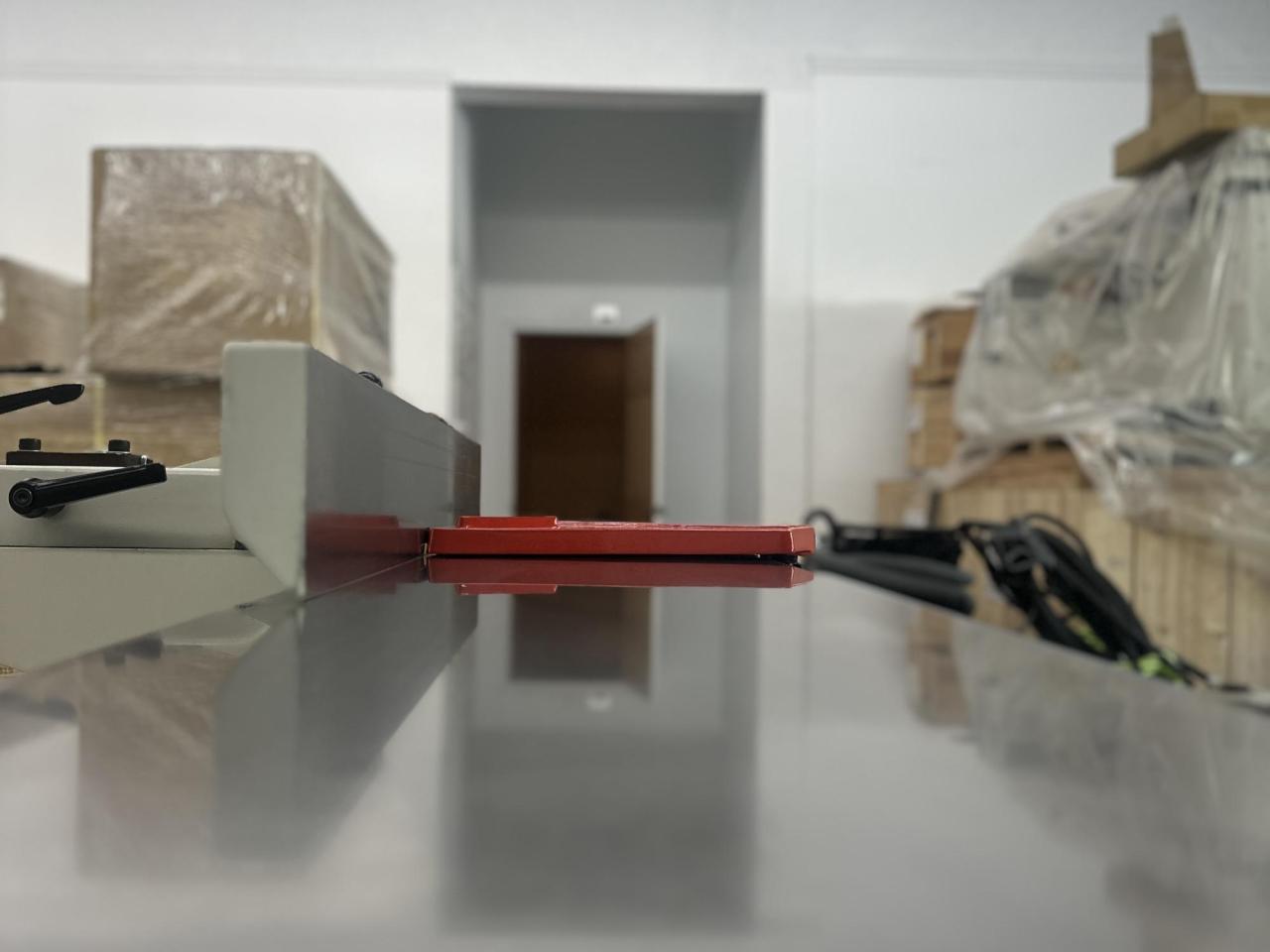

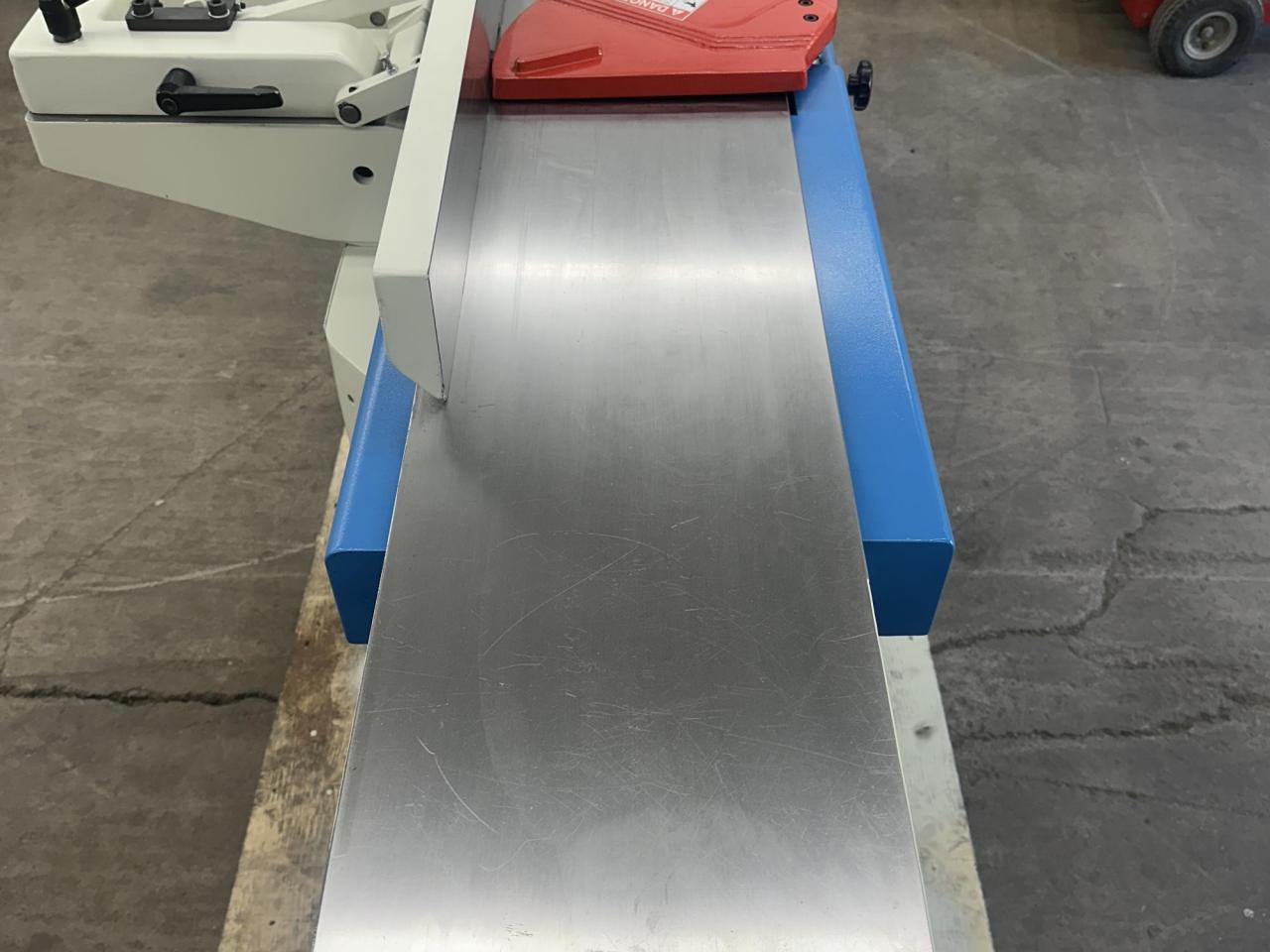

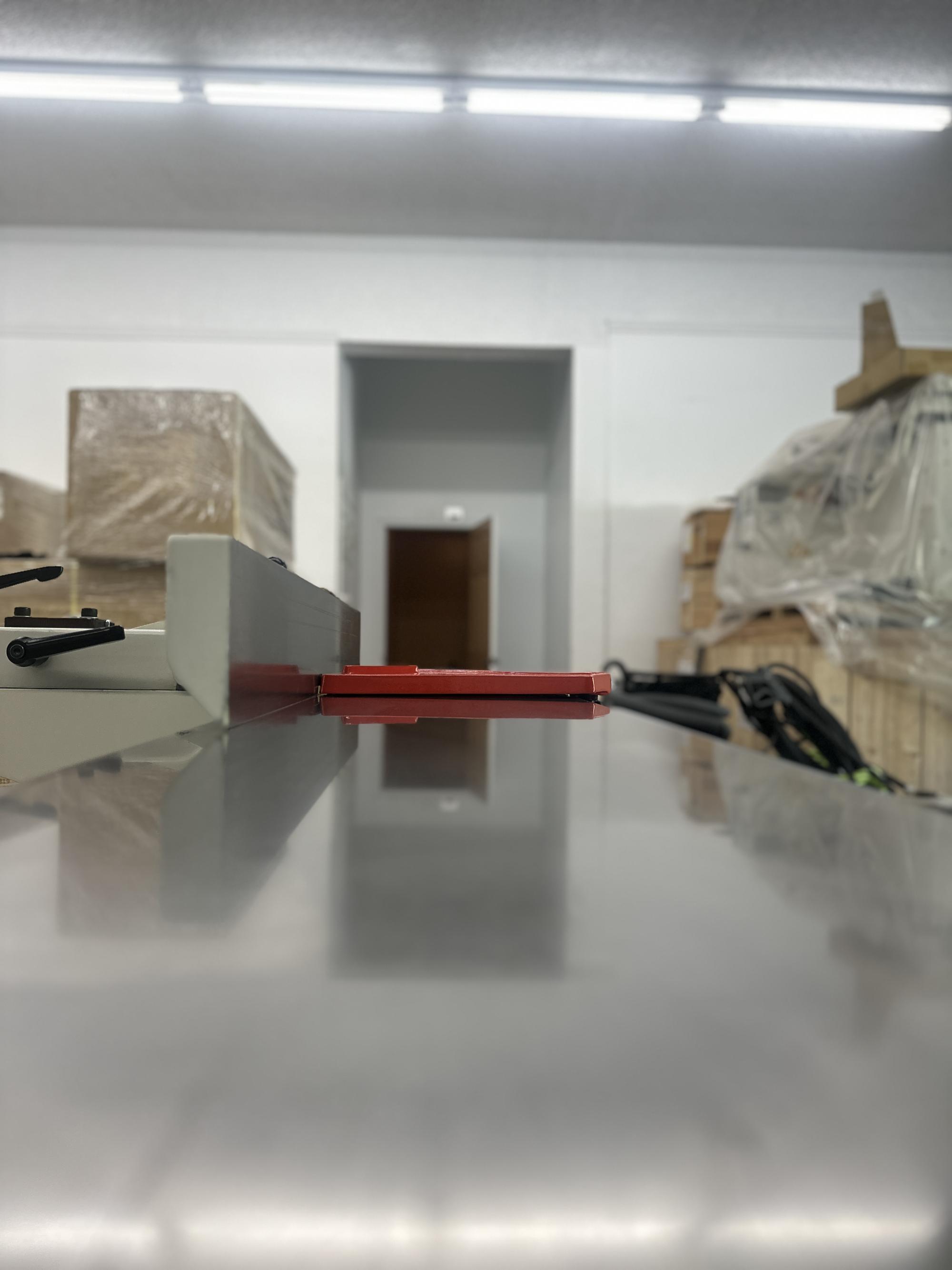

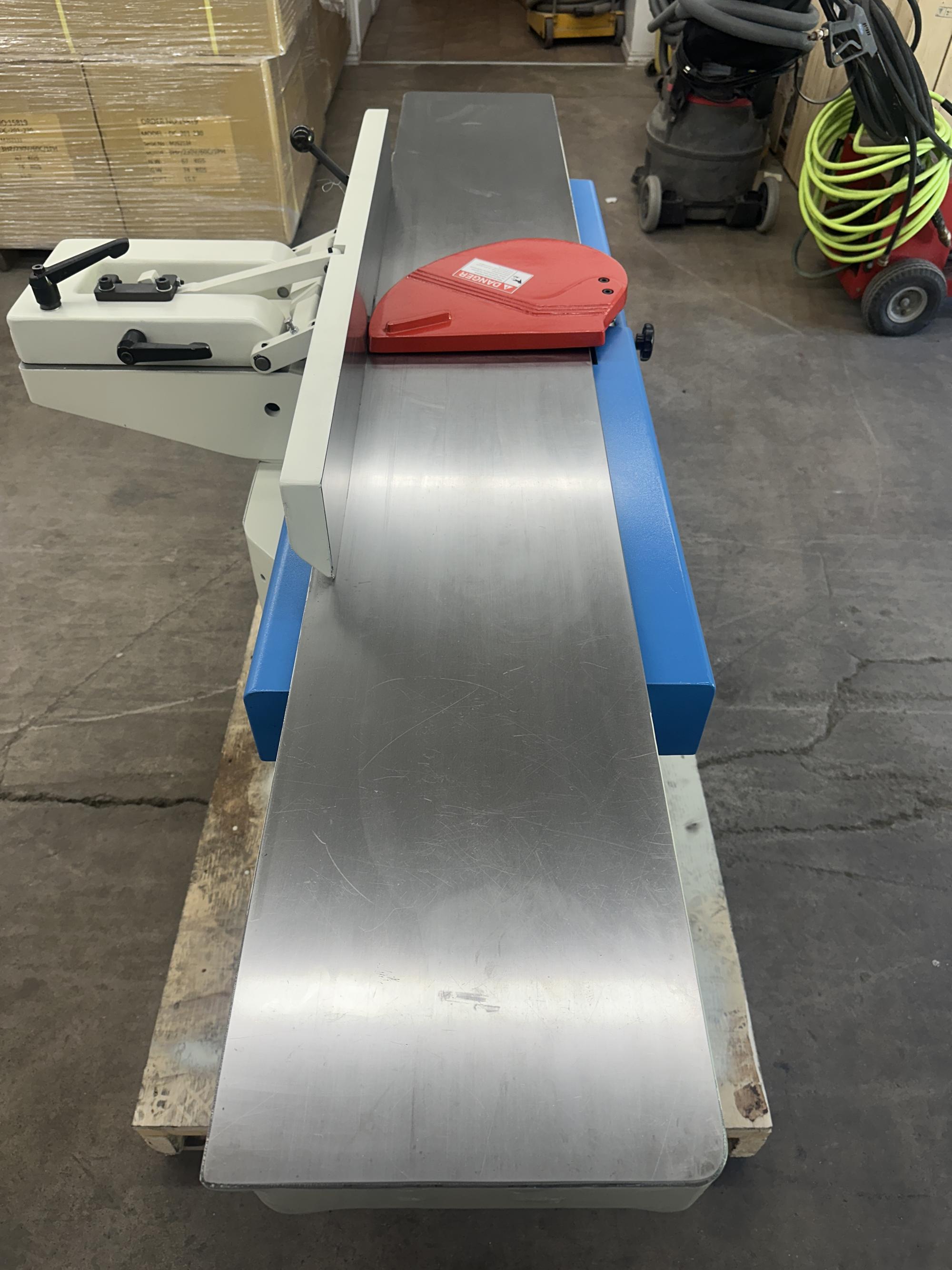

Work Table:
2020 mm(L) x 305 mm(W) x 105 mm(H) / 79-1/2''(L) x 12''(W) x 4-1/4''(H)

Table height: 800 mm

Elevating table travel: 15 mm

Fence: 1000 mm x 120 mm x 40 mm

Fence angle: 0° ~ 45°

Handwheel with retractable handle

Machine dimensions:
2024 mm(L) x 809 mm(W) x 961 mm(H) / 79-1/2''(L) x 31-3/4''(W) x 38''(H)

Weight: 490 kg / 1078 lb
