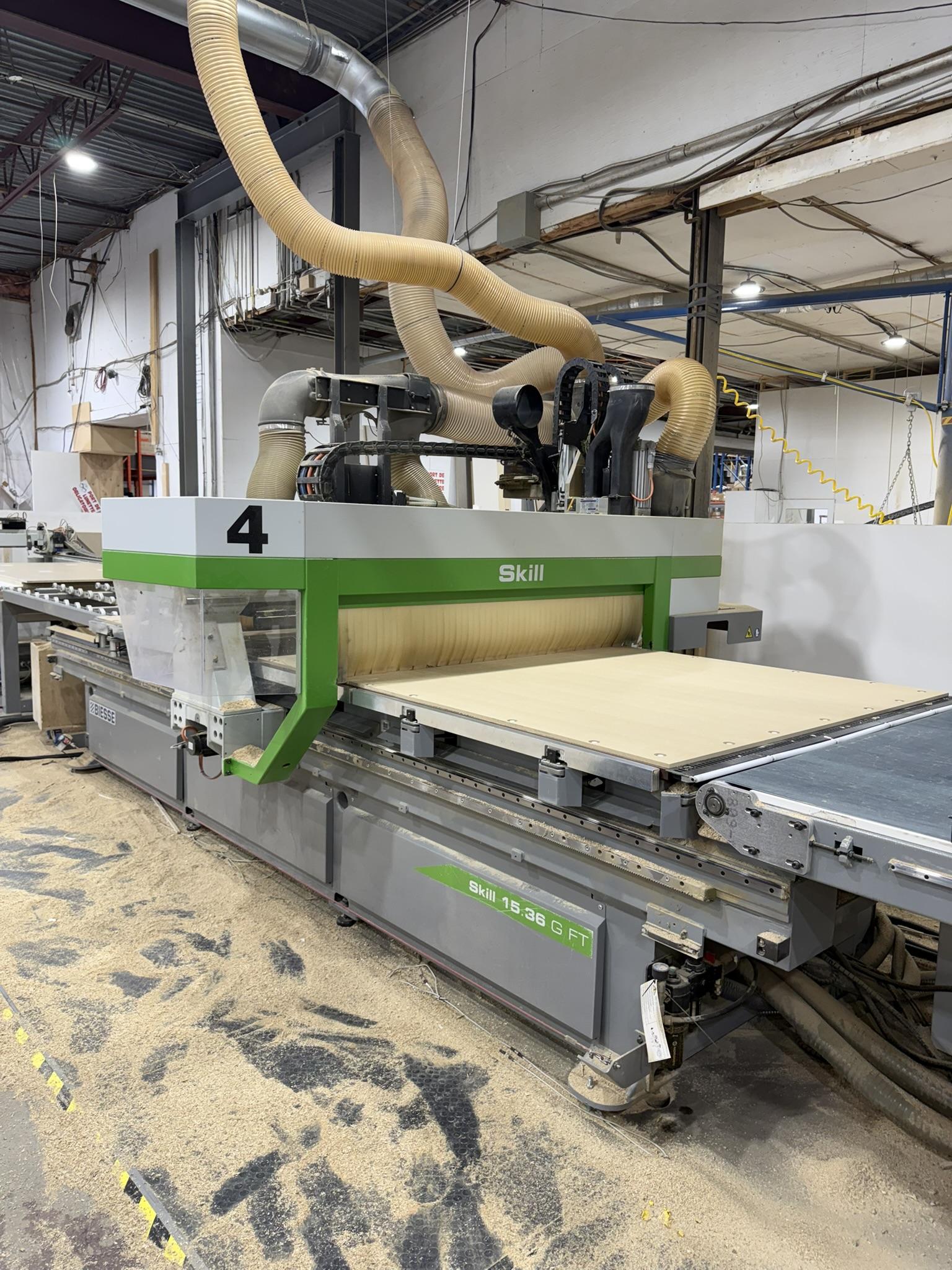

5 x 12 table – Phenolic matrix
Multiple voltage options: 230V / 460V / 380V / 600V
3-axis working capacity: (X 148.2" - Y 61.4" - Z 12.7")
Maximum cutting height: 4.7"
Travel speed: X and Y at 60 M/min – Z at 20 M/min
Year: 2015
Main motor: 16.1 HP HSD, variable from 1,000 to 24,000 RPM

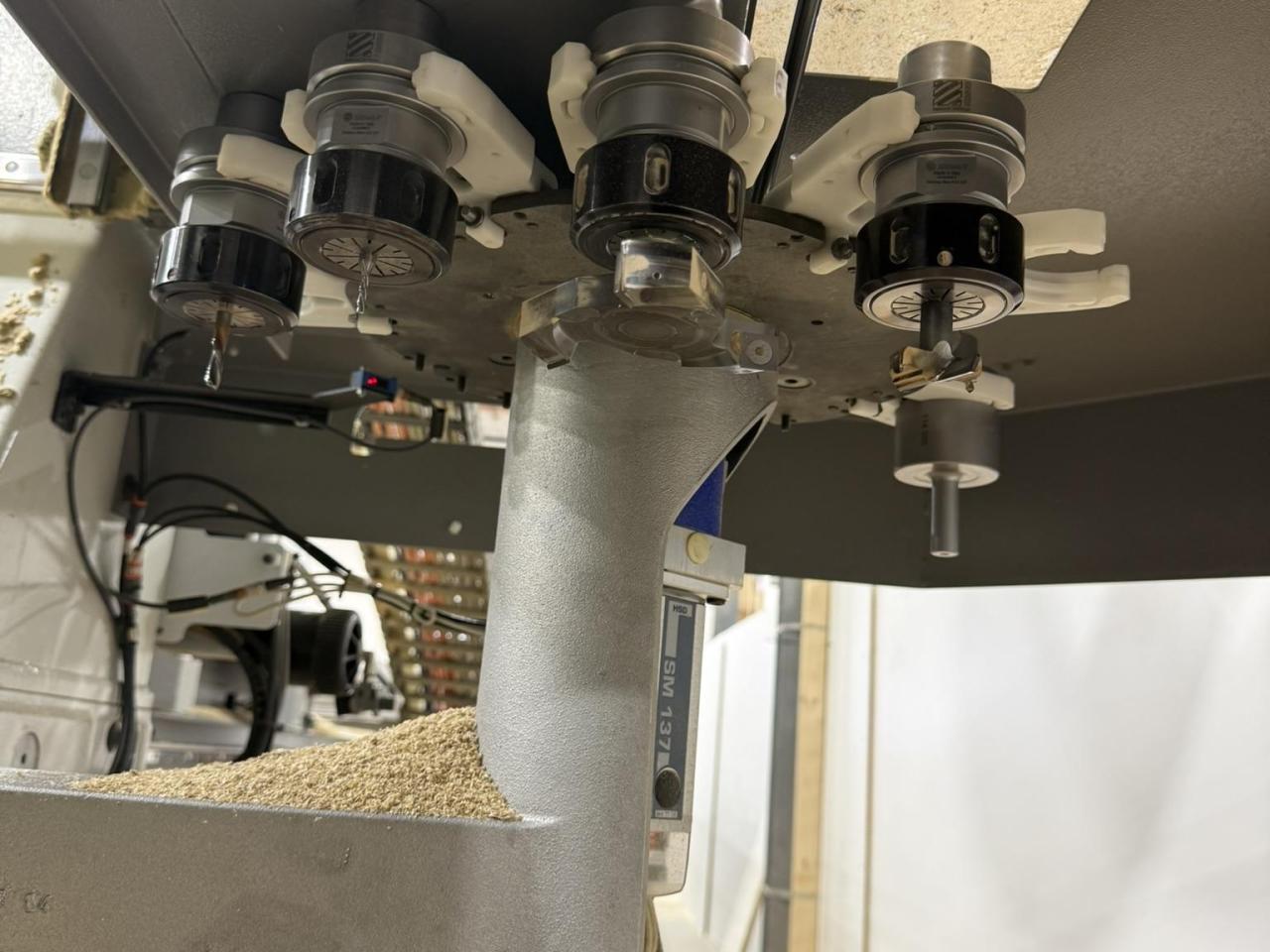

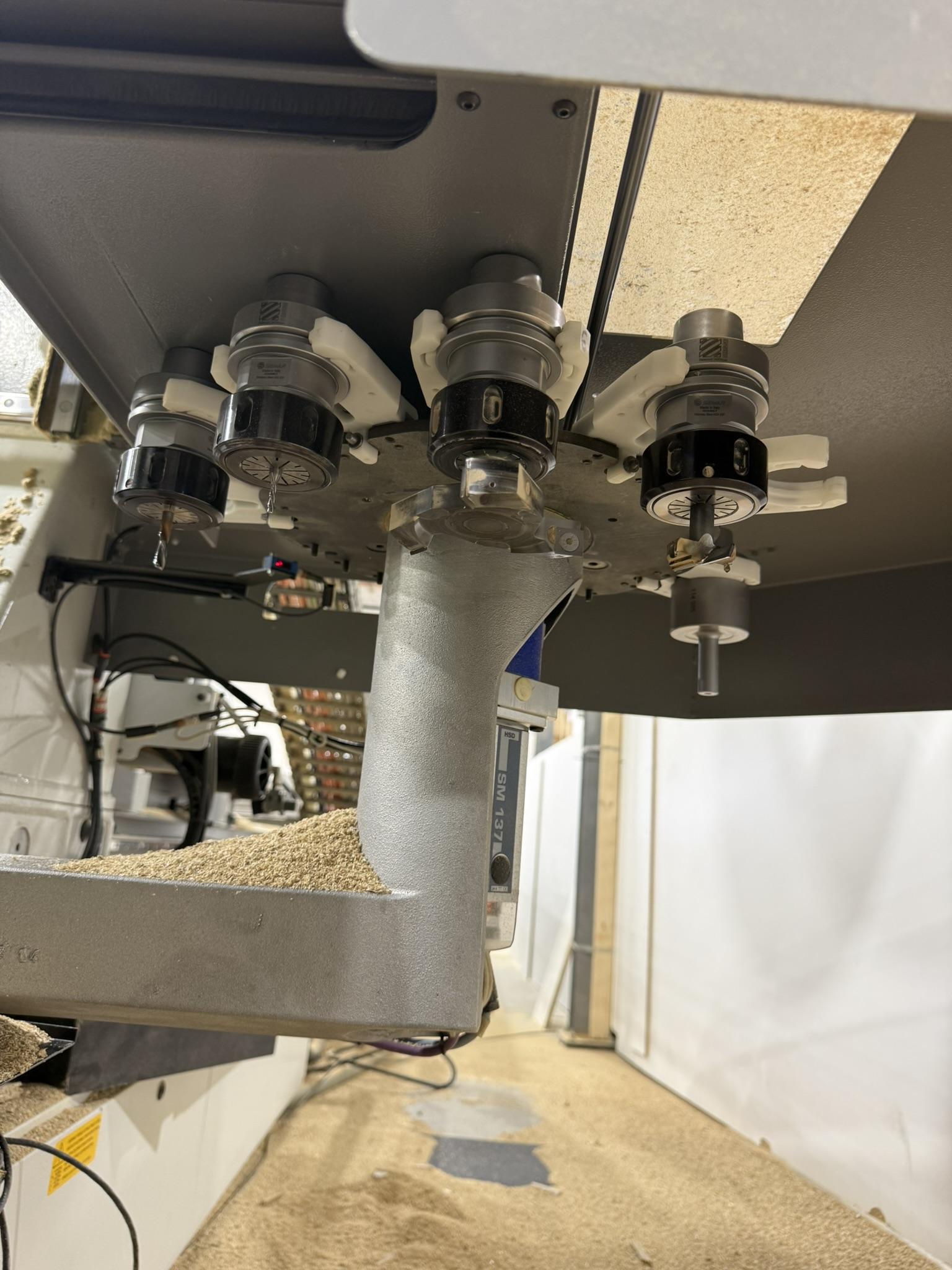

10-positions tool changer on the gantry
HSK F63 Tool holder
10 vertical drilling spindles: 6 along the X-axis and 4 along the Y-axis
4 working zones with independent stops
9 independent vacuum zones
Includes:
2 Bush Mink 1322 AVM vacuum pumps, 9 HP each, delivering 360 m³/h (212 CFM)
Centralized automatic lubrication system

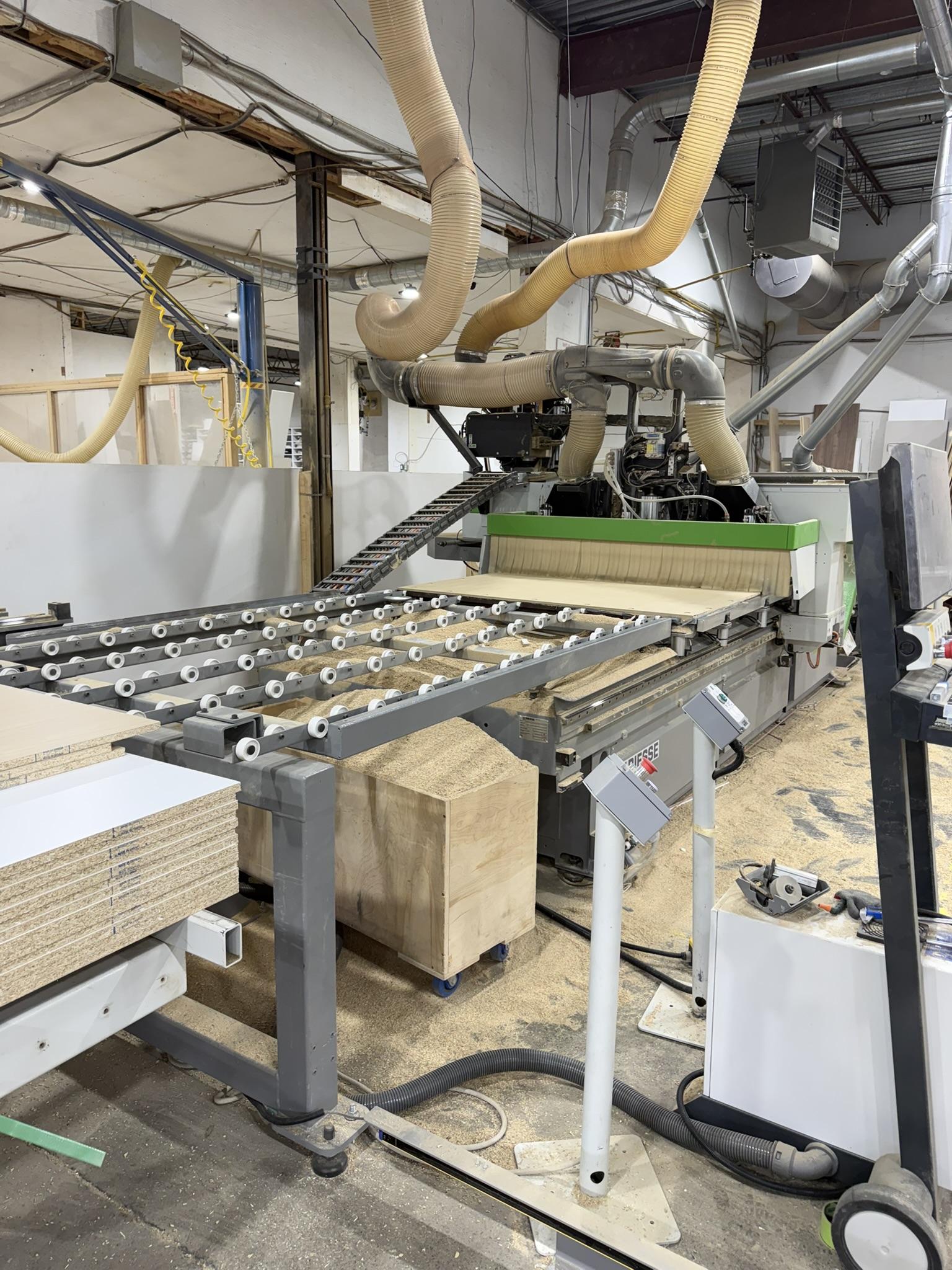

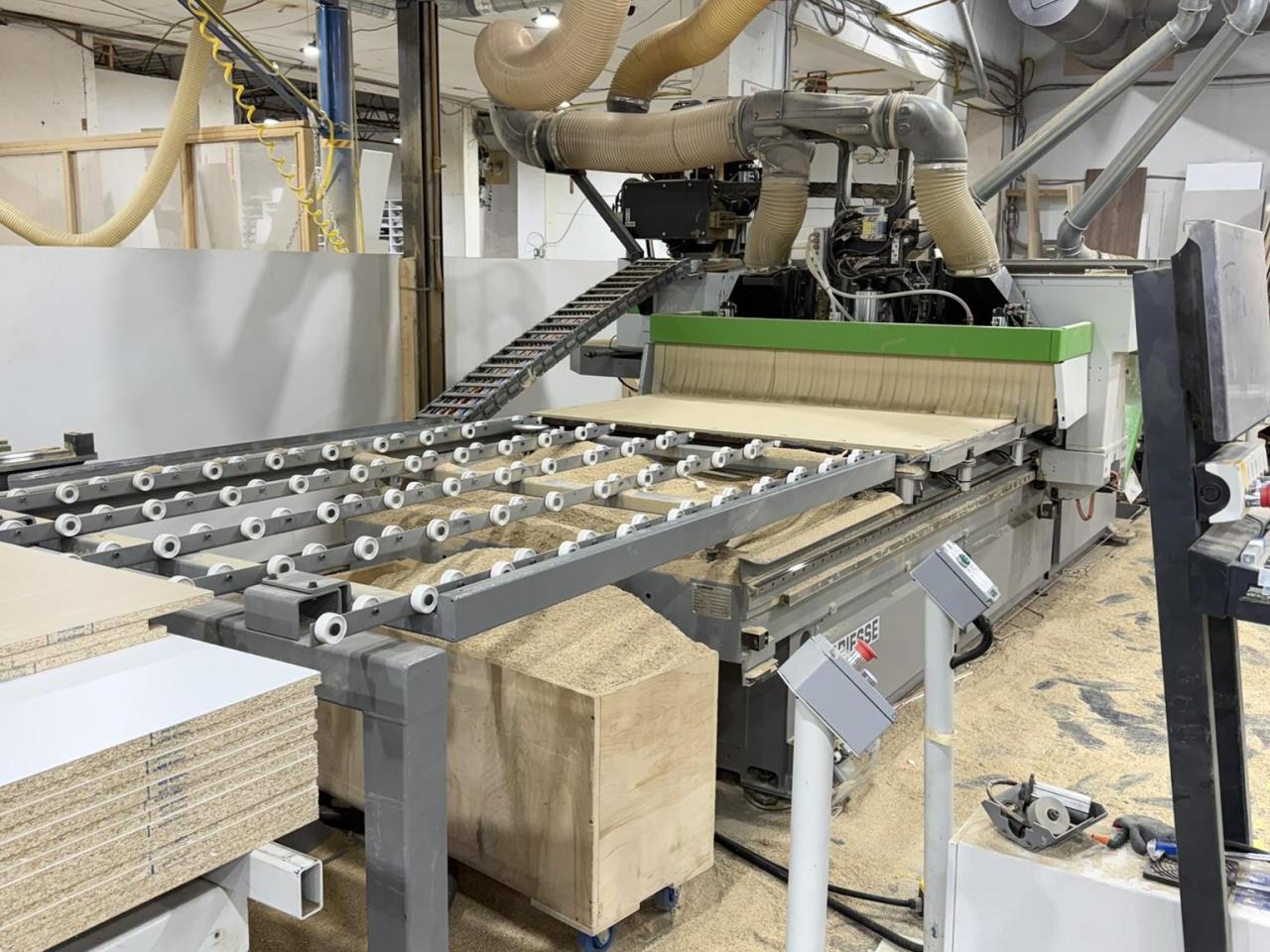

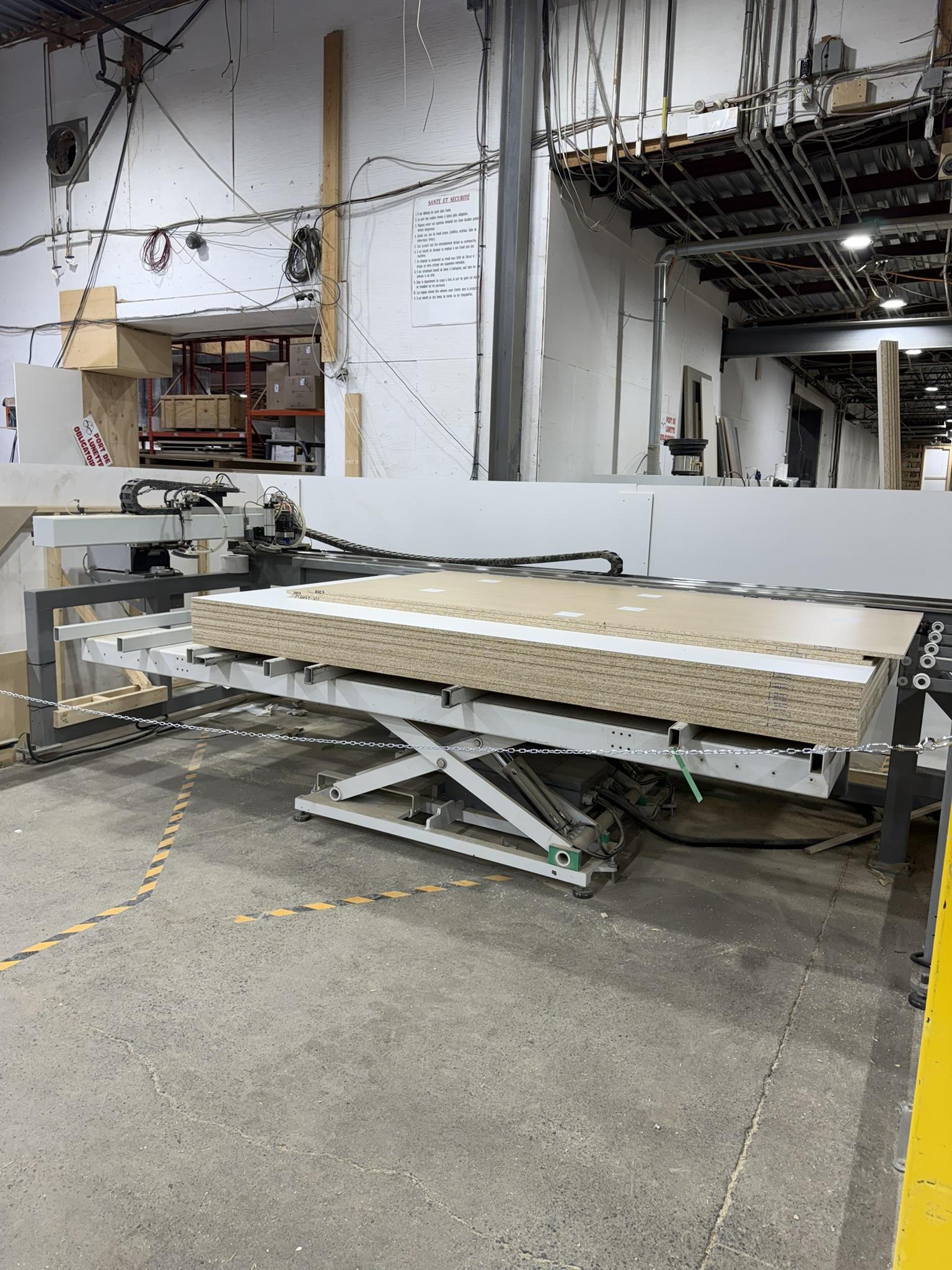

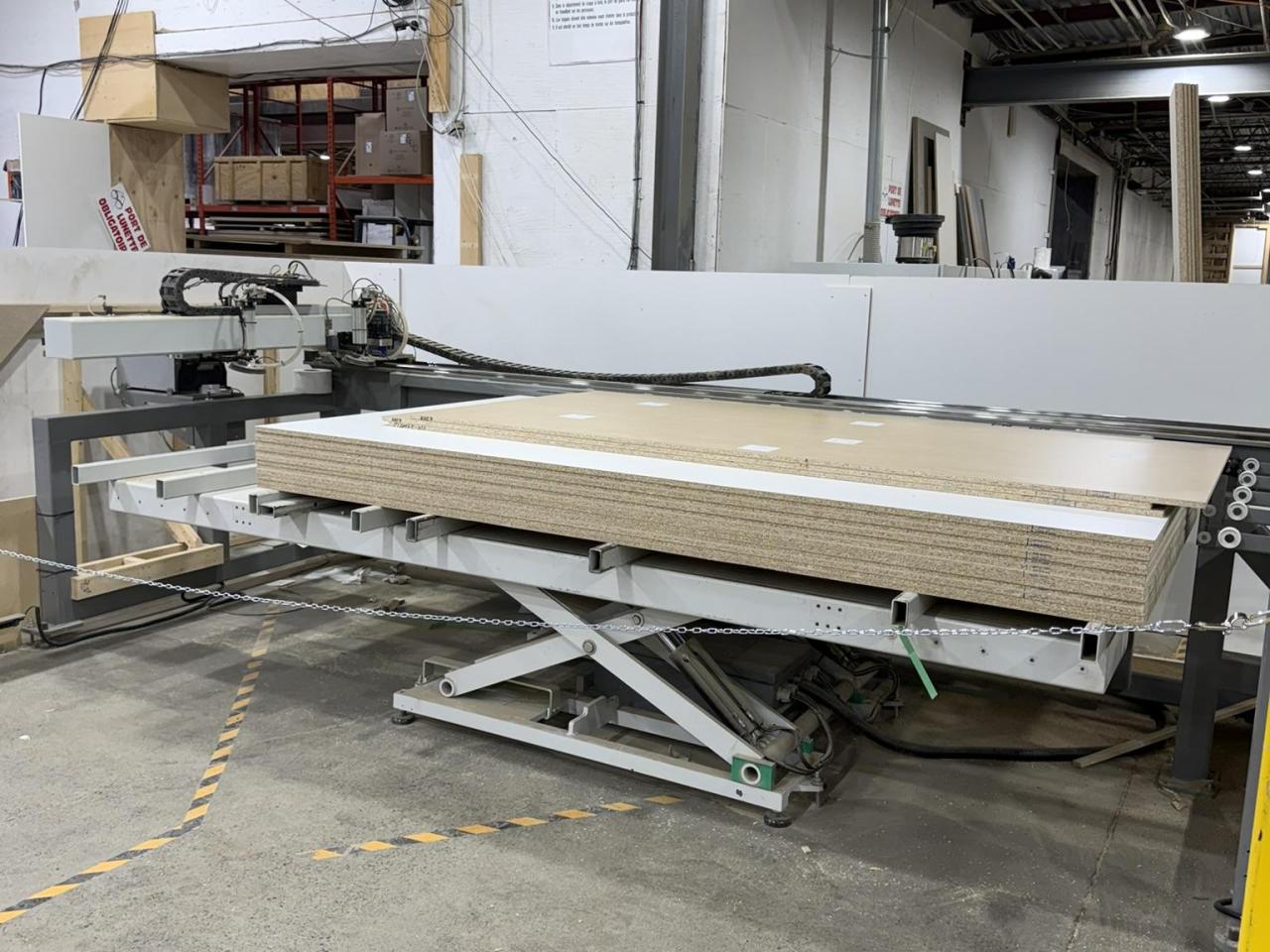

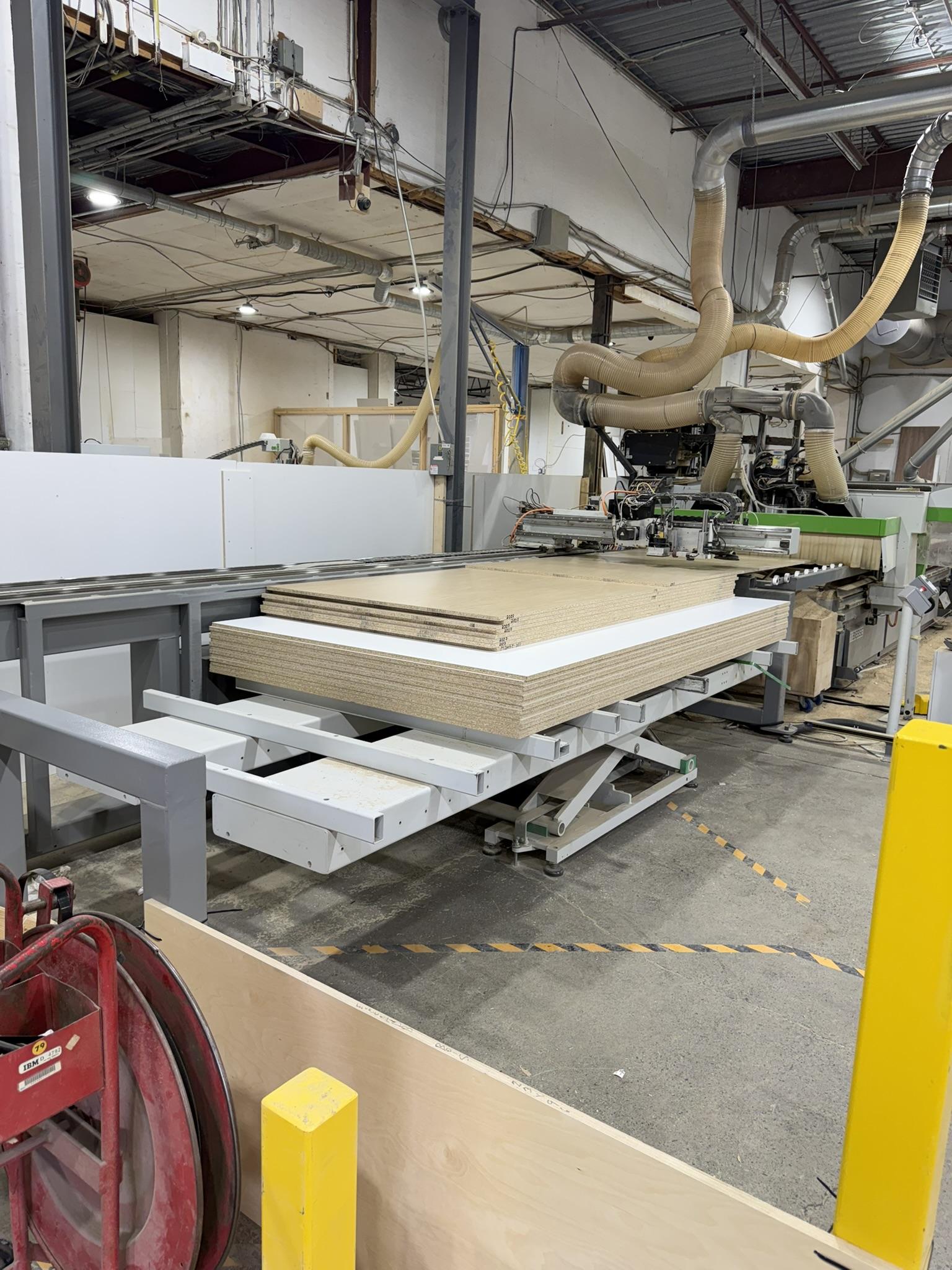

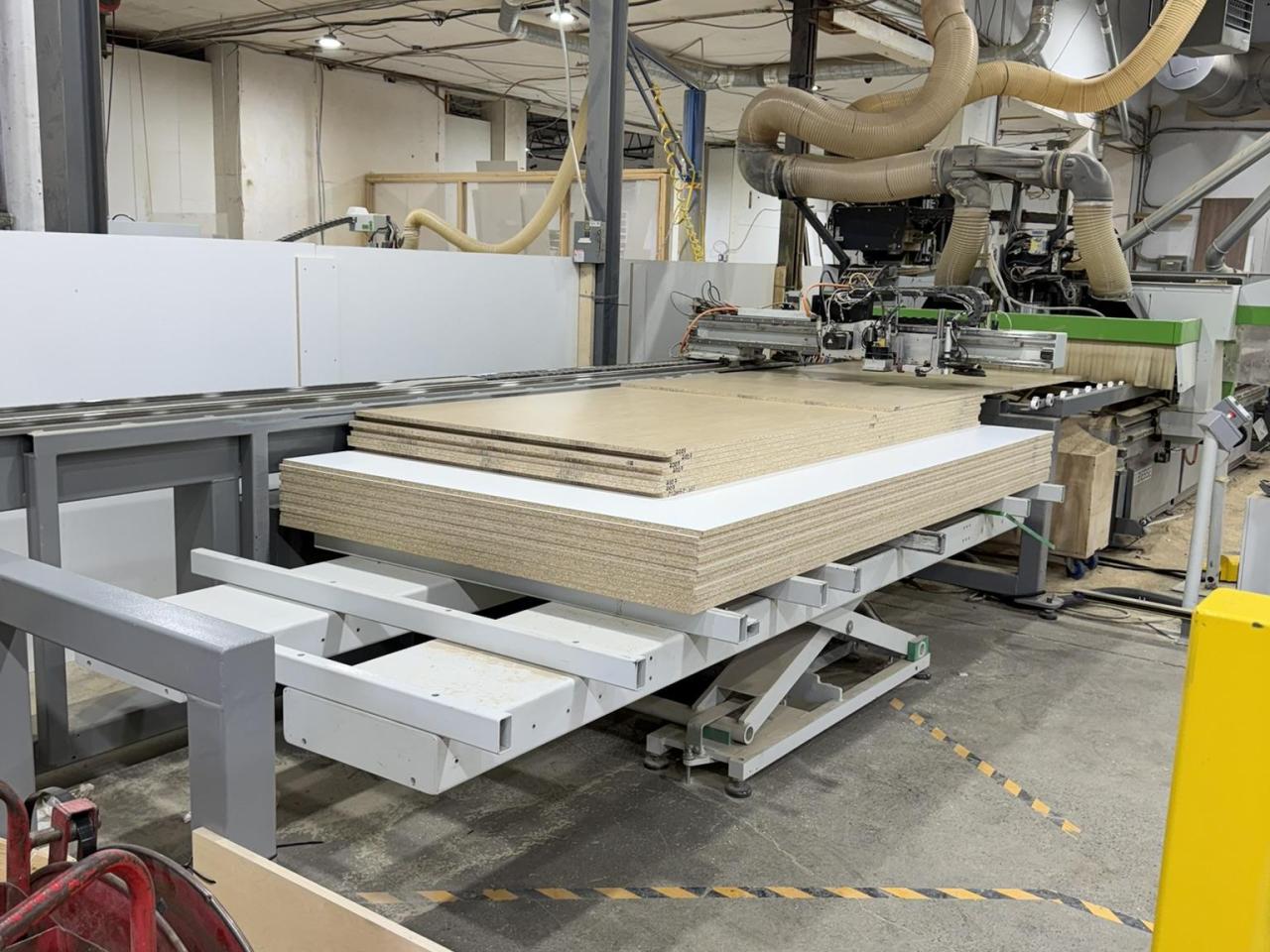

Lift table with 7,000 lb capacity, vacuum suction loading – Dimensions: 12’ x 5’

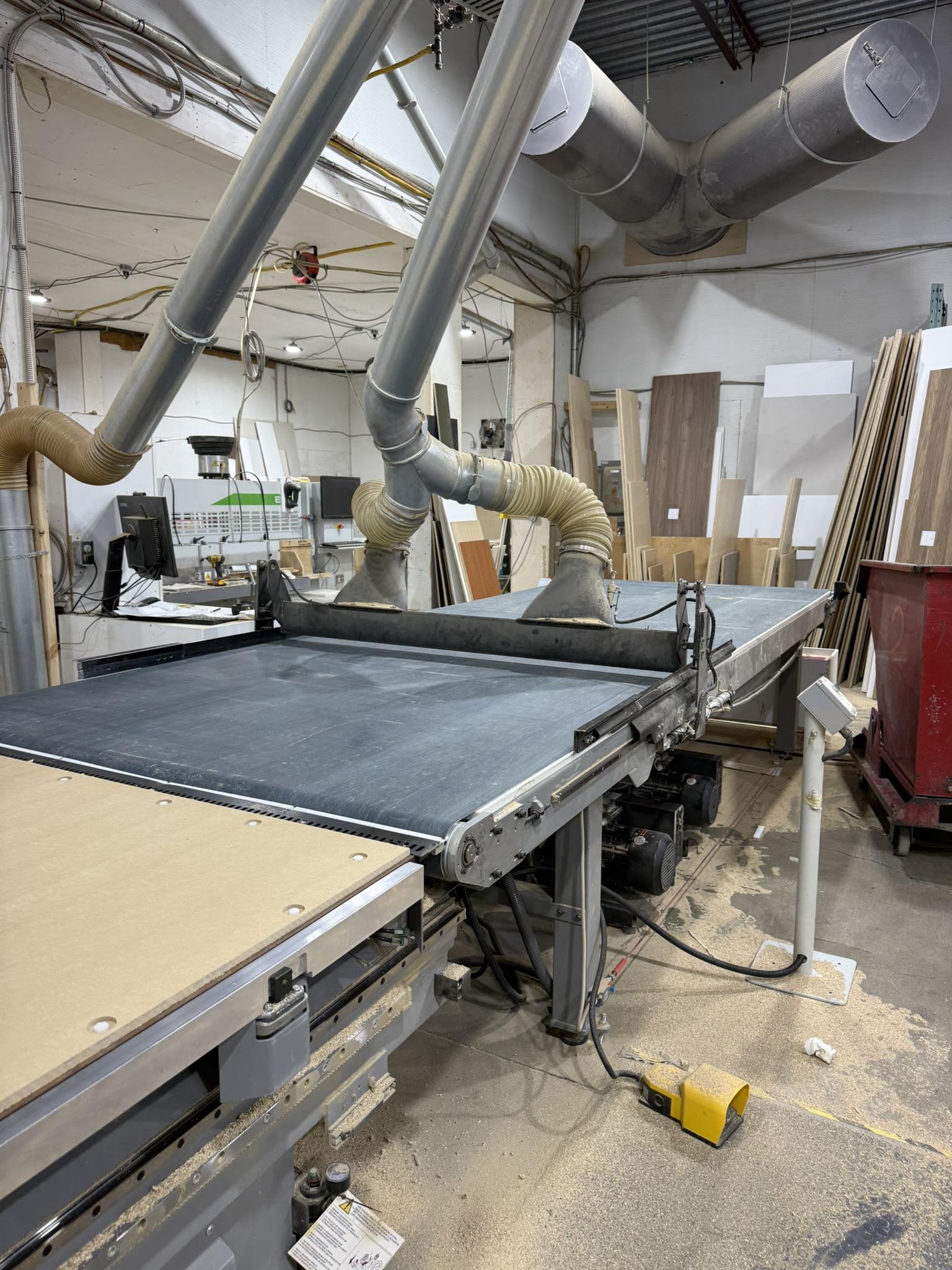

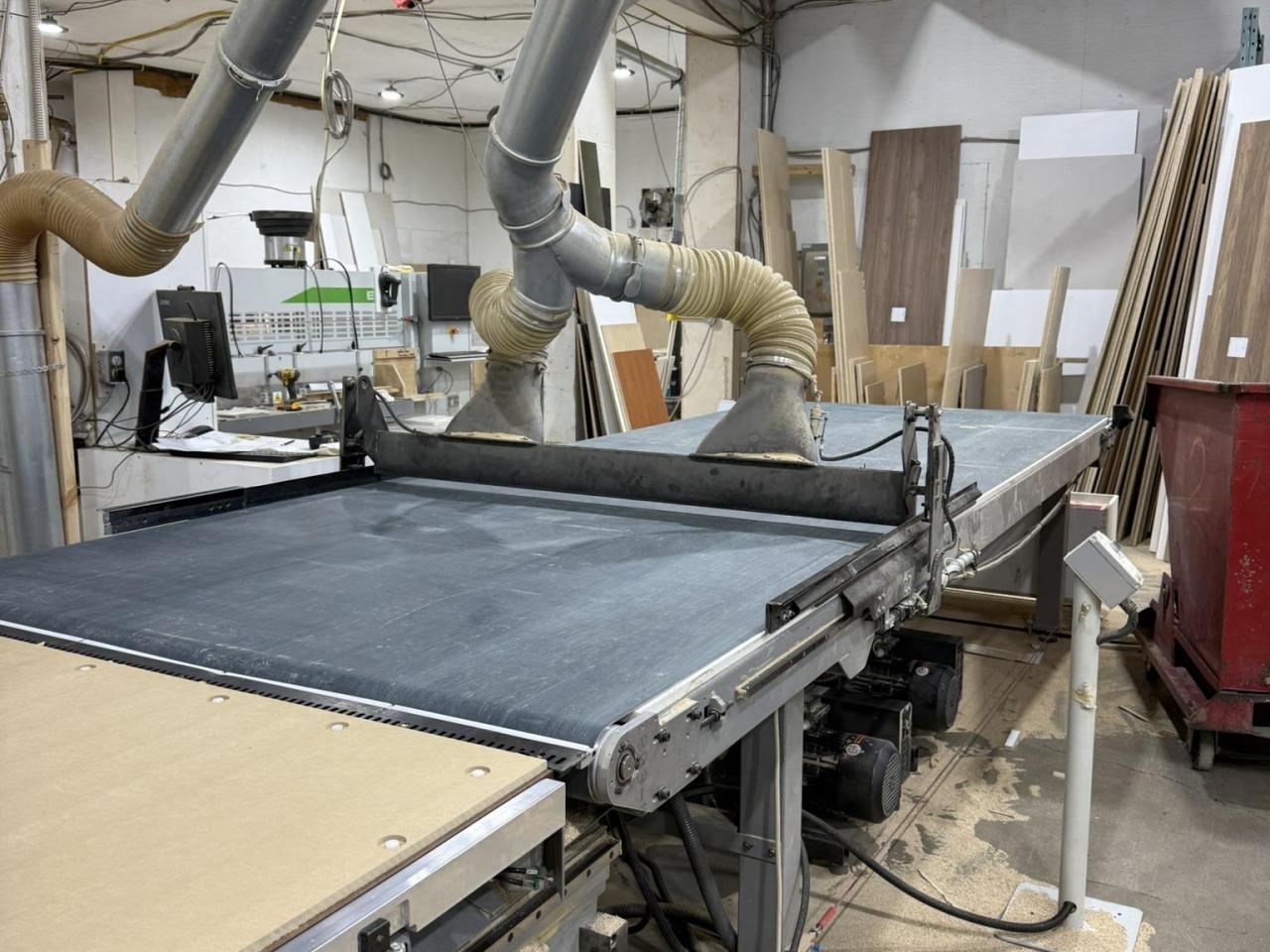

Unloading table: 14.3’ x 5’ motorized conveyor with dual upper and lower suction

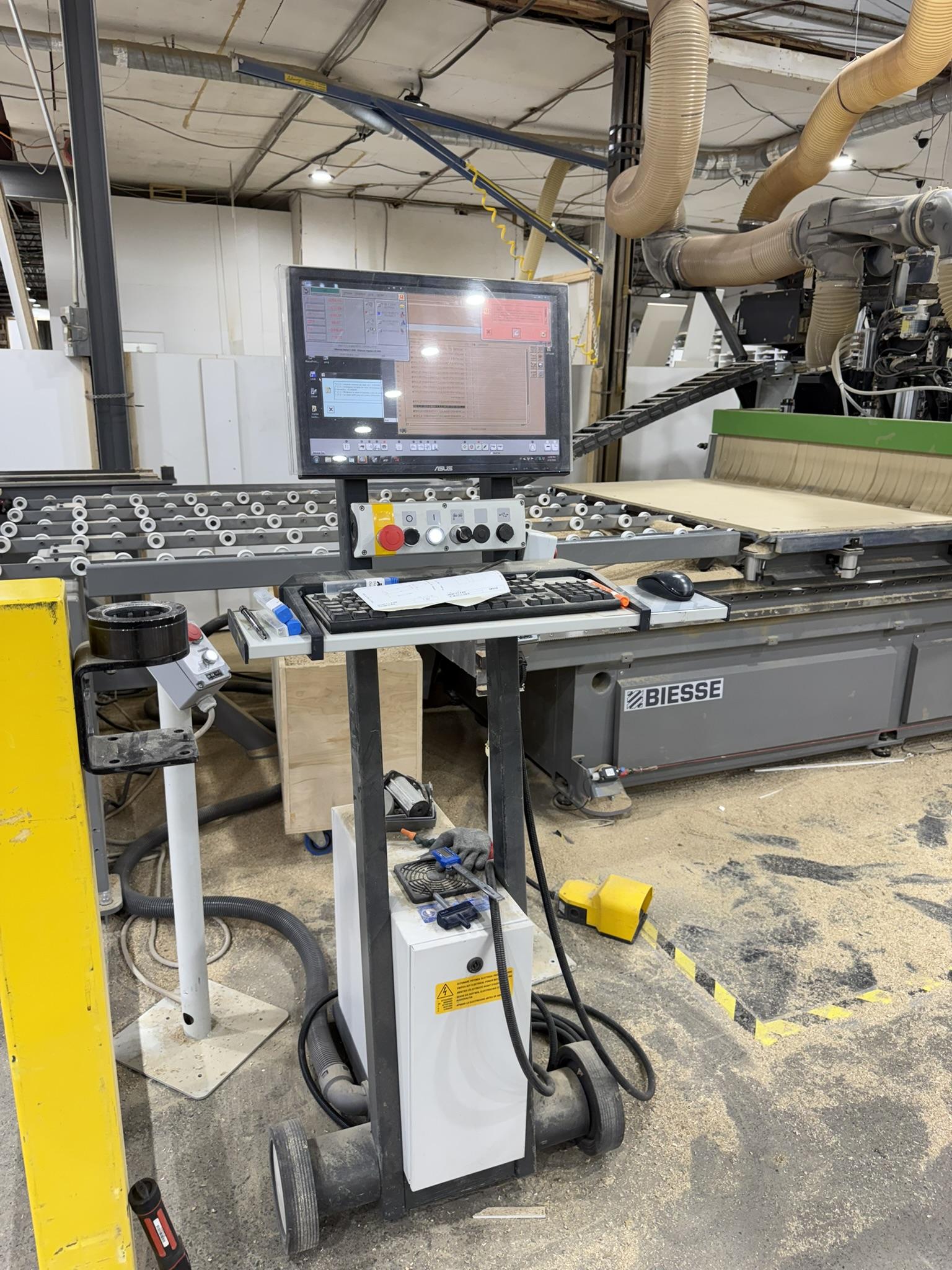

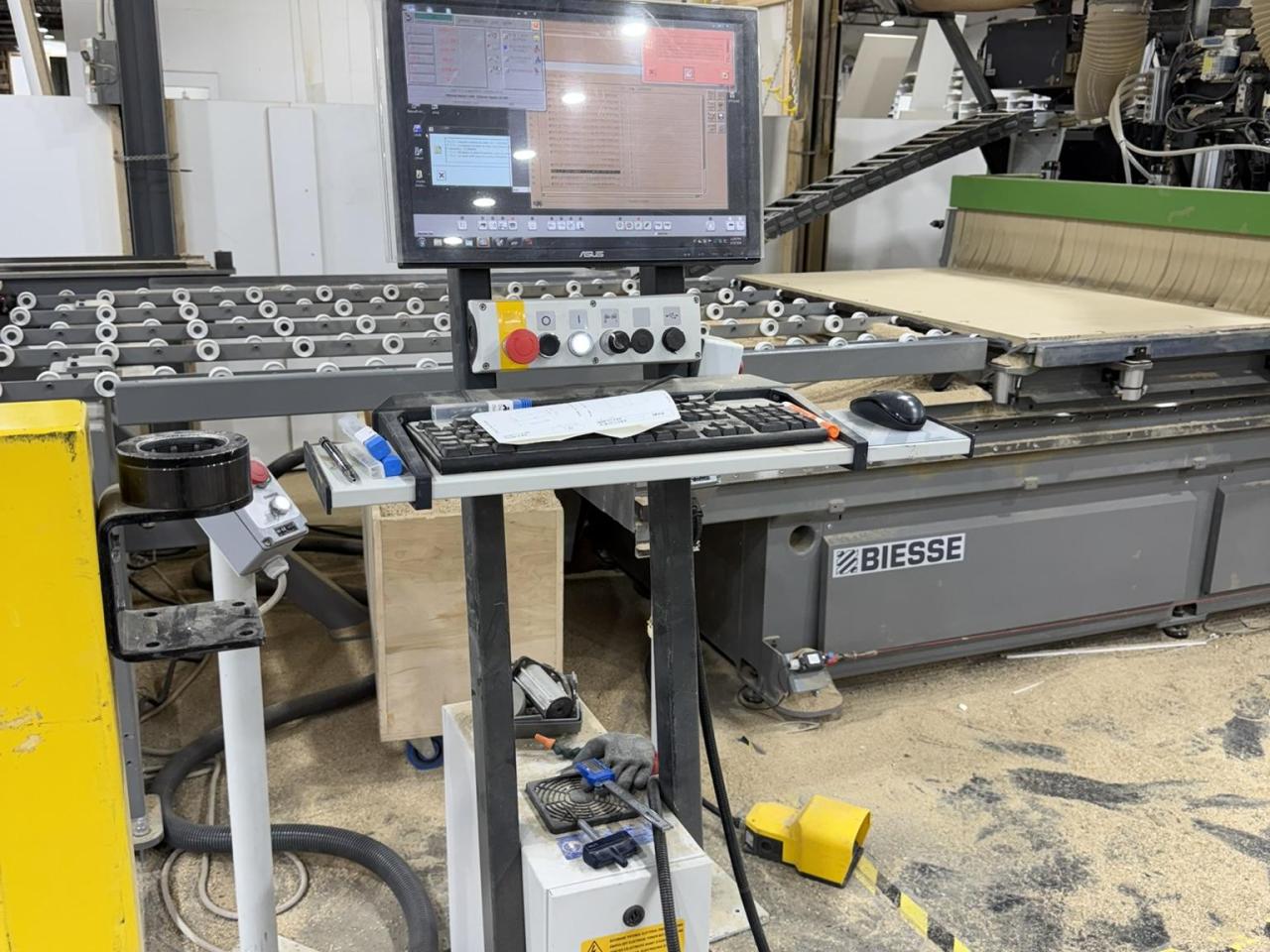

Biesse Work software
Includes: Safety features with photoelectric curtain sensor + safety mat
Overall dimensions: 50’ long x 13’ wide
Total weight: 12,000 lb
