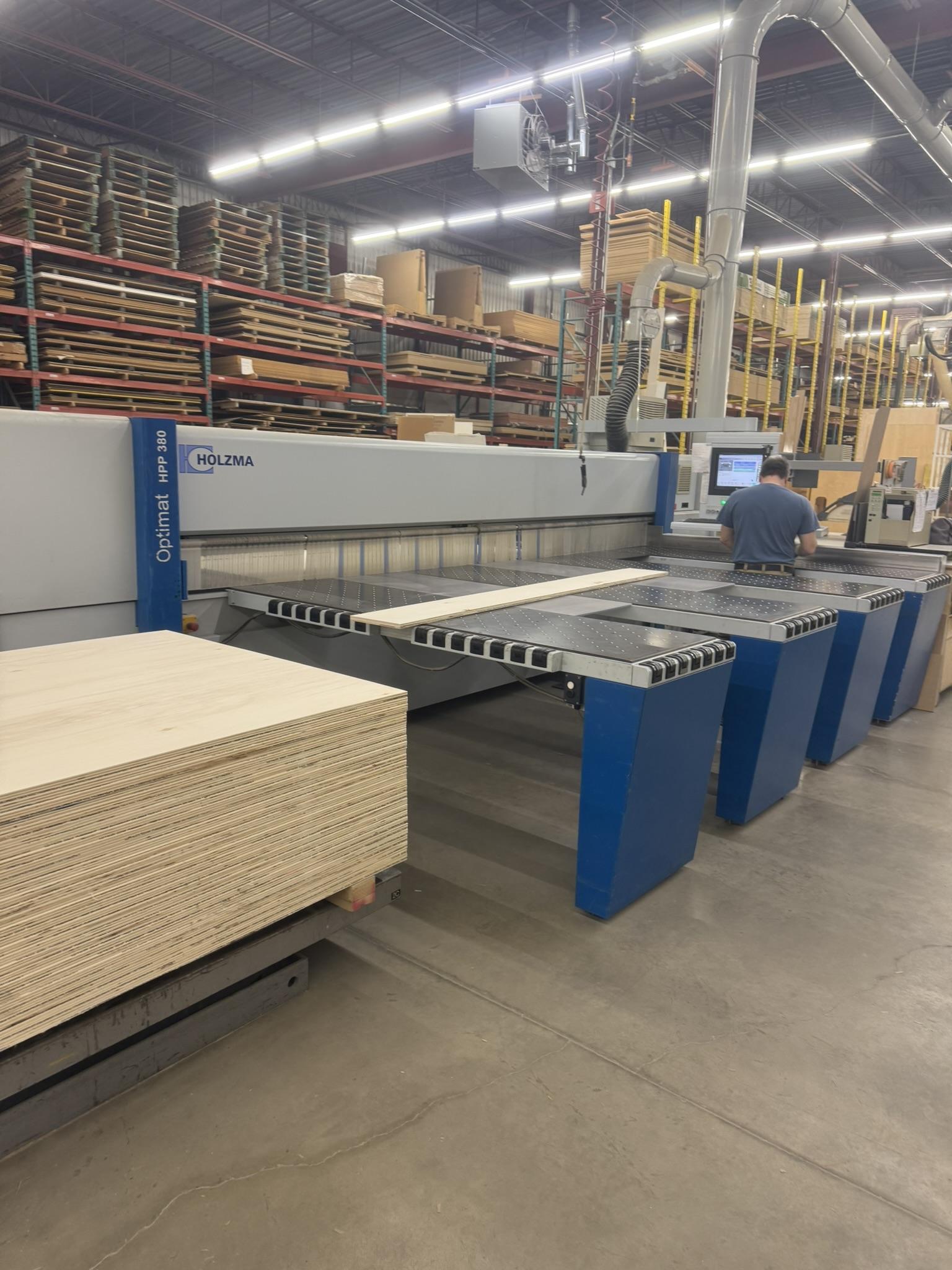

Beam saw Holzma OPTIMAT HPP 380/43/43

HOLZMA HPP 380/43/43

Cutting Capacity

• Cutting length: 4300 mm
• Cutting width (pusher stroke): 4300 mm
• Cutting height (blade projection): 95 mm
• Typical panel size: 5' x 12'

Sawing Unit

• Main saw blade diameter: 380 mm
• Main motor: 13.5 kW (18 HP)
• Scoring saw: 2.2 kW
• Adjustments: automatic height & adjustable vertical pressure

Speeds & Performance

• Saw carriage feed speed: 1 to 150 m/min (variable)
• Pusher speed: 90 m/min

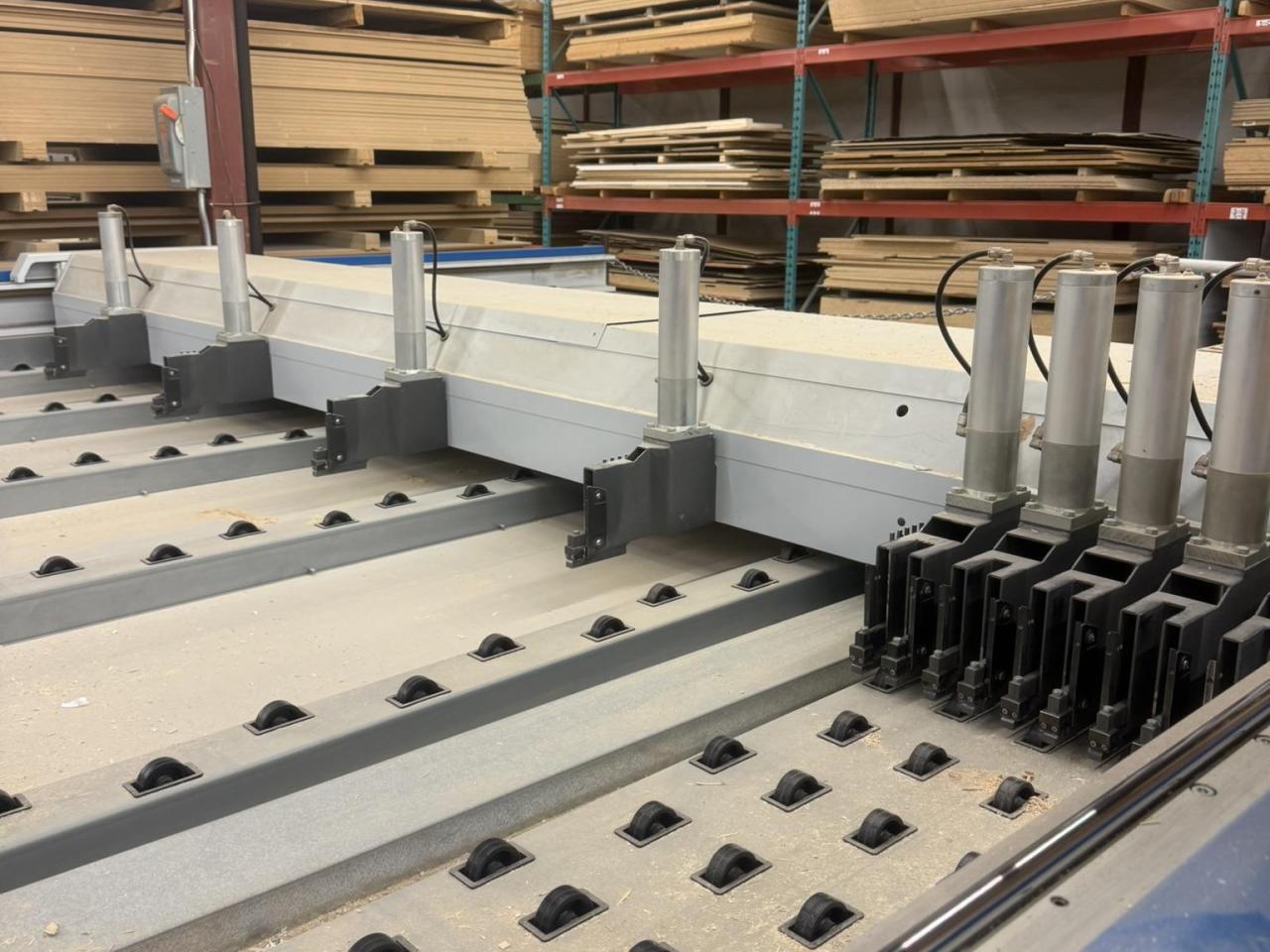

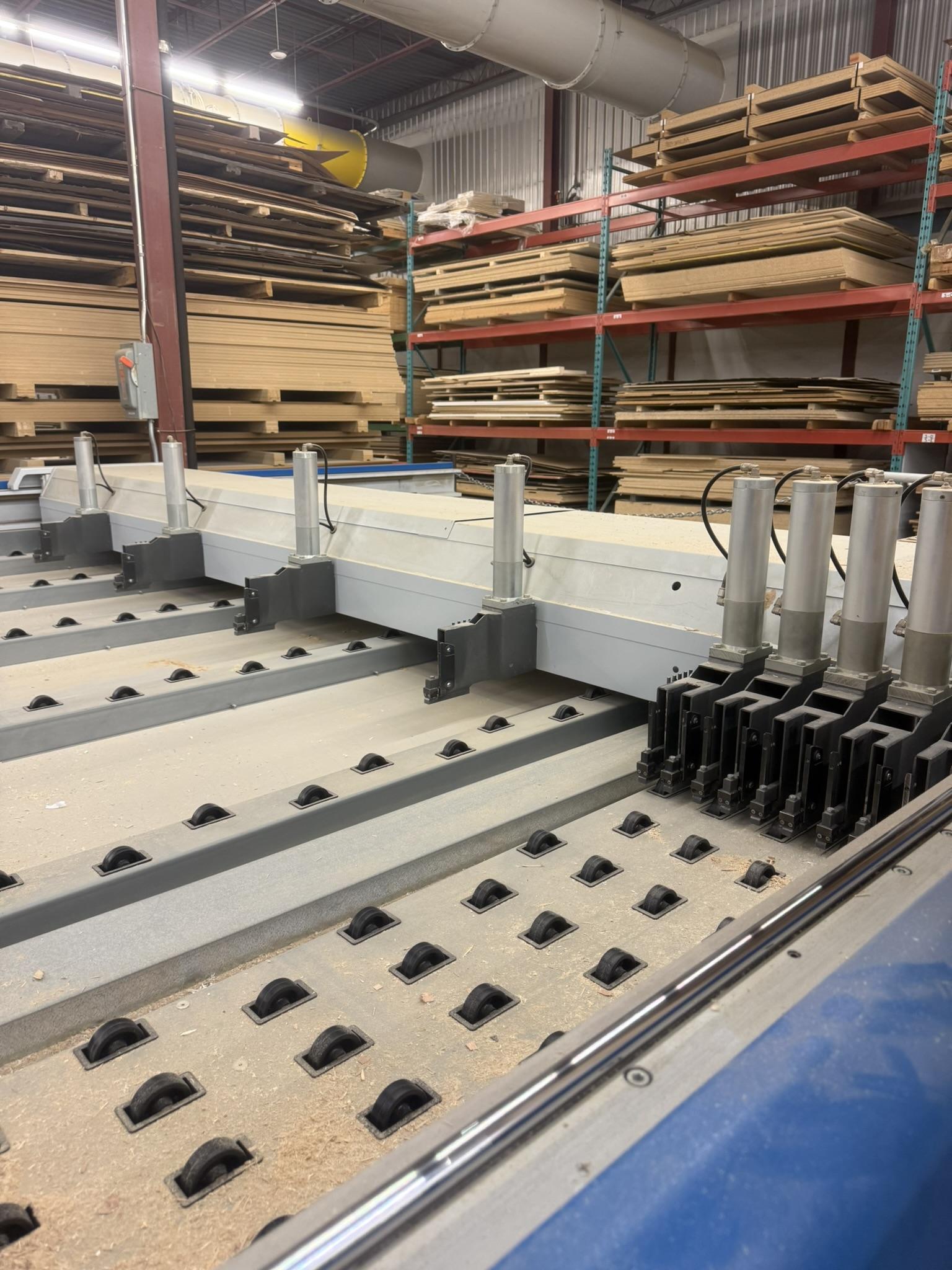

Clamping & Pusher System

• Number of clamps: 7 automatic clamps
• Type: single-finger + dual-finger clamps (depending on position)
• Clamp opening: 100 mm
• Positioning: servo-driven with precision rack and pinion

Tables & Material Handling

• Multi-section air flotation tables
• Roller rails: rear + side
• Central air blower: integrated for panel handling

Electrical Requirements

• Power supply: 600V / 3 phase / 60 Hz
• Total power: 20 kW

Air Requirements

• Required pressure: 90 PSI
• Required flow: 5 CFM

Overall Dimensions

• Dimensions: 6514 mm x 7693 mm
