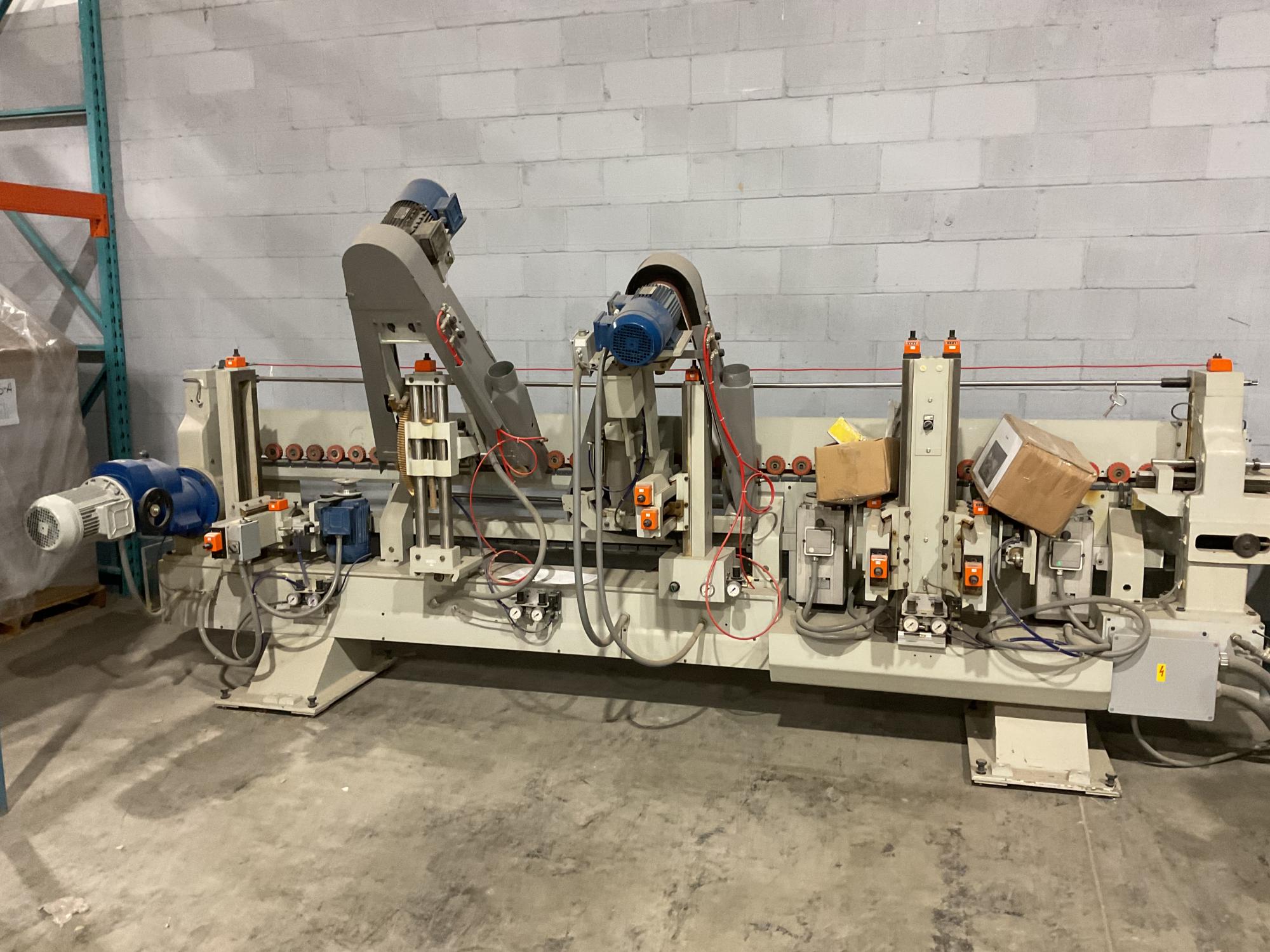

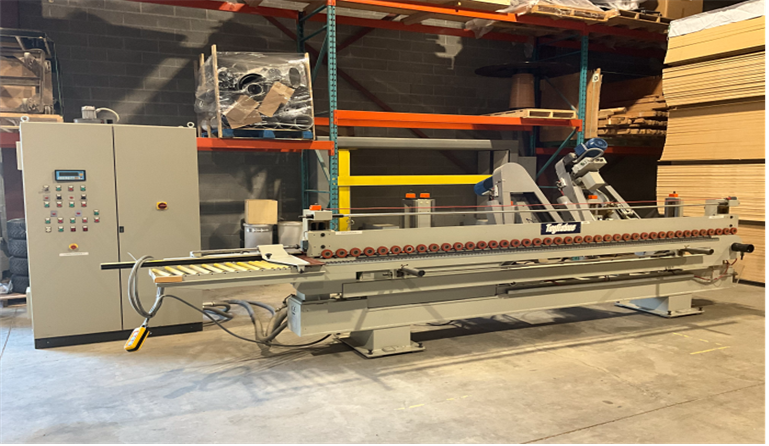

Tagliabue LB1 Dedicated to edge profiling, sanding, and polishing

Machine Type

• Edge and profile moulder / sander
• Automatic feed-through machine
• Used for: solid wood – MDF / panels

Working Capacity

• Thickness: 5 to 80 mm
• Max width: 900 mm
• Variable feed speed: 5 to 25 m/min (16 to 85 ft/min)

Typical Configuration (LB1 Line)

• 5 working stations: 2 profiling stations (spindles) + 2 belt sanding stations + 1 polishing station

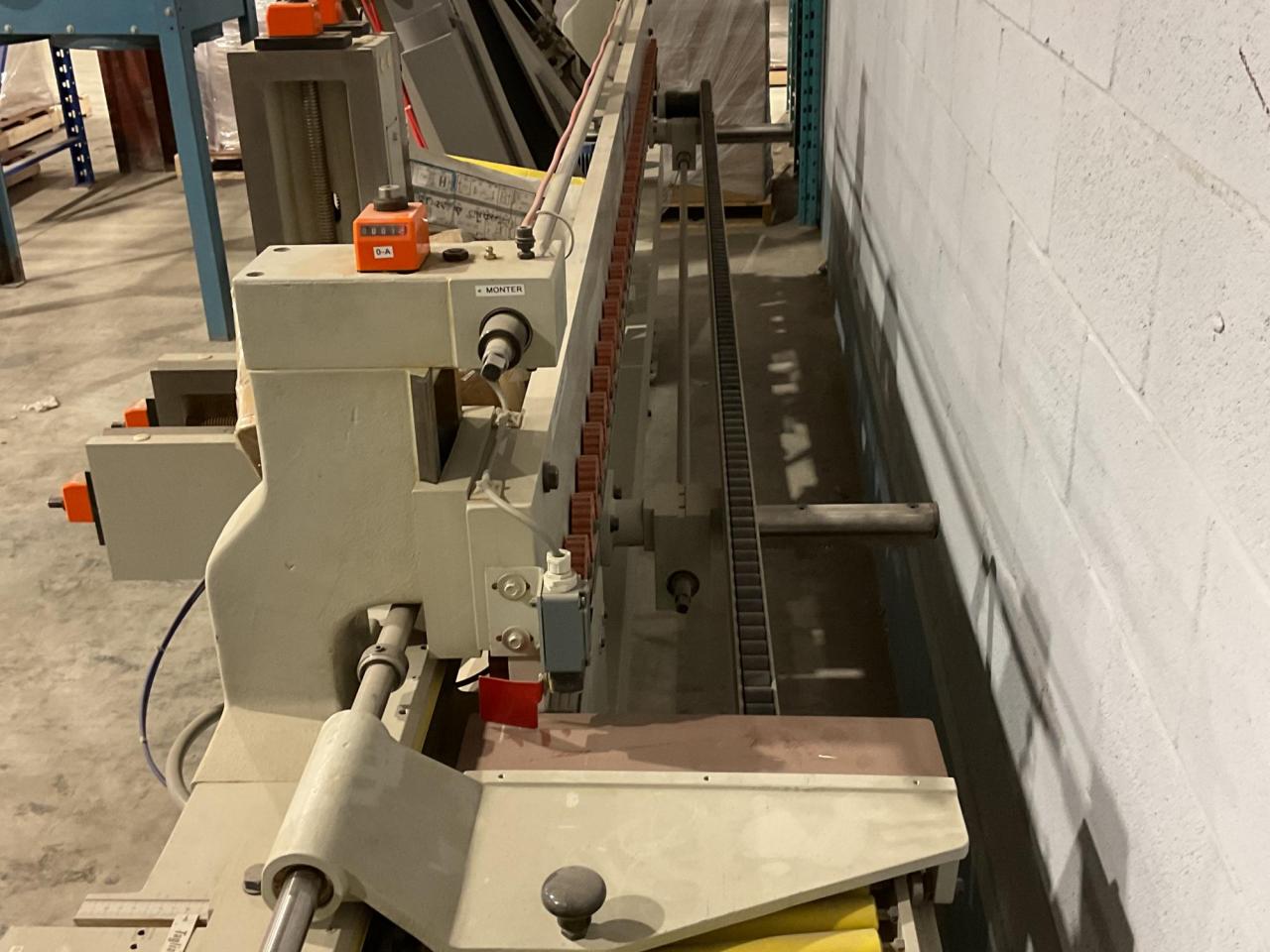

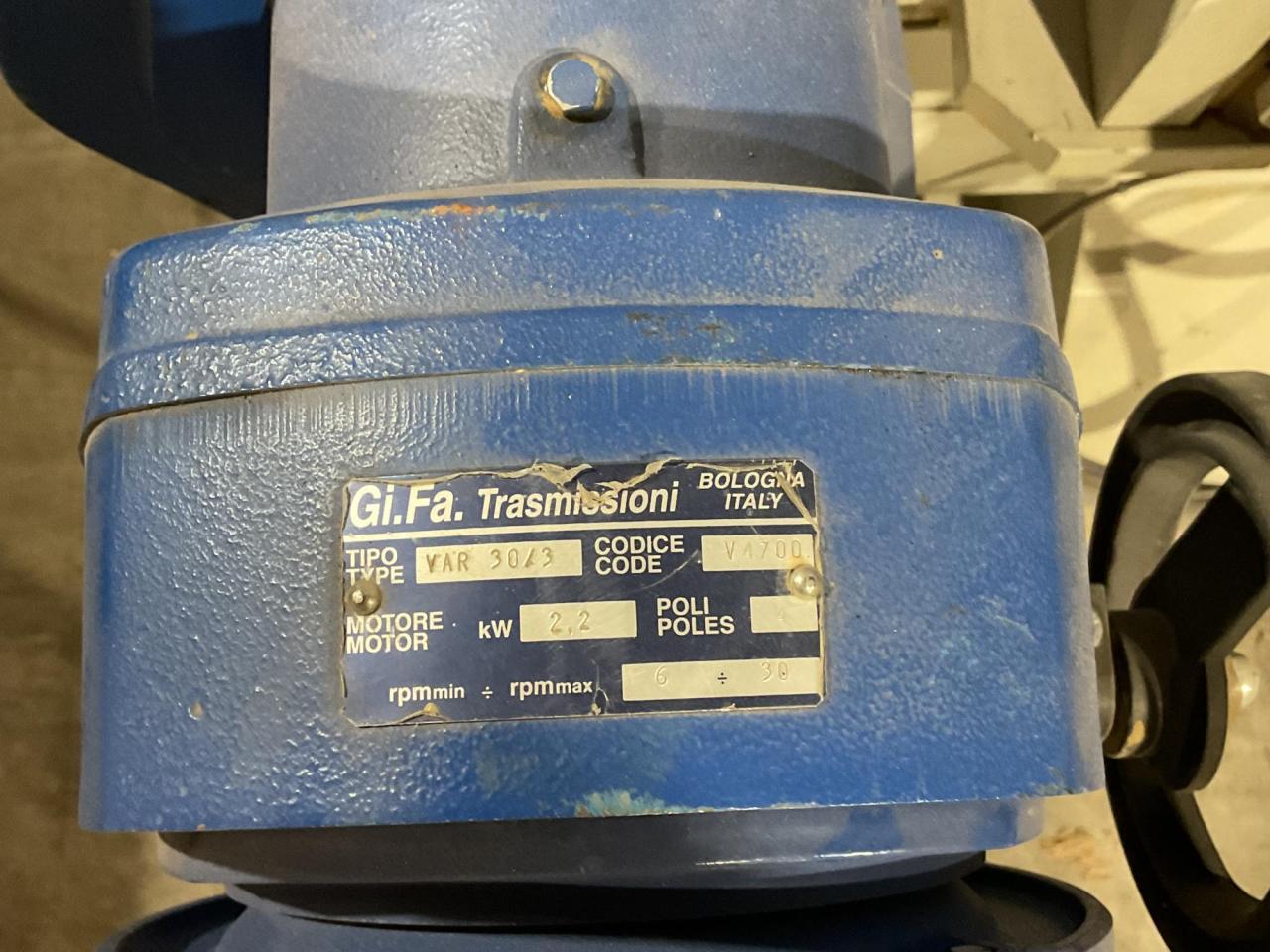

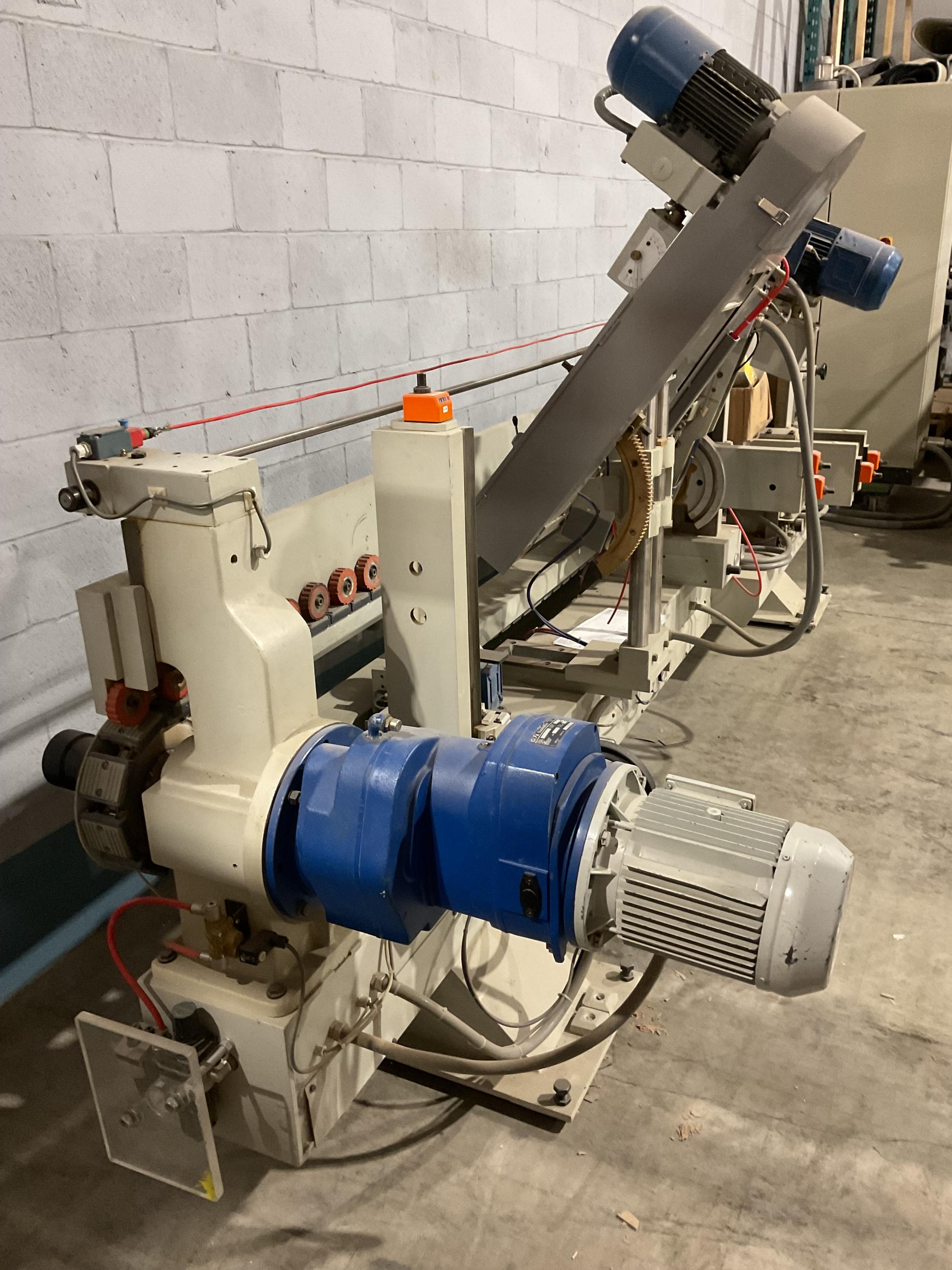

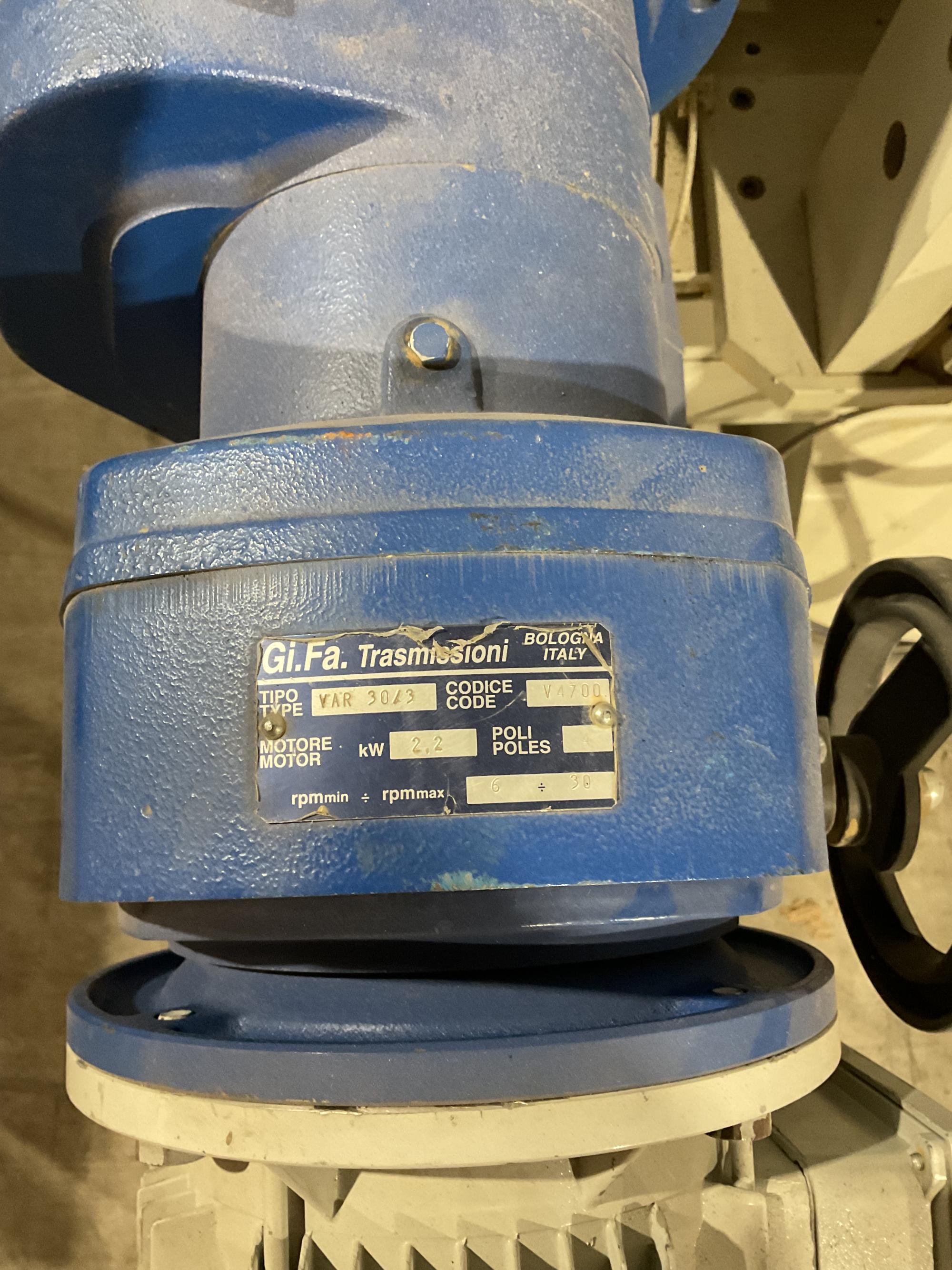

2 DFA Profiling Stations

• Motors: 7.5 HP per station
• Spindle diameter: Ø 40 mm
• Spindle length: 80 mm
• Tilting: 0 to 90°

1 SN45 Belt Sanding Station

• Abrasive belt: (2720 x 90 mm)
• Motor: 3 HP – variable speed
• Tilting: -45° to +45°
• Oscillation: yes

1 SNY90 Belt Sanding Station

• Abrasive belt: (2720 x 90 mm)
• Motor: 3 HP – variable speed
• Tilting: -15° to +90°
• Oscillation: yes

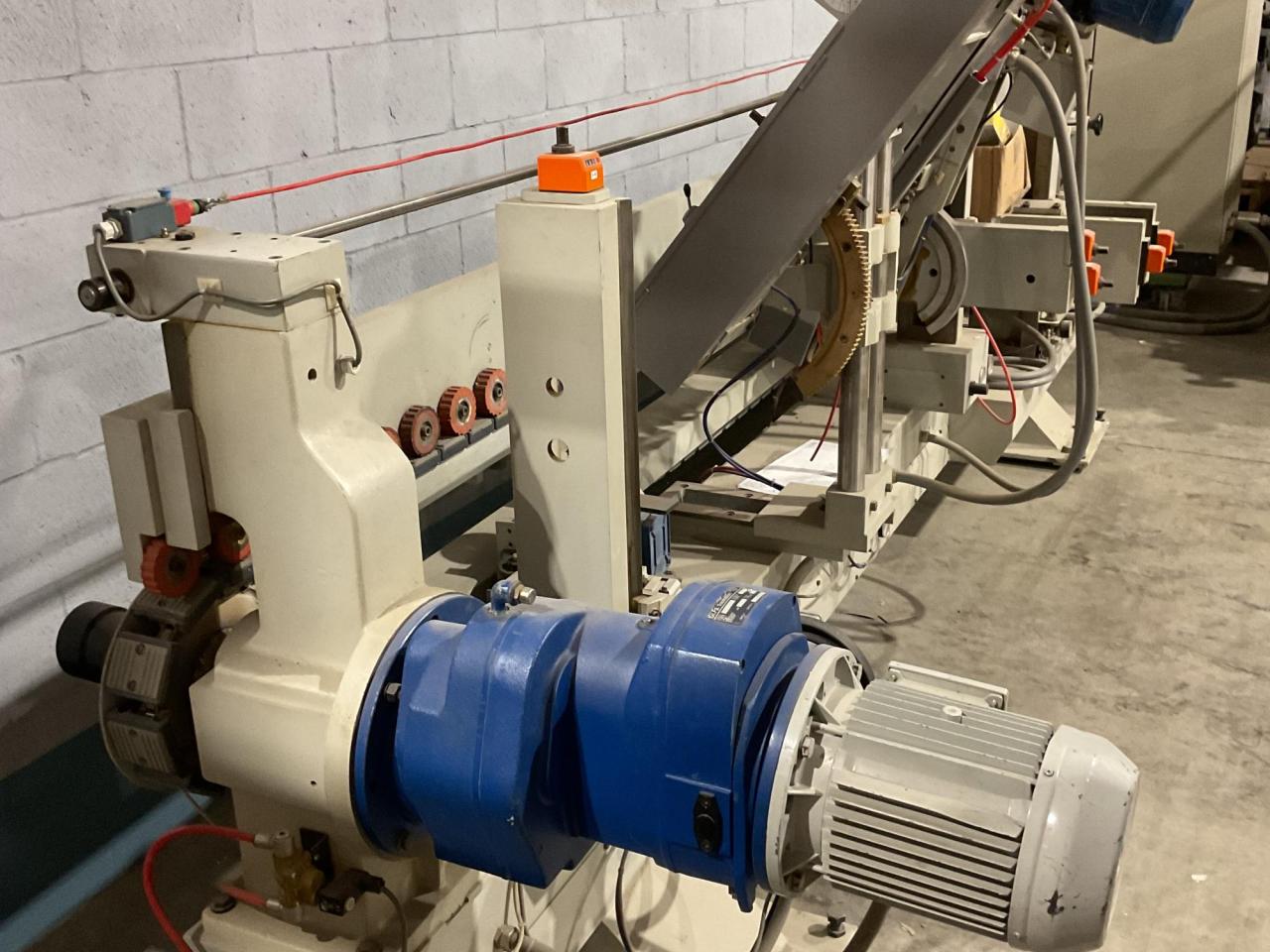

1 S90 Brush Polishing Station

• Motor: 2.5 HP – variable speed
• Rotation speed: 1400 RPM
• Tilting: 0° to +90°
• Max brush diameter: 200 mm

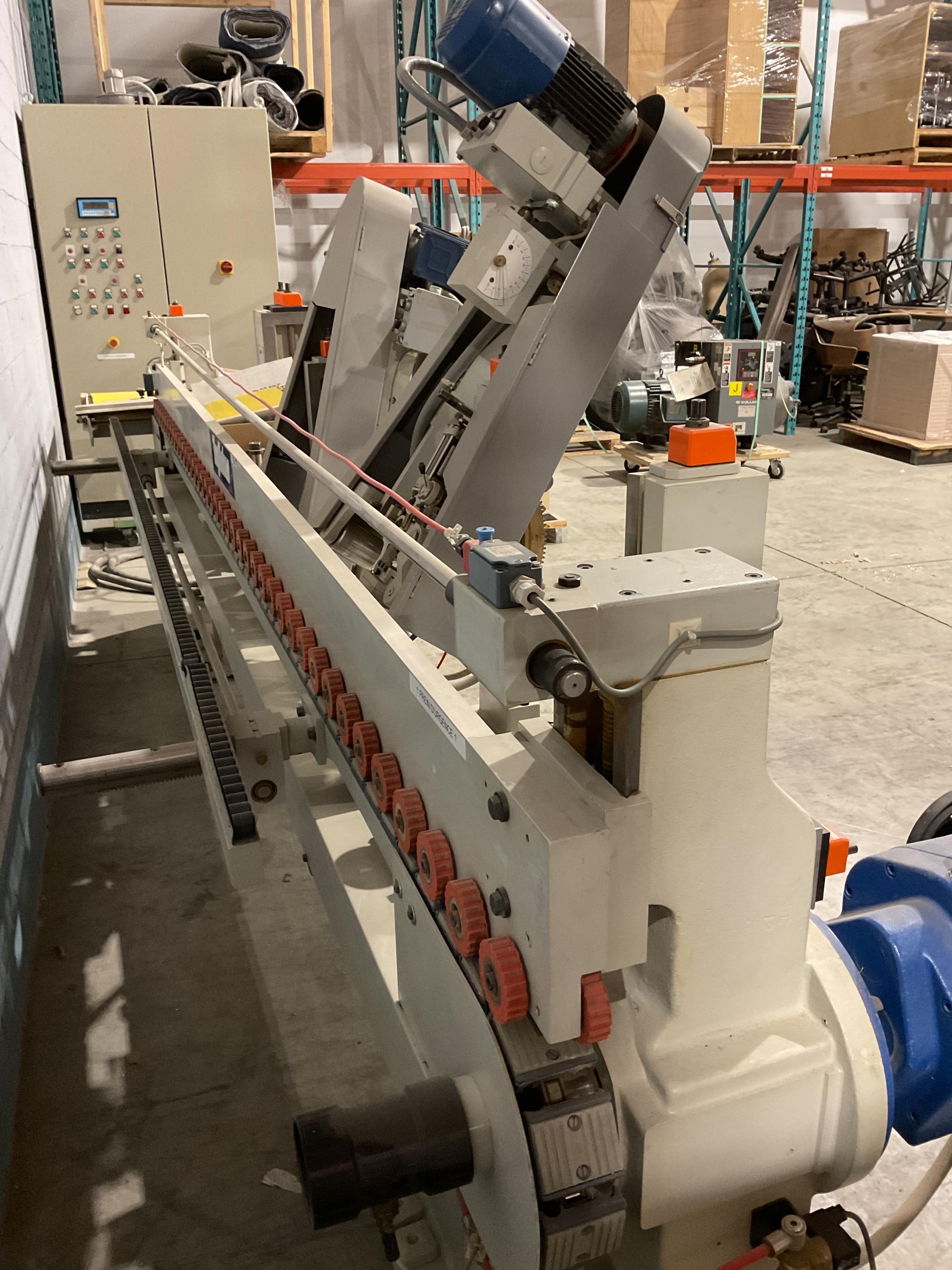

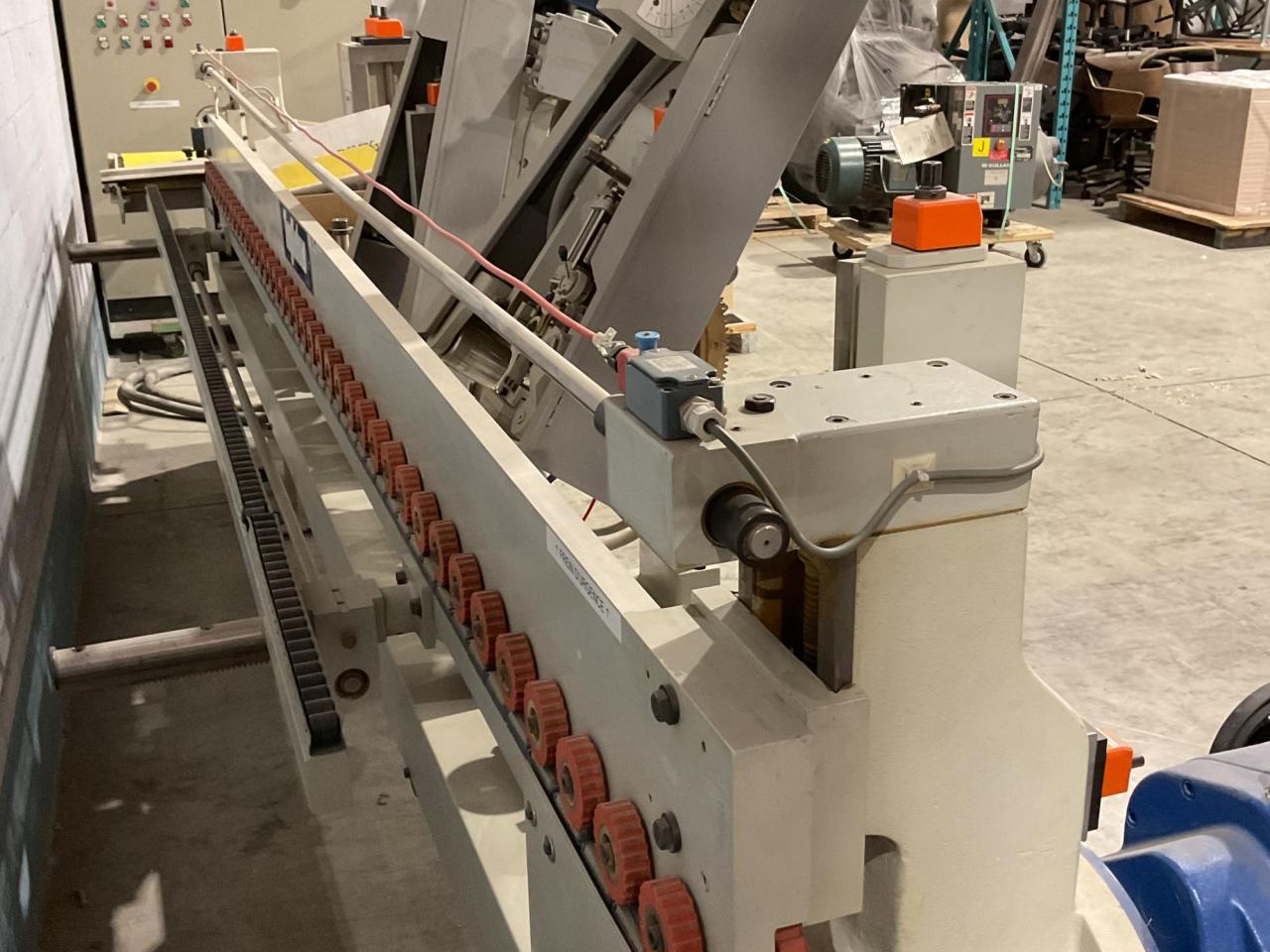

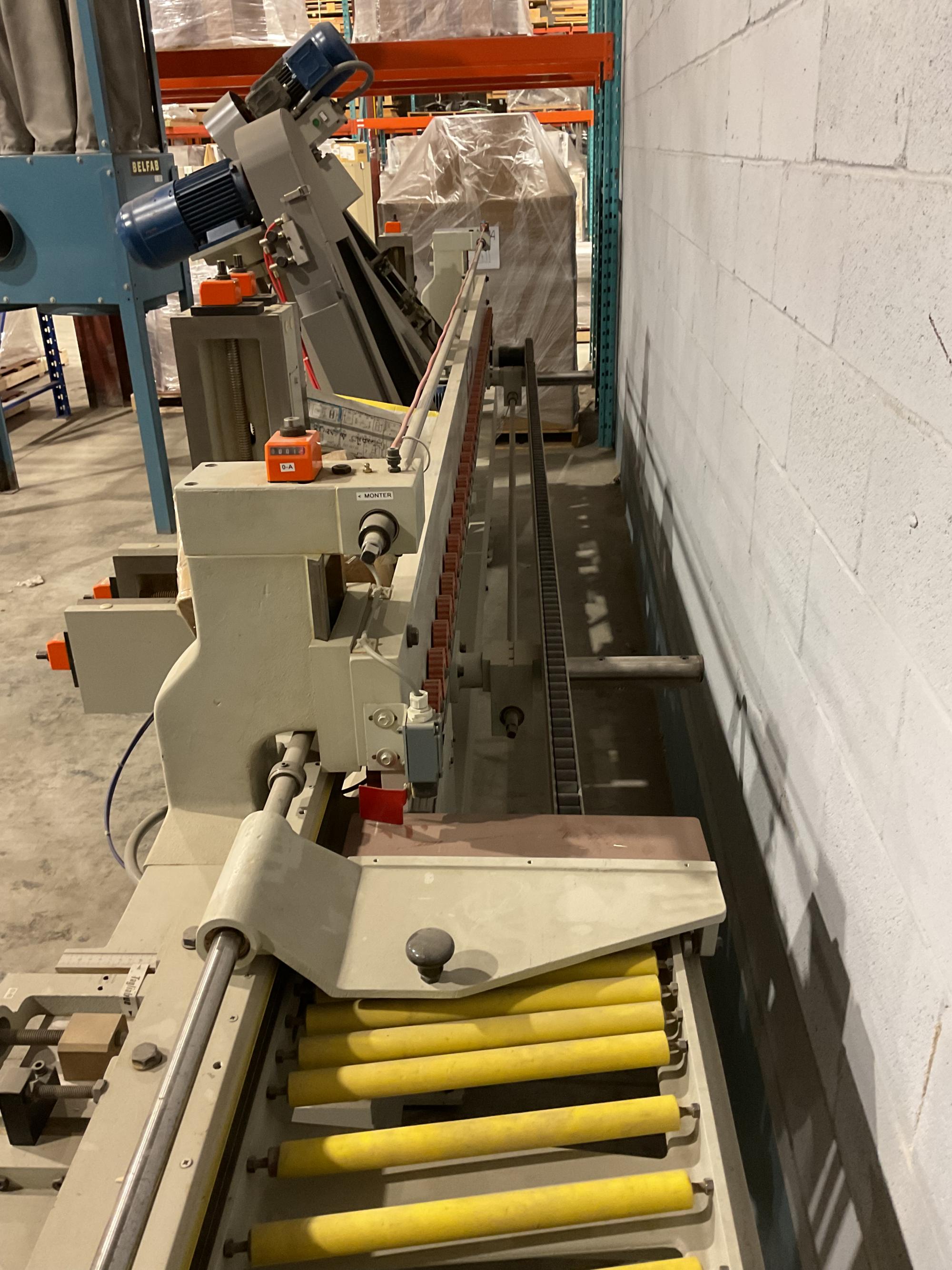

Feed & Conveyor

• Type: chain conveyor with rubber pads
• Variable speed: 5 to 25 m/min (16 to 85 ft/min)
• Feed motor: 4 HP
• Pressure: upper pressure rollers with rubber wheels

Installed Power

• Total power: 15 kW
• Power supply: 600V / 3 phase

Dimensions & Weight

• Dimensions: 5750 mm (L) x 2000 mm (W) x 2000 mm (H)
• Weight: 2800 kg

Control

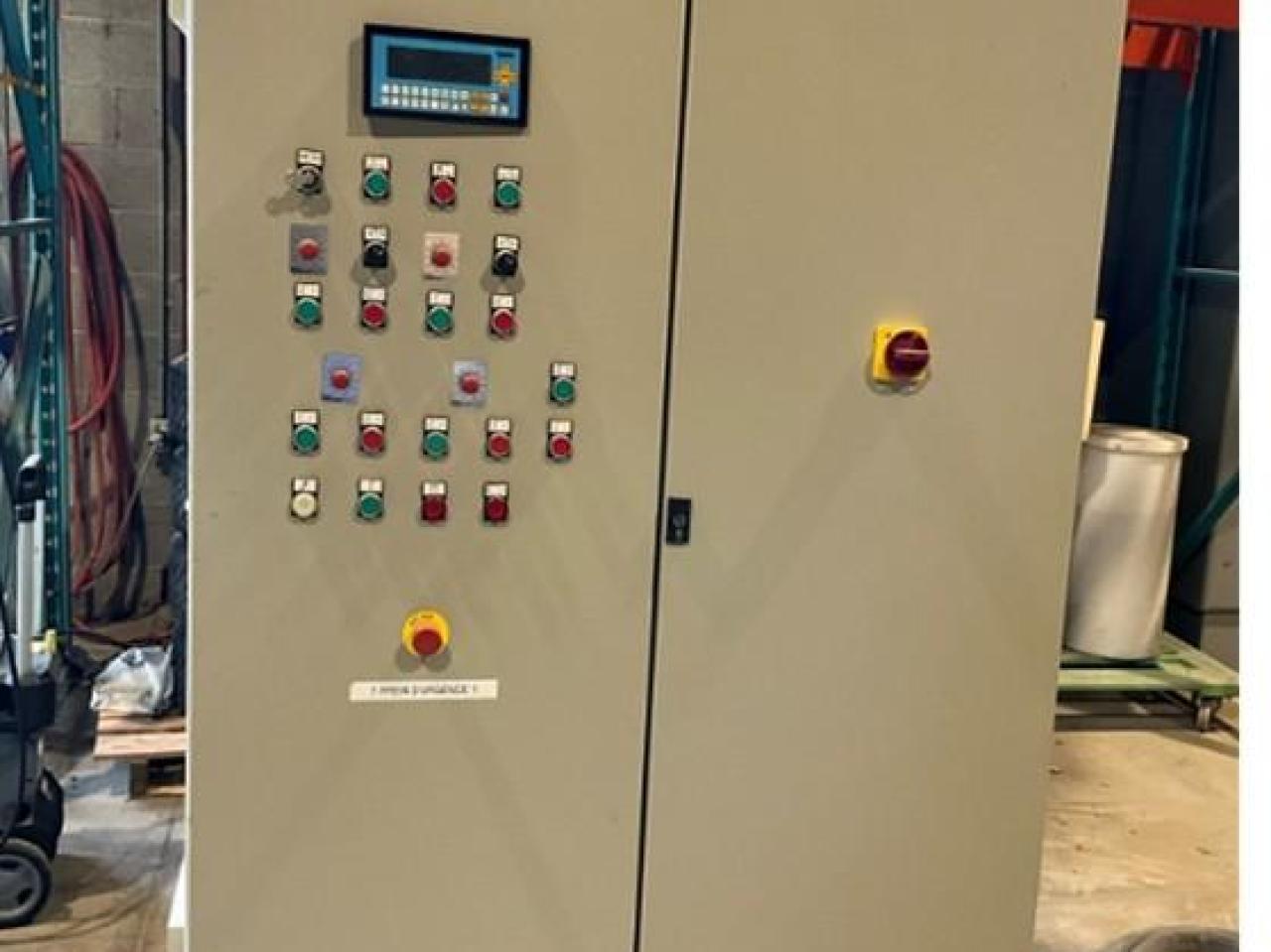

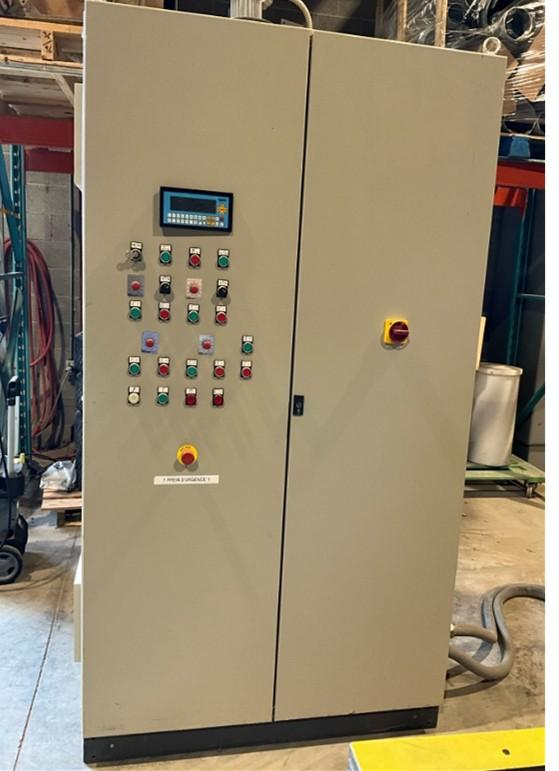

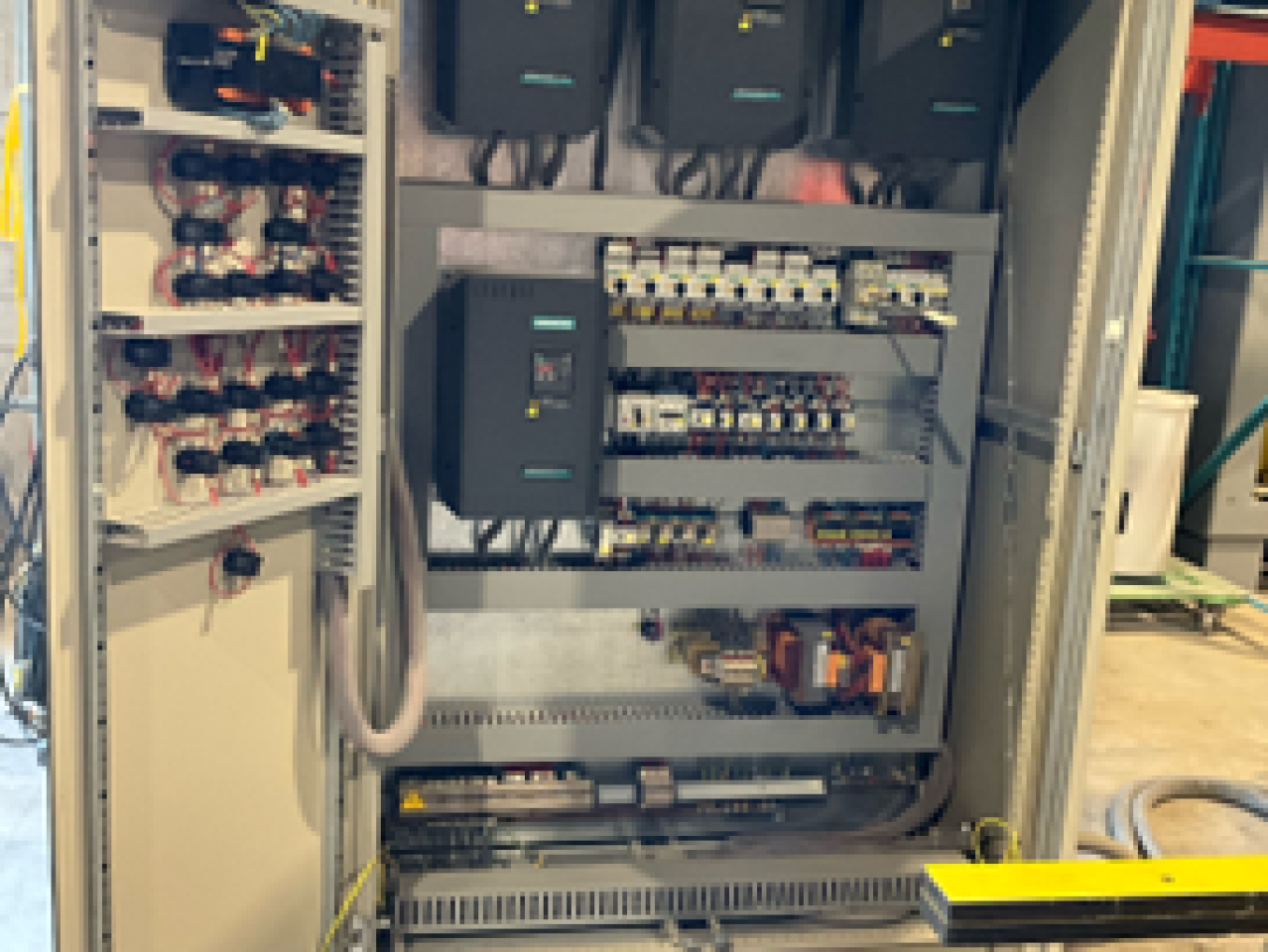

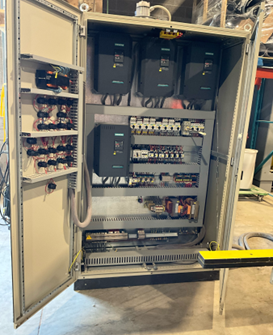

• Control panel: push buttons + manual adjustments
• Adjustments: pneumatic and mechanical (pressure and height)
