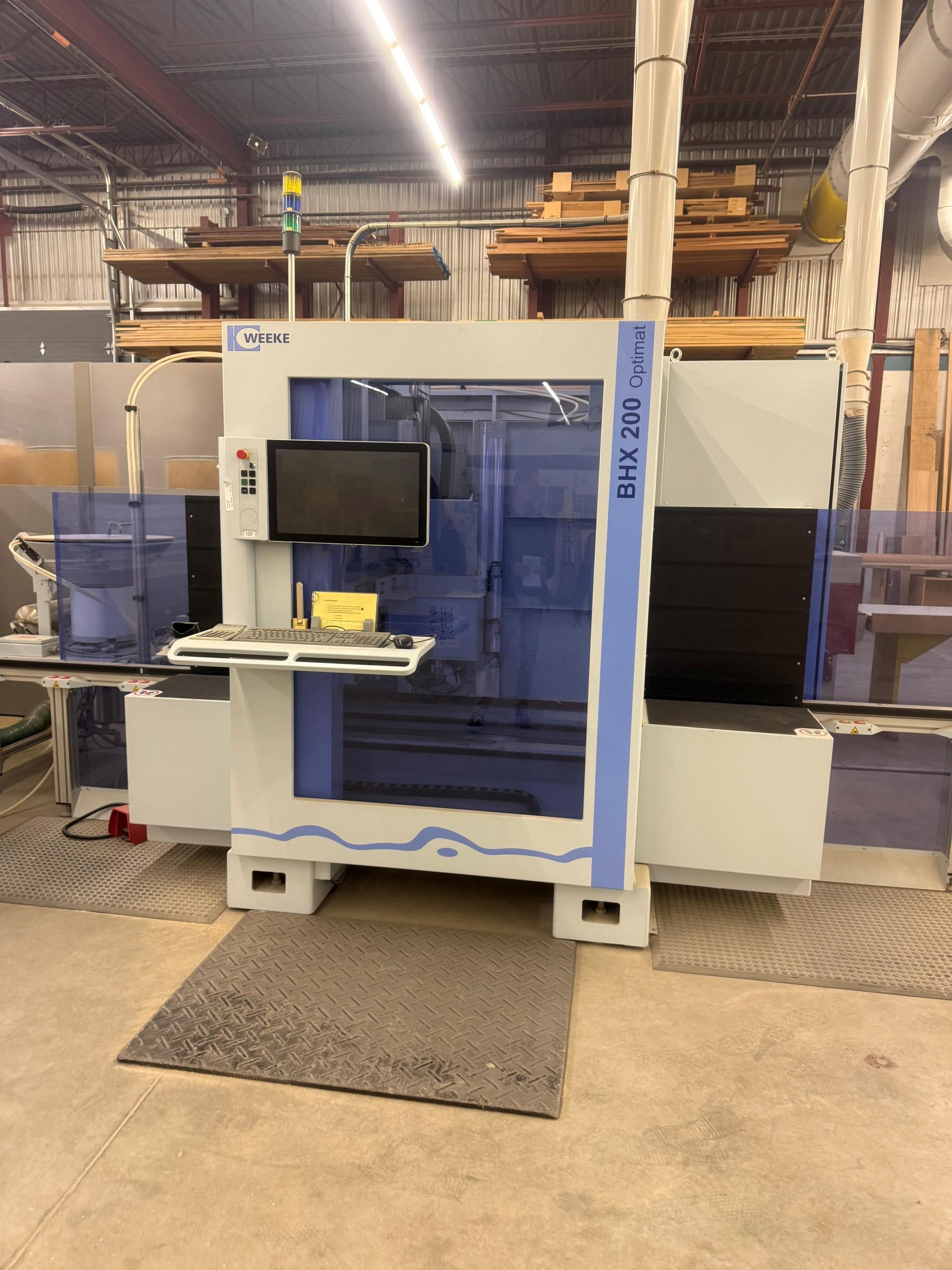

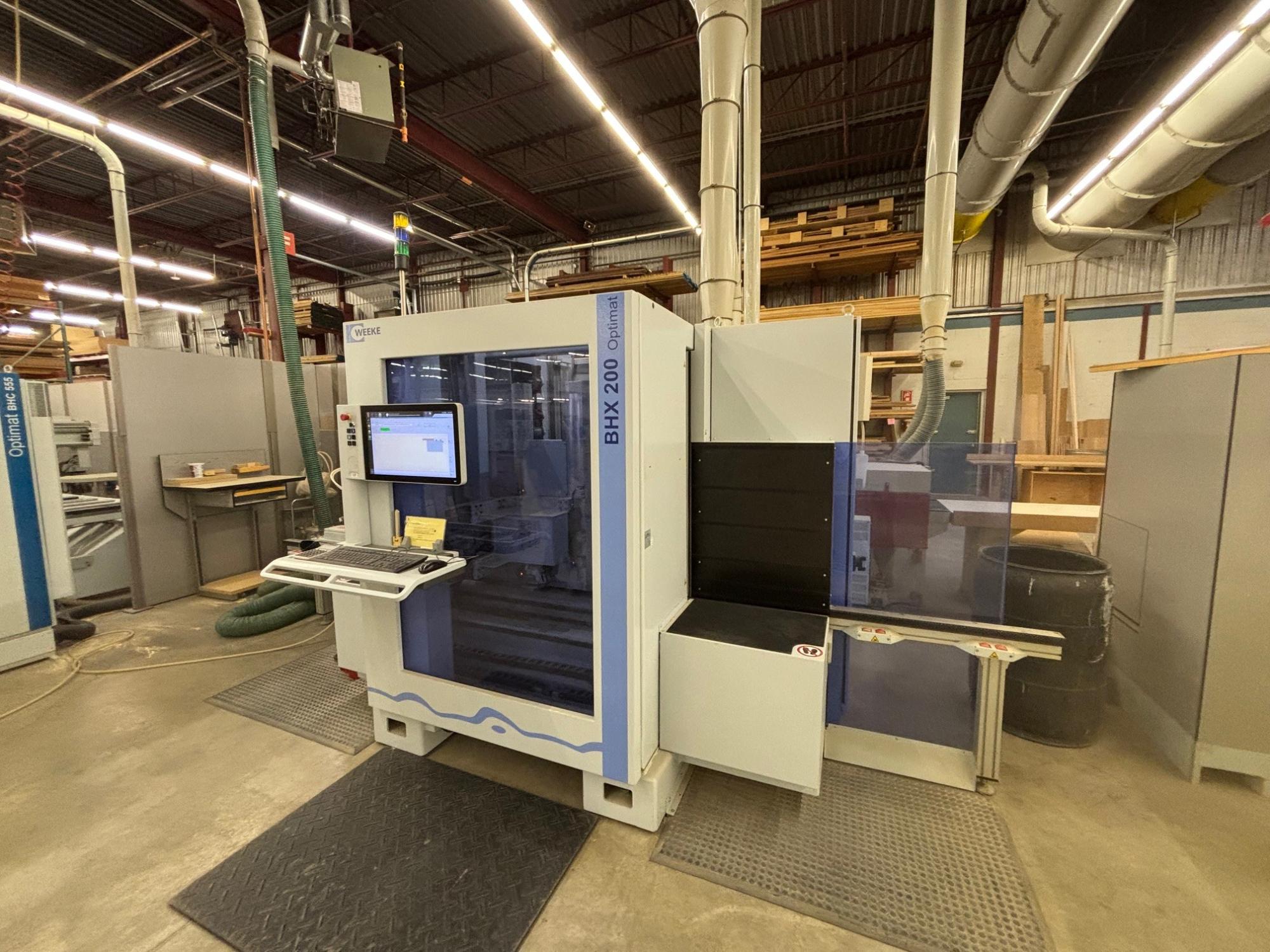

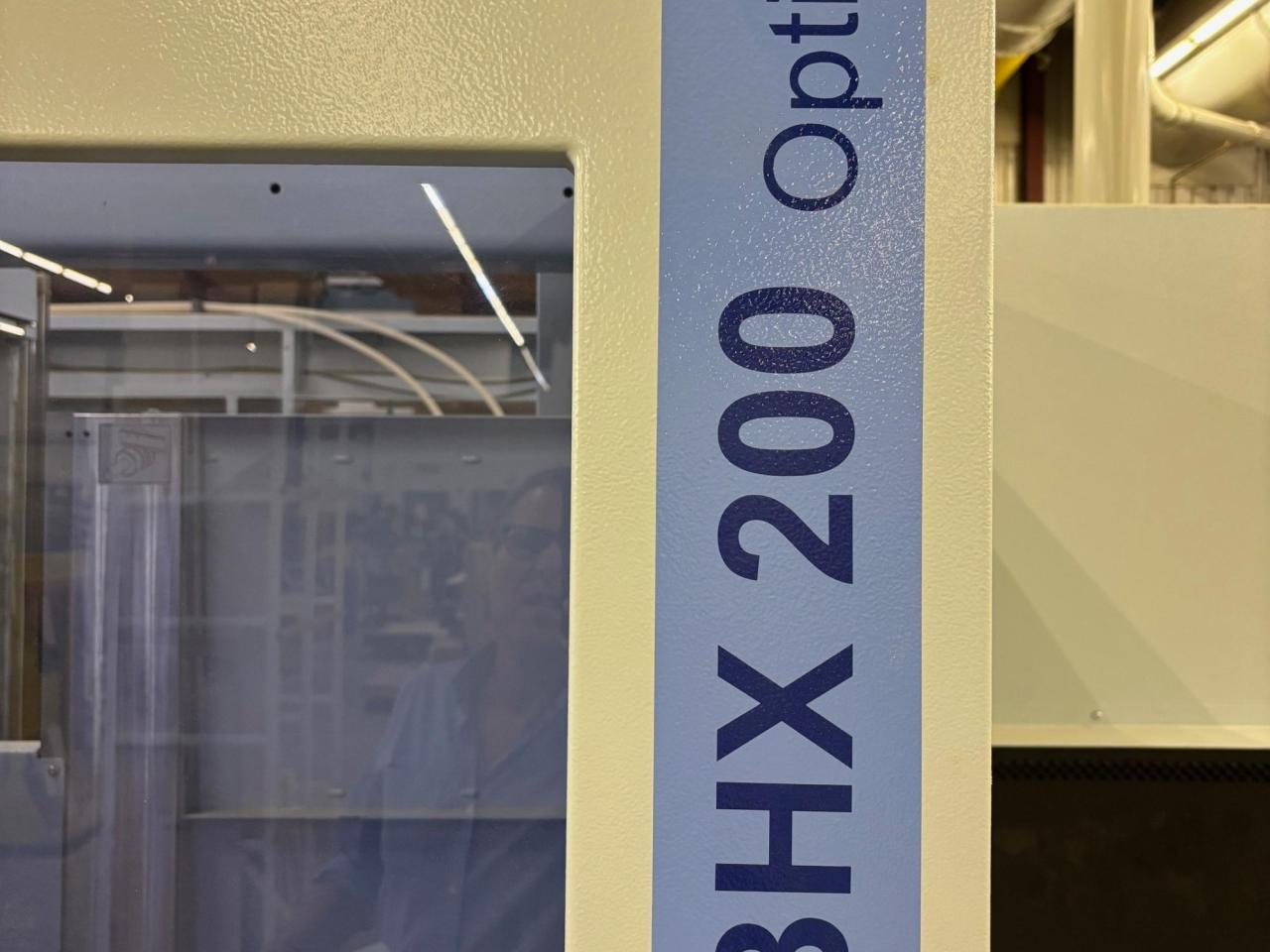

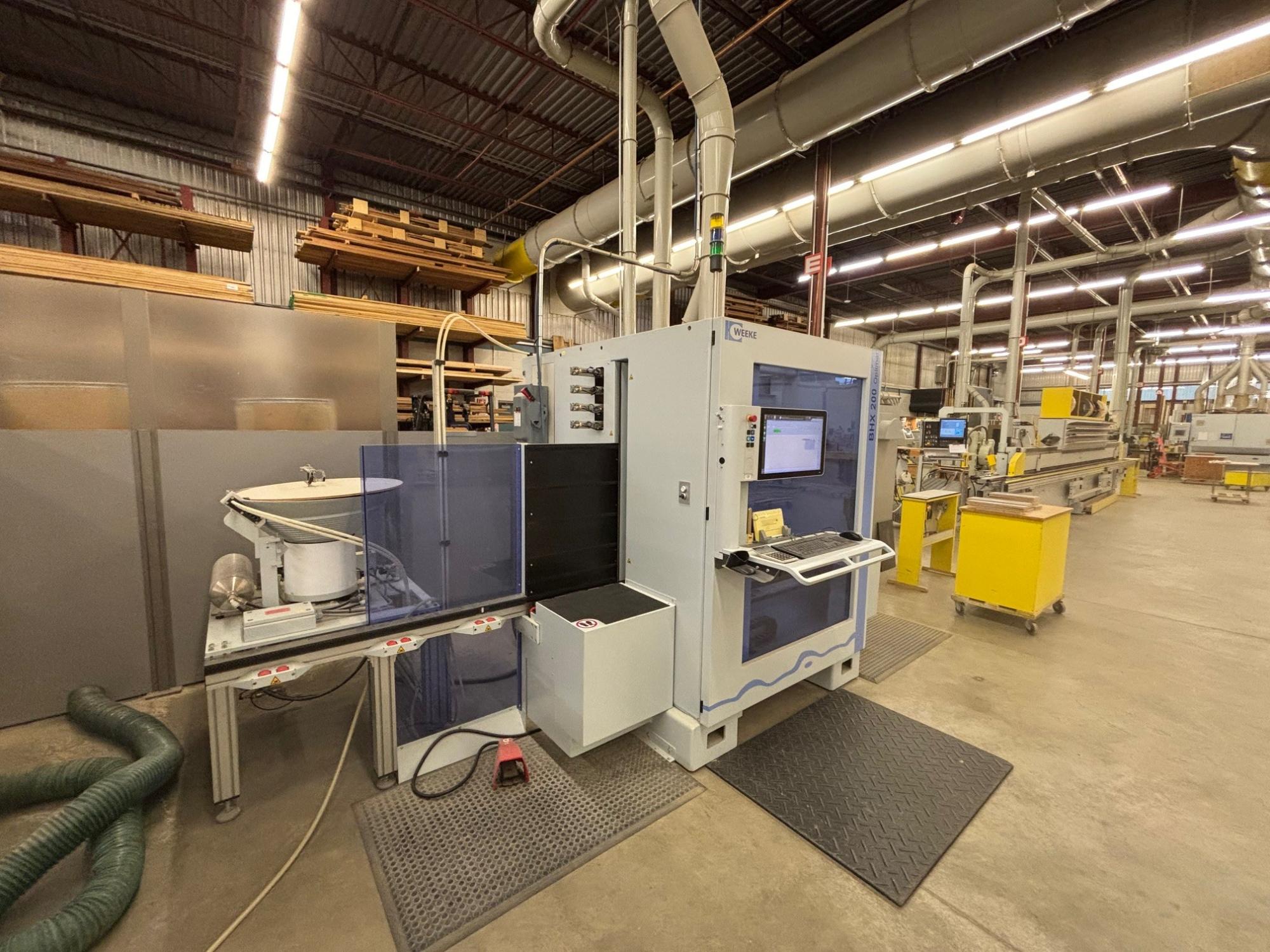

CNC - Weeke Optimat BHX200/D + D Model (Dowel insertion)

Working Capacity

• Workpiece length: 200 mm to 3050 mm
• Workpiece width: 50 mm to 1200 mm
• Workpiece thickness: 8 mm to 80 mm

Drilling / Machining / Dowel Insertion Configuration

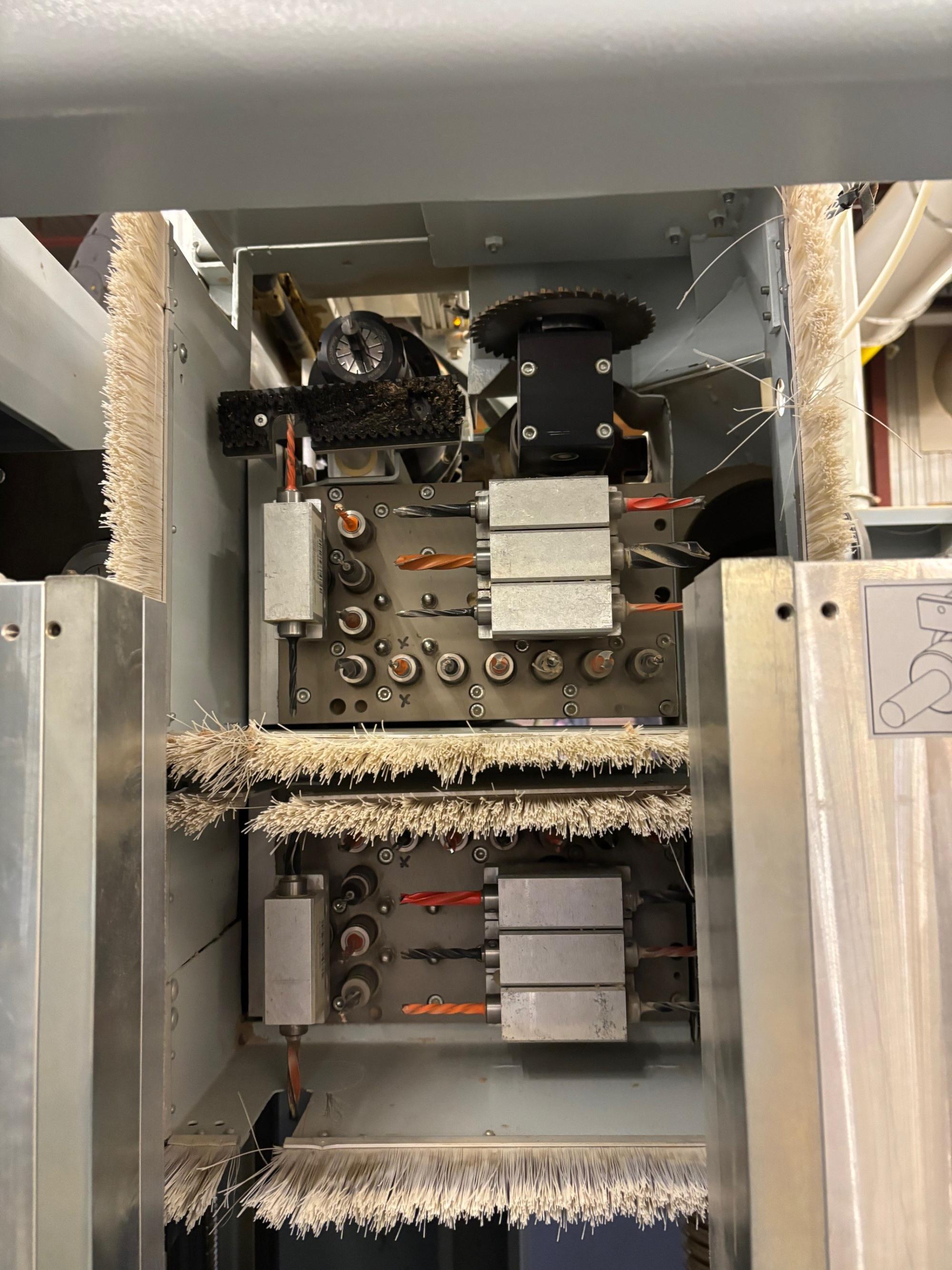

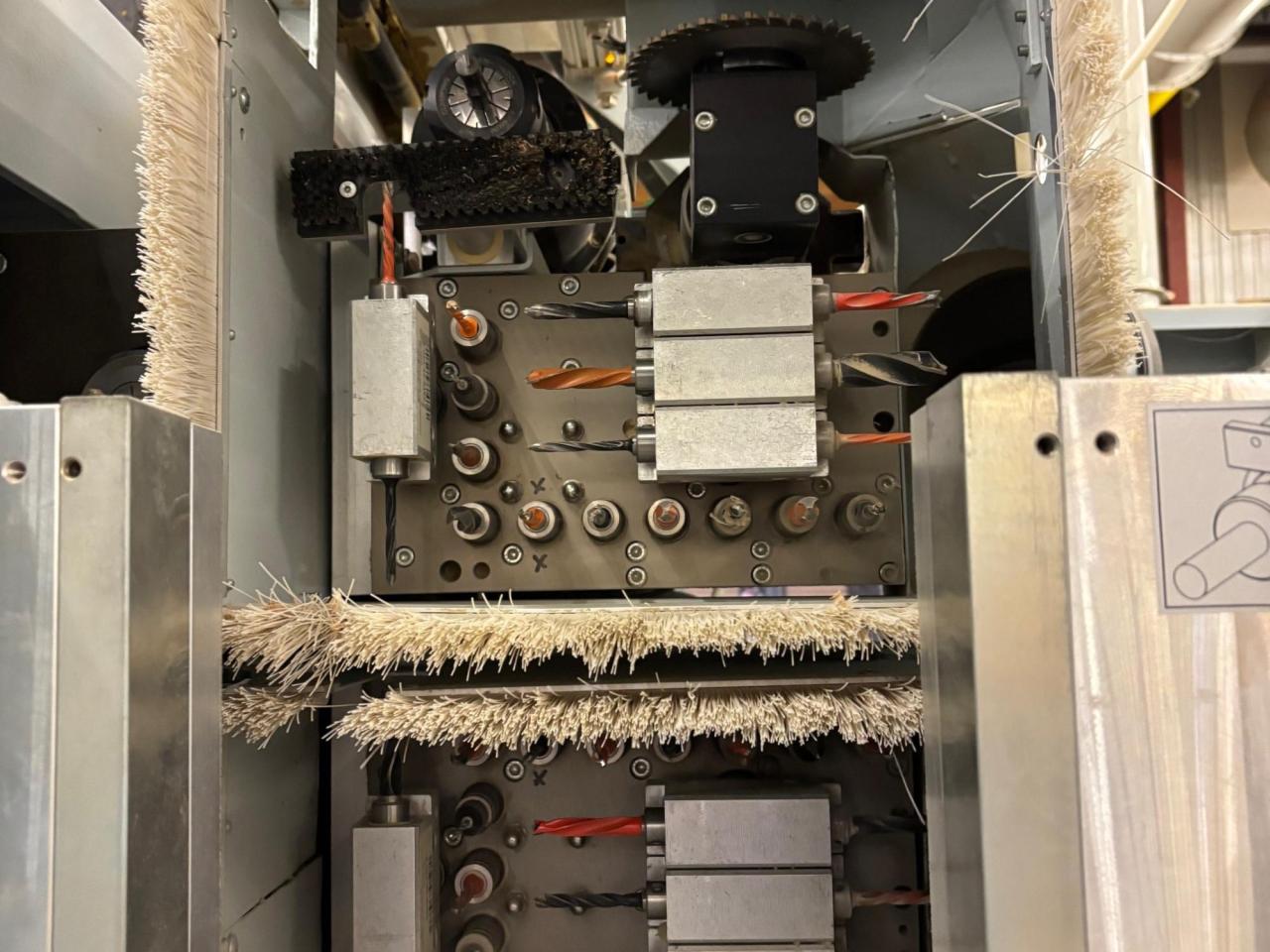

• 2 independent CNC drilling heads
• Total drills: 20 vertical x 16 horizontal

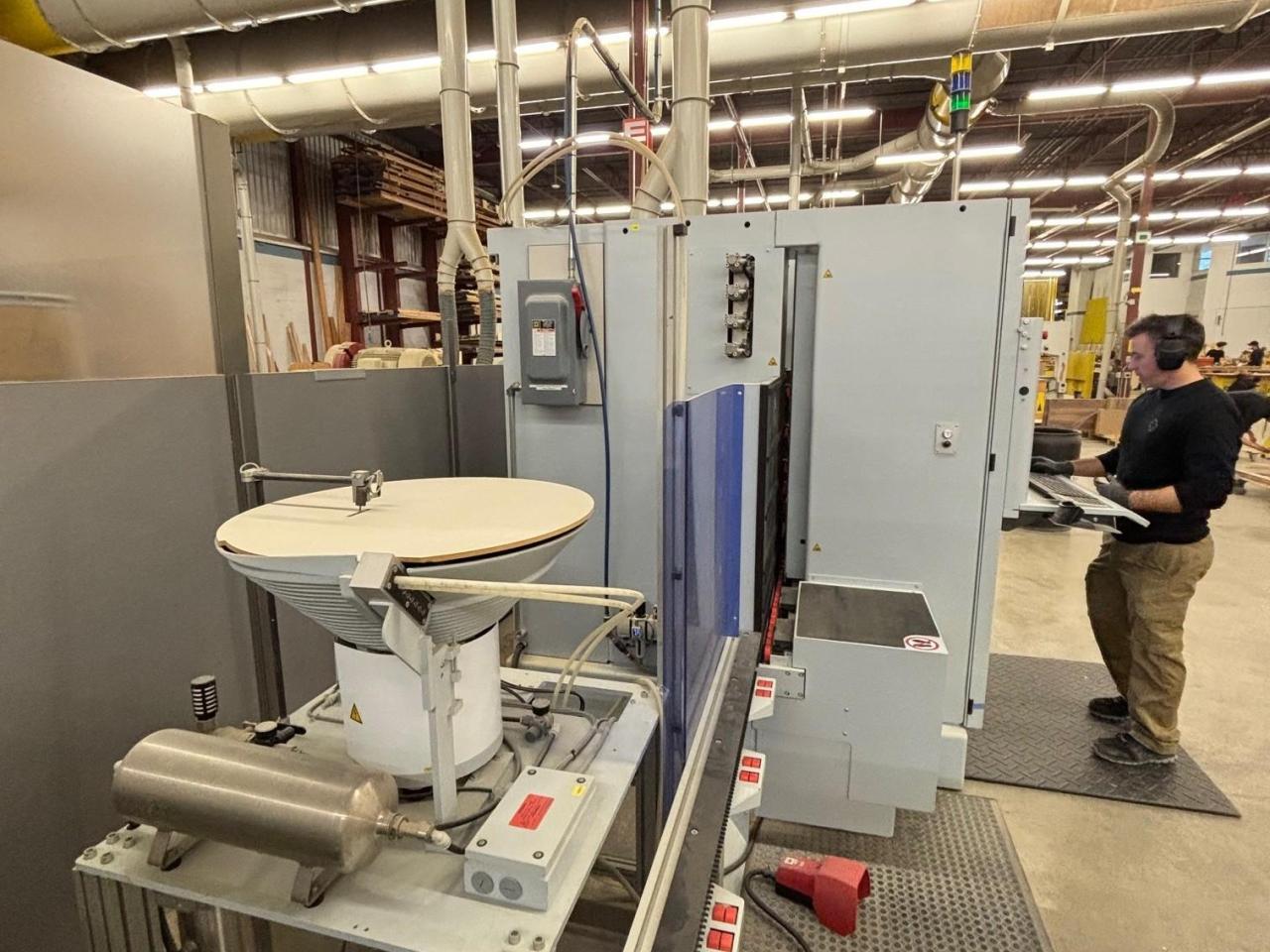

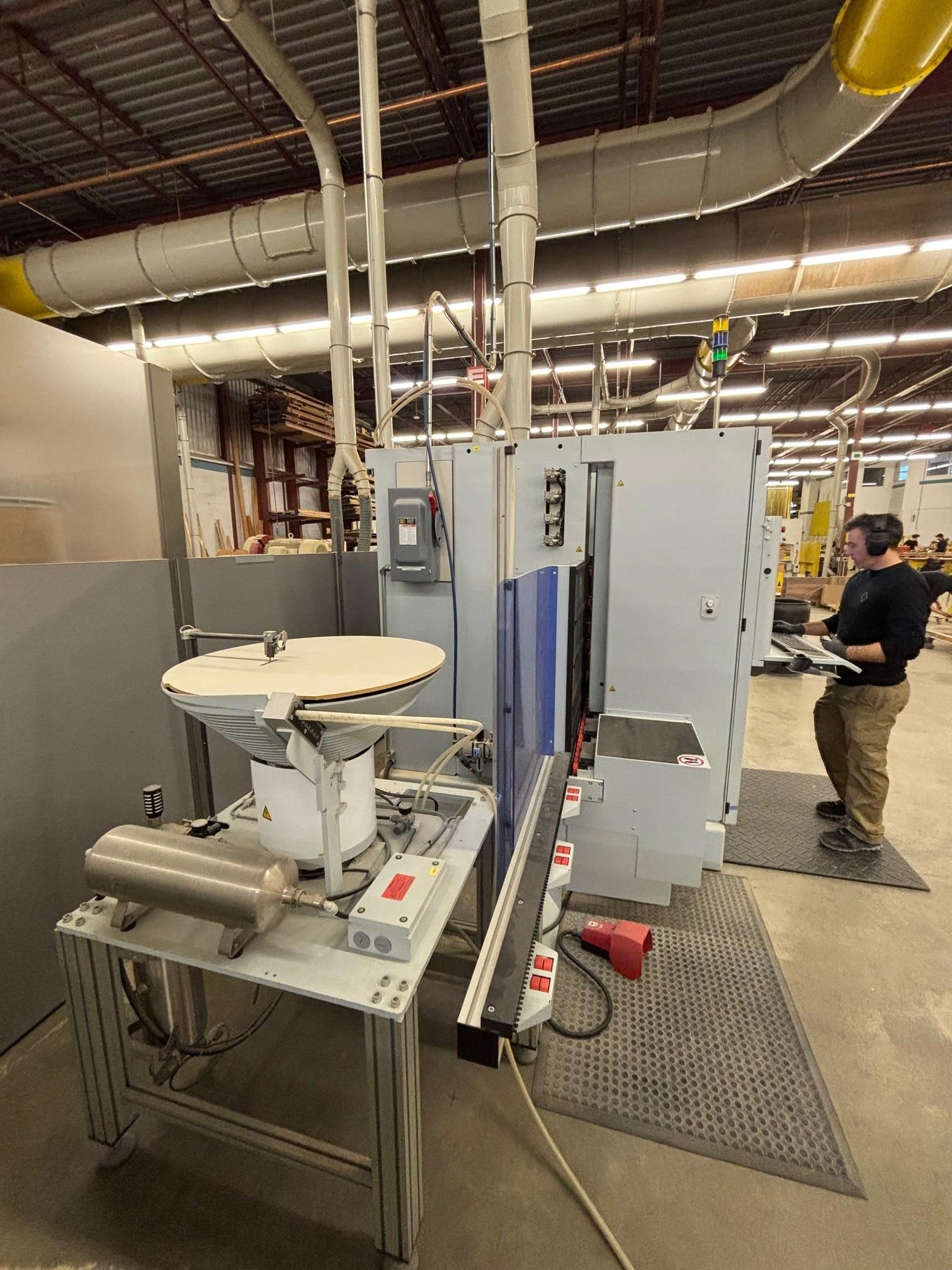

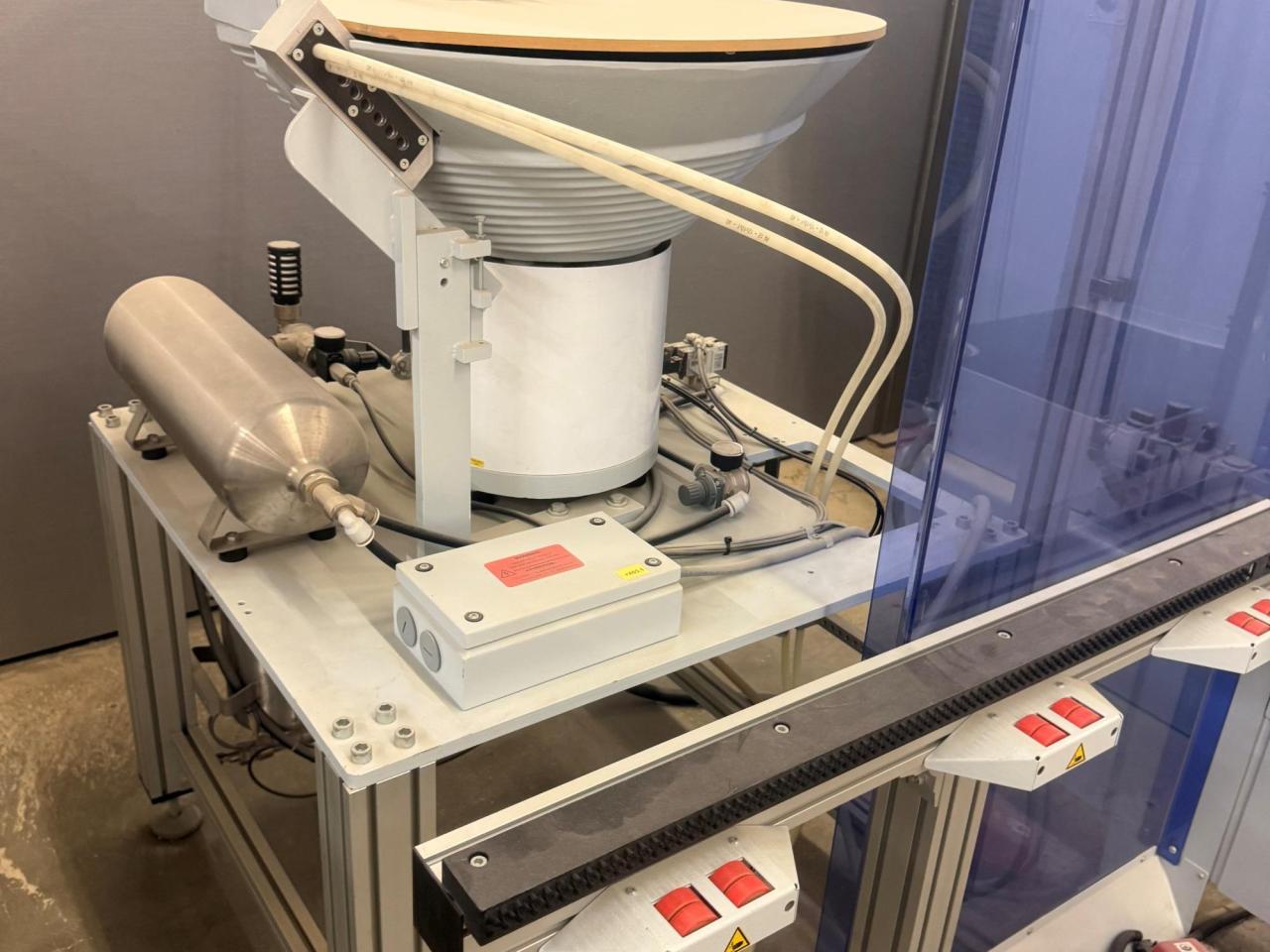

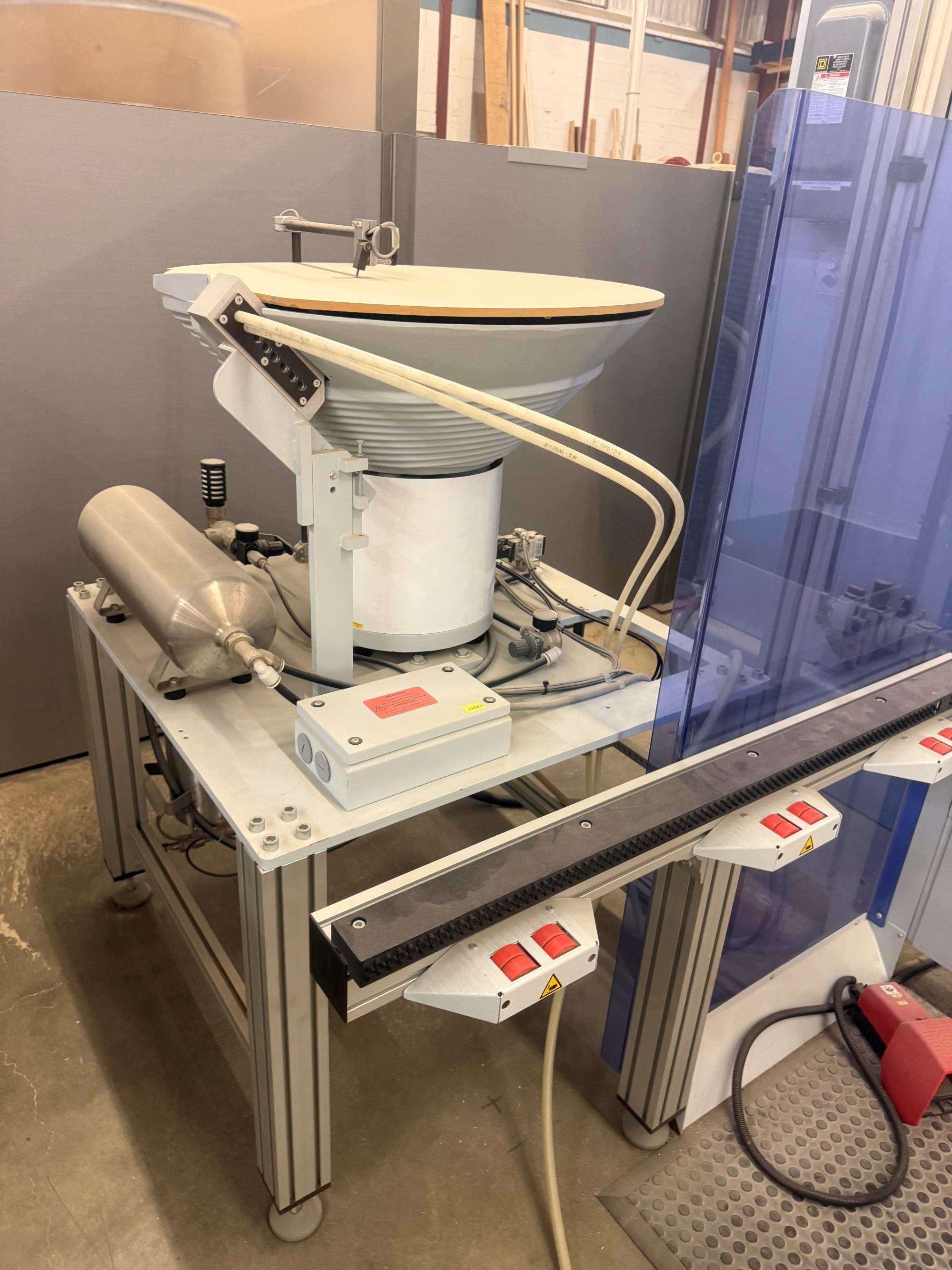

• Integrated dowel insertion system

Main Spindle

• Power: 12 kW
• Tool holder: HSK F63
• Tool changer: 4 positions

Grooving Saw Unit

• Adjustable saw (X and Y axes)
• Rotation up to 90°

Speeds and Axes

• X / Y: 50 m/min (164 ft/min)
• Z: 15 m/min

Clamping System

• 2 CNC clamps
• No vacuum system (typical BHX configuration)
• Automatic workpiece positioning
• Automatic thickness adjustment

Control & Software

• Interface: Weeke PowerTouch
• Software: WoodWOP
• 21.5" touchscreen
• 21.5" Full HD multitouch widescreen display (16:9)
• Front USB interface
• Ethernet connection 10/100 Mbit

Overall Dimensions

• Weight: 3500 kg
• Dimensions: 4740 mm x 1917 mm x 2500 mm (H)

Electrical Requirements

• 21 kW
• 600V / 3PH
