Panel height: min. 10 mm – max. 60 mm
Edge height: min. 14 mm – max. 64 mm
Coil edging thickness: min. 0.4 mm – max. 3 mm
Solid strip edging thickness: min. 0.4 mm – max. 22 mm
Panel length: min. 140 mm – max. 3,200 mm
Feed speed: 18 to 25 m/min
400V / 3Ph / 37A, including 600V transformer

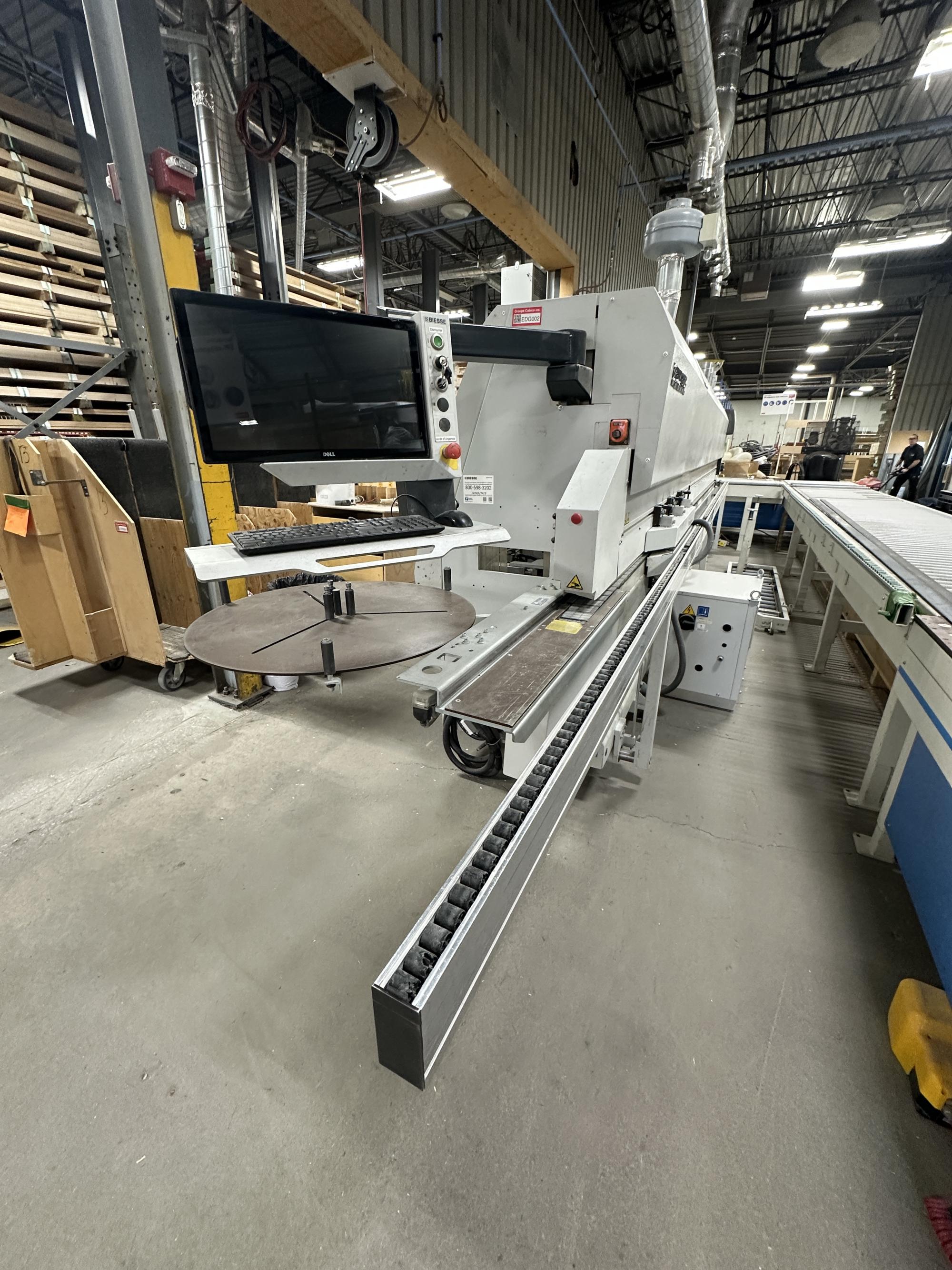

SMART TOUCH 21 – SINTRA HD Software
Modern and intuitive graphics for simple edge bander management.
Maximum usability thanks to the 21.5" Full HD touchscreen, providing optimal visibility.
Automatic cleaning system
- Anti-adhesive
- Antistatic
- Lubricant
- Detergent
FL-502 Pre-Milling Unit
- Motors: 2 × 3.5 kW (4.7 HP) – 12,000 RPM
- Workpiece height: min. 10 mm – max. 70 mm
- Tooling: Ø 80 mm – Ø 30 mm bore – 75 mm height
- Skid-type copying shoes
- Automatic height adjustment with top pressure beam
- Dust extraction: 2 × Ø 60 mm ports
VC710 Gluing Unit
The gluing unit can be configured to use EVA hot-melt adhesive granules or PUR polyurethane adhesive. It can also be configured to accommodate single or multiple edge tape reels.
IT-90S End Trimming Unit
- Edge thickness: min. 0.3 mm – max. 22 mm
- Motors: 2 × 0.65 kW (0.87 HP) – 12,000 RPM
- Automatic motor tilt: 0° – 25°
- Maximum tool diameter: Ø 130 mm
- Front and side tracing devices on each trimming head
RF 400 Flush Trimming & Finishing Unit – Automatic Version with Controlled Axes
- Edge thickness: min. 0.3 mm – max. 22 mm
- Motors: 2 × 2 kW (2.7 HP) – 12,000 RPM
- Motor tilt: 0° to 45° (manual version only)
- Tooling: Ø 70 mm – Ø 16 mm bore – 20 mm height
- Vertical and front tracing devices with rotating discs
- Automatic height adjustment with top pressure beam
- Dust extraction: 2 × Ø 80 mm ports
RF 12 Flush Trimming & Finishing Unit – Automatic Version with Controlled Axes
- Edge thickness: min. 0.3 mm – max. 22 mm
- Motors: 2 × 0.6 kW – 12,000 RPM
- Motor tilt: 0° to 45° (manual version only)
- Tooling: Ø 70 mm – Ø 16 mm bore – 20 mm height
- Vertical and front tracing devices with rotating discs
- Automatic height adjustment with top pressure beam
- Dust extraction: 2 × Ø 80 mm ports
AR 30 Corner Rounding Unit
- Edge thickness: min. 0.3 mm – max. 3 mm
- Motors: 2 × 0.65 kW (0.87 HP) – 12,000 RPM
- Tooling: Ø 60 mm – Ø 16 mm bore – 22 mm height
- Front skid-type tracing devices and vertical bearing-guided tracers
- Automatic height adjustment with top pressure beam
- Feed track speeds: 10, 14, 18 m/min
- Dust extraction: 2 × Ø 60 mm ports
RB 02 Edge Scraping Unit
- Edge thicknesses: 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm
- 25° chamfering inserts
- Vertical and front tracing devices with rotating discs
- Automatic height adjustment with top pressure beam
- Dust extraction: 2 × Ø 60 mm ports
RCC 701 Glue Scraping Unit
- Straight scraper knife
- Vertical tracing devices with pivoting discs
- Pneumatic automatic height adjustment
- Dust extraction: 1 × Ø 100 mm port
SZ30 Buffing Unit
- Motors: 2 × 0.37 kW (0.5 HP) – 1,400 RPM
Tooling:
- Cotton buffing wheel: Ø 150 mm – Ø 19 mm bore
- Abrasive brush: Ø 150 mm – Ø 19 mm bore
- Automatic height adjustment
PH 700 Edge Reheating Unit
For restoring the color of applied plastic edging.
- Power: 2.0 kW
- Temperature range: min. 100°C – max. 600°C
- Air volume:
- Level I: 300 L/min
- Level II: 550 L/min
- Automatic height adjustment
Weight: 4,200 kg
Overall dimensions: 7,950 mm × 2,510 mm × 1,840 mm (H)
