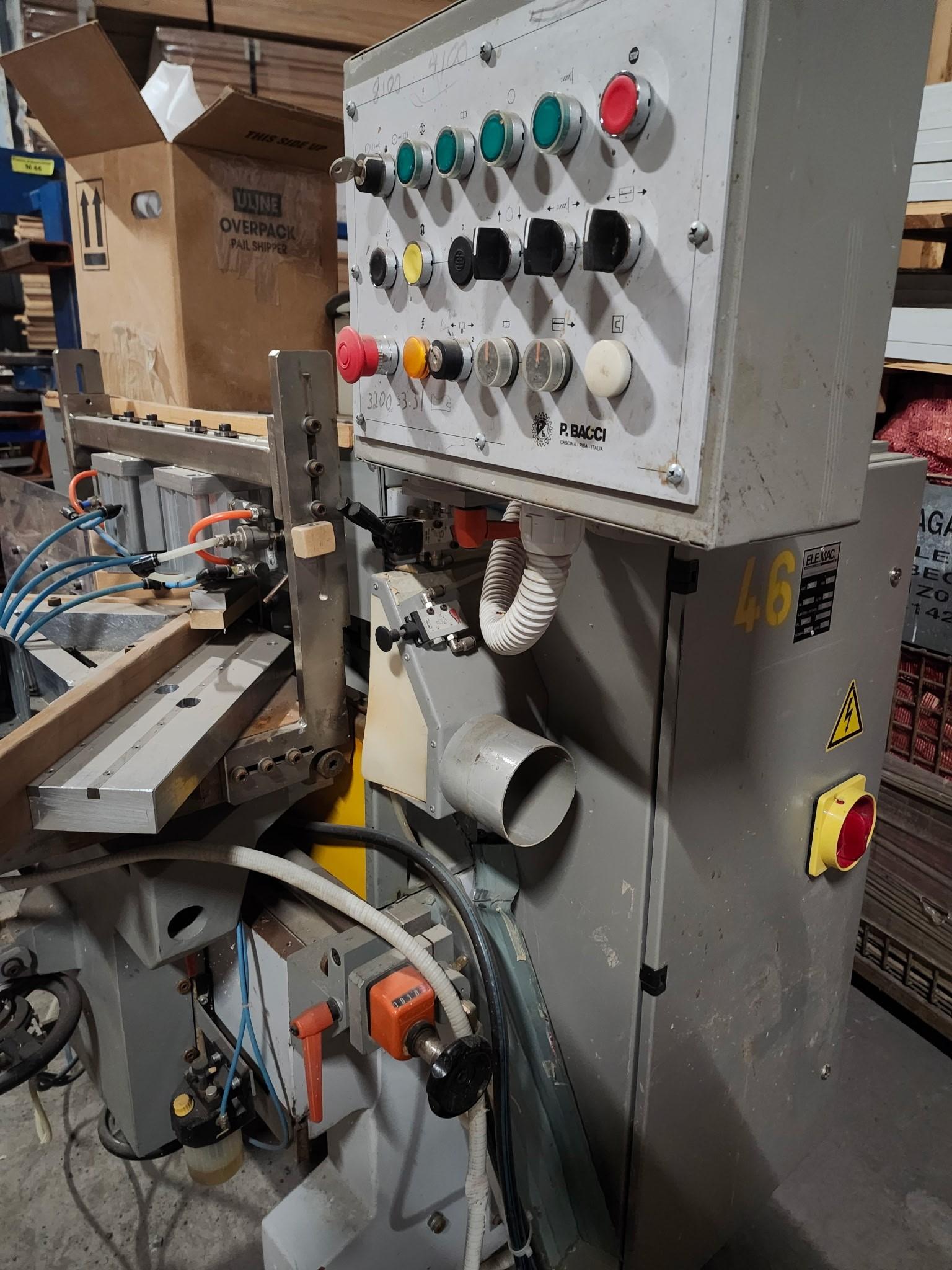

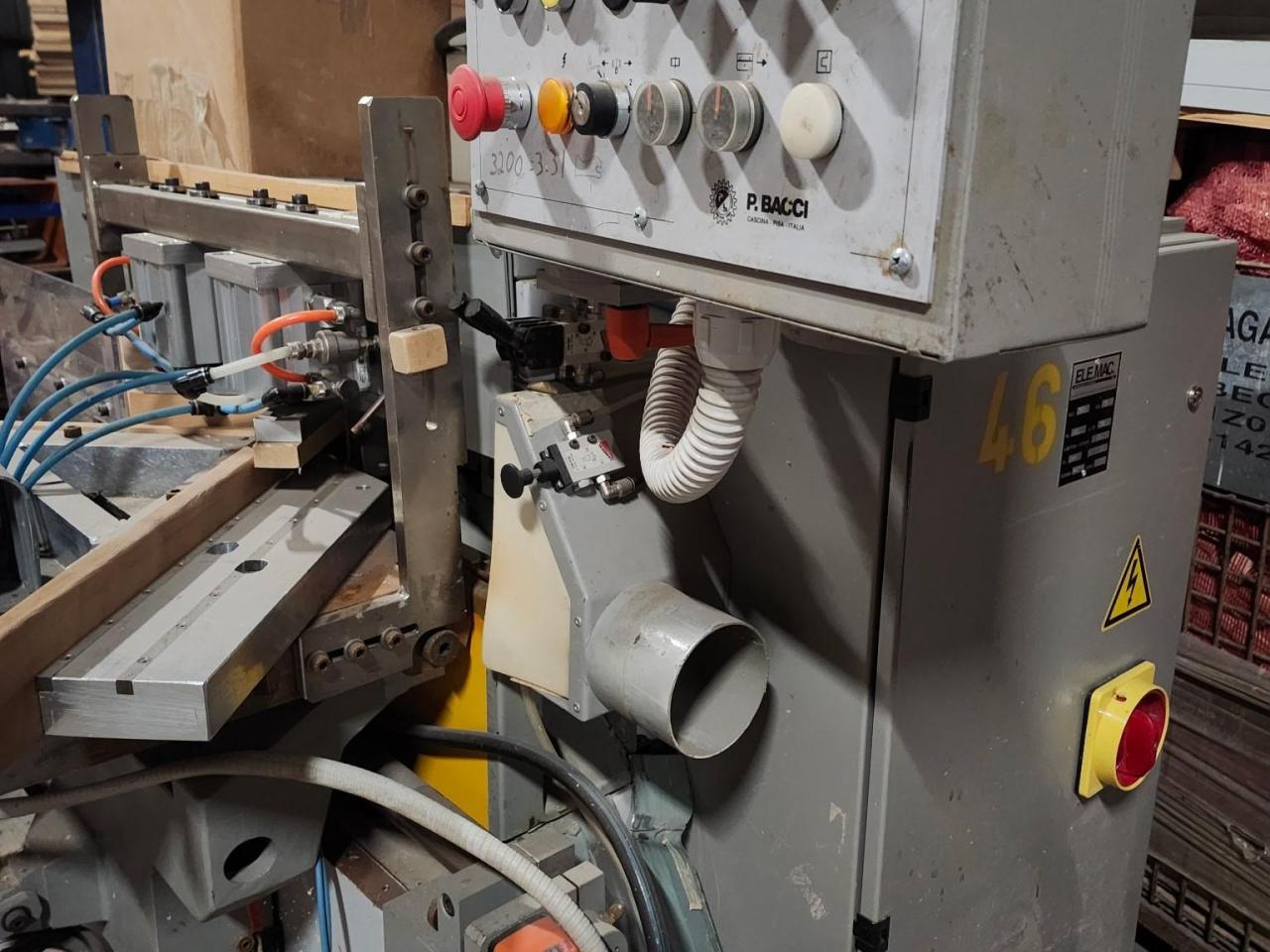

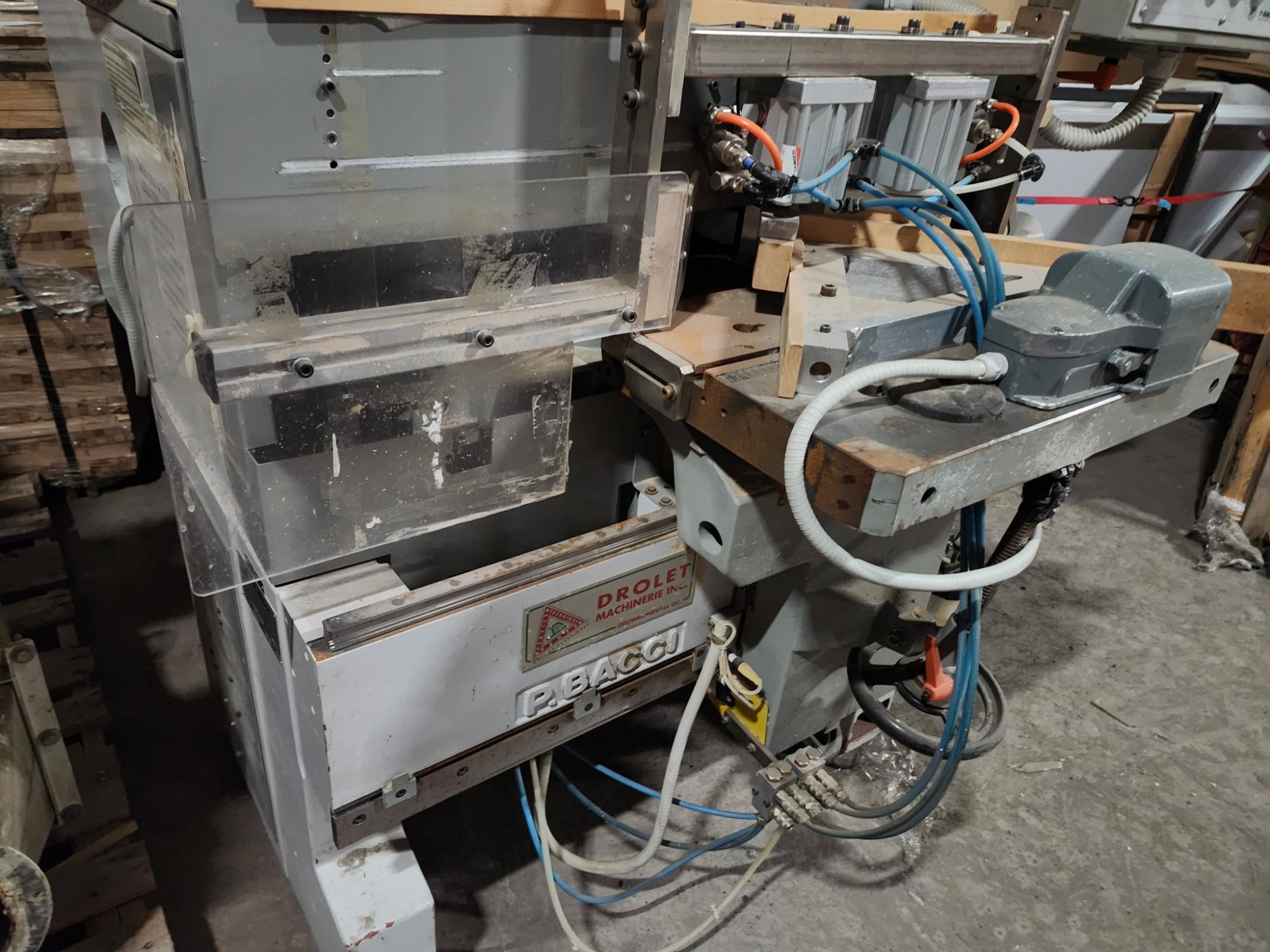

Bacci TTF1 T2M Automatic 45° miter door machine

Automatic 45° miter door machine designed for the production of cabinet doors or frame components.
The machine performs cutting, drilling, and profiling in a single cycle, typically processing two workpieces simultaneously.

Technical Specifications

Cutting Unit

• Saw motor: 3 HP
• Blade diameter: Ø 400 mm
• Cuts two pieces simultaneously
• Selectable slow or rapid saw feed

Drilling Unit

• Motor: 3 HP
• Special drilling head for drilling one hole in each workpiece
• Drilling depth: approx. 60–80 mm
• Optional adjustable multi-spindle drilling head

Finger Joint Unit (T2M)

• Power: 7.5 HP
• Speed: approx. 8,000 RPM
• Two spindle shaper units (clockwise and counterclockwise)
• Spindle diameter: Ø 35 mm
• Maximum tooling size: Ø 160 mm × 120 mm height

Equipment & Operation

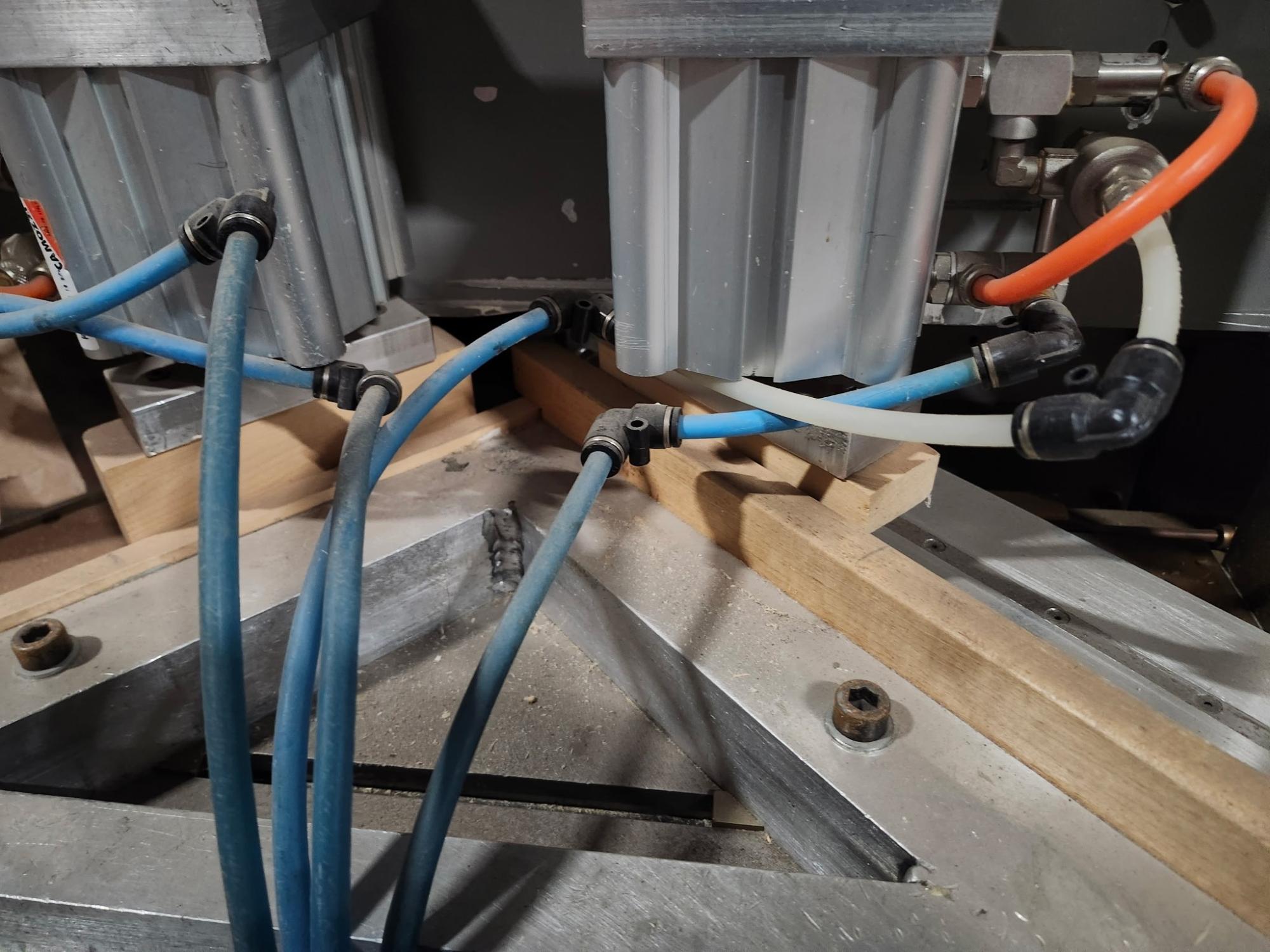

• Two pneumatic workpiece clamps
• Table mounted on hardened guideways with ball bushings
• Hydraulic control of table stroke
• Mechanical stop with digital readout for depth adjustment

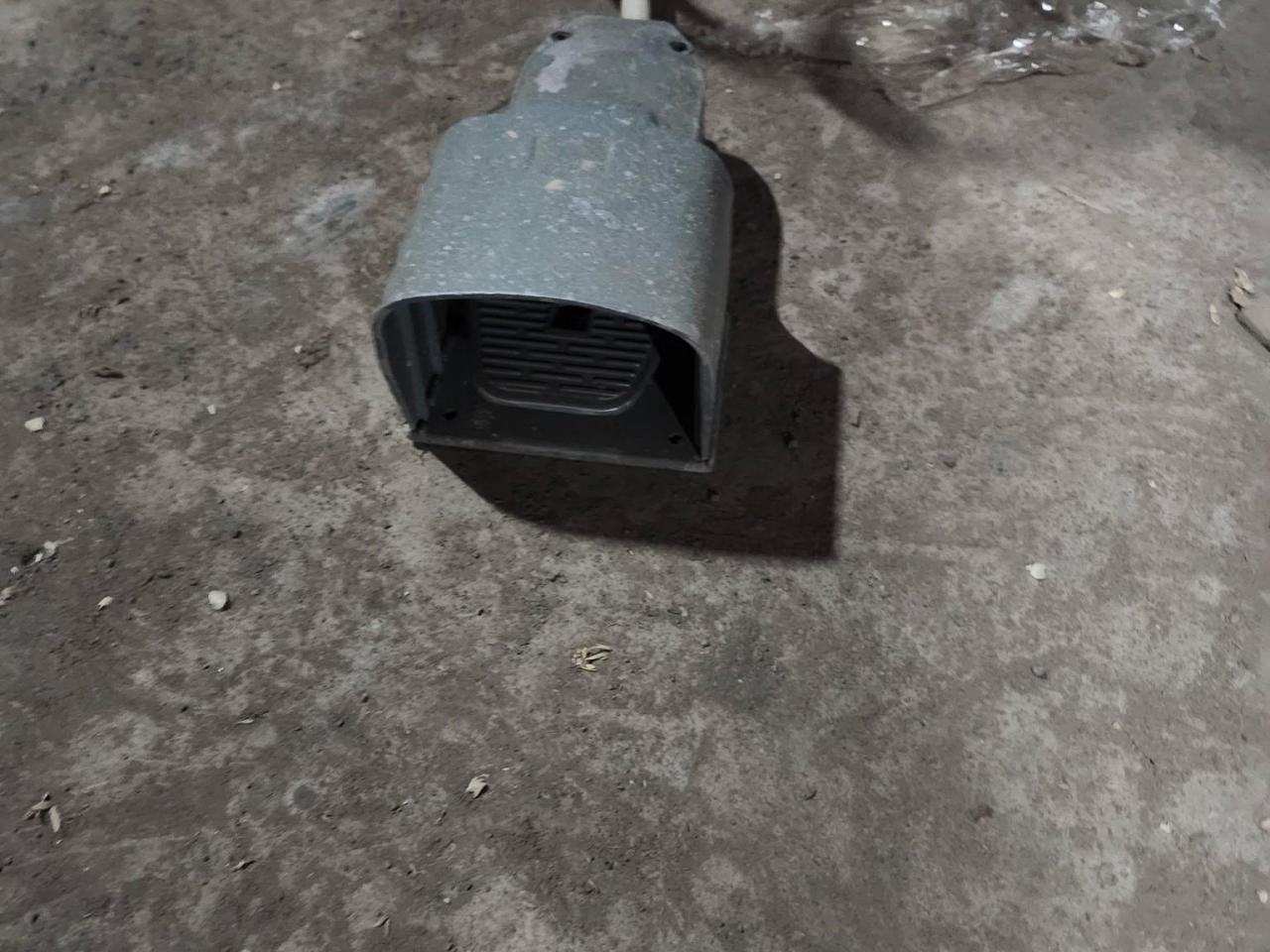

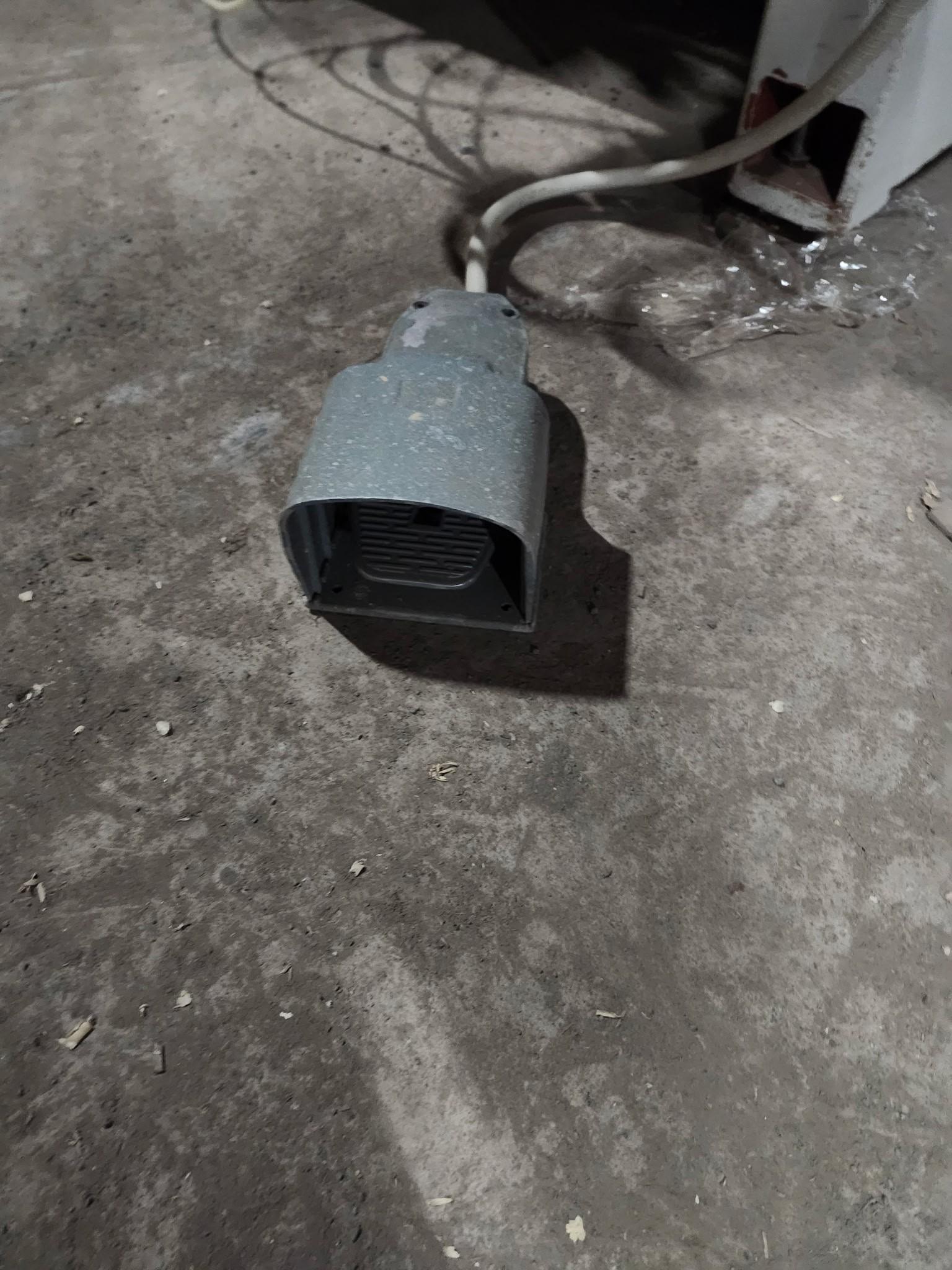

• Foot pedal control
• PLC-controlled operation allowing combined functions (cutting / drilling / profiling)

Electrical Requirements

• 380 V
• 60 Hz
• 3 Phase

Approximate Dimensions & Weight

• Machine footprint: approx. 6' × 5' × 6'
• Weight: approx. 2,400 lb (≈ 1,100 kg)
