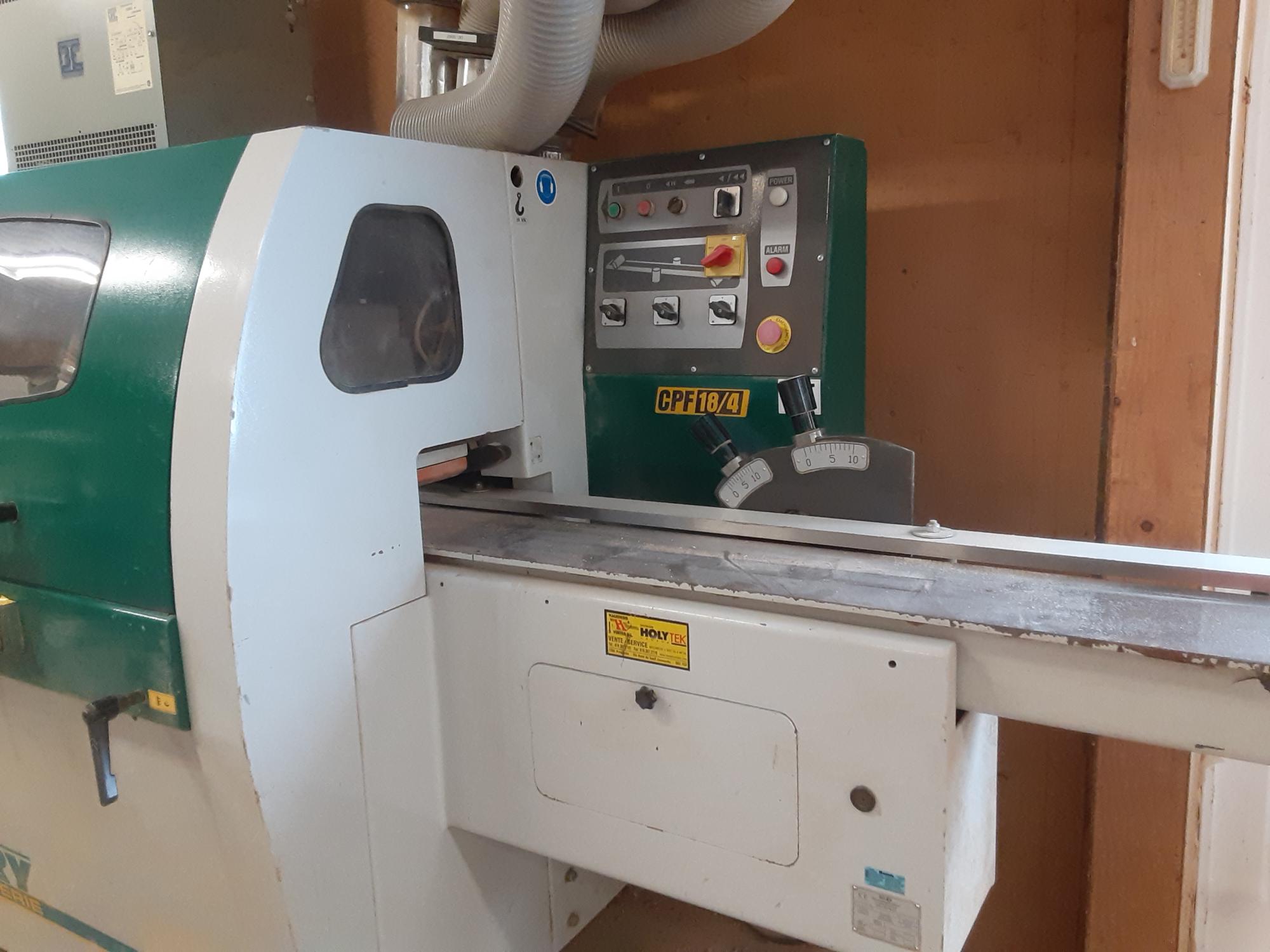

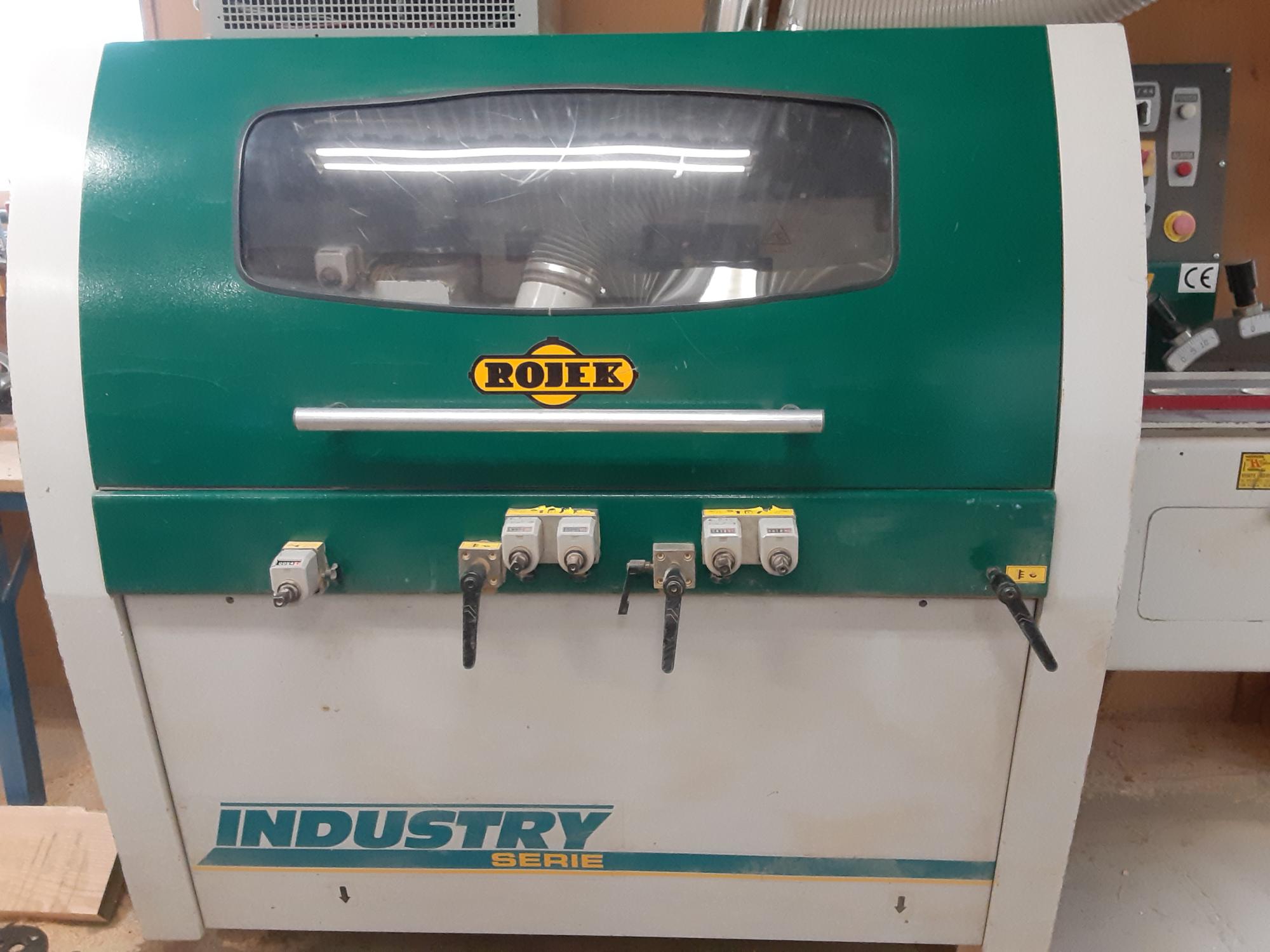

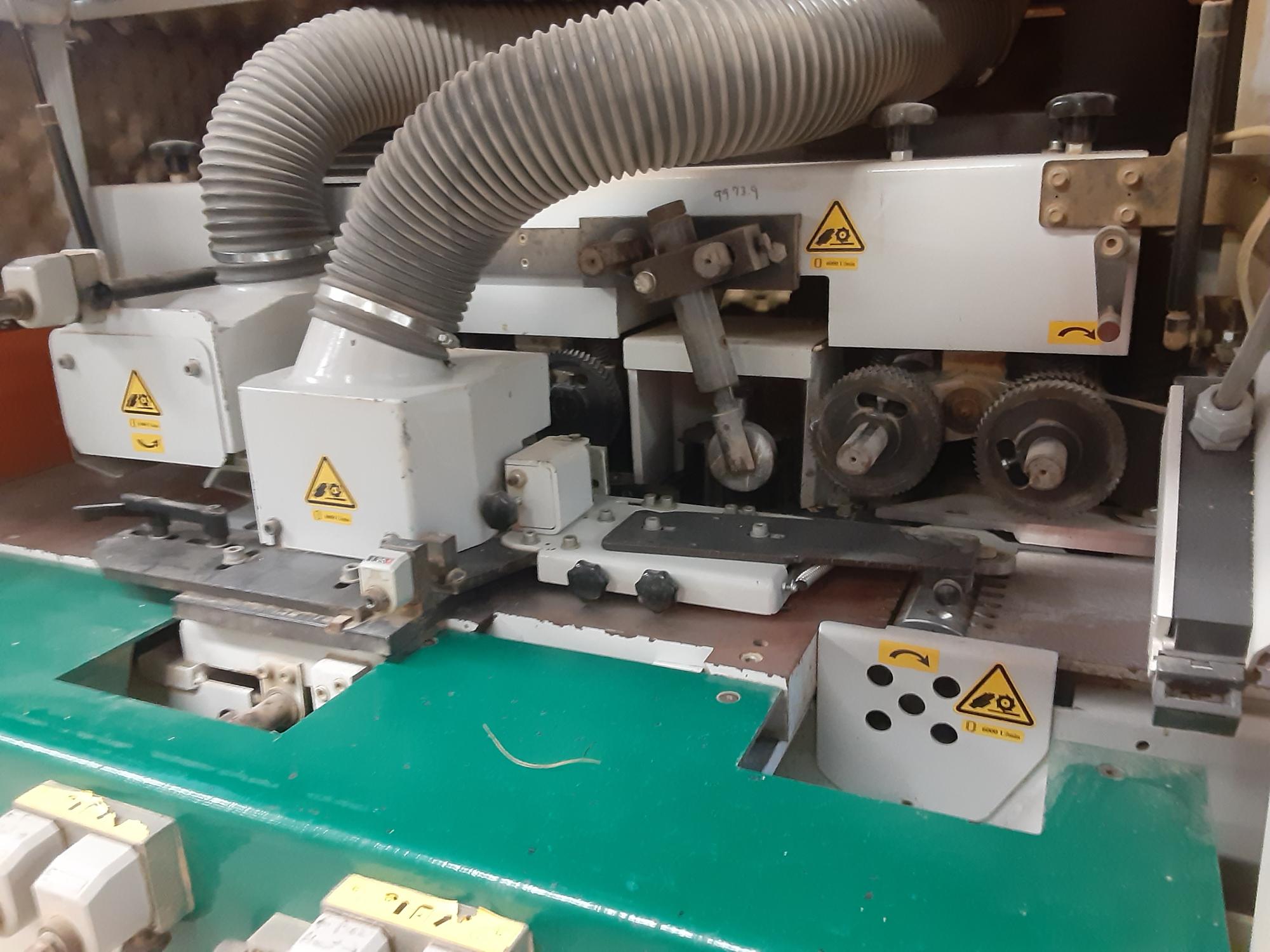

ROJEK CPF 18/4 4 heads moulder

Working Capacity:

• Maximum finished wood dimensions: 180 × 120 mm
• Minimum finished wood dimensions: 16 × 6 mm
• Minimum workpiece length: 430 / 250 mm
• Maximum cutting depth: 10 mm

Infeed table length: 1,700 mm

Tool spindle diameter: 40 mm

Cutterhead diameter:

• 120 mm (Head 1)
• Min. 100 mm / Max. 180 mm (Heads 2–4)

Spindle speed: 6,000 RPM

Feed speed: 6 / 12 m/min

Feed roller diameter: 120 mm

Dust extraction ports: 4 × 120 mm

Motors:

• Horizontal spindle motors: 5.5 + 5.5 kW
• Vertical spindle motor: 7.5 kW
• Feed motor: 0.8 / 1.1 kW

Inclued: electrical transformer 400V/3ph @ 600V/3ph

Noise Level: 100.7 dB(A)

Overall Dimensions: 3,810 × 1,530 × 1,550 (H) mm / 150" × 60" × 61" (H)

Weight: 1,300 kg / 2,867 lb
