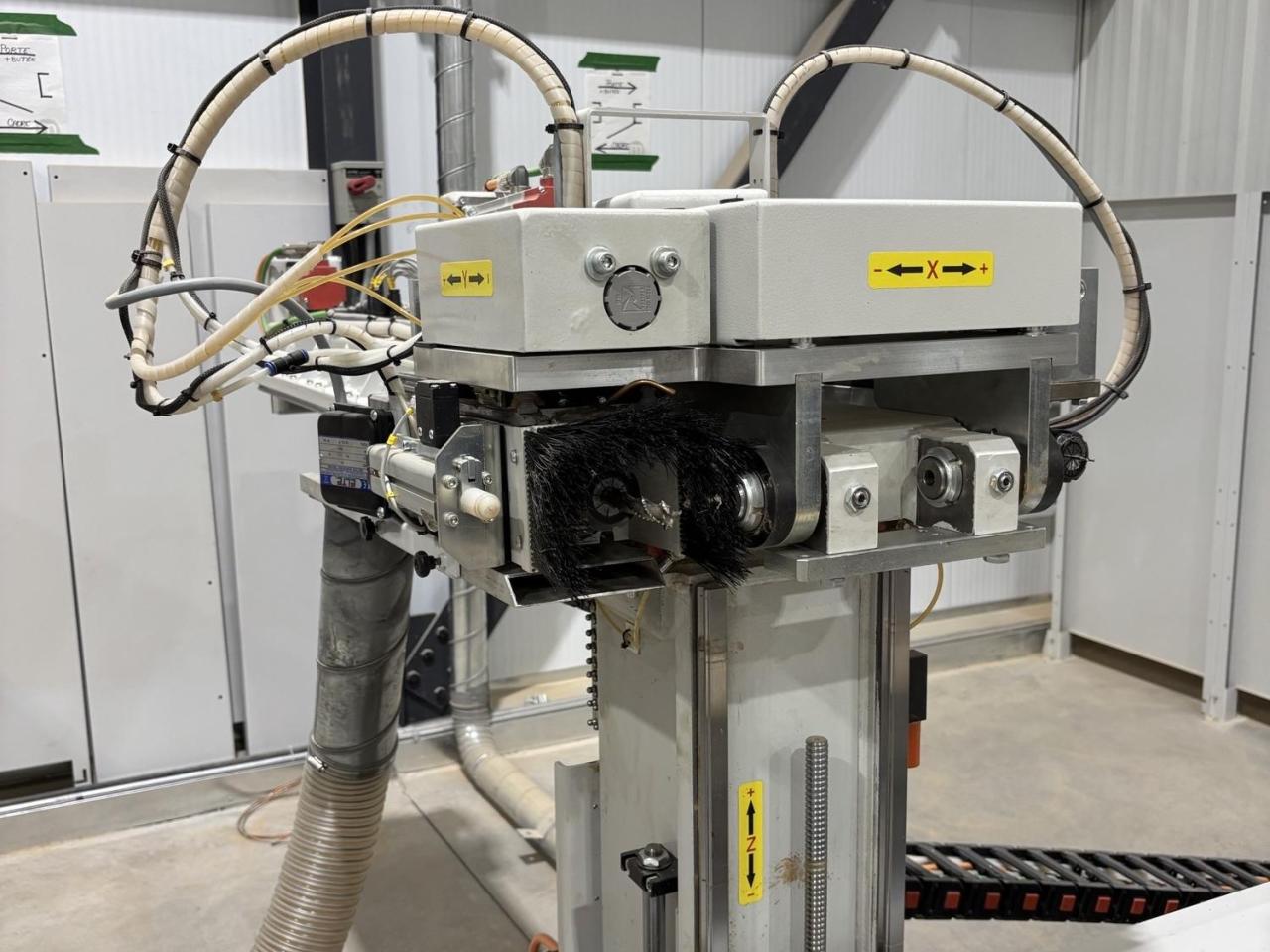

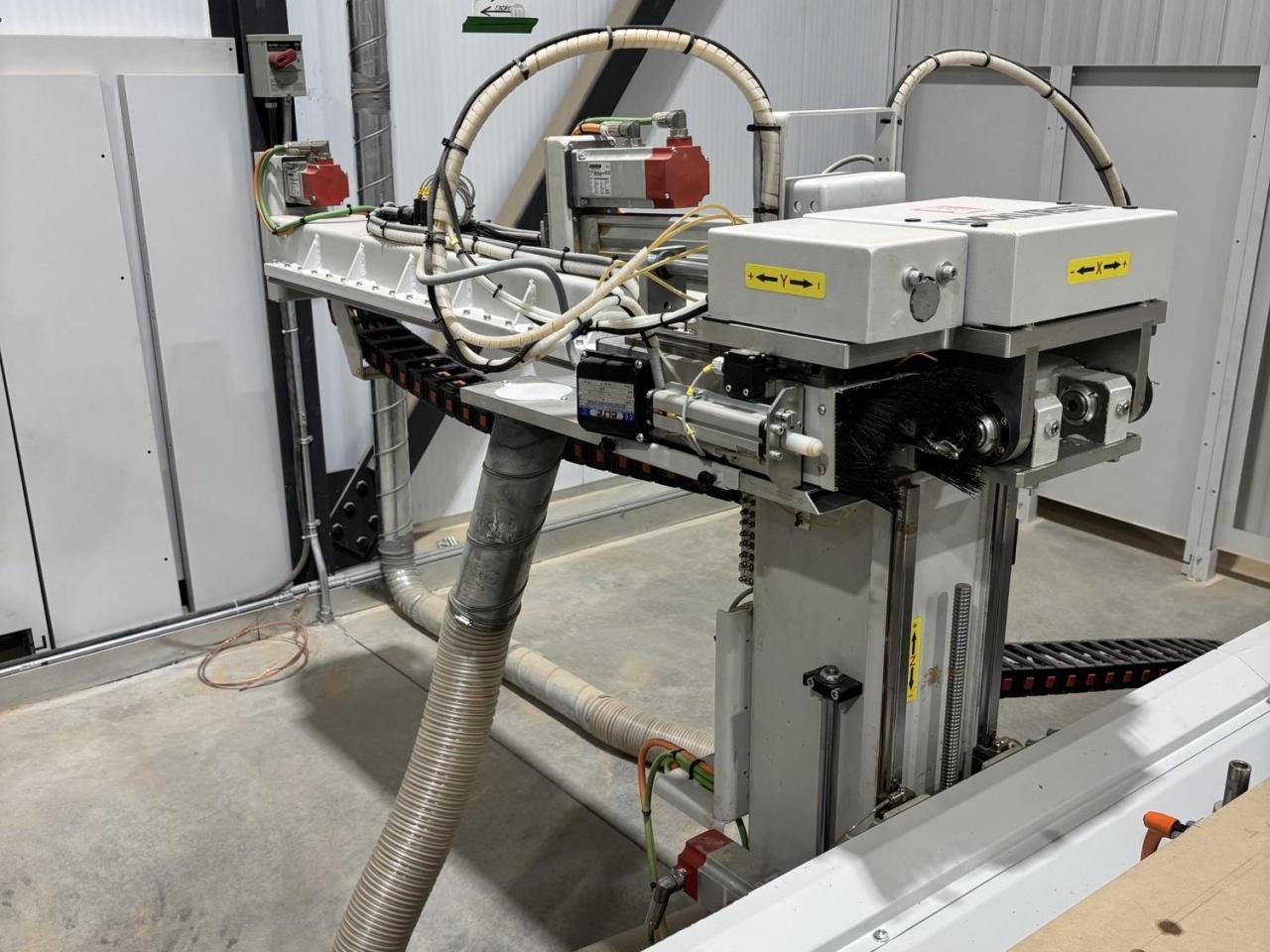

Axis output X-Y-Z (milling unit): 2800/180(1000)/150 mm

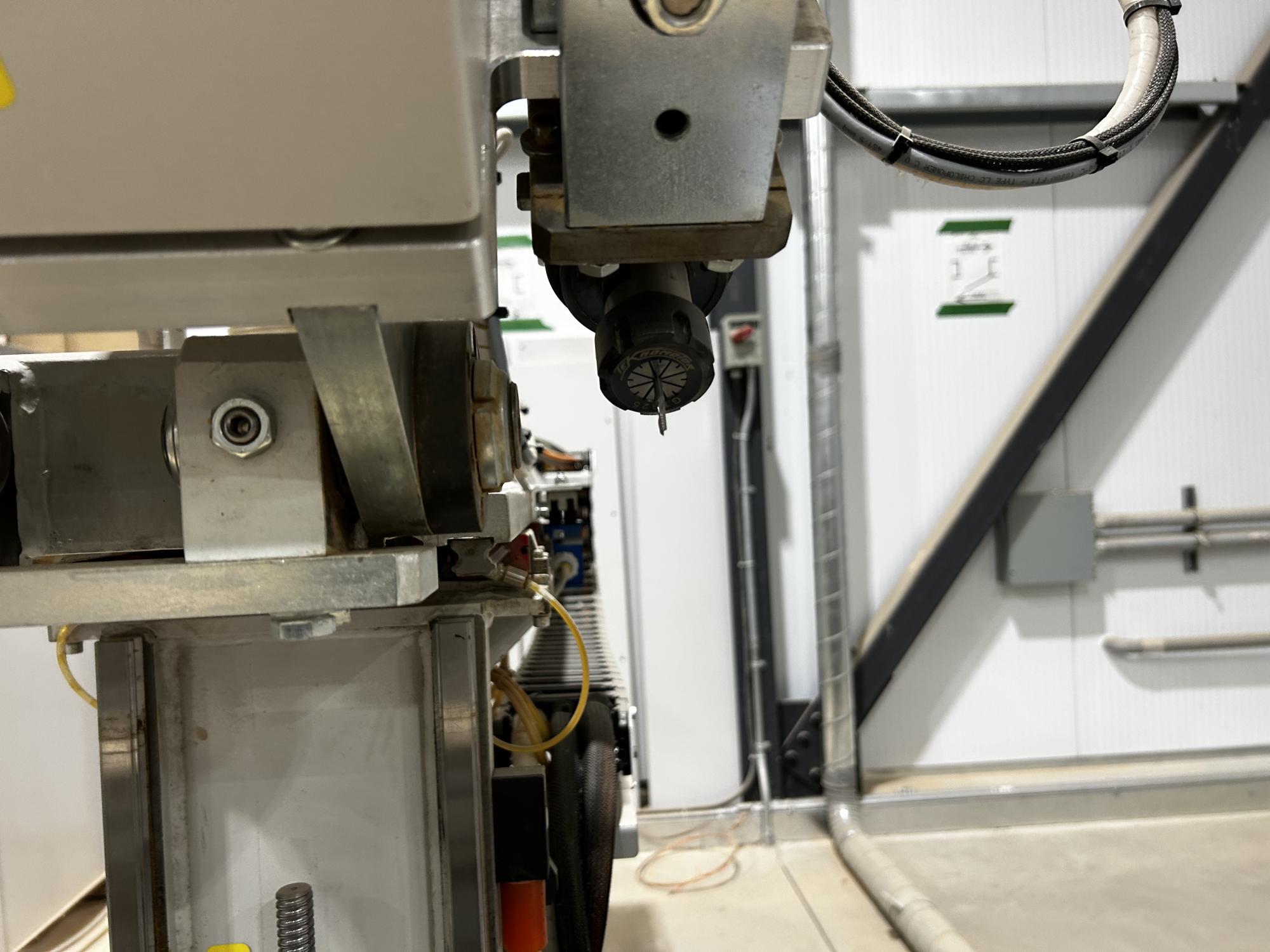

ER32 collet for milling cutter 16-15 mm ø: nr. 1
X-Y-Z axis speed : 35 / 7.5 / 7.5 m/mm

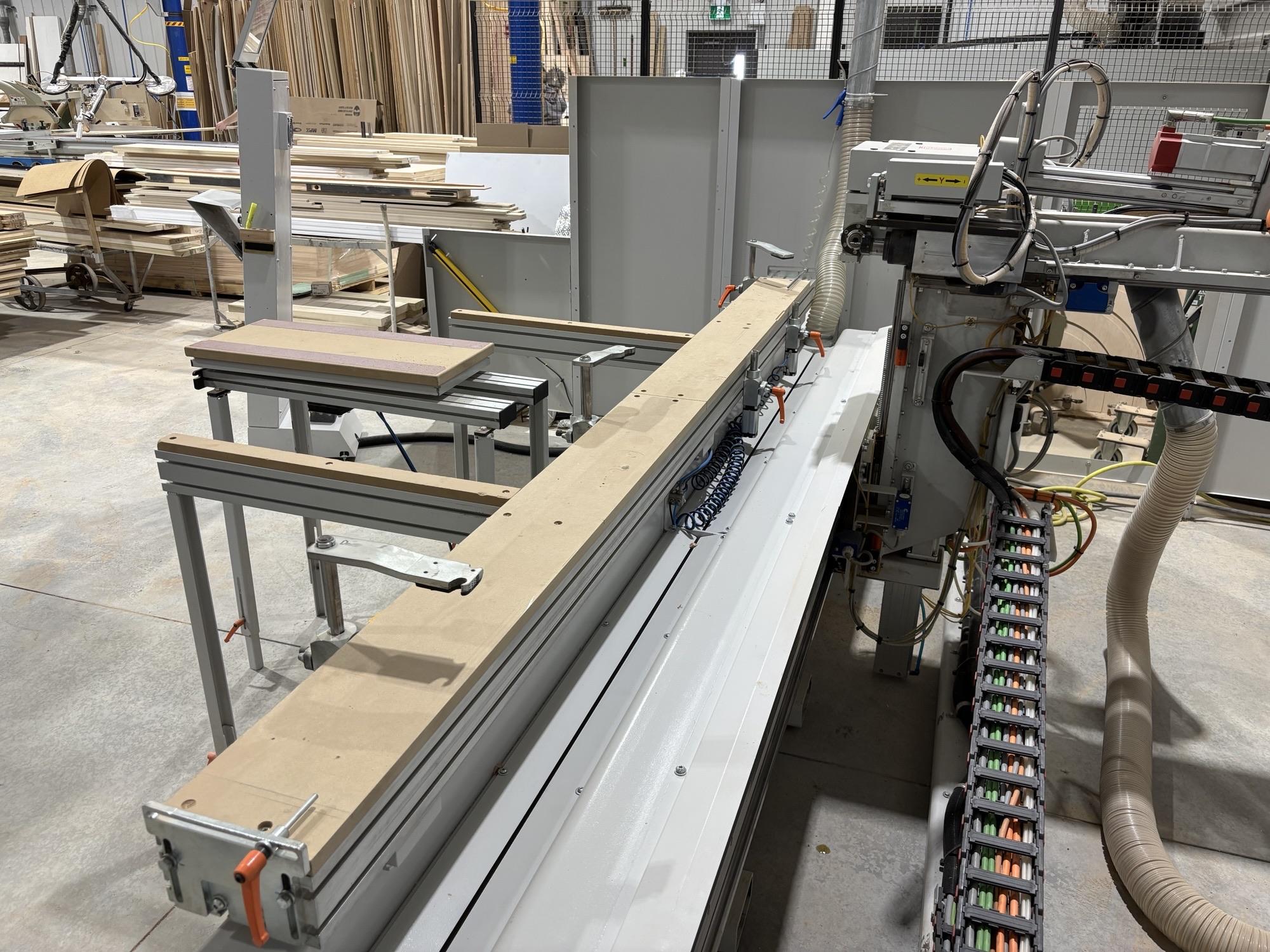

Max. working table dimensions: 300 x 618 mm
Retractable rear stops: 2
Front clamps: 3
Side stops (1 RH – 1 LH): 2
Front table extensions for piece support: 2
Router motor power: 5.6kW - 7.5HP
Voltage: 575/3/60 CSA
Additional router motor speed: 0 -18000 g/min
Inclination of router head: 0° / 90° (- 10° +90°*)
Drilling unit motor power: 0.75* kW
Drilling unit motor speed: 4500* g/min
Inclination of drilling unit: -10°/+90°*

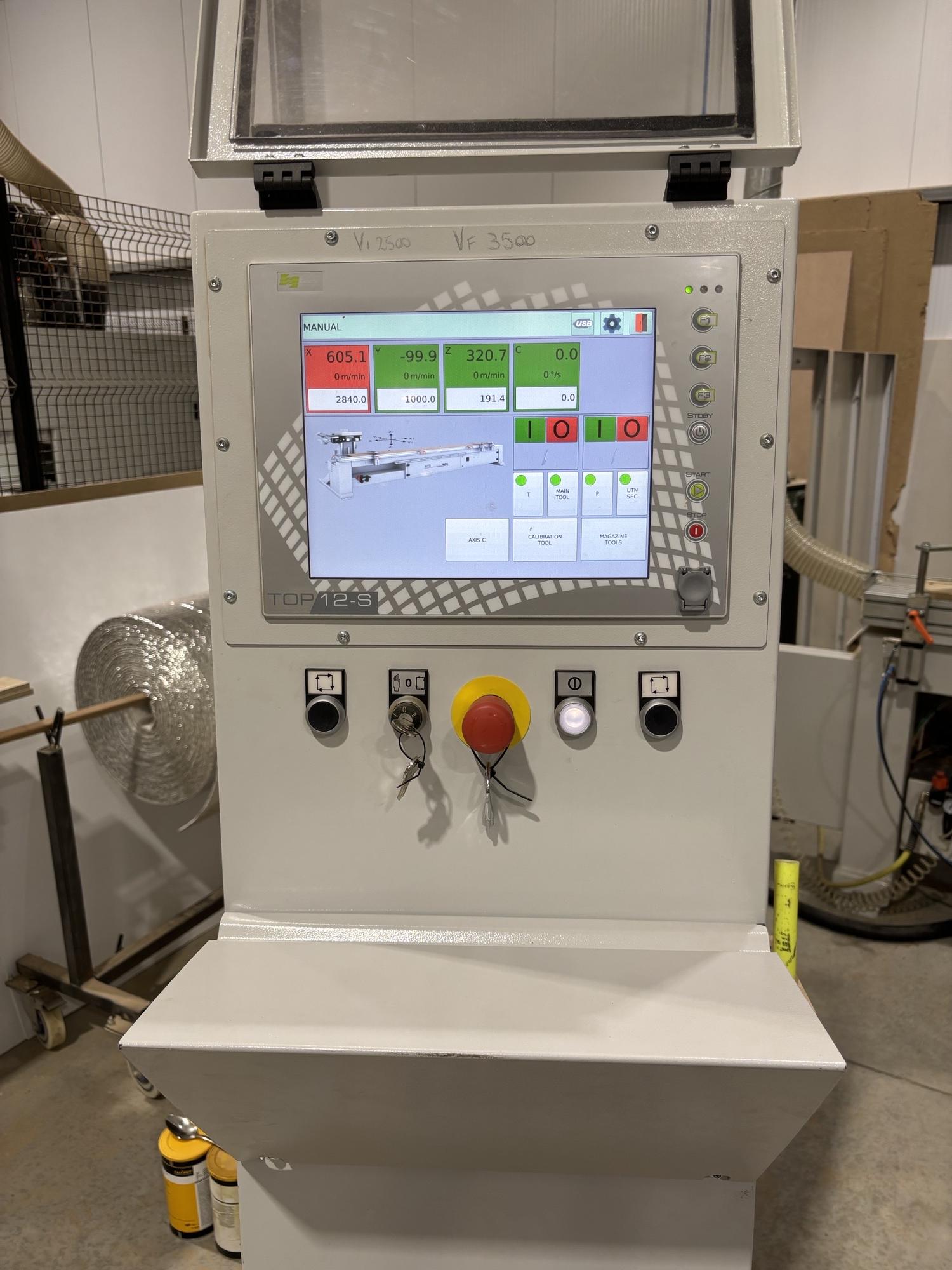

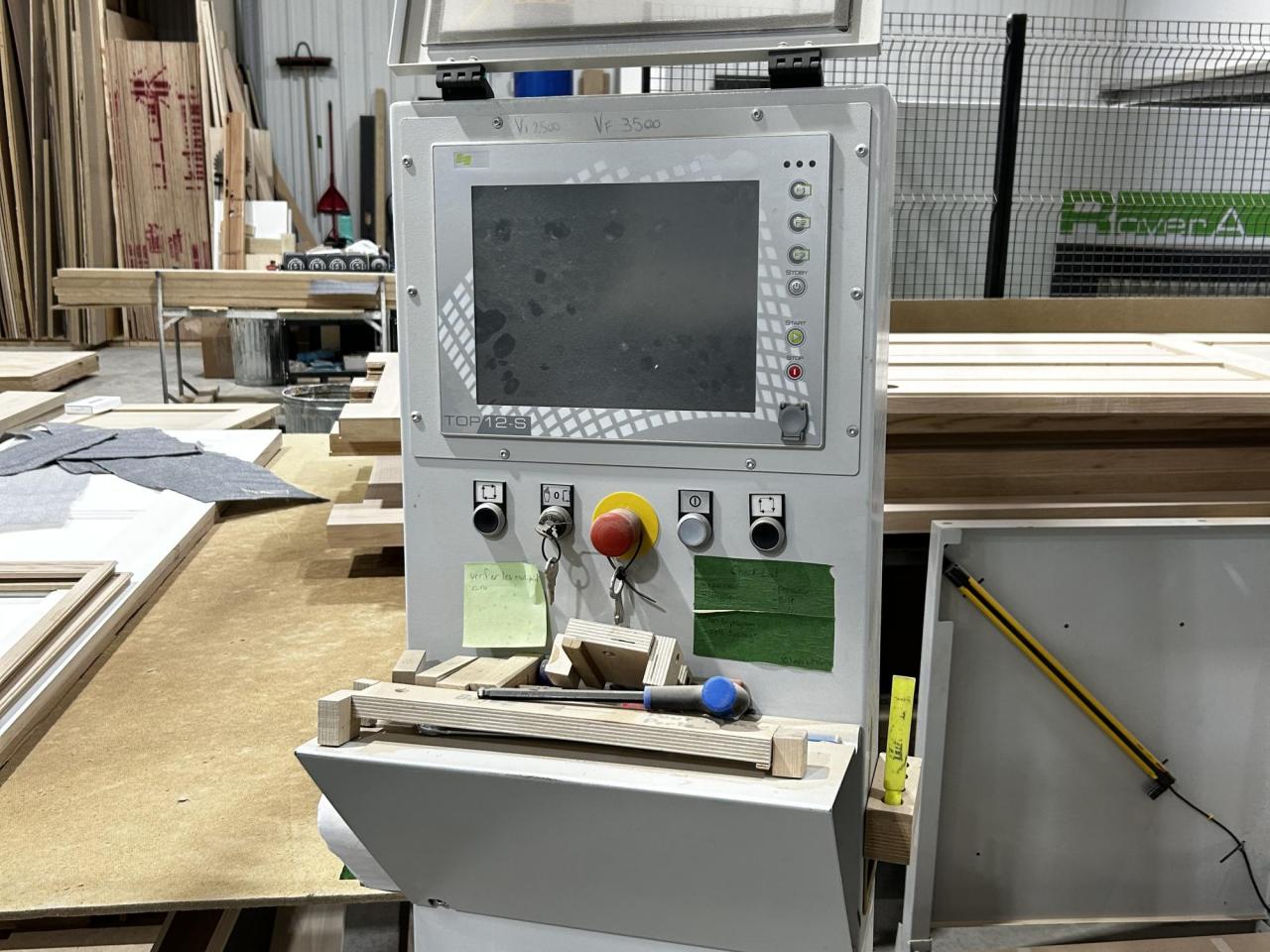

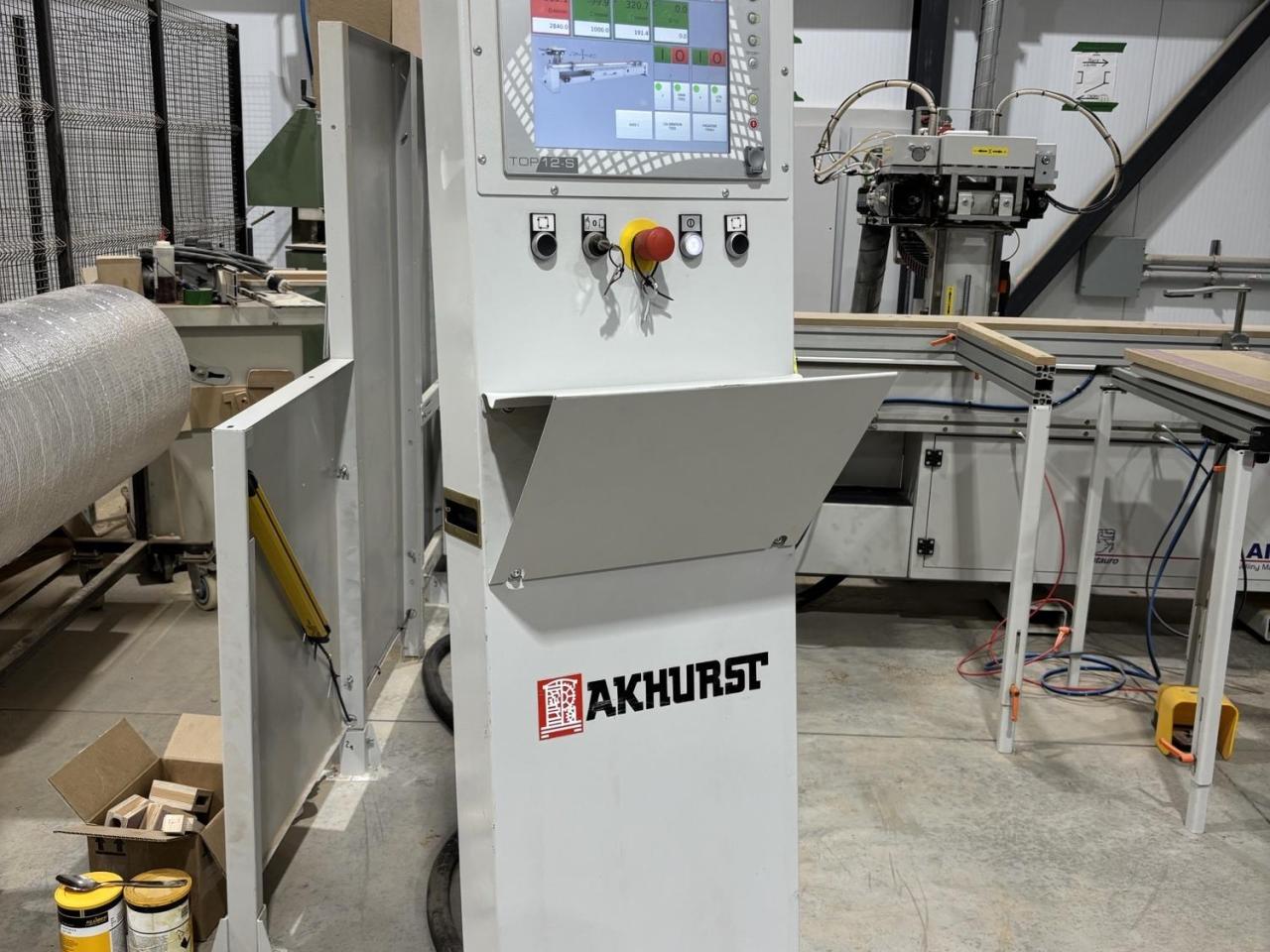

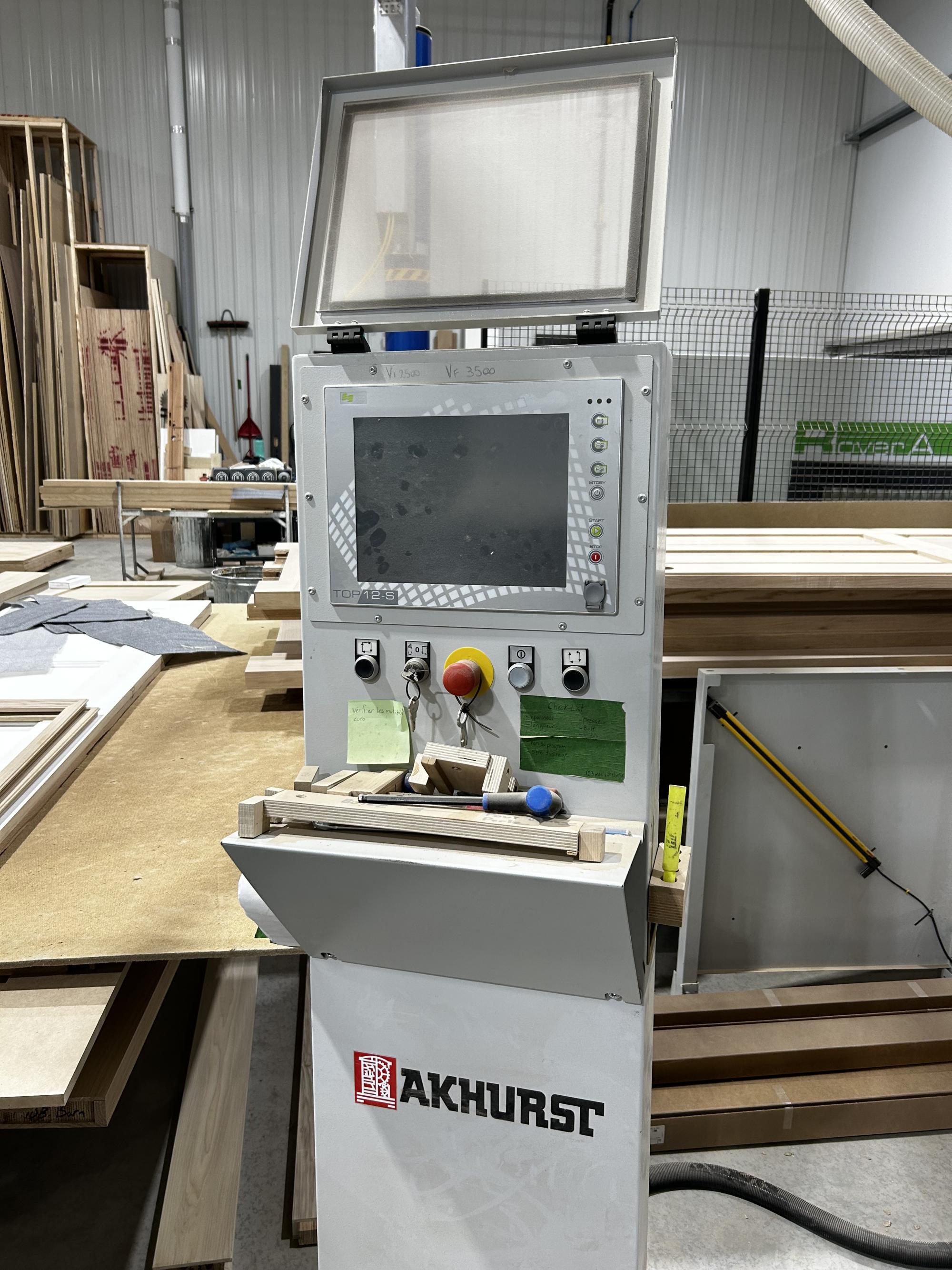

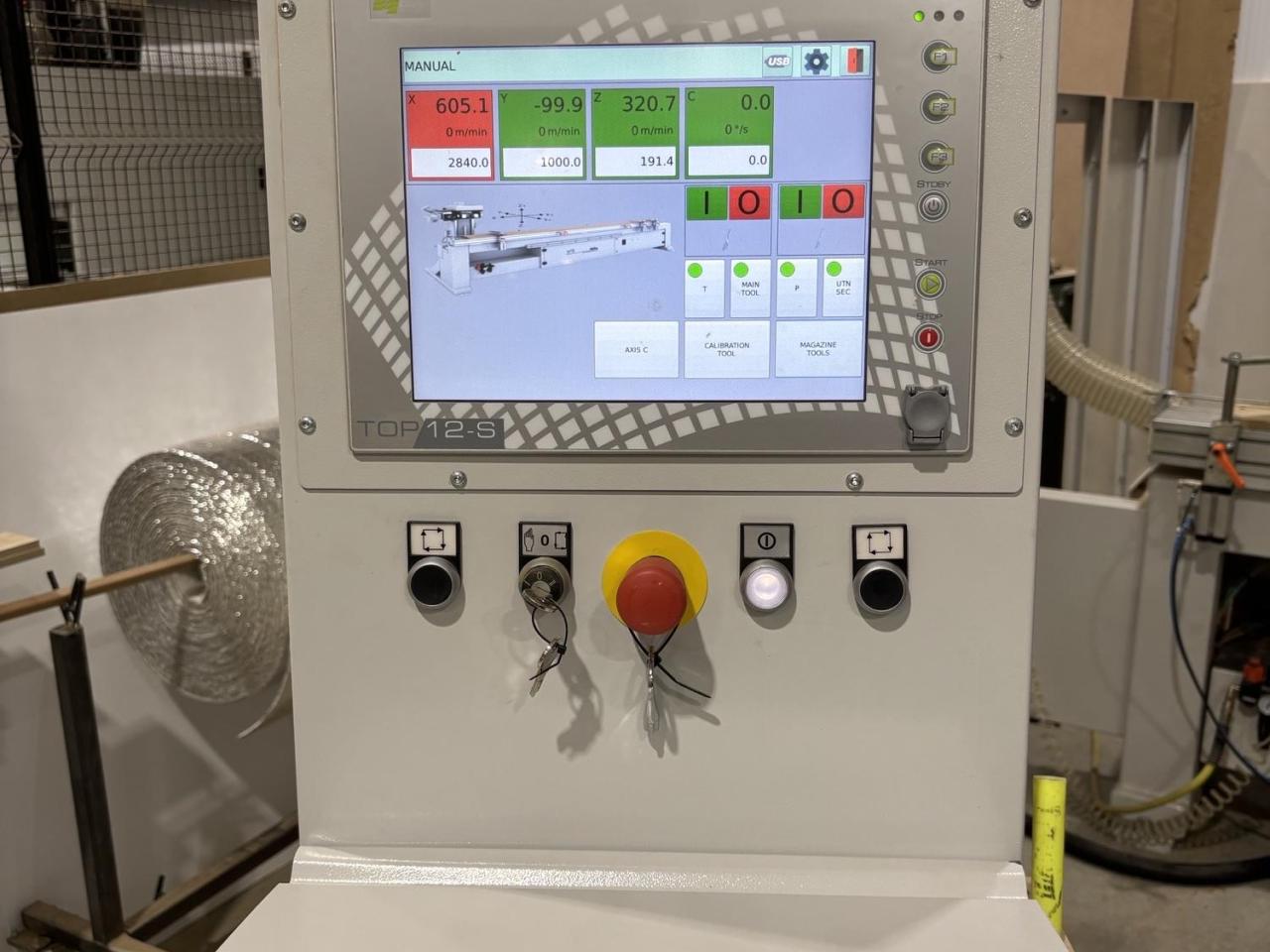

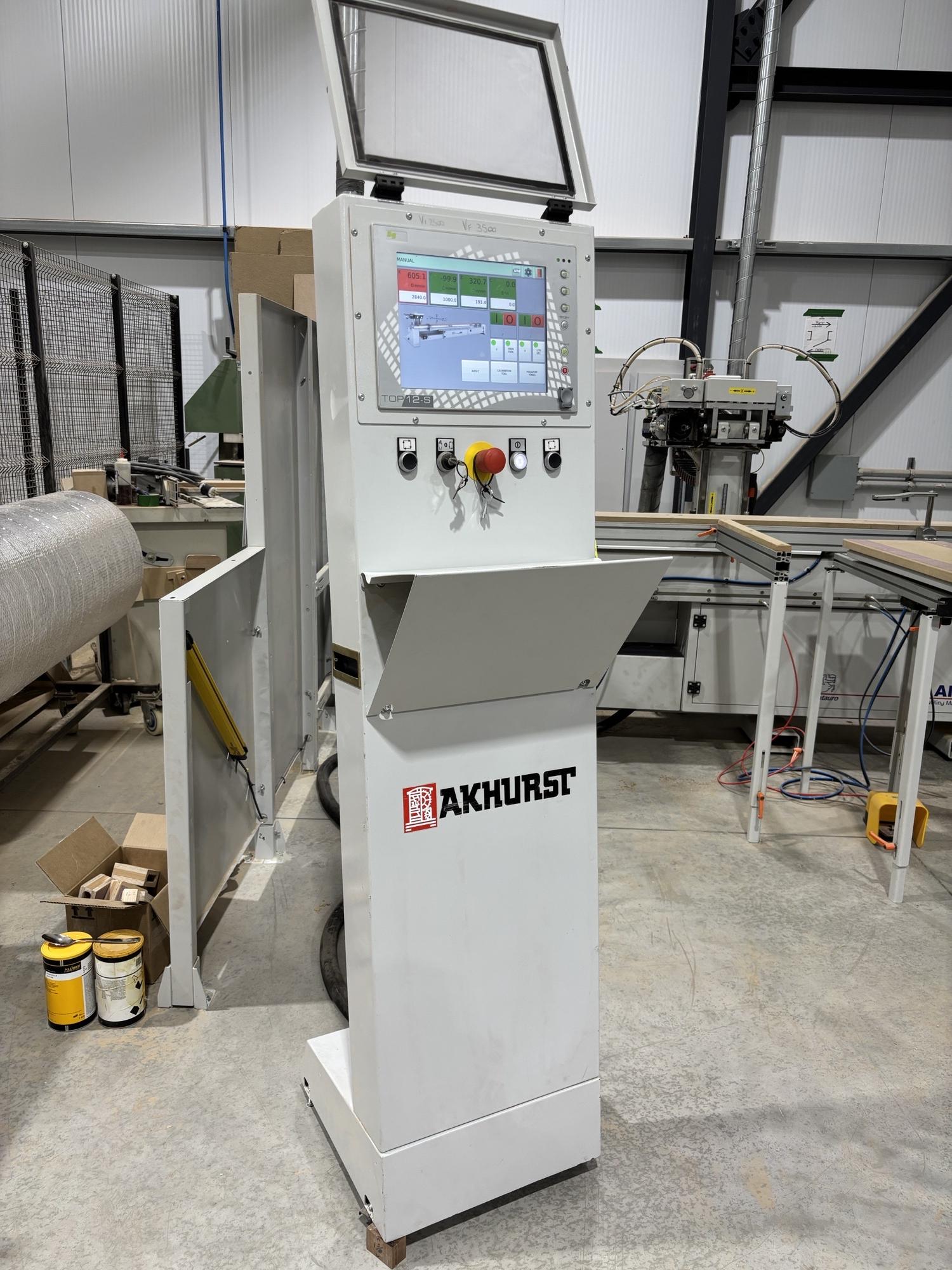

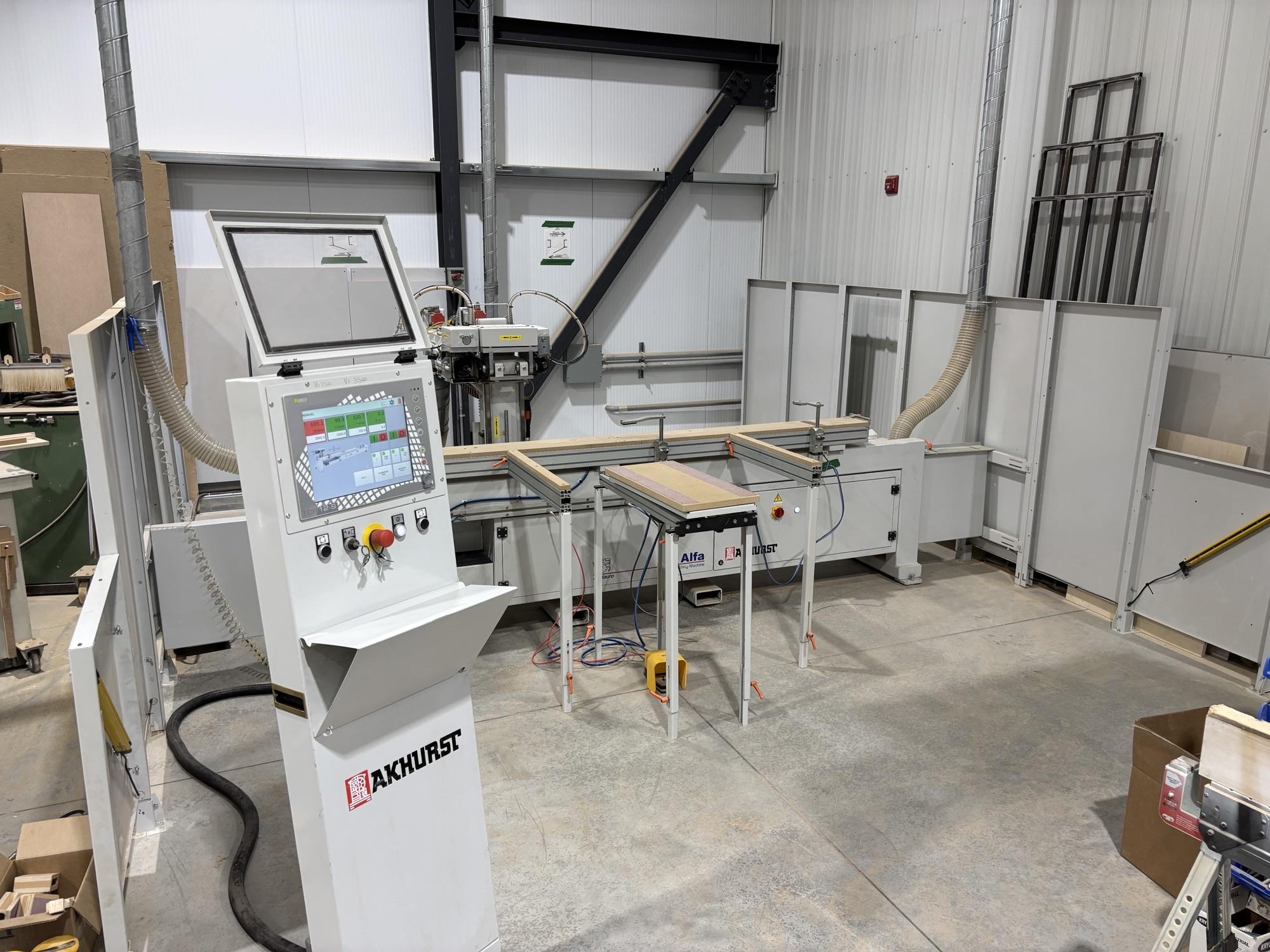

Electronic control Power 1000: Touch Screen 10”
Operating pressure: 6 (l/min. 300) bar
Dust extraction outlets: nr. 1 ø 80 mm. 2 ø 100 mm.
Shipping weight: 144" X 63" X 60"
Net weight: 1300 Kg
