600V/60C/1Ph
Year: 2019

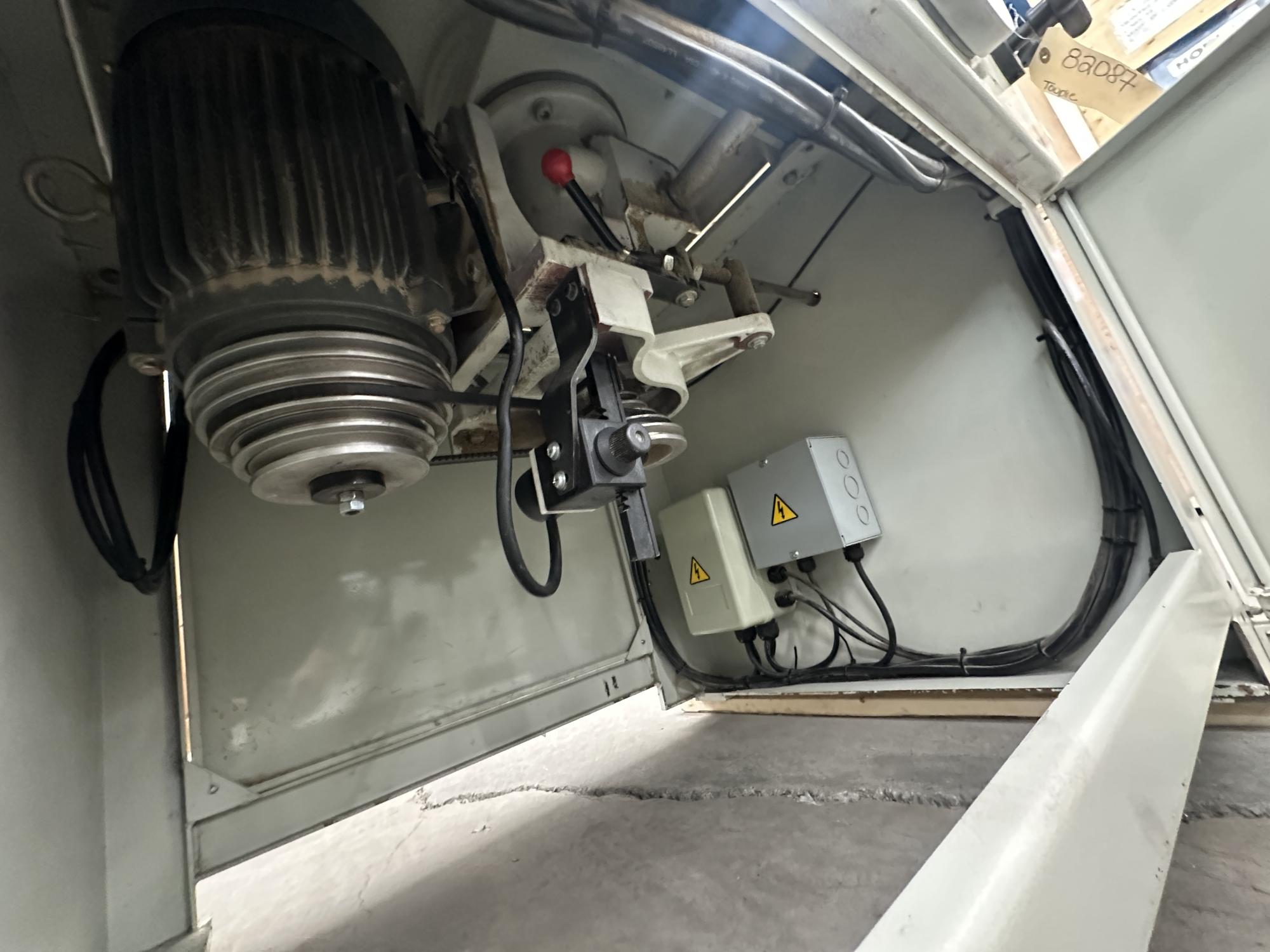

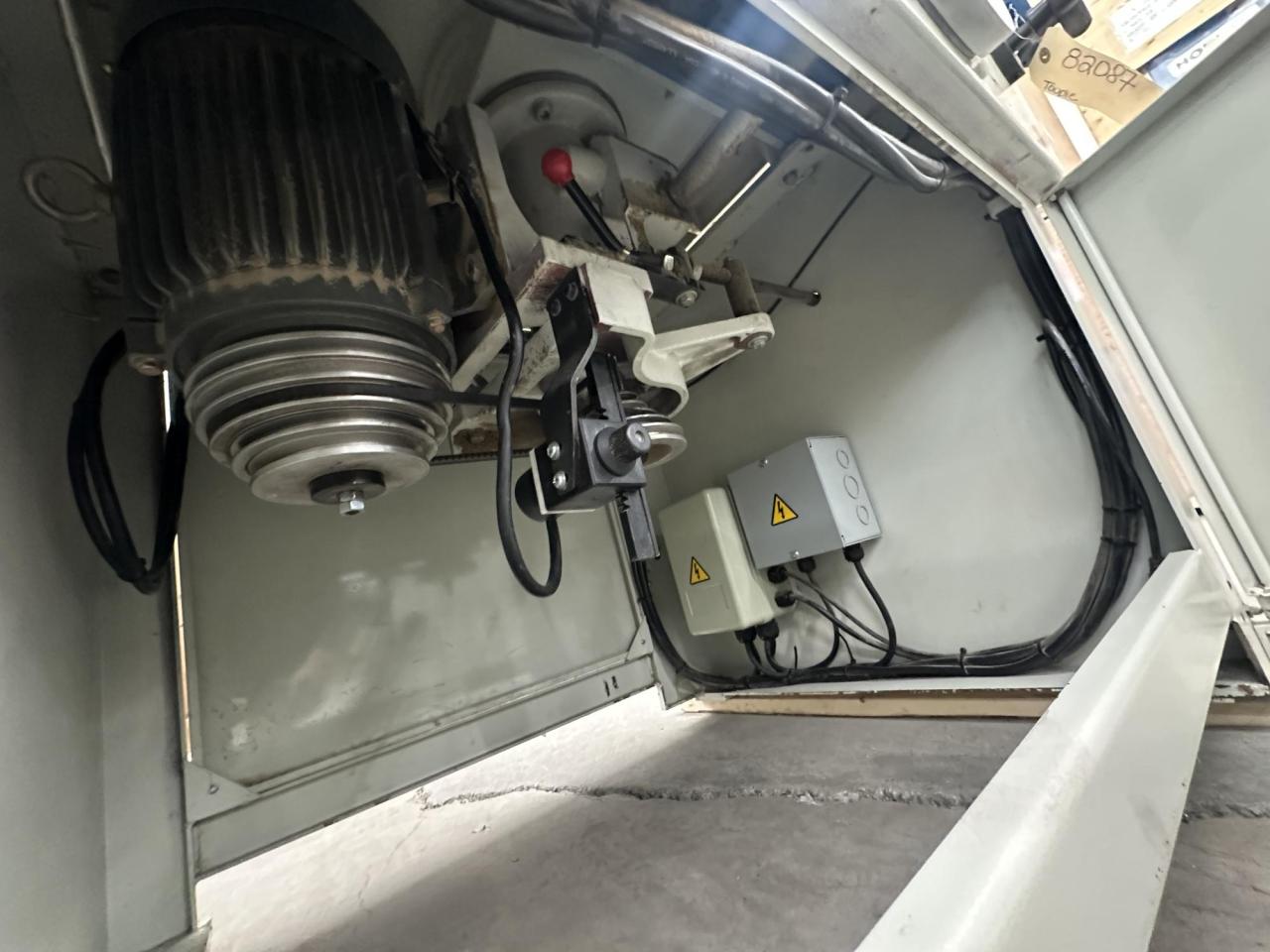

Engine: 7.5 HP
Interchangeable + vertical displacement shaft

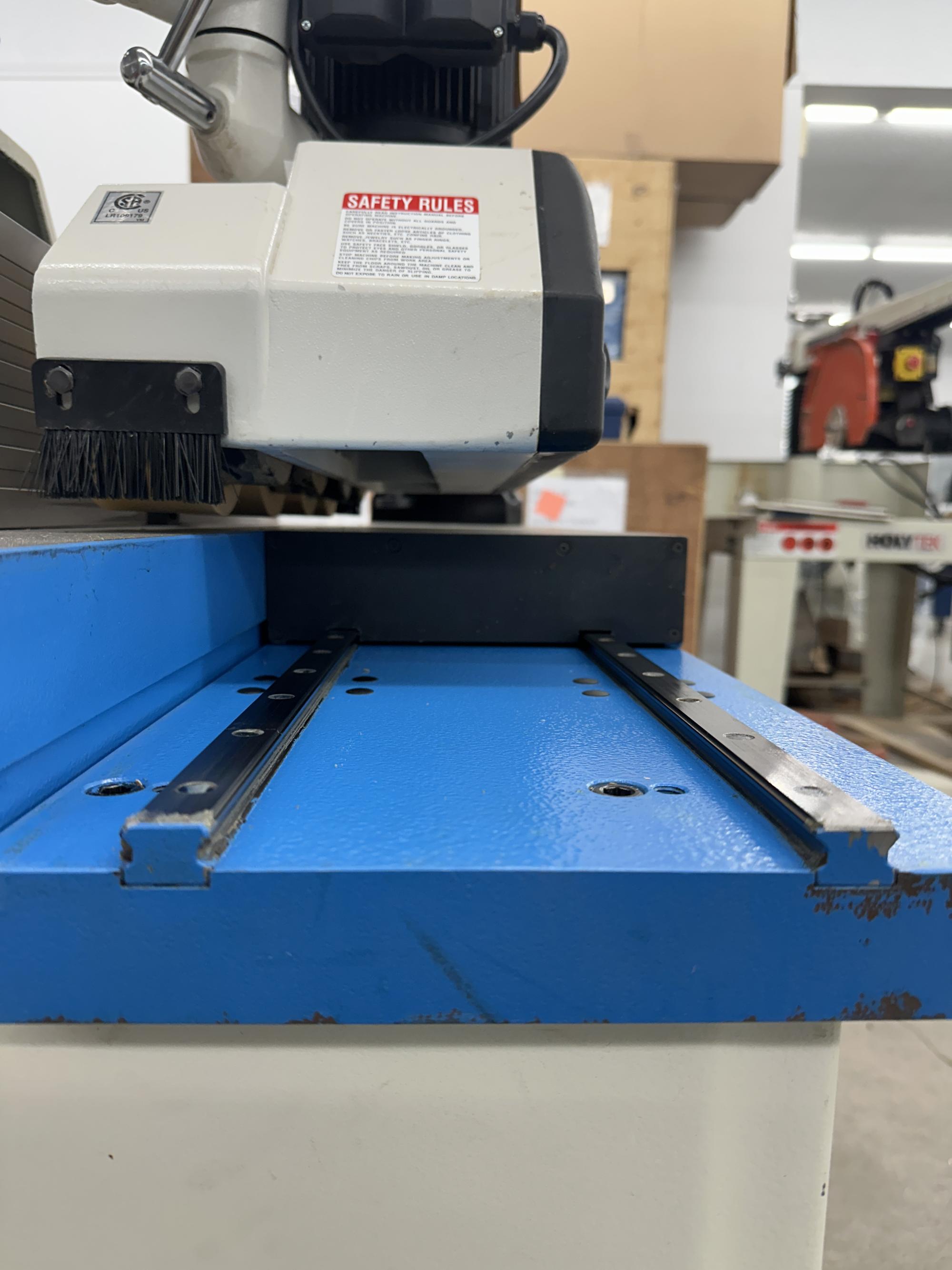

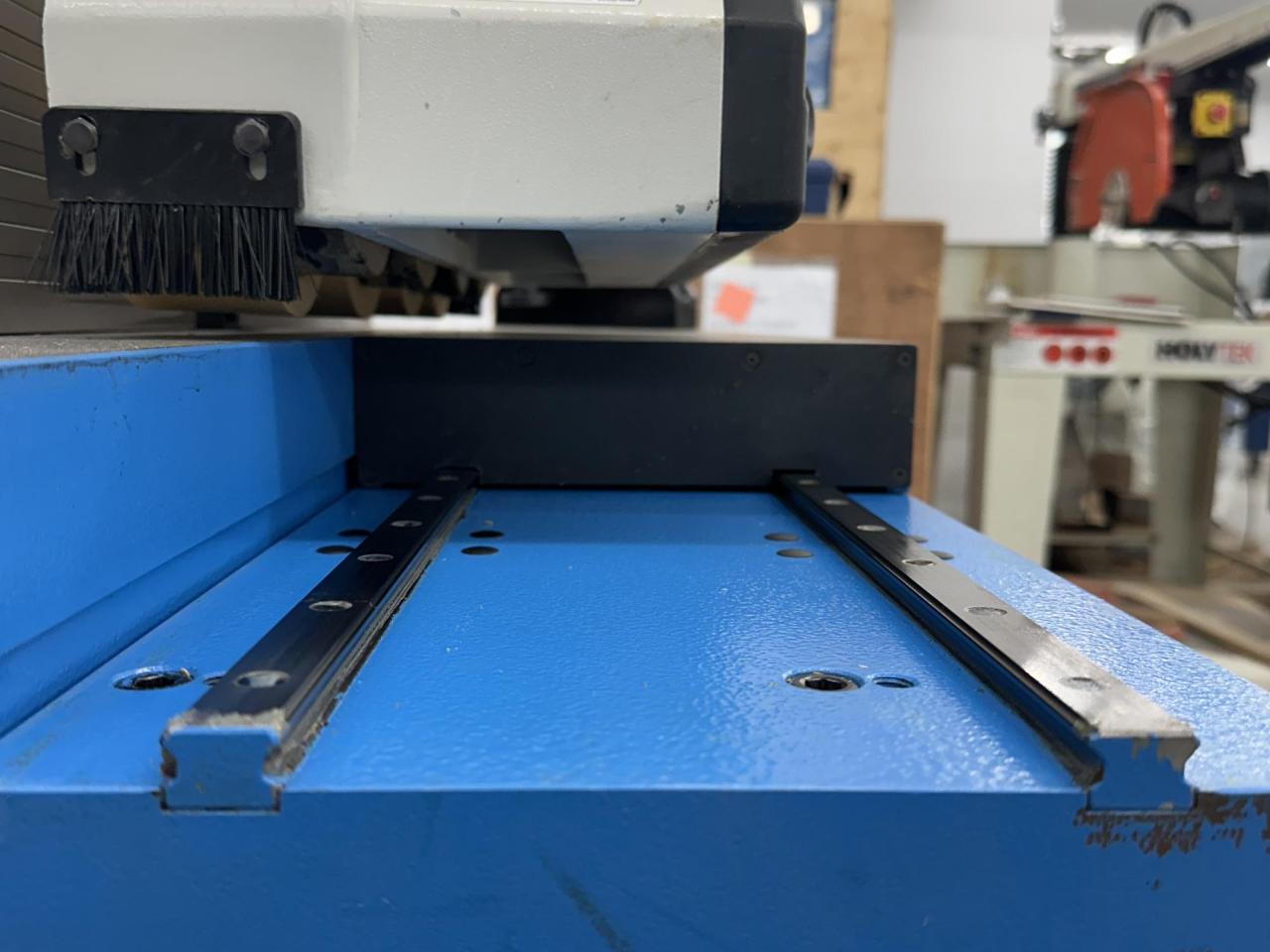

Sliding table with linear guide device
Shaft Diameter: 1-1/4" x 120mm(L)
Worktable dimensions: 800 x 1000 mm
Worktable height: 900 mm
Dimensions of the sliding table: 1000 x 260 mm
Sliding table displacement: 940 mm
Vertical shaft displacement: 140 mm
Shaft rotation: forward and backward
Shaft Speeds: - 3000 / 4000 / 6000 / 8000 / 10000 RPM
Speed display
Maximum Cutting Tool Diameter
- Under the table: 210 mm
- On the table: 330 mm

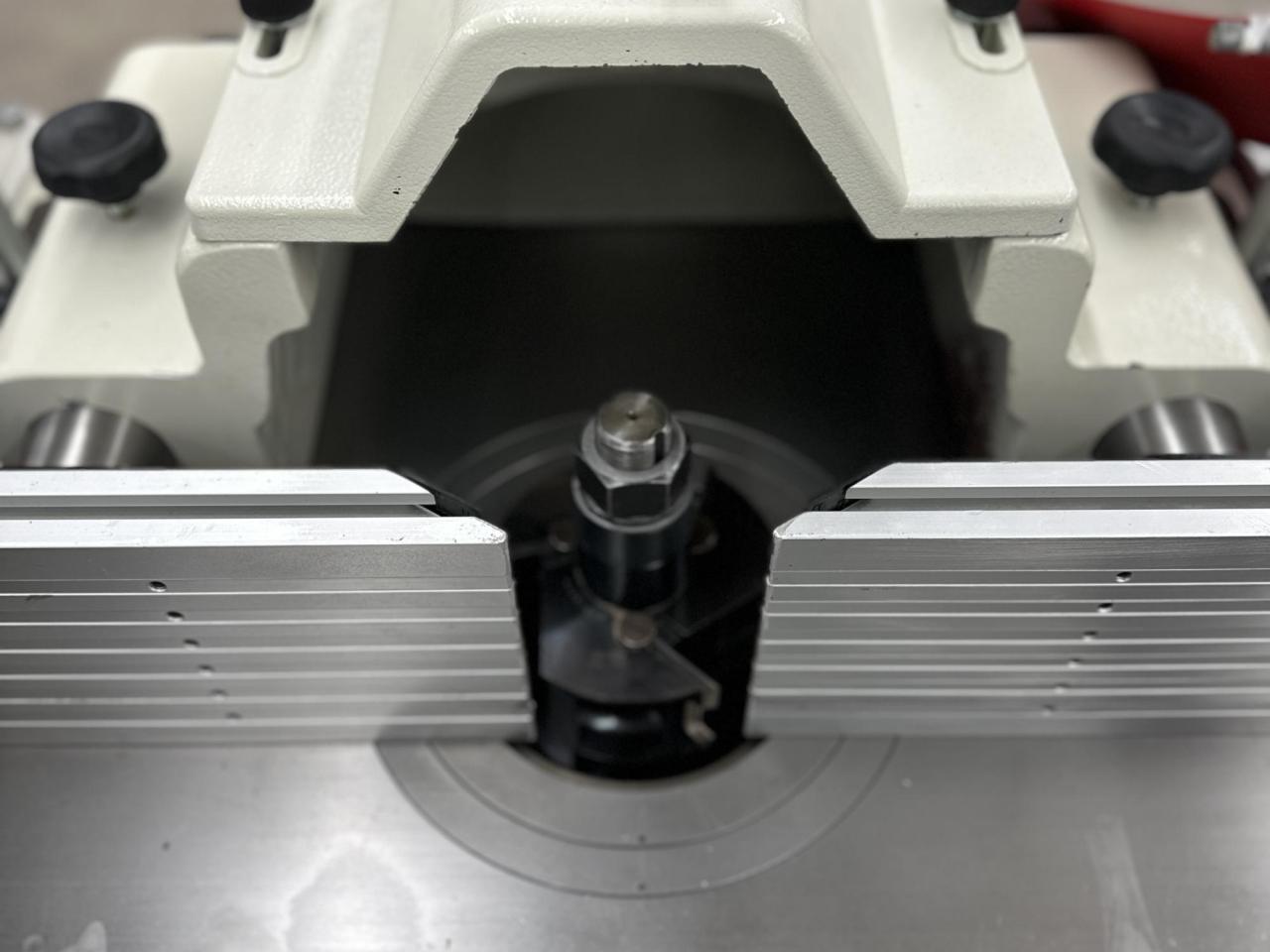

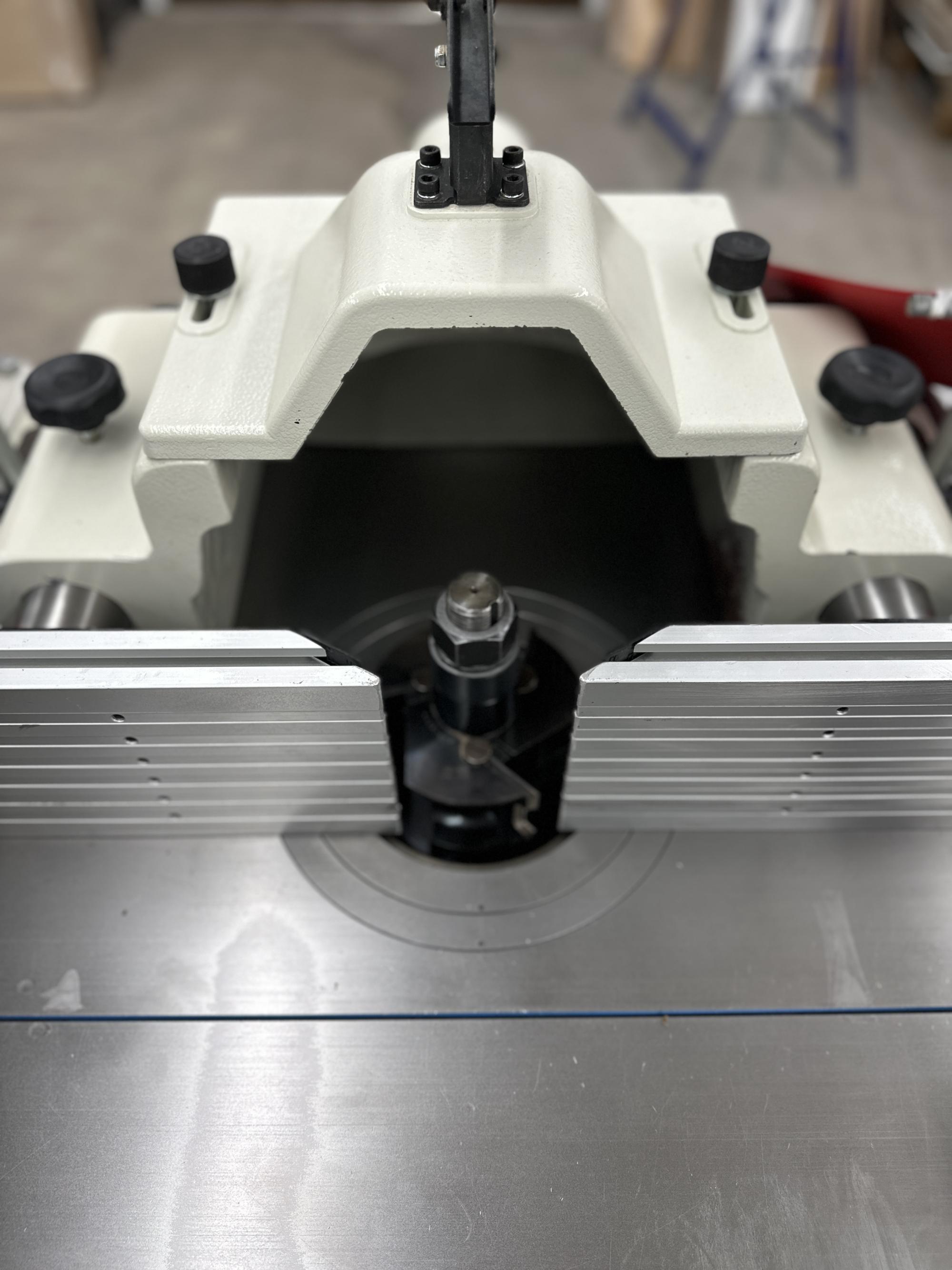

Aluminum fence with adjustable support bar
Internal diameter of table hoops: - 72 / 112 / 152 / 200 / 228 mm
Machine Dimensions: - 1230(W) x 1000(D) x 1340(H) mm
Net Weight: 470 kg / 1034 lbs
