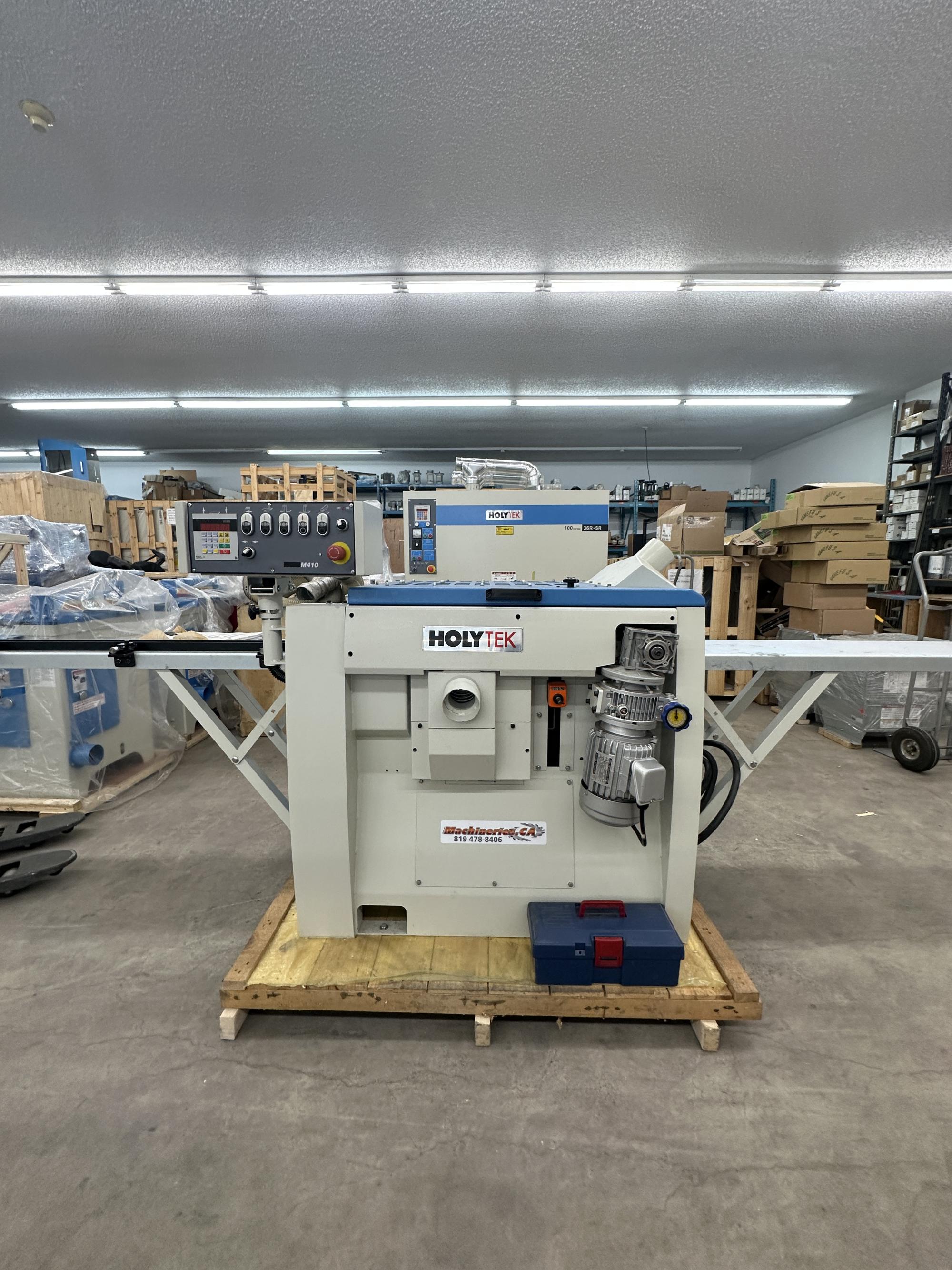

Year: 2021
230V/60C/1Ph
Engines- Top Horizontal Shaft: 5 HP- Bottom Horizontal Shaft: 3 HP- Right Vertical Shaft: 3 HP- Left Vertical Shaft: 3 HP- Drive: 0.5 HP
Electrical current: 61 A
Planing capacity two (2) sides- Width: 0~260mm- Depth: 12~100mm
Top Horizontal Shaft- Width: 410 mm- Speed: 7000 RPM
Profile knife head- Head diameter: 72 mm- Two (2) non-carbide grooved steel knives and four (4) knife clamps INCLUDED
Horizontal shaft from the bottom- Width: 300 mm- Planing depth: 4 mm- Speed: 7000 RPM
Flat Knife Head- Head Diameter: 72 mm- Four (4) High Speed Steel Flat Knives and Four (4) Knife Clamps INCLUDED

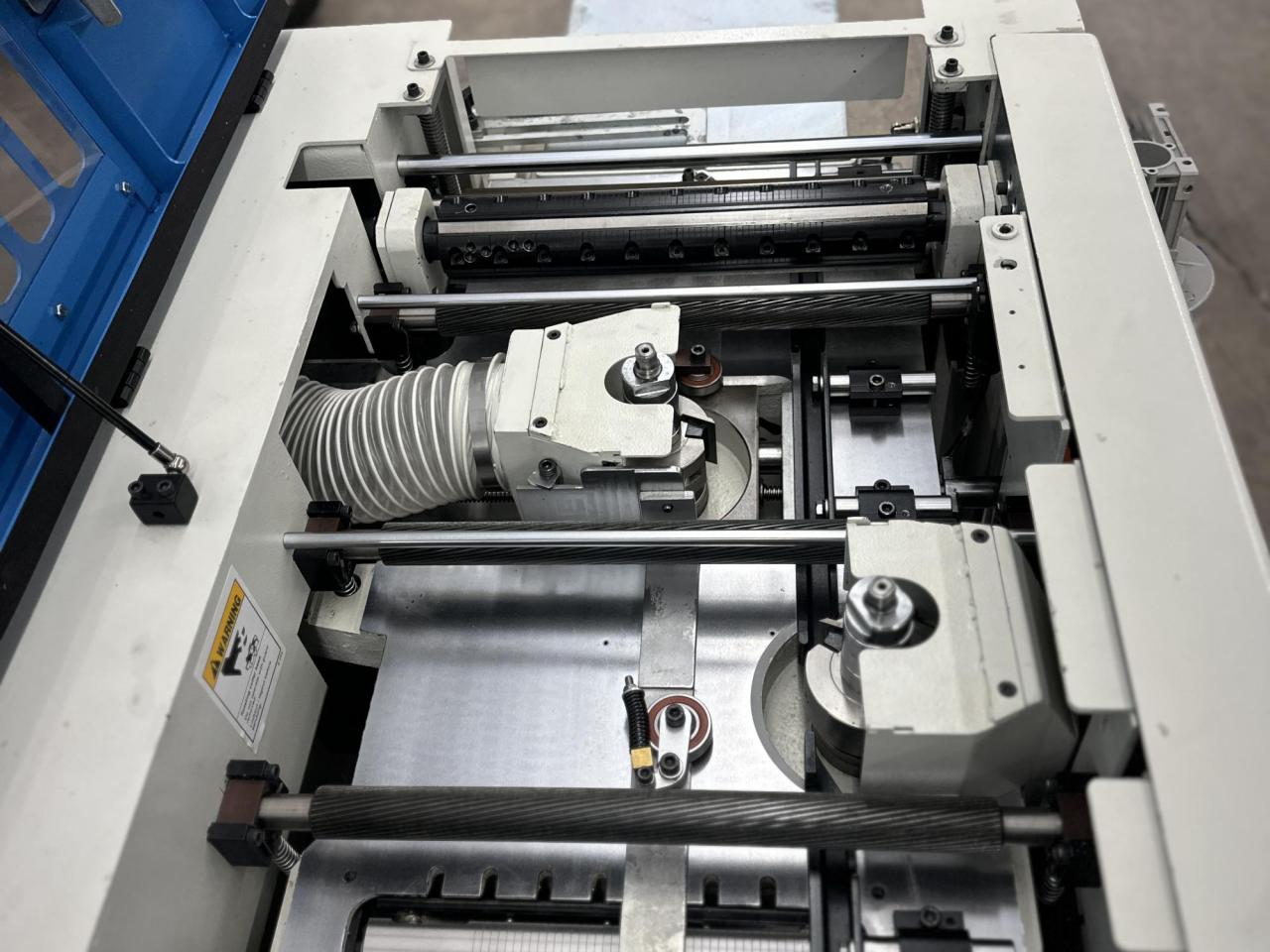

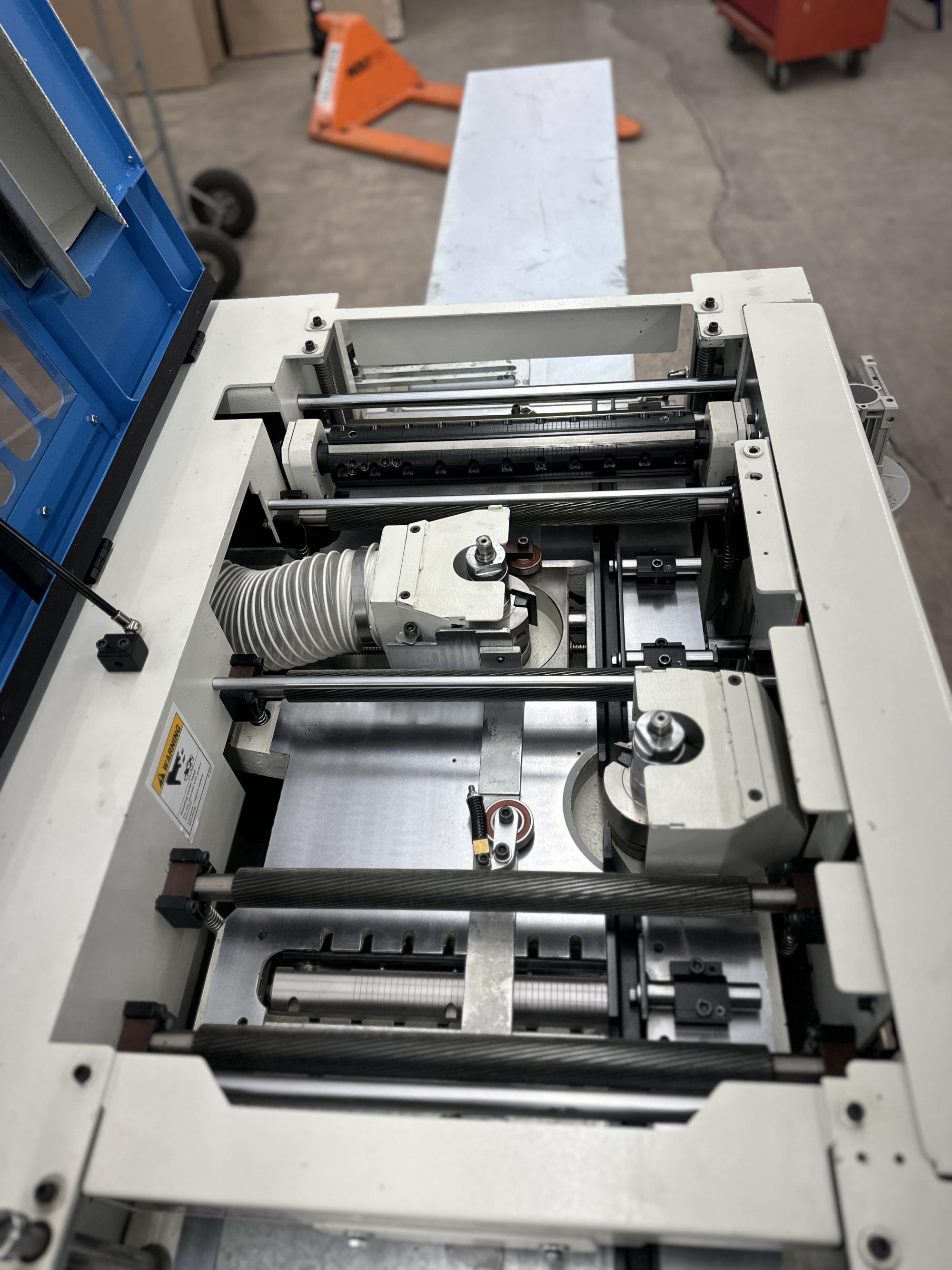

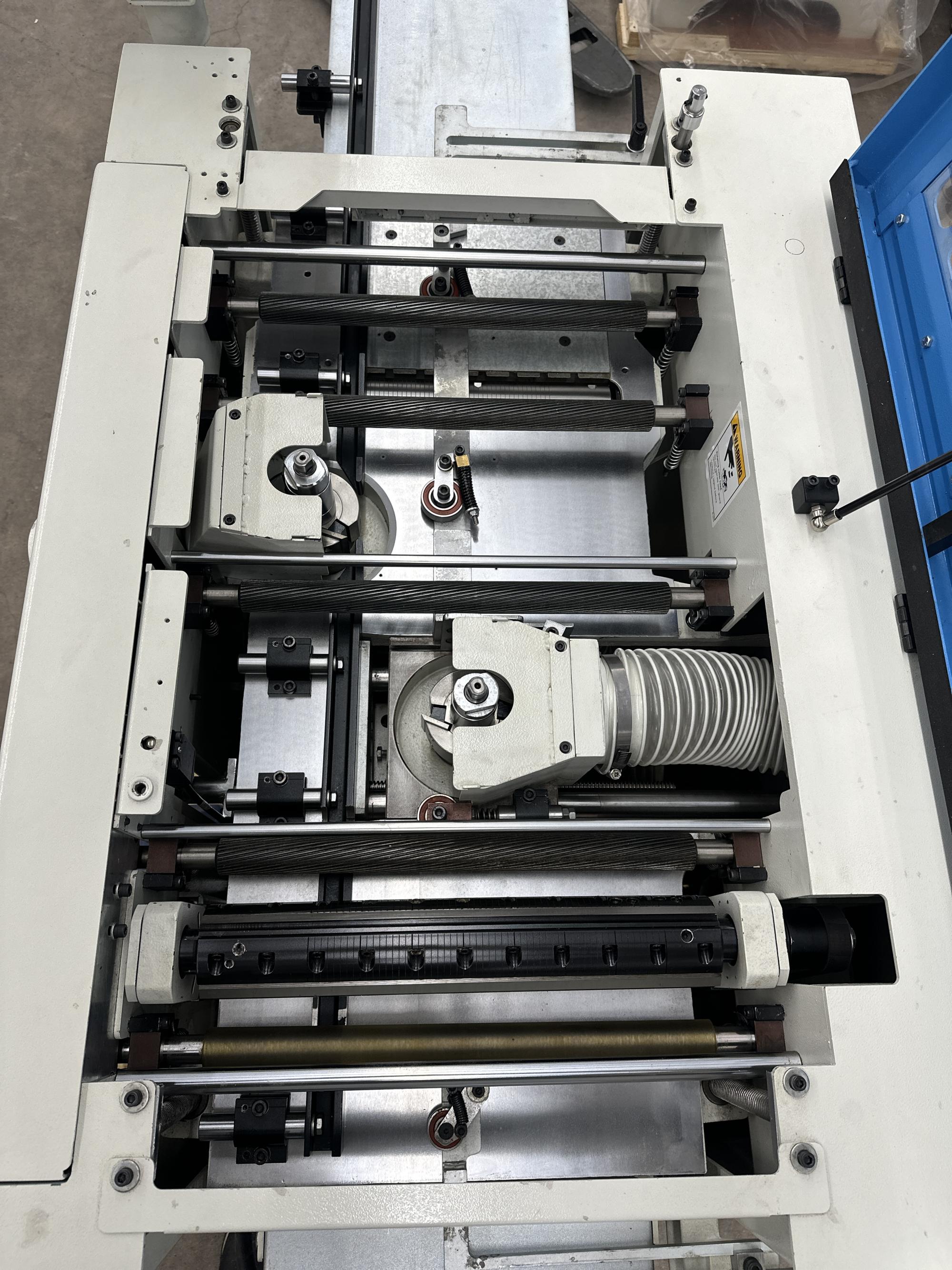

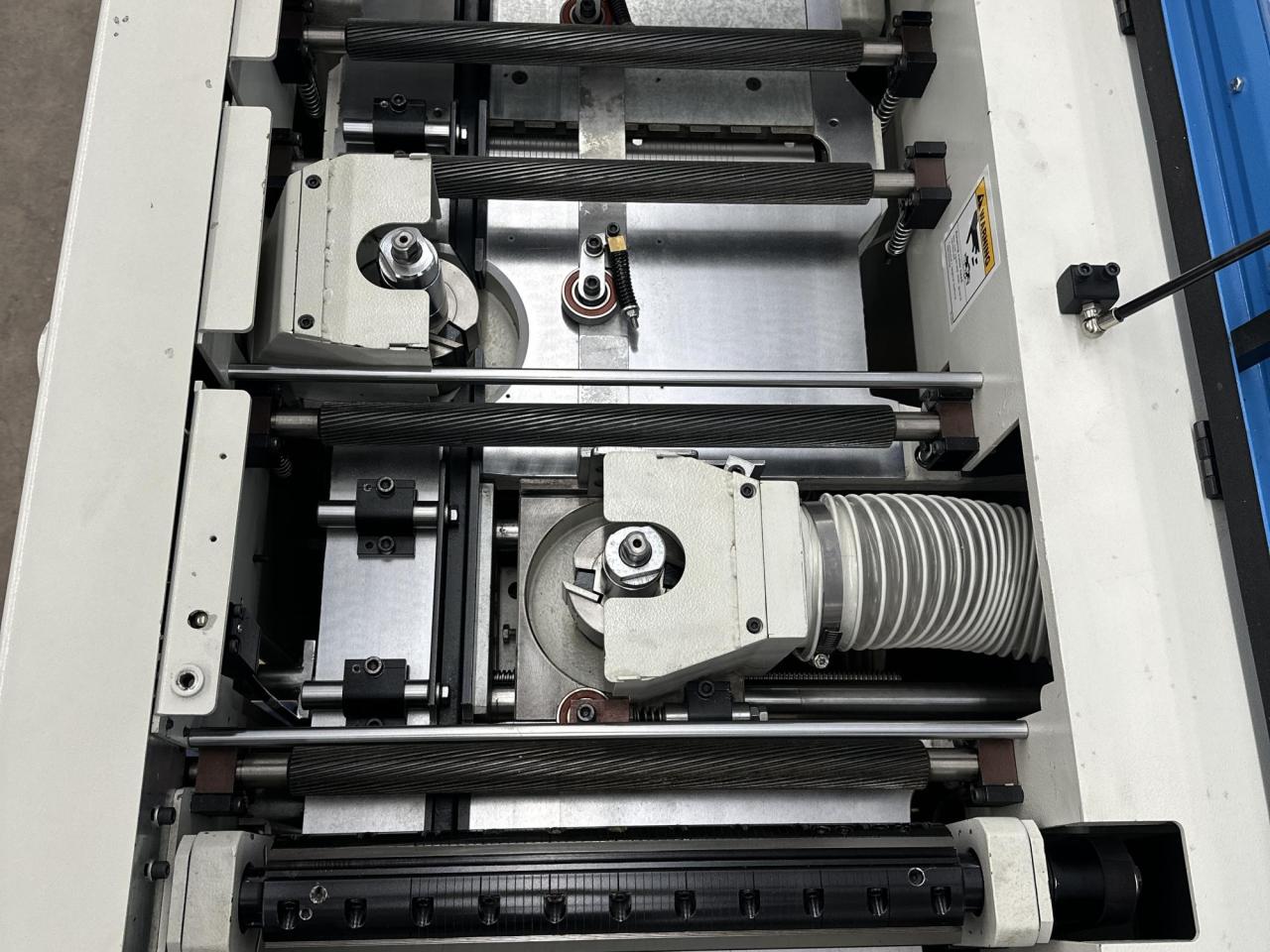

Left and right vertical shafts- With micro-height adjustment- Maximum cutting height: 100 mm- Maximum cutting depth: 21 mm- Shaft diameter: 31.75 mm- Head diameter: 90 mm- Heads with two (2) 50 mm high-speed steel flat knives and two (2) knife clamps INCLUDED
Digital-motor elevation table: 0.125 HP- Dimensions: 1030 x 630 mm- Elevation: 230 mm
Minimum workpiece length: 255 mm
Drive Speed: 11'~52'/minute
Suction outlet diameter: 100 mm x 4

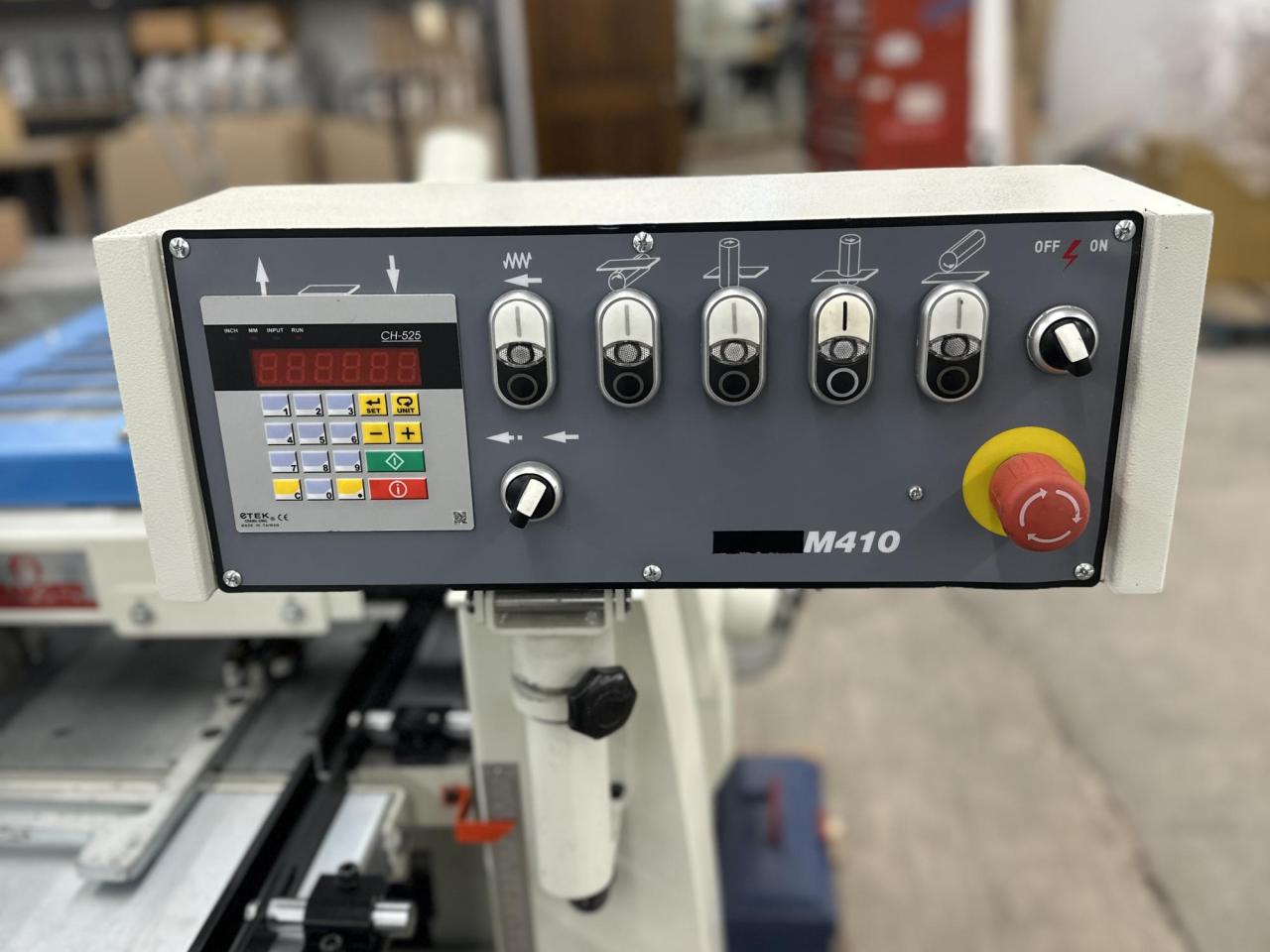

Digital display with swivel head
Machine dimensions: - 1105(W) x 965(D) x 1270(H) mm
Gross Weight: 750 kg / 1650 lbs
INCLUDED:
* Complete tool chest and user and parts manual* Entry table with ruler and output table (M410S-K463410)1210 mm(L) x 317 mm(W) x 38 mm(T)* Grooved steel knife top head HSS 410mm(L) Set of 2 (M410S-K463410)* Head 100mm(D) x 1-1/4"(B) x 50mm(H) x 4T, 20° (FBB100320500420)
