Biesse

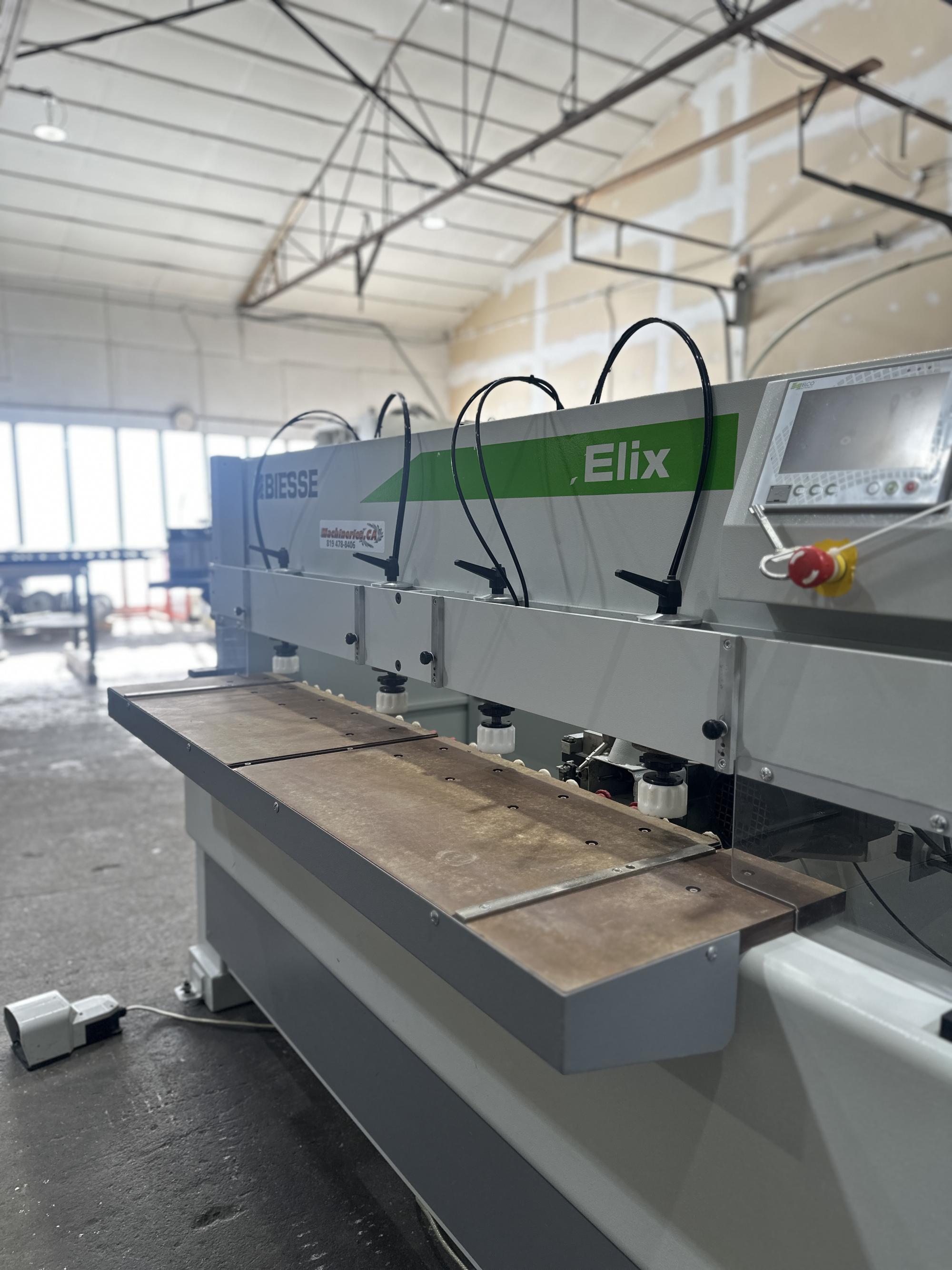

Biesse Elix B
2013

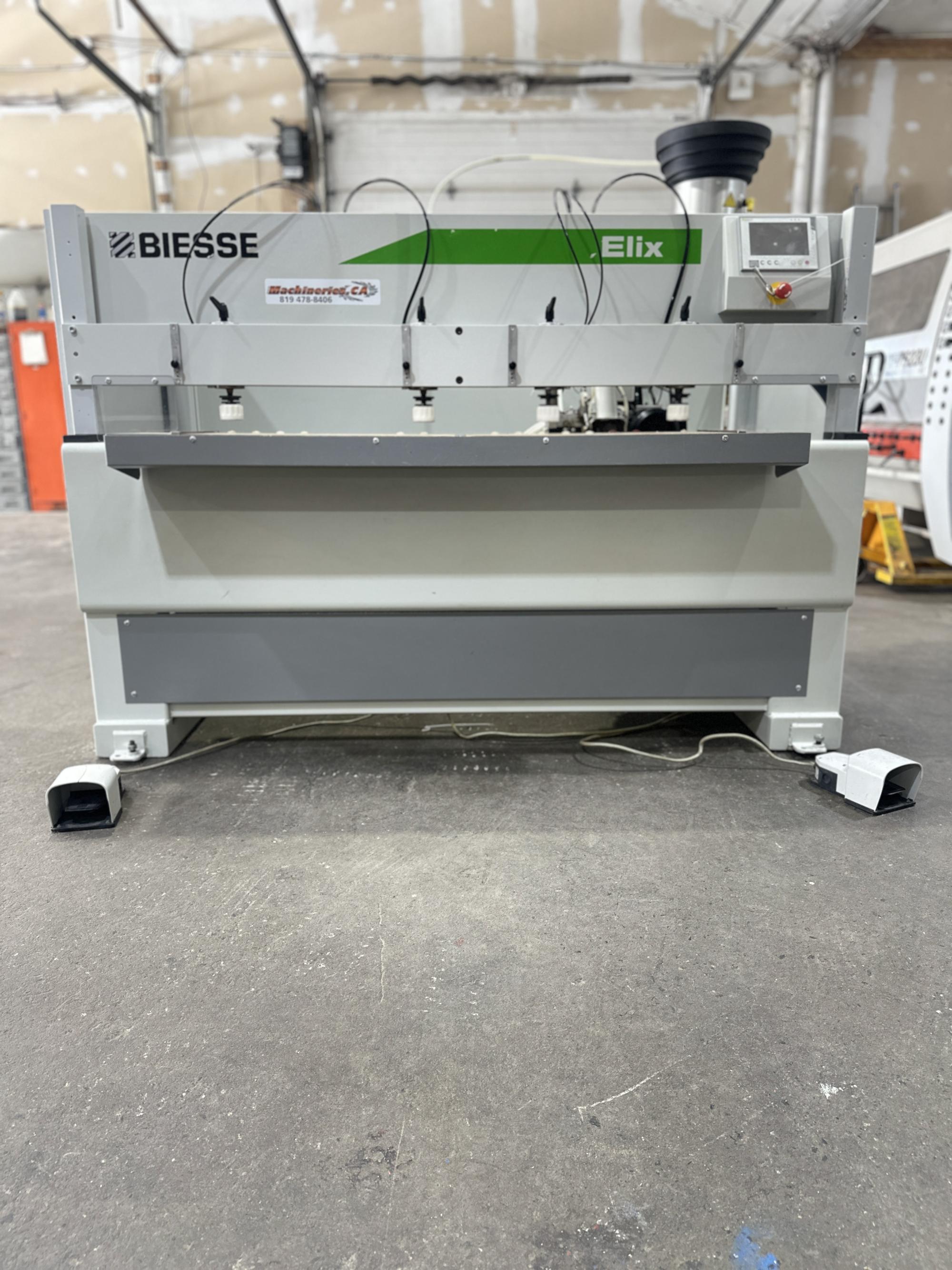

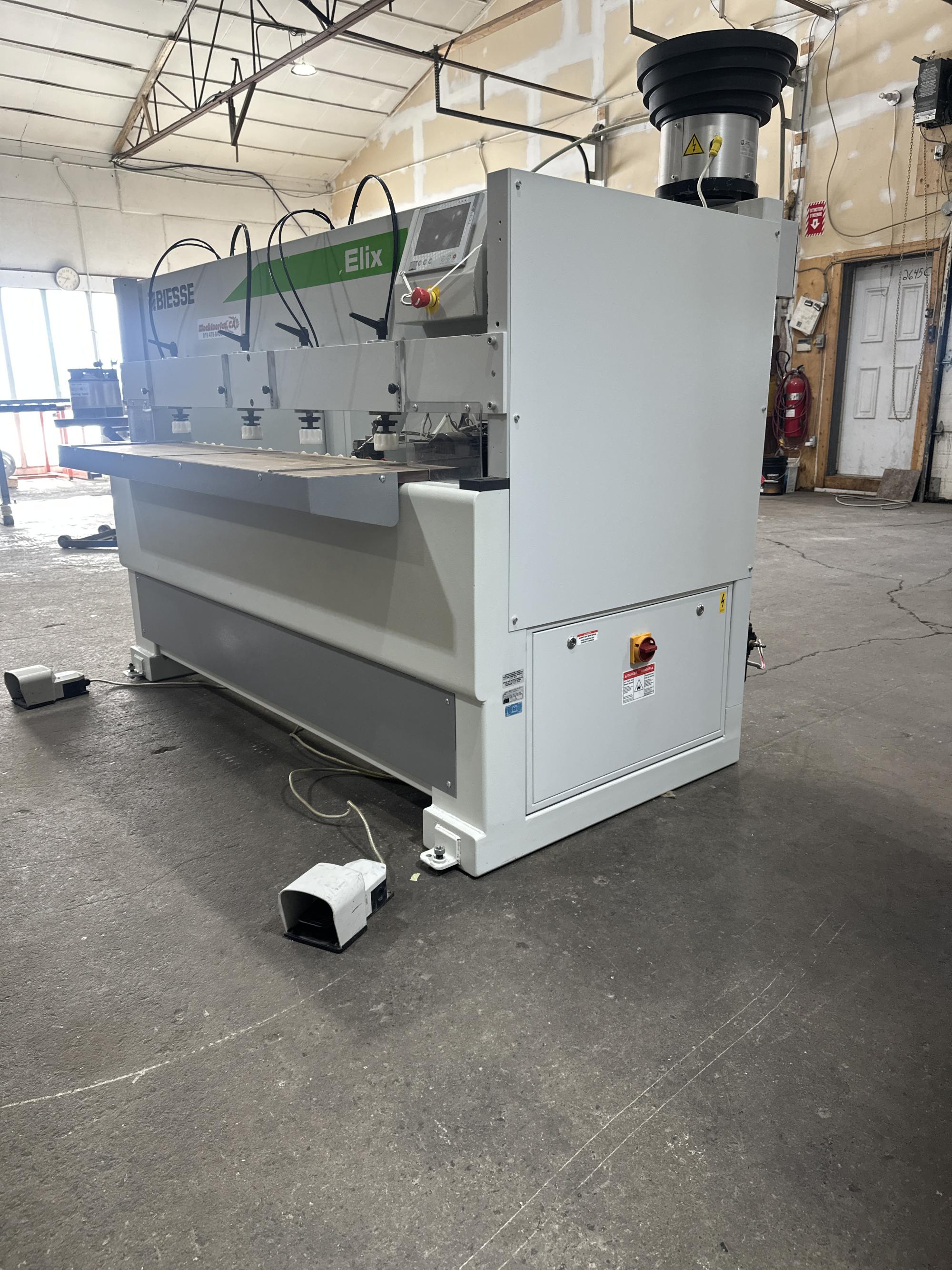

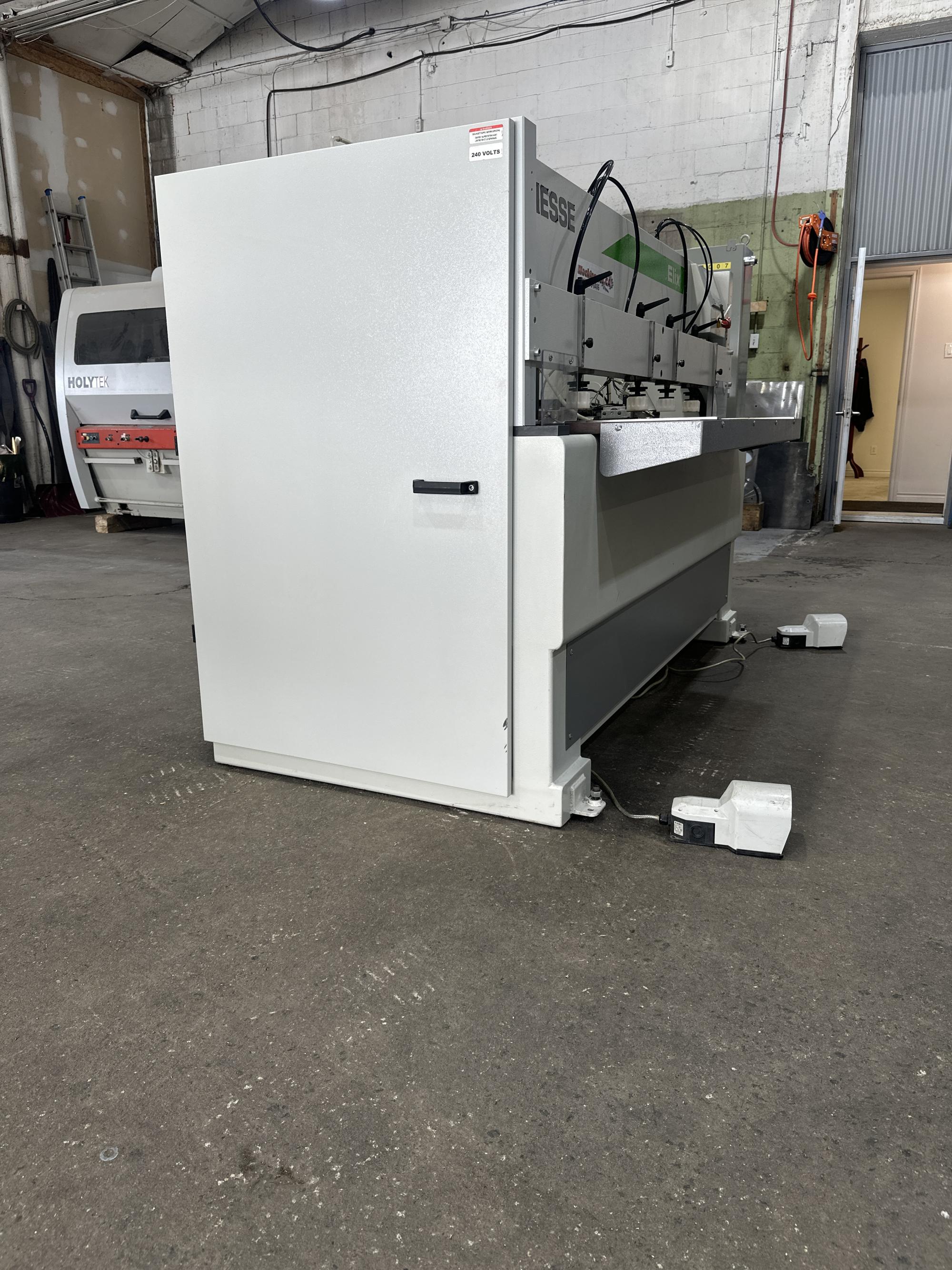

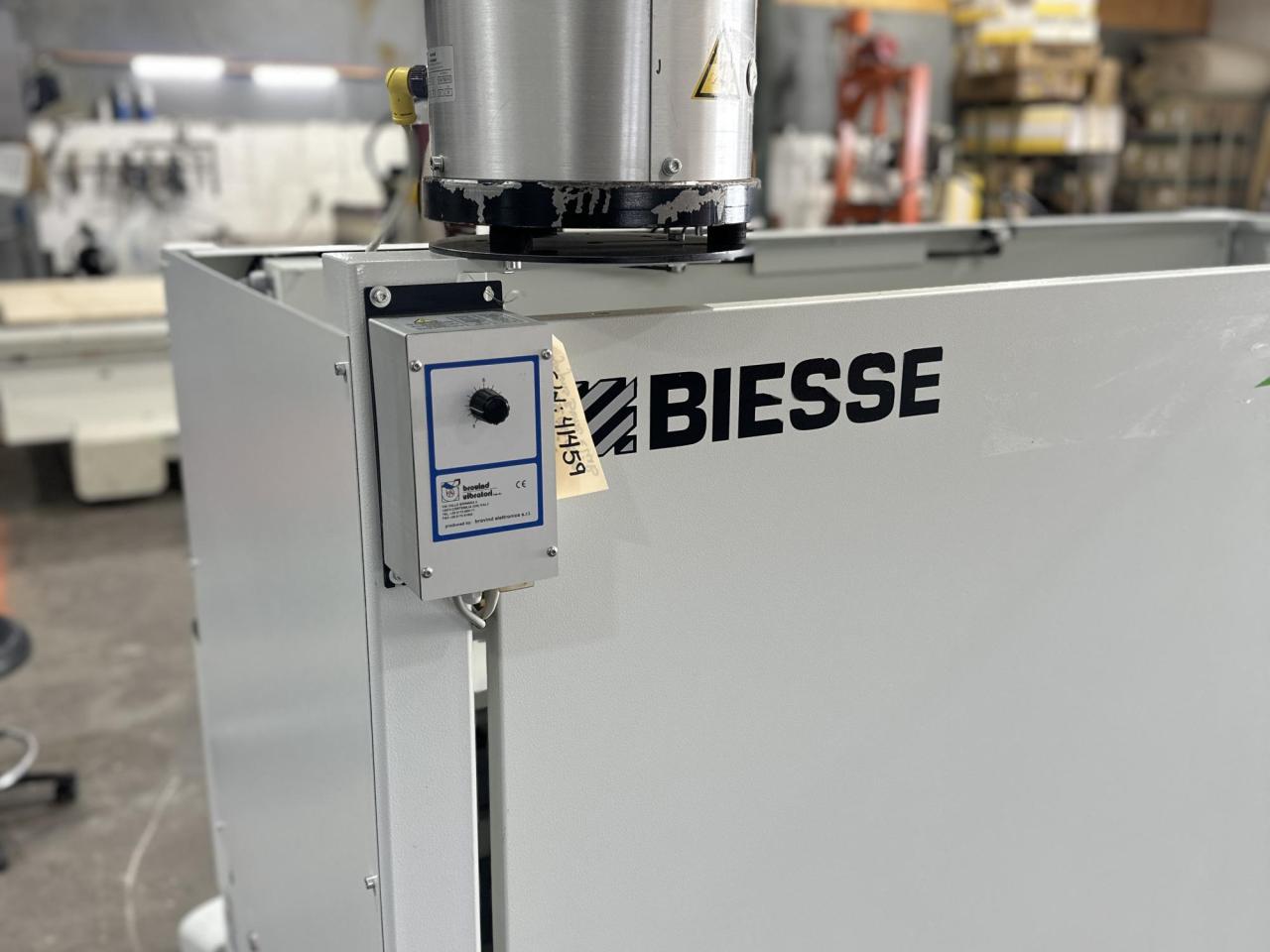

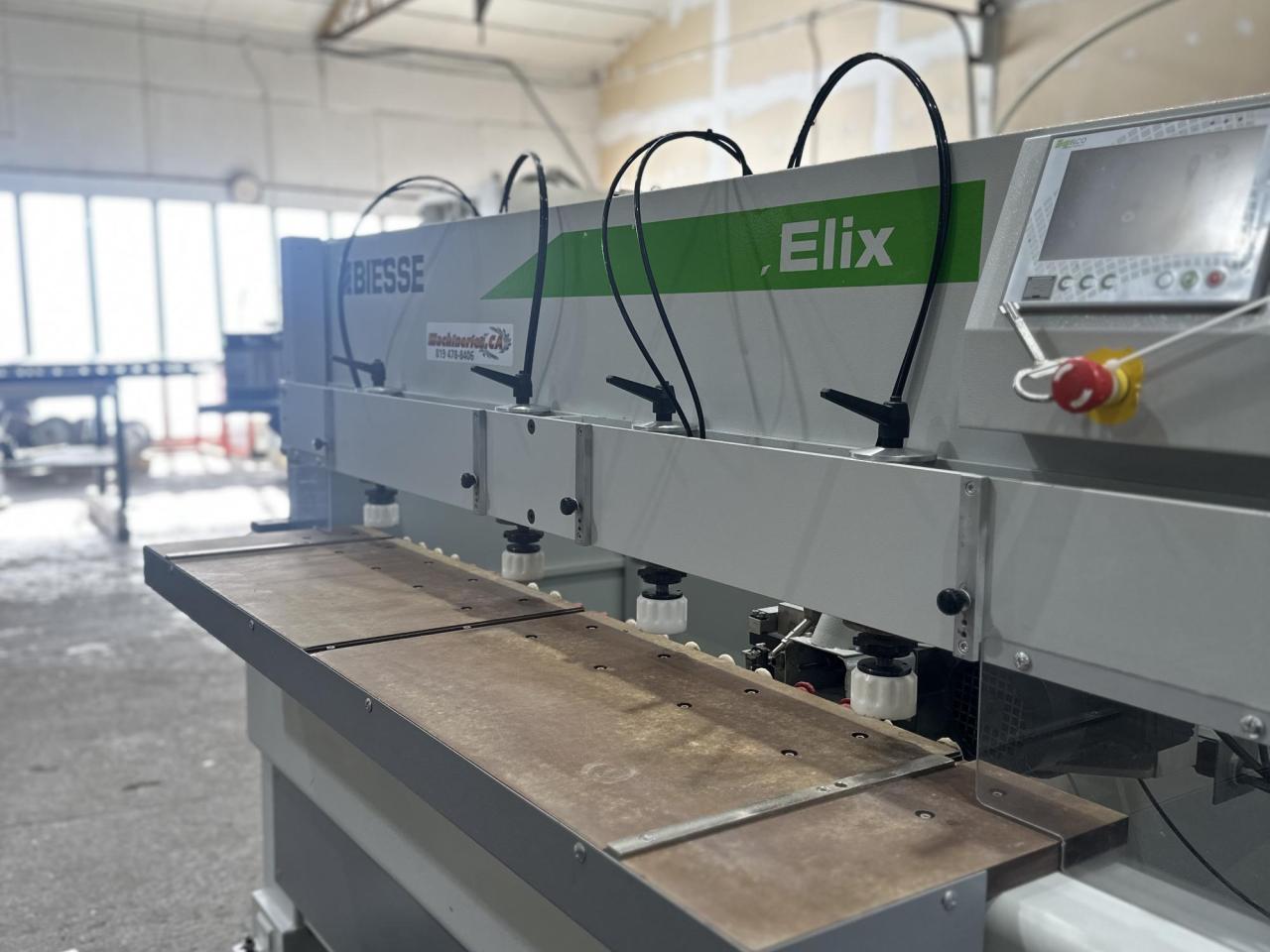

Dowel inserter Biesse Elix B

Inventory number: 11442
Used product
Capacity
1300mm x 40mm
Voltage
230V & 600V 3PH
Description

Table Dimensions: 1300 mm  (Open on both sides)

  • 2 Independent Work Zones

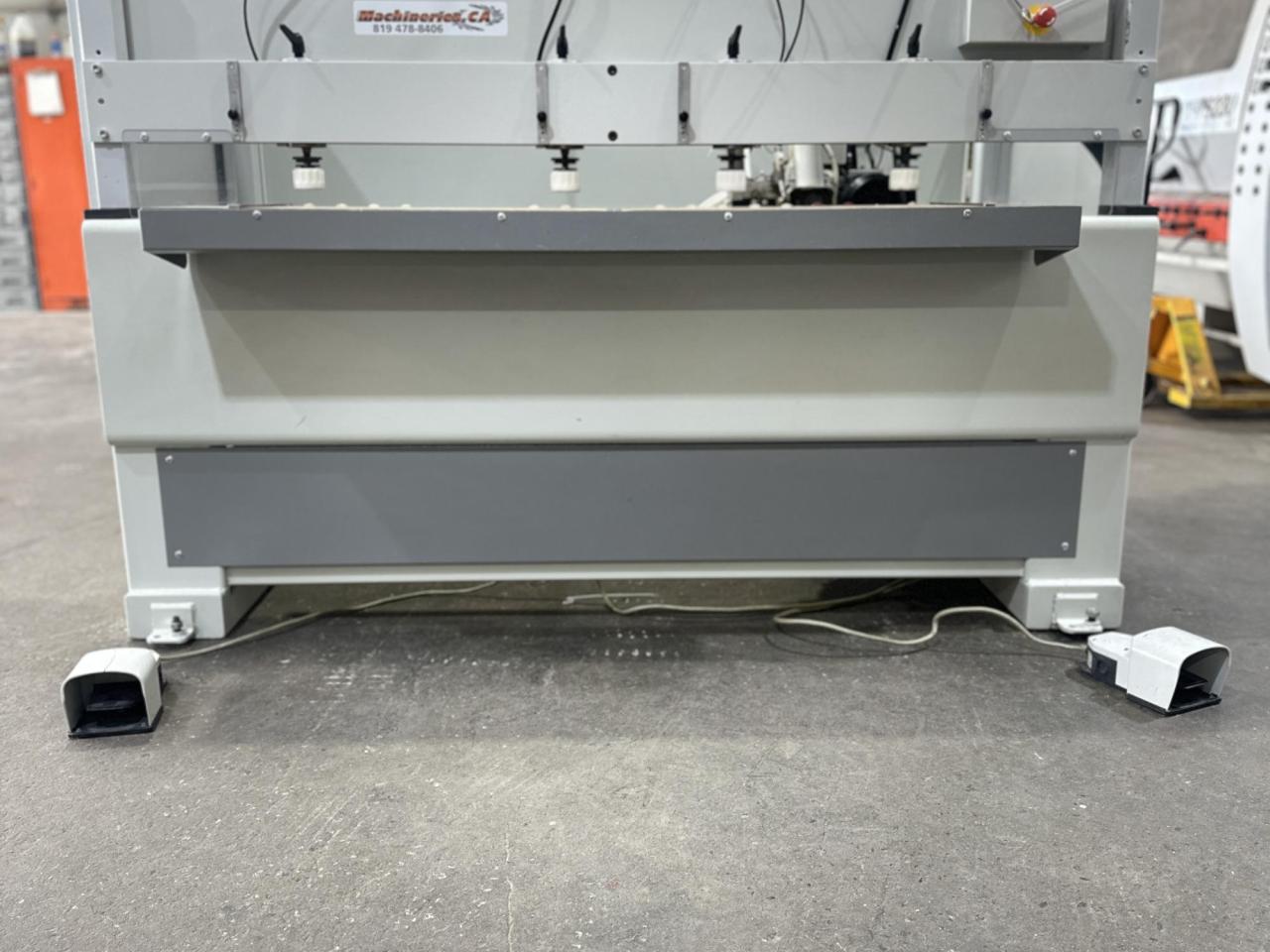

  • 4 Pneumatic Pressing Cylinders
  • Machinable Panel Thickness: 40 mm
  • Manually Adjustable Drilling Height

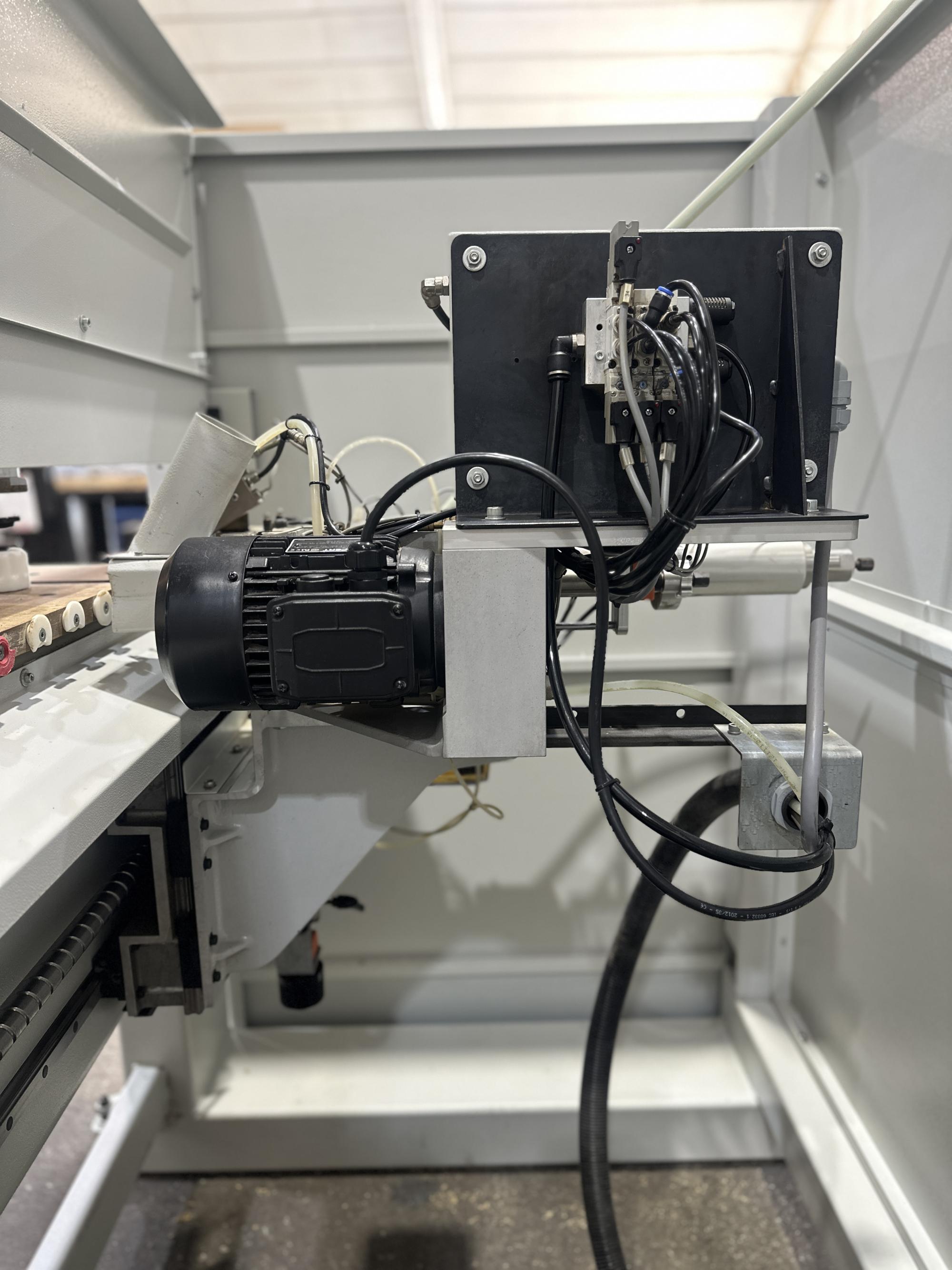

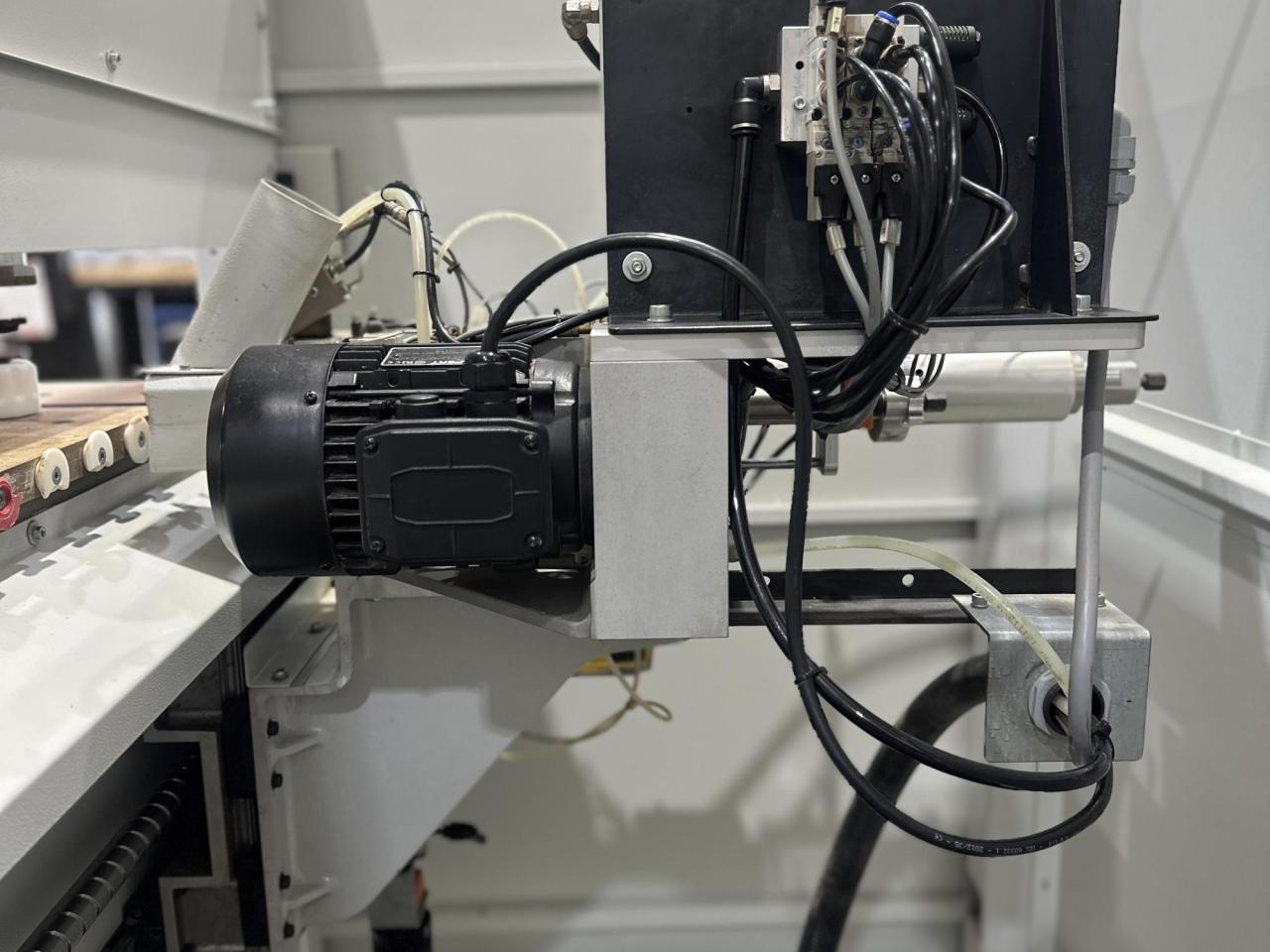

  • Drilling Spindle Rotation Speed: 6,000 RPM
  • Drilling Depth: 30 mm
  • Drilling Diameter: 8 to 12 mm
  • Manual Adjustment of Drilling Depth
  • Travel Speed on X-axis: 40 m/min

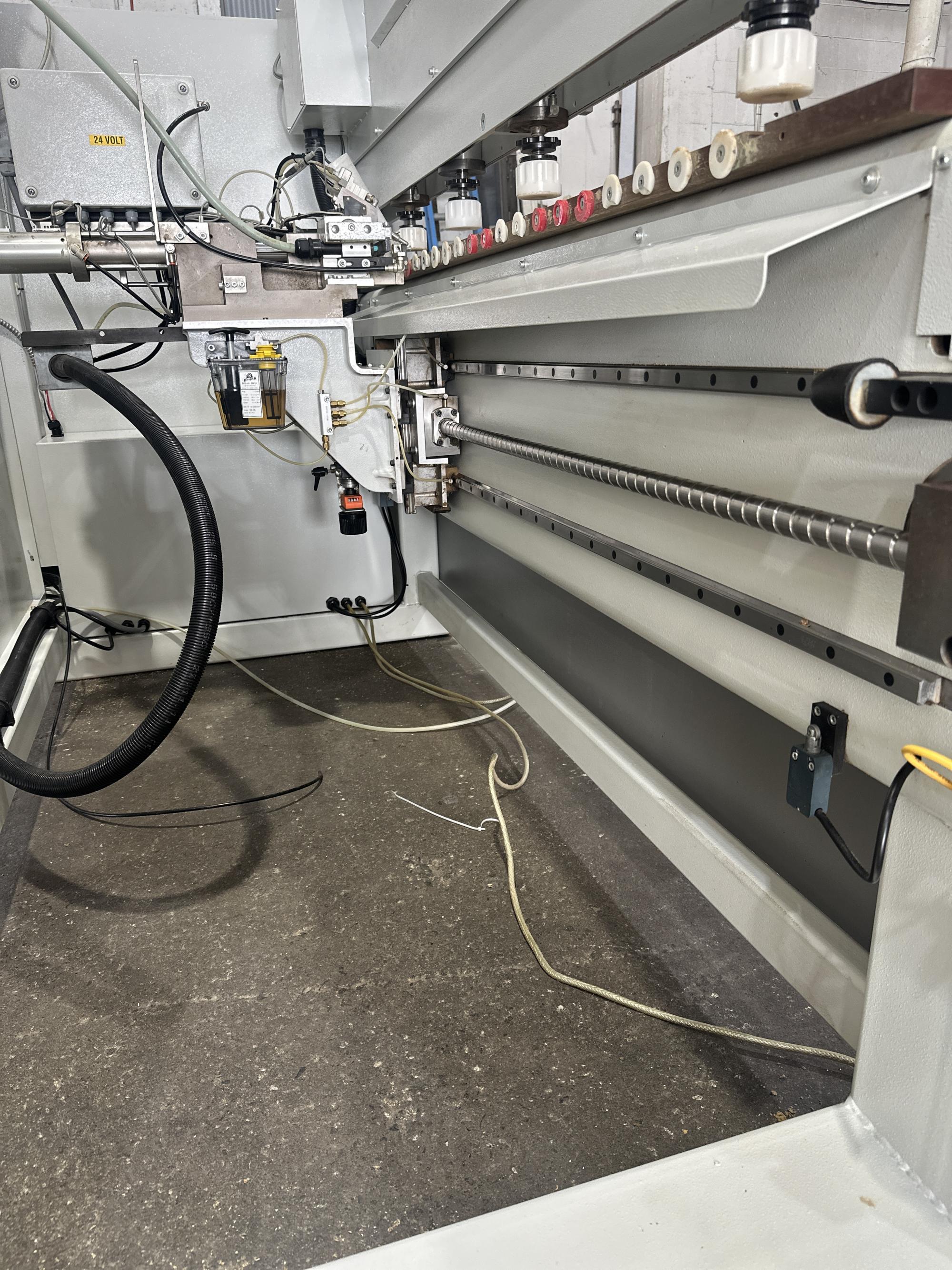

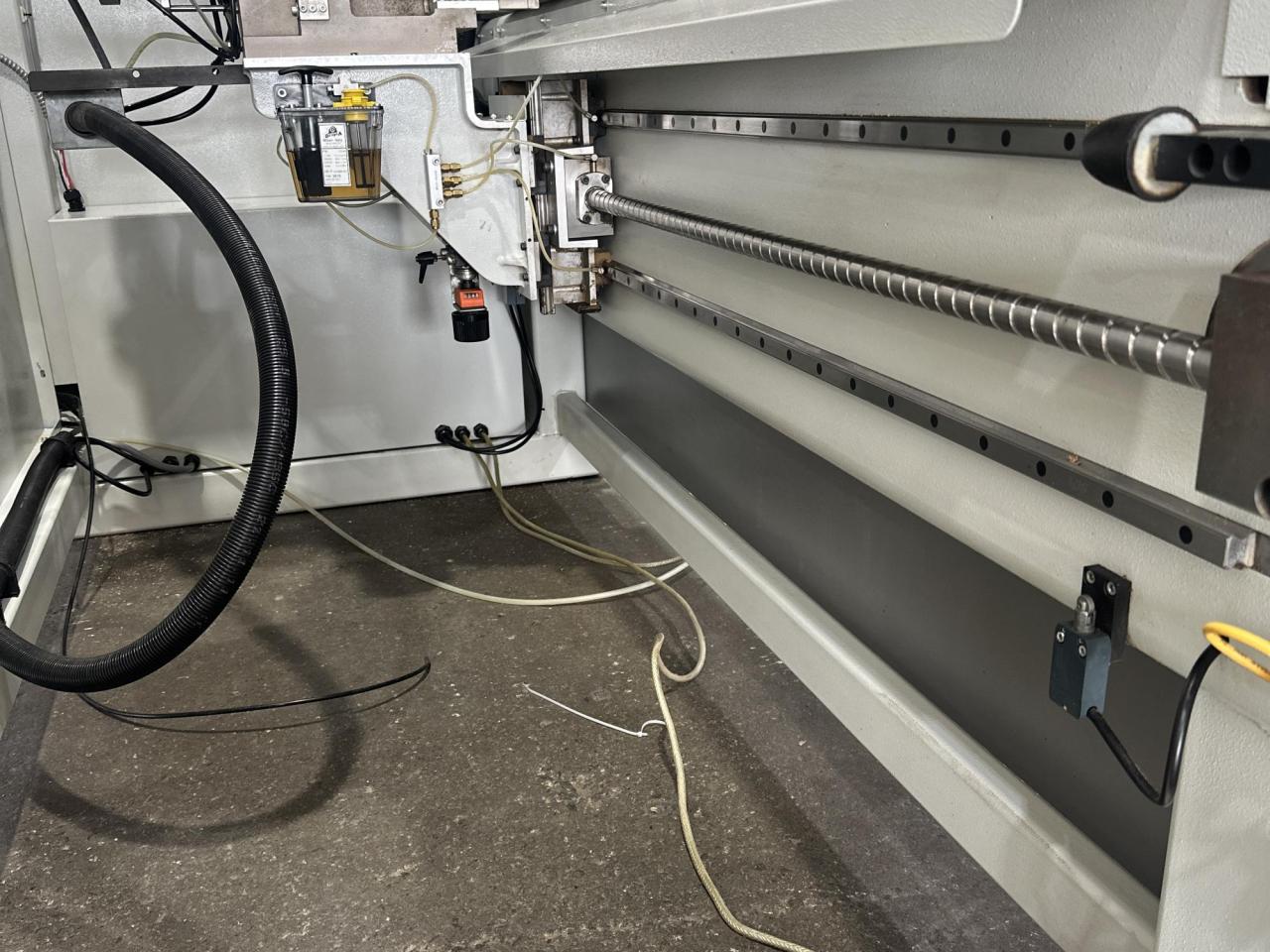

  • Centralized Lubrication Unit

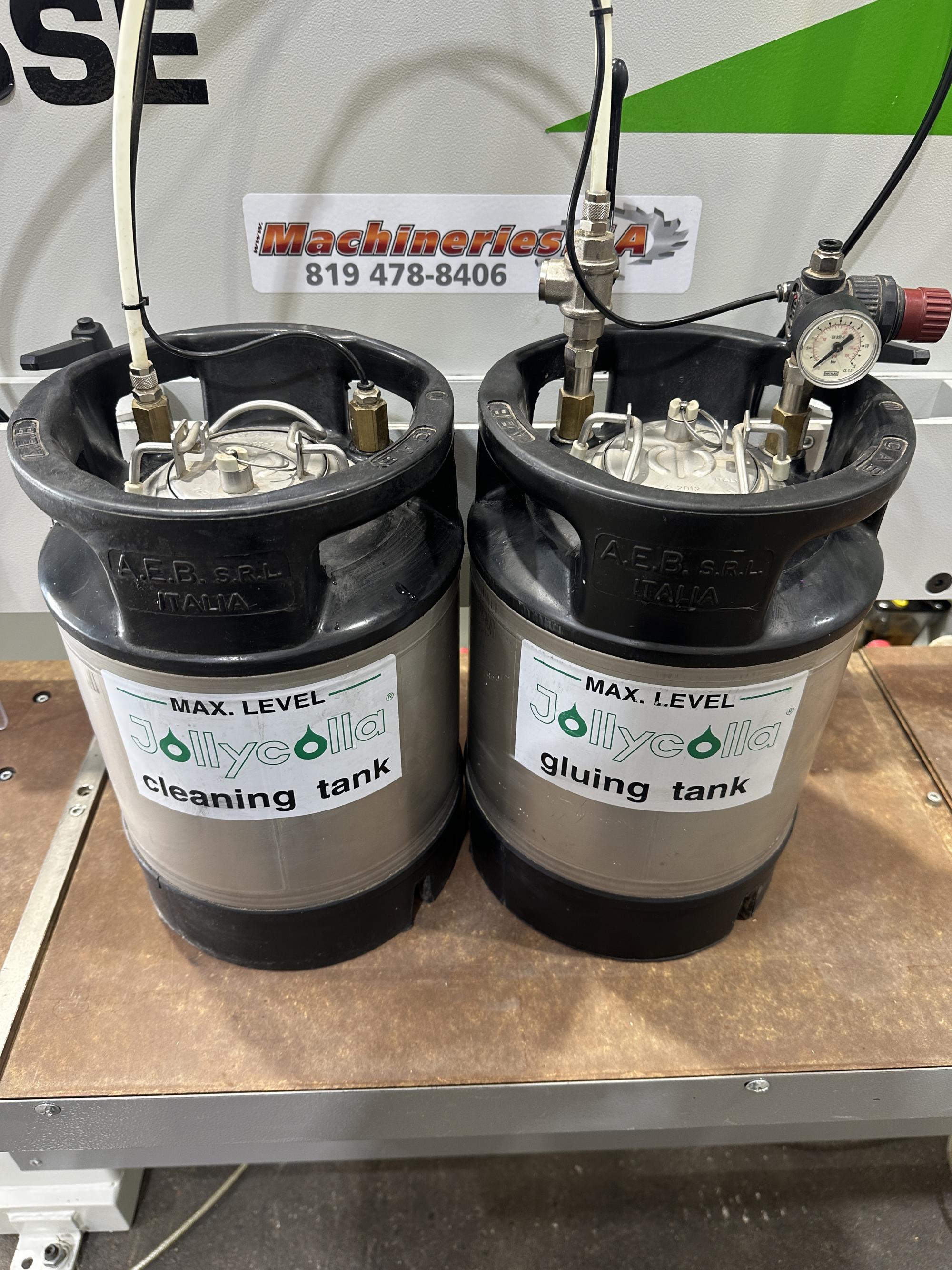

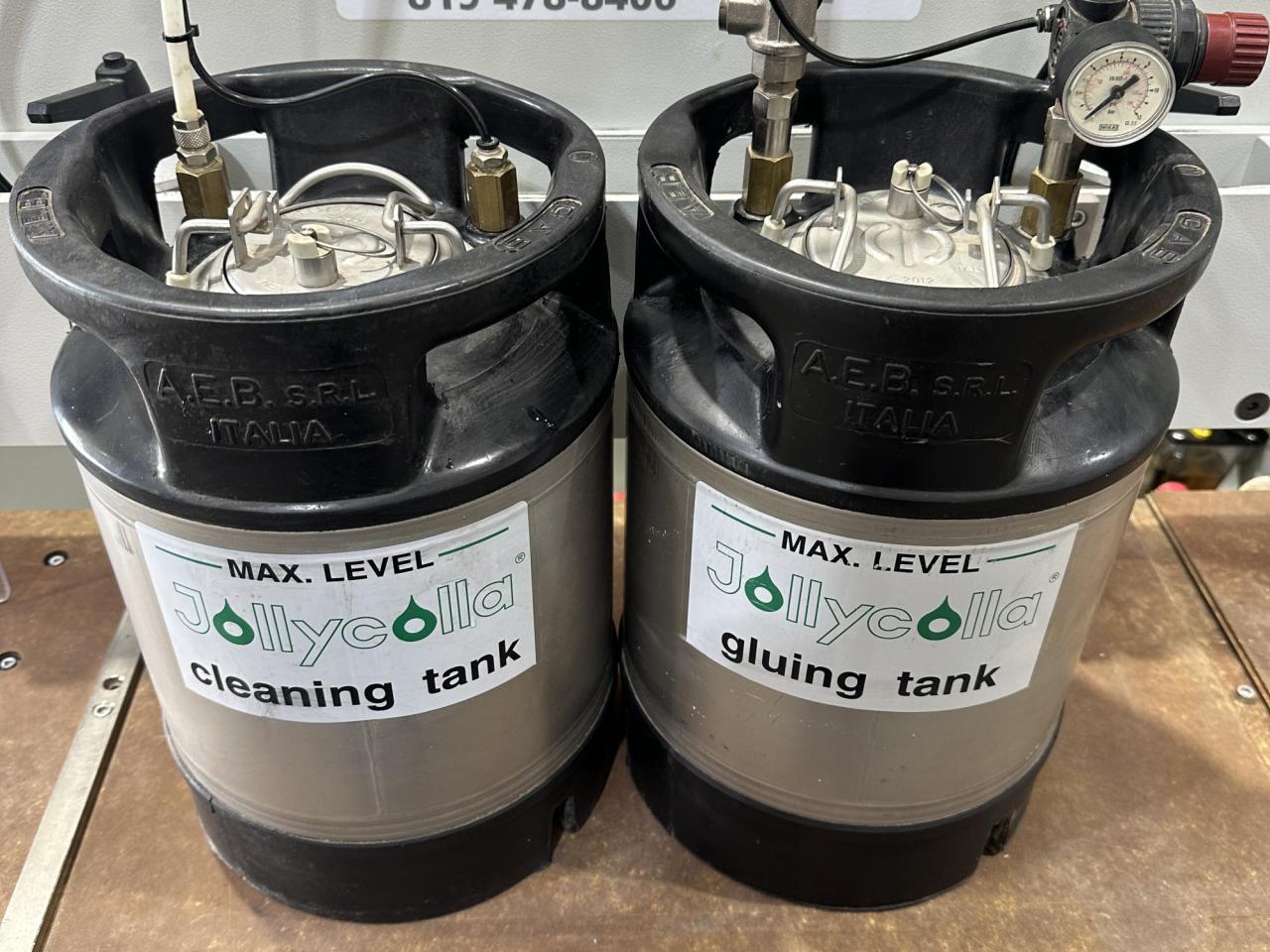

  • 1 Glue/Water Tank
  • 1 Cleaning Tank

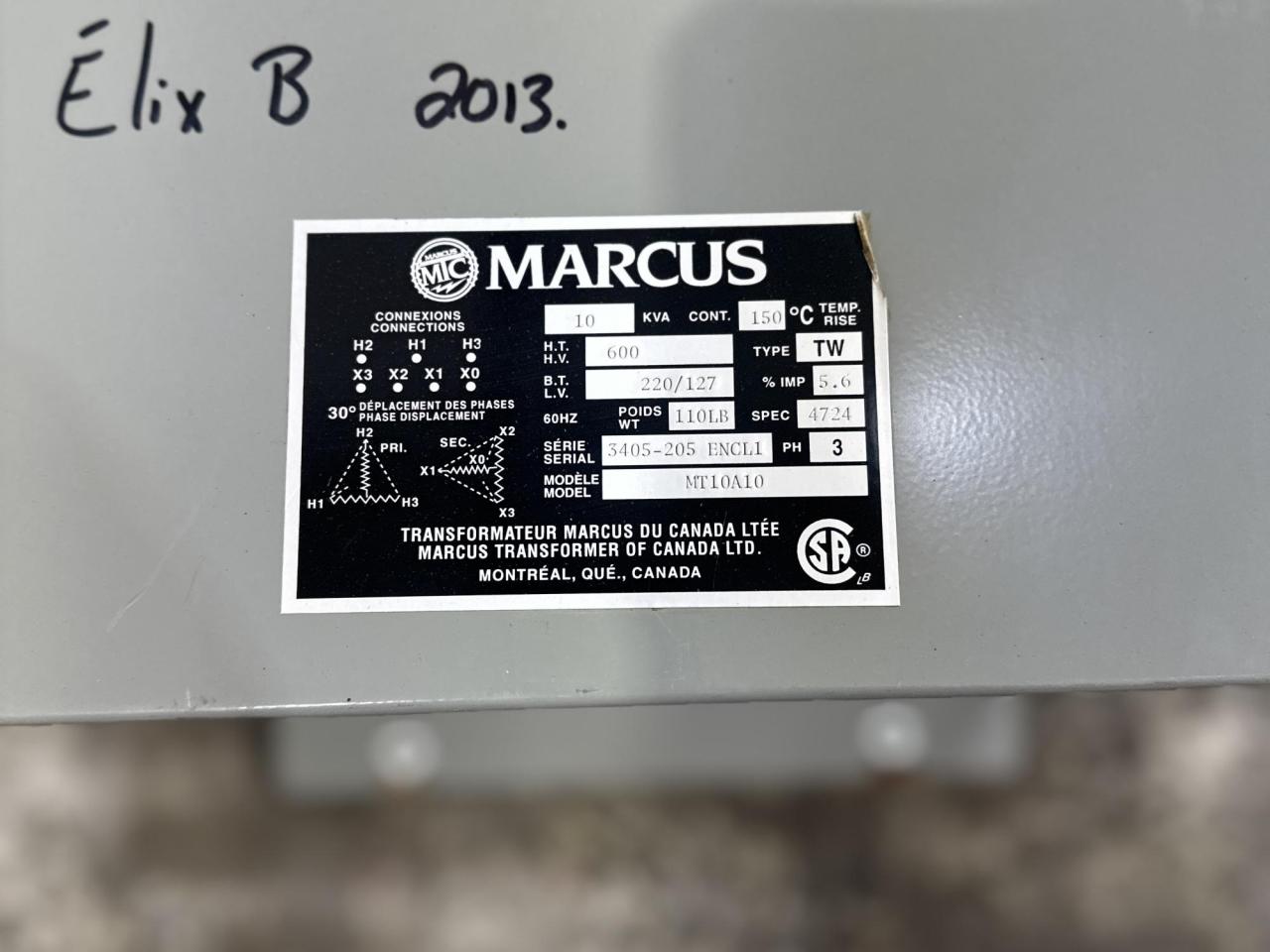

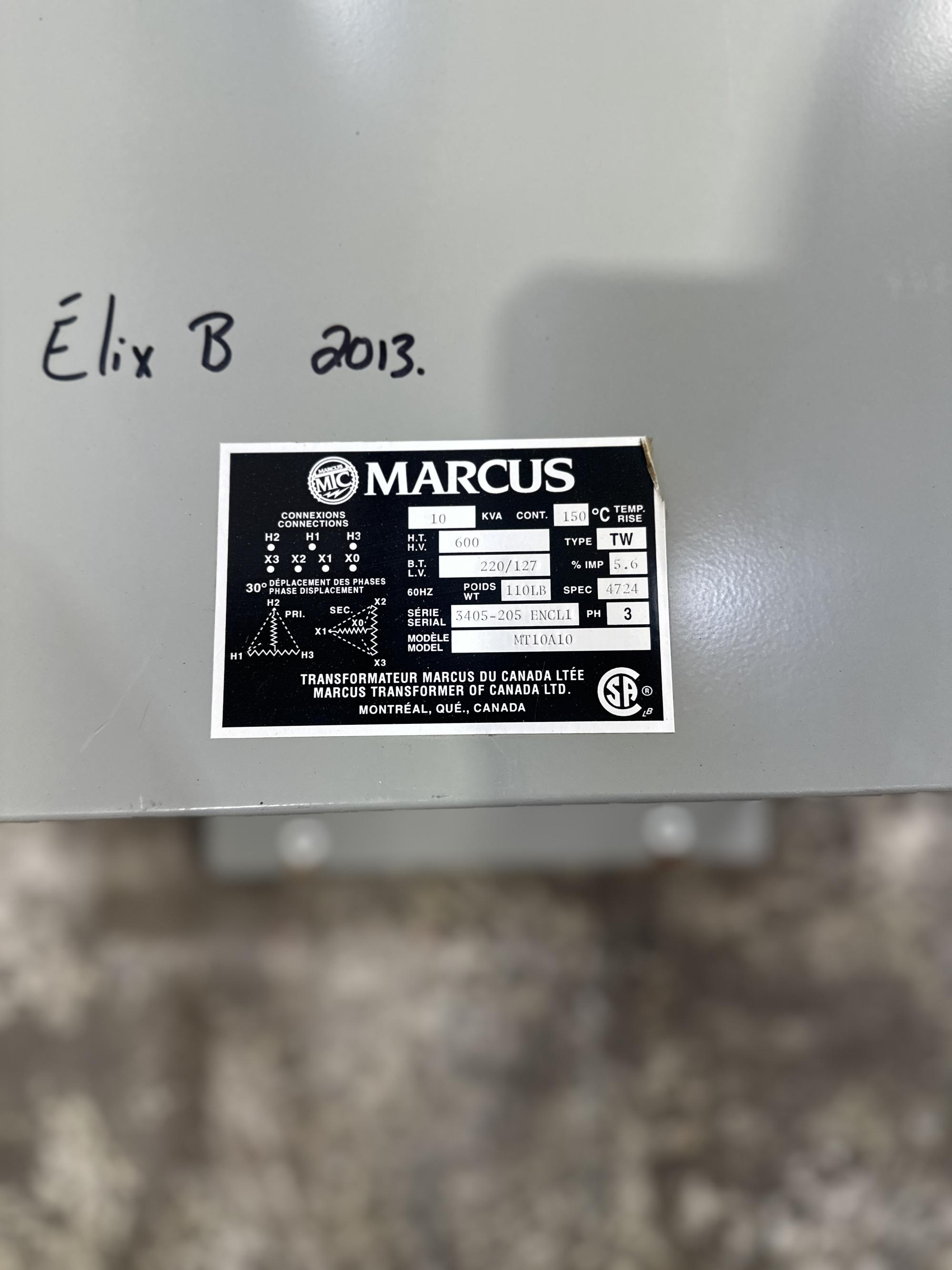

  • Includes 10 kVA Transformer (600V to 230V)

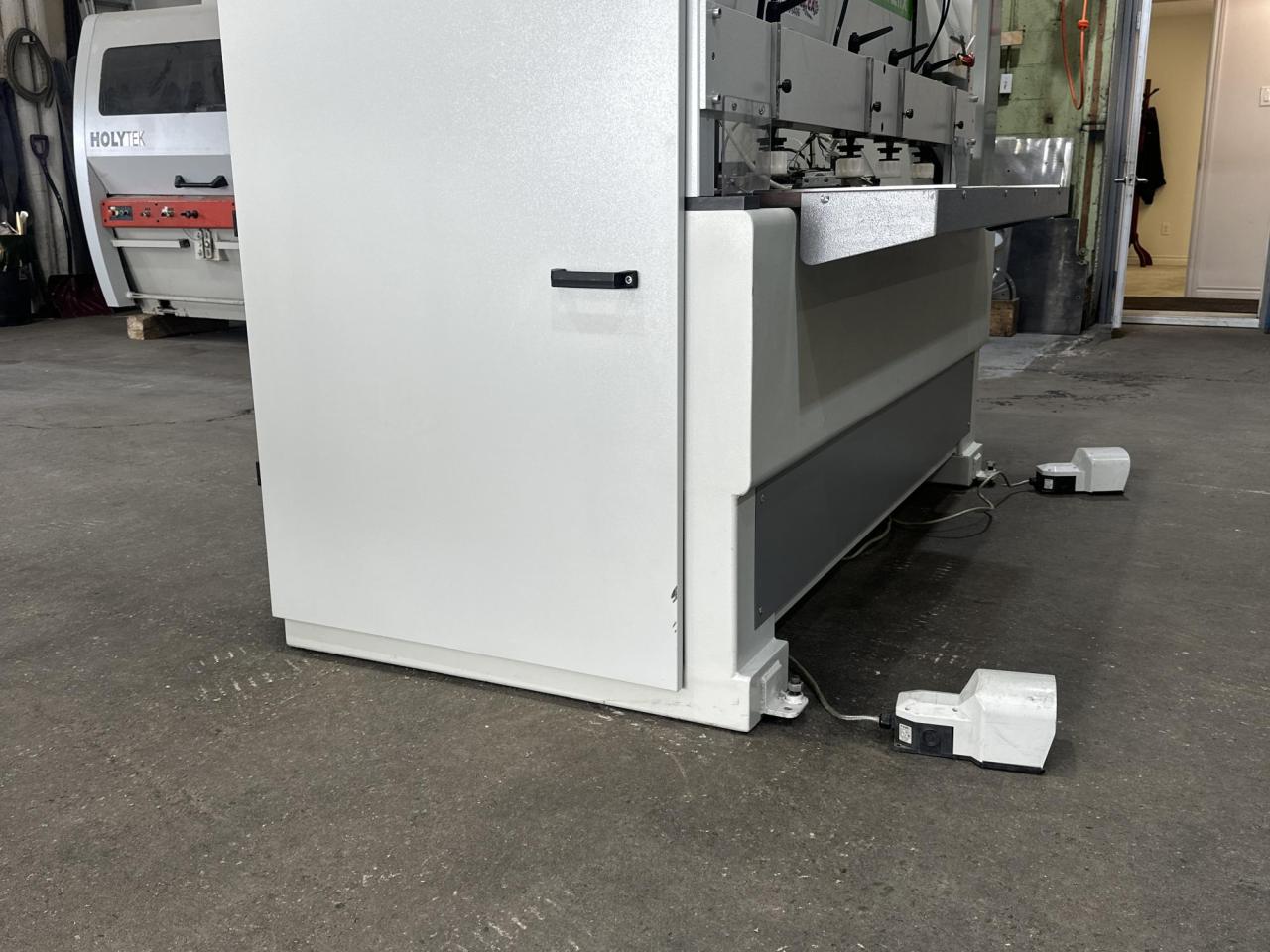

  • Overall Dimensions: 115 x 55 x 80 inches
  • Equipment has always operated with distilled water

Contact us for a quote.
