600V / 60Hz / 3Ph
Year: 2020
Motors:
#1 Bottom horizontal: 7.5 HP
#2 Right & #3 Left vertical: 15 HP (one motor powering both heads)
#4 Top horizontal: 15 HP
#5 Bottom horizontal: 7.5 HP
Feed drive: 5 HP / inverter controlled
Feed speed: 5 ~ 30 m/min

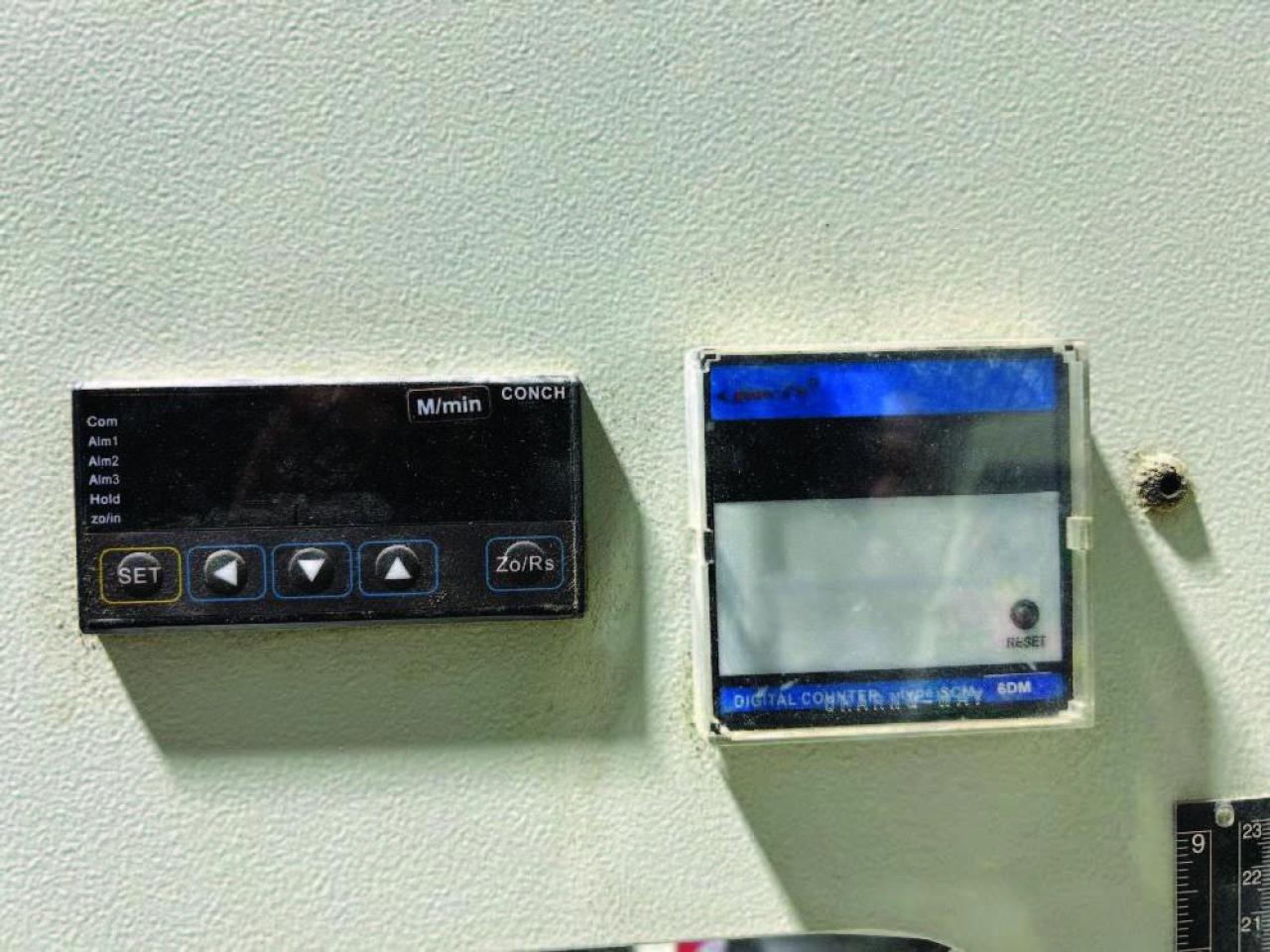

Digital dial speed indicator
Production linear footage display and counter
Planing capacity:
Working width: 10 ~ 230 mm
Working thickness: 7 ~ 125 mm
Minimum working length: 230 mm

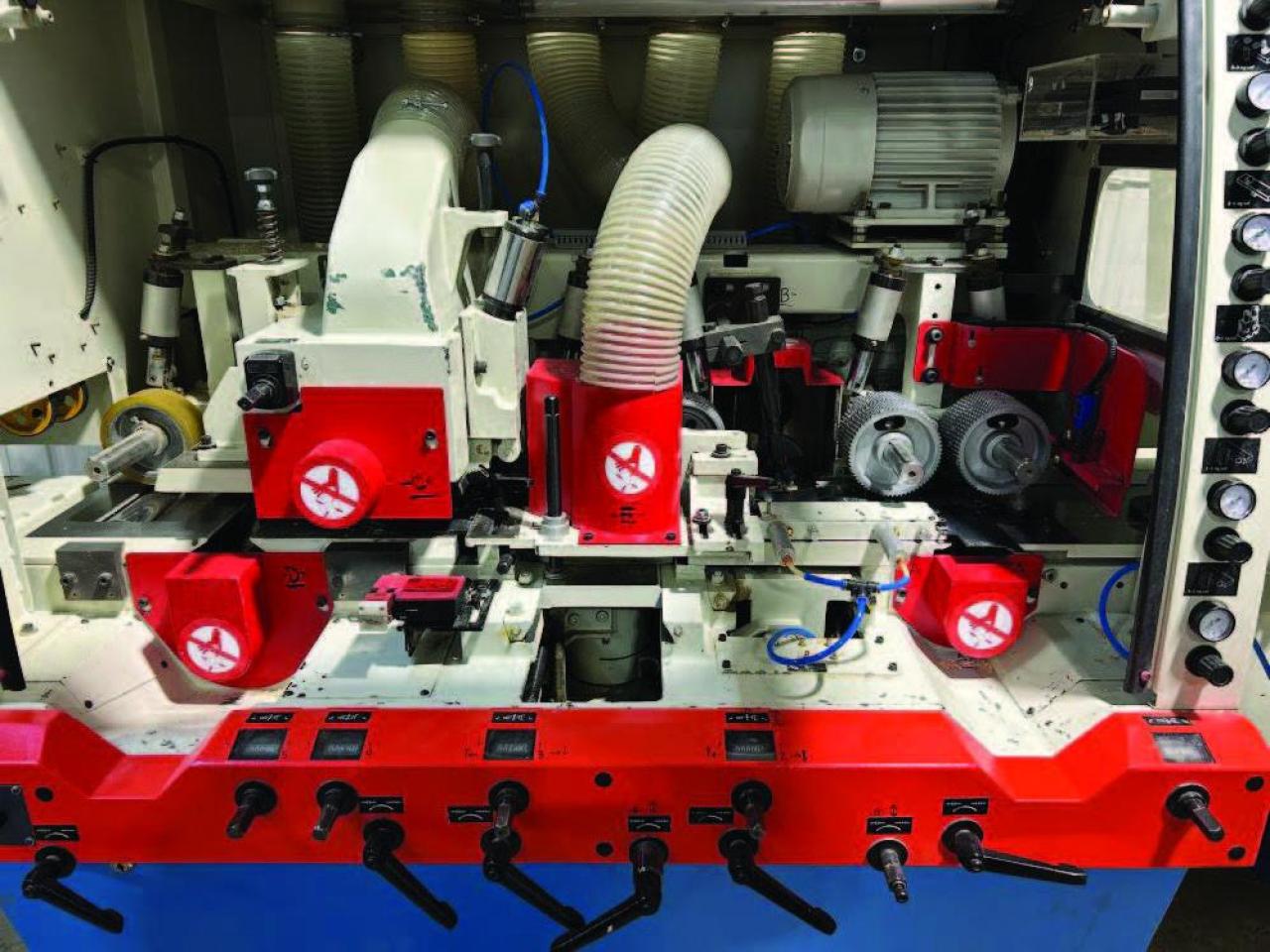

Five (5) spindles, 40 mm diameter
Features:
Chrome-plated table
Automatic table lubrication
Safety power-off timer for door opening
Outfeed table drive roller: 1 set

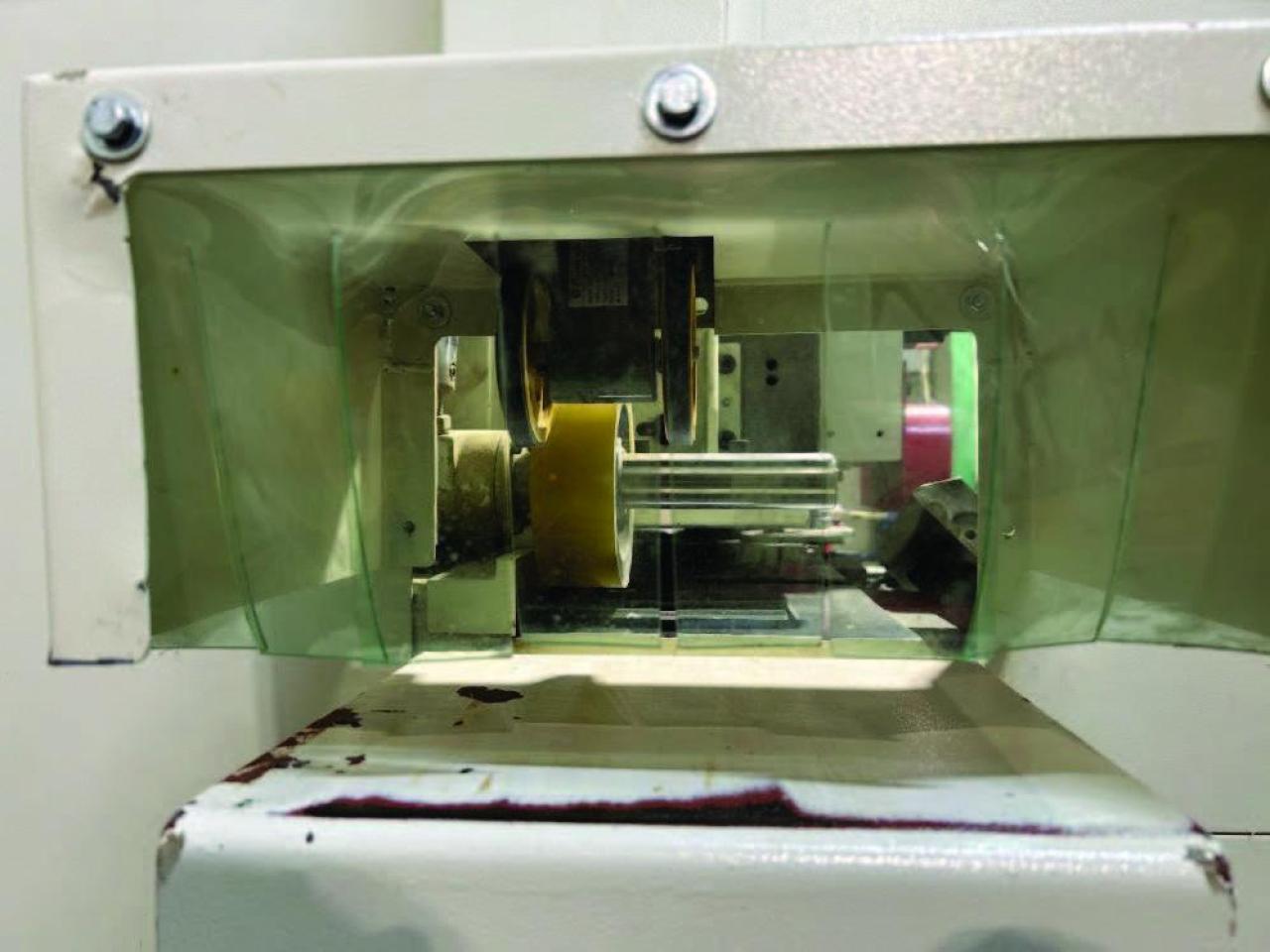

Noise reduction & safety guard
Digital feed calculation system
Heads NOT included
Machine dimensions: 3380 (L) x 1280 (W) x 1720 (H) mm
Gross weight: 3100 kg / 6820 lb
