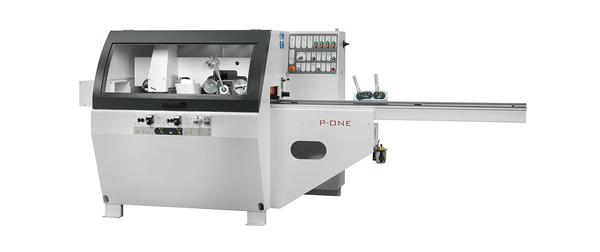

P.ONE BASIC 4, 4-Head Planer/Moulder, NEW (Italian-made machine)
Features:
P.ONE BASIC 4 is a 4-sided automatic planer/moulder with 4 spindles, compact and robust, capable of machining dimensional lumber. Extremely useful for planing and straightening operations.

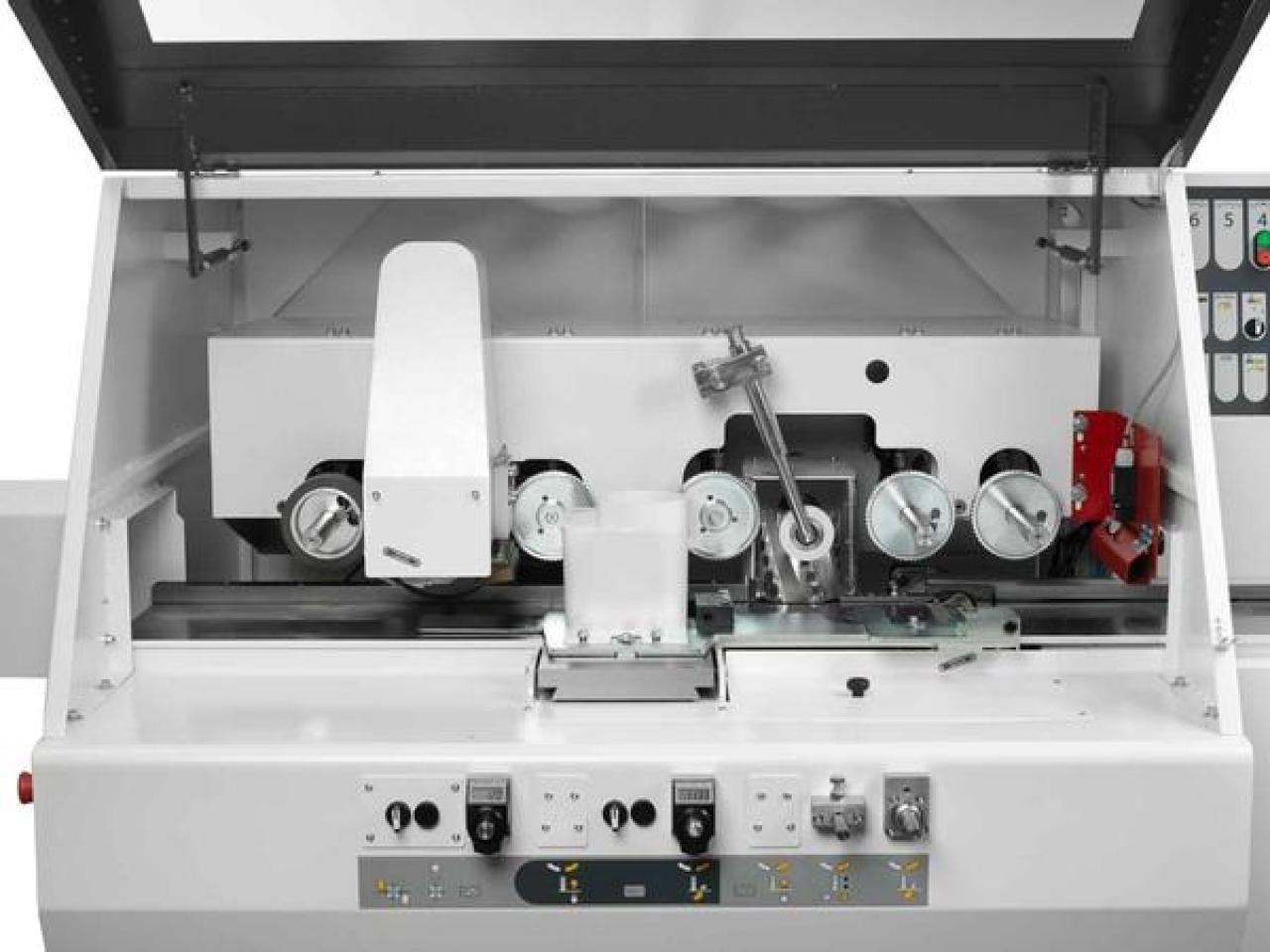

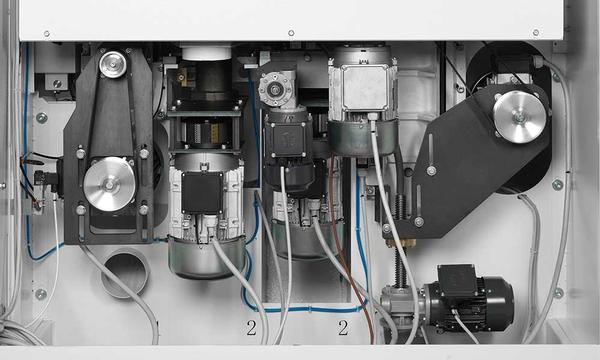

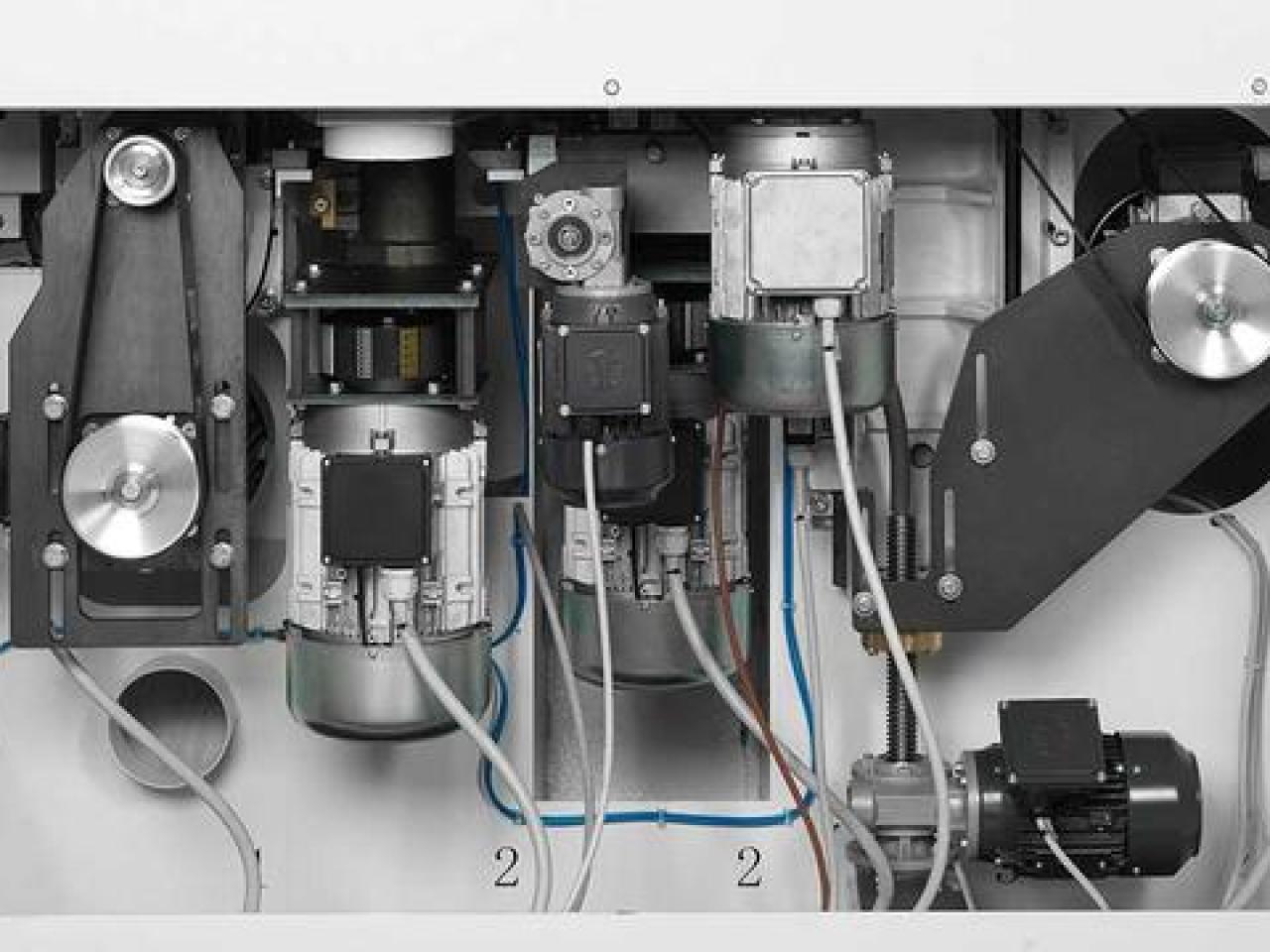

Each spindle is driven by an independent motor, and startup is controlled via a start/stop push-button panel.

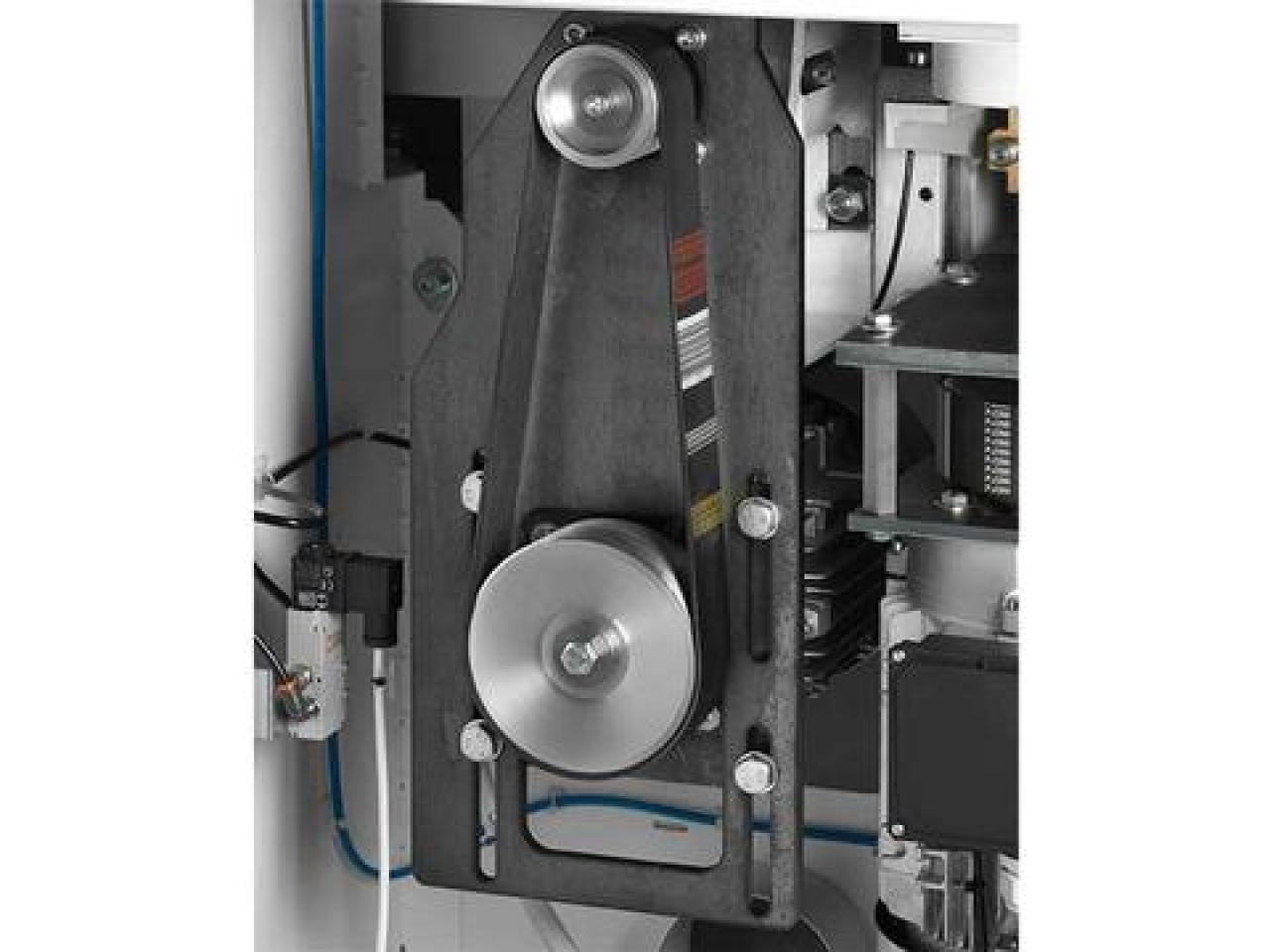

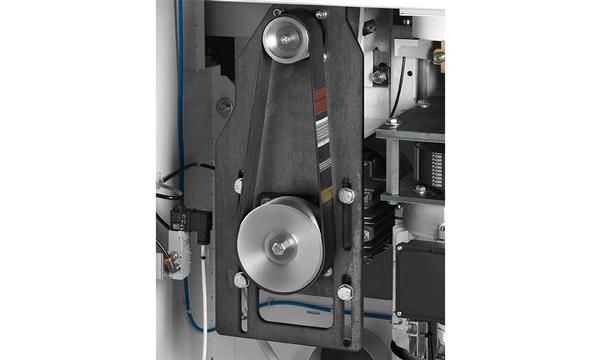

The feed roller transmission is equipped with universal joints, ensuring durability and reliability, and features pneumatic pressure cylinders.
When processing warped and/or rough wood, the machine produces a perfectly squared piece.
One-piece frame ensures high rigidity and stability.
Technical Specifications:

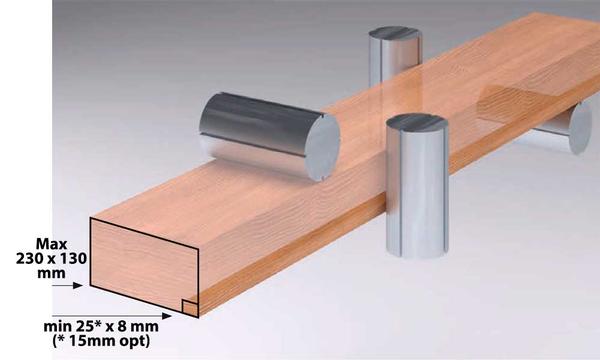

Spindle configuration:
- #1 Bottom horizontal, 5.5 HP motor
- #2 Right vertical, 5.5 HP motor (Height is adjustable with spacer only)
- #3 Left vertical, 5.5 HP motor (Height is adjustable with spacer only)
- #4 Top horizontal, 5.5 HP motor
- Working width: 25–230 mm
- Working thickness: 8–130 mm
- Minimum length (single piece): 350 mm
- Variable feed speed: 5–14 m/min, 2 HP motor with reverse control
- Digital feed system
- Spindle diameter: 40 mm
- Spindle speed: 6,000 RPM
- Infeed table length: 2300 mm
- Steel table
- Automatic table lubrication with air jet
- Noise reduction enclosure and safety guards

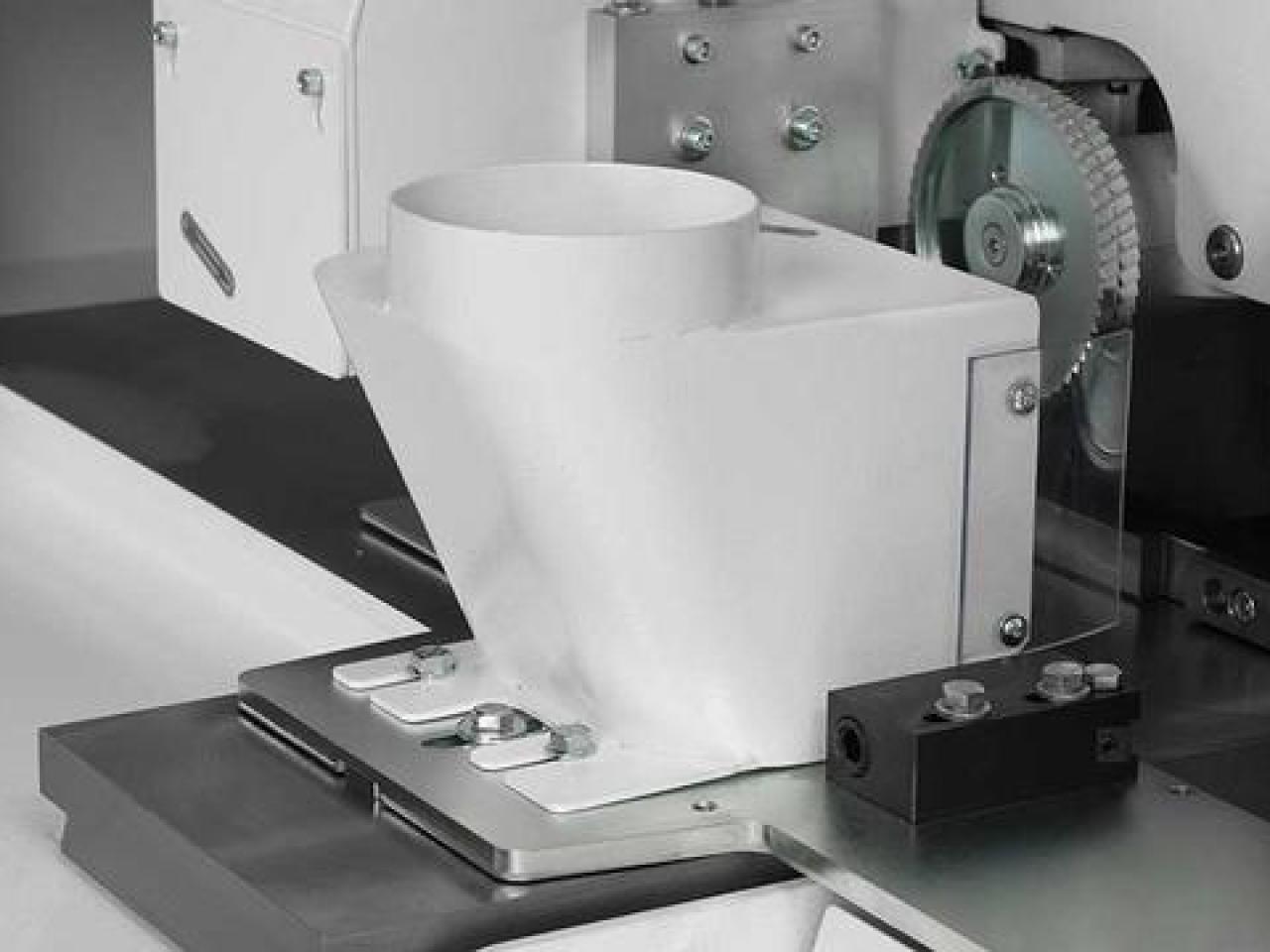

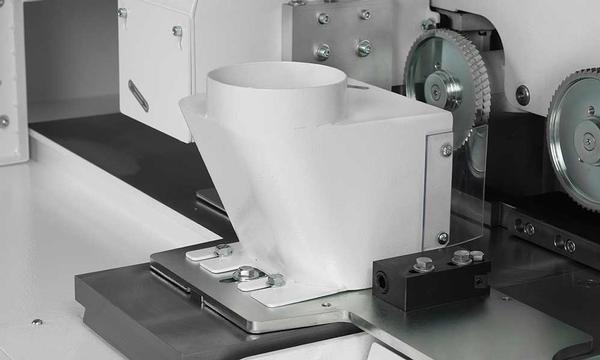

- Dust collection ports: 120 mm (4)
- Machine dimensions: 3800 (L) x 1500 (D) x 1600 (H) mm
Tool head dimensions:
- Horizontal: 125 mm (D) x 40 mm (B) x 230 mm (L) – 2 pcs
- Vertical: 125 mm (D) x 40 mm (B) x 130 mm (L) – 2 pcs
(CUTTERHEADS NOT INCLUDED IN THE SALE PRICE)
- Electrical: 230 Volts, 60 Hz, 3 Phase
