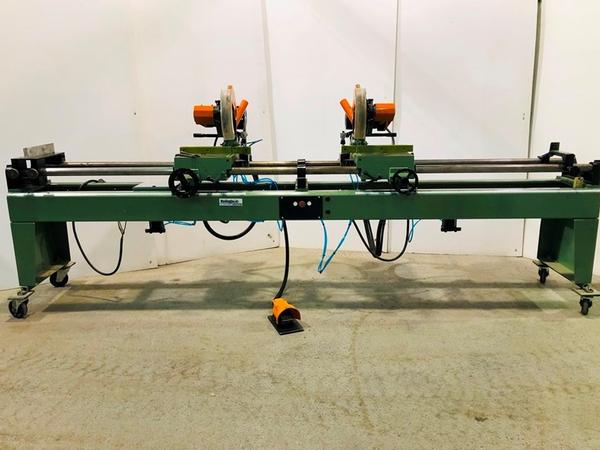

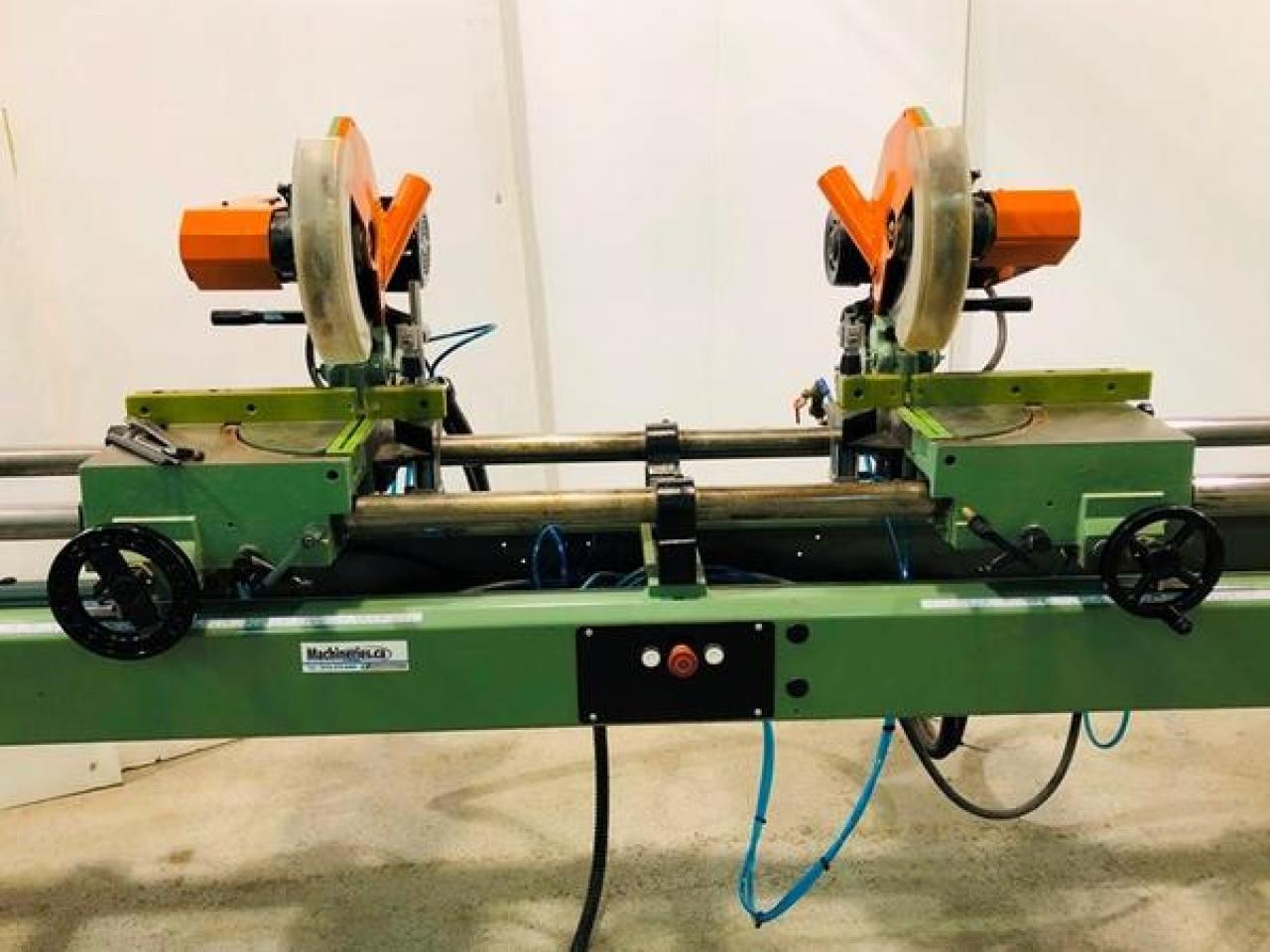

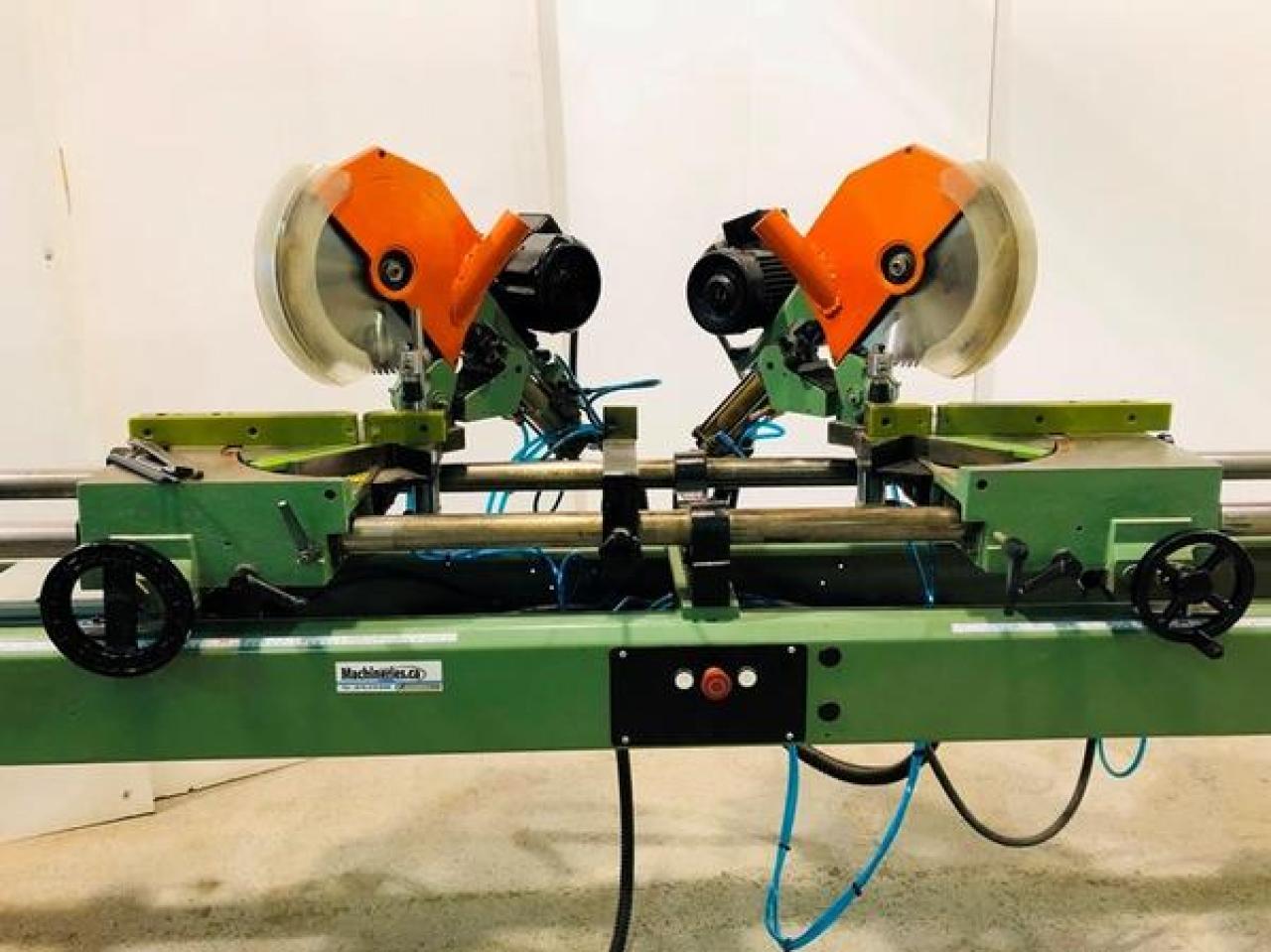

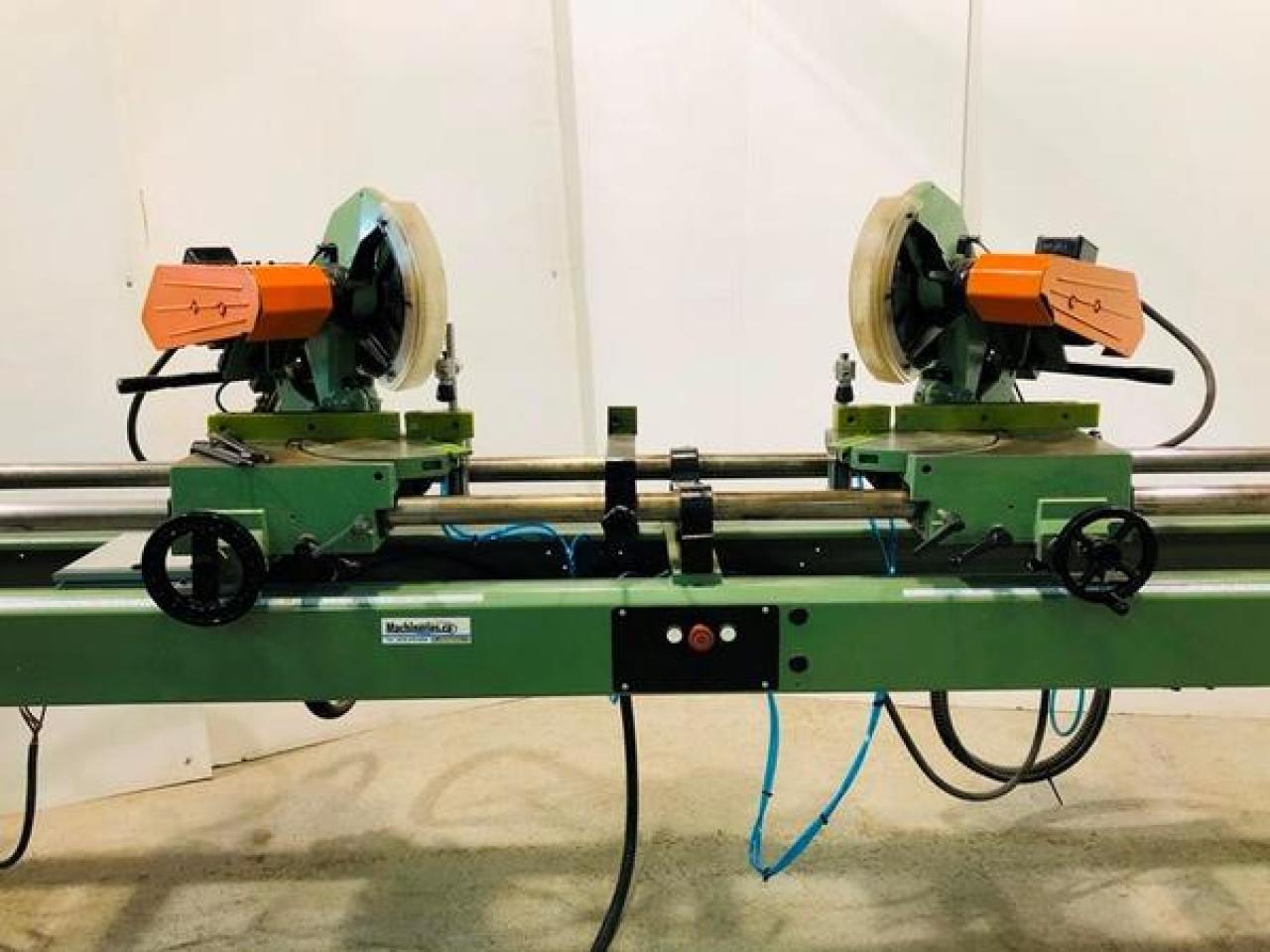

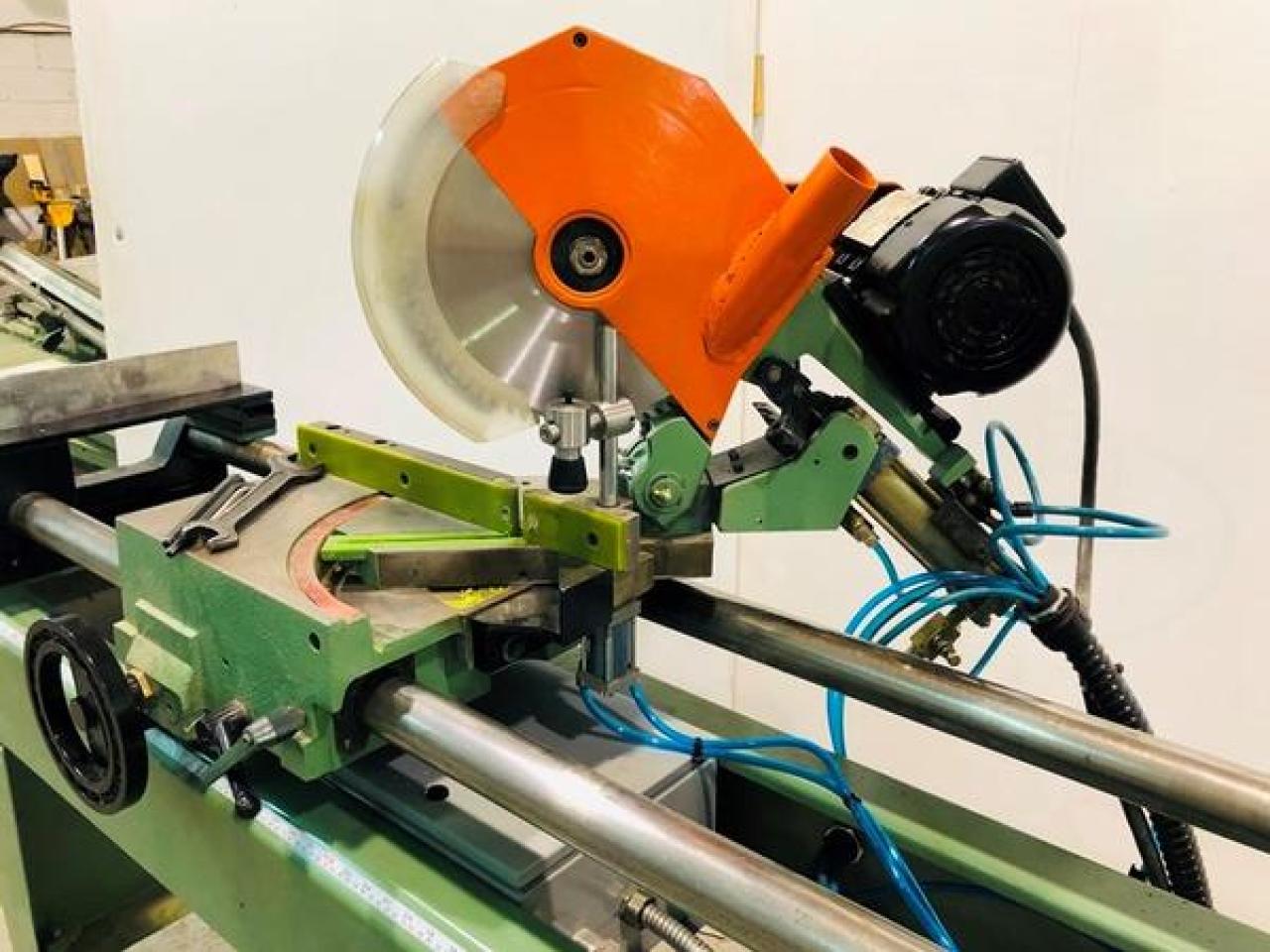

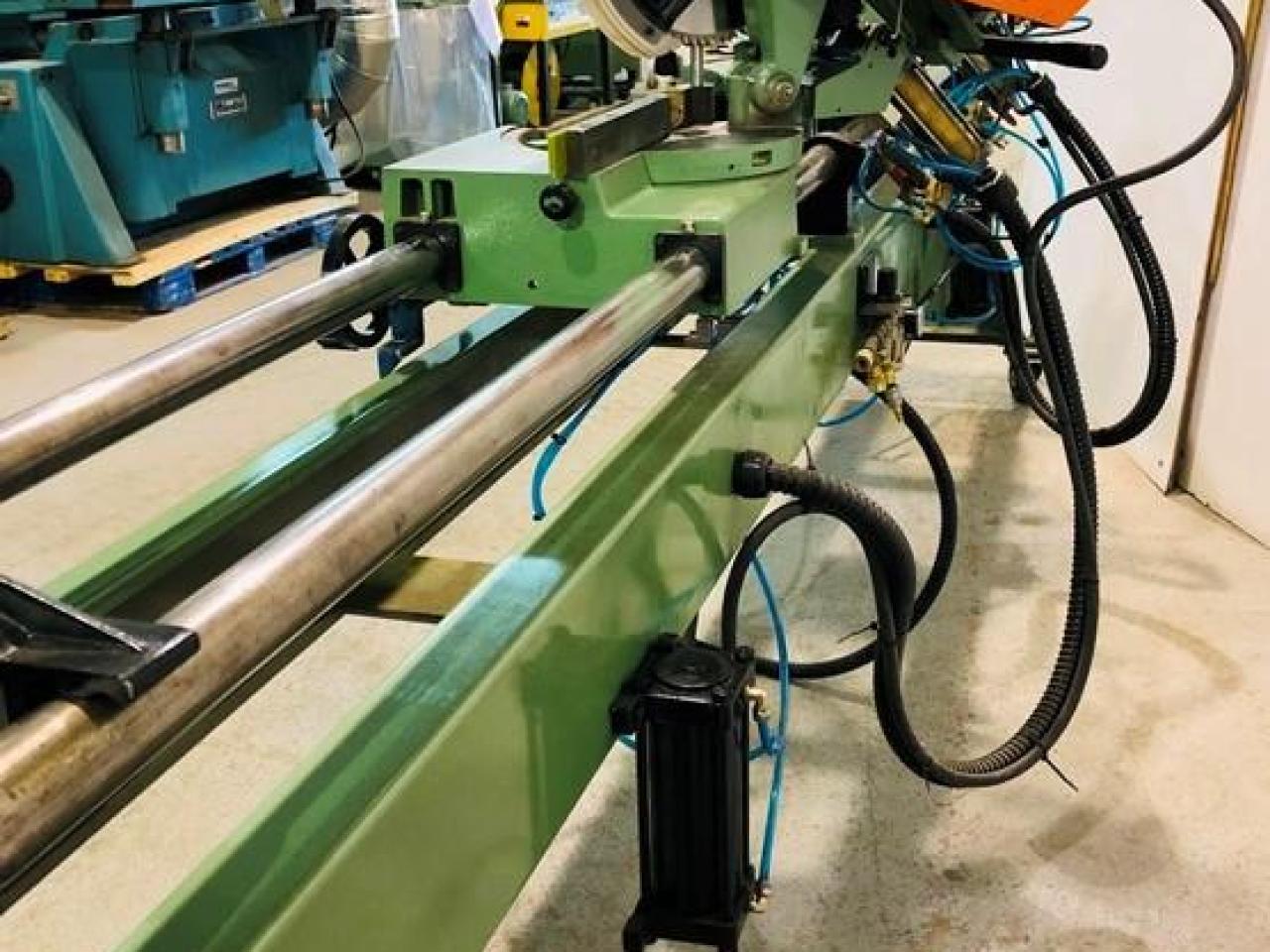

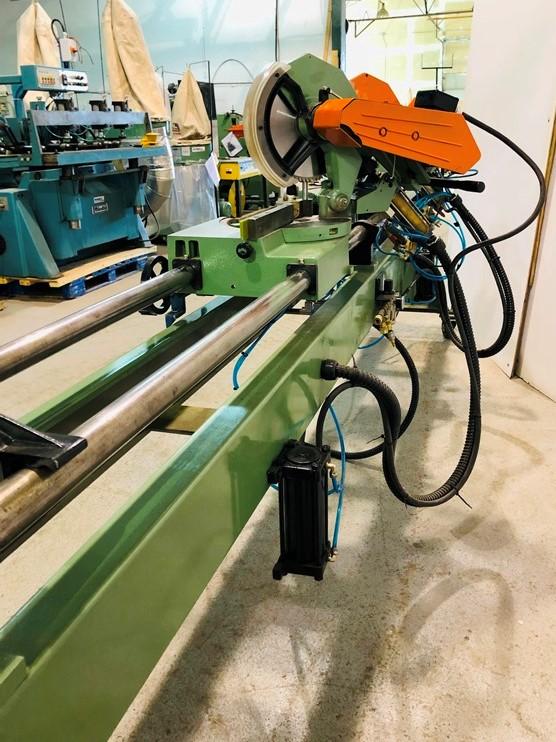

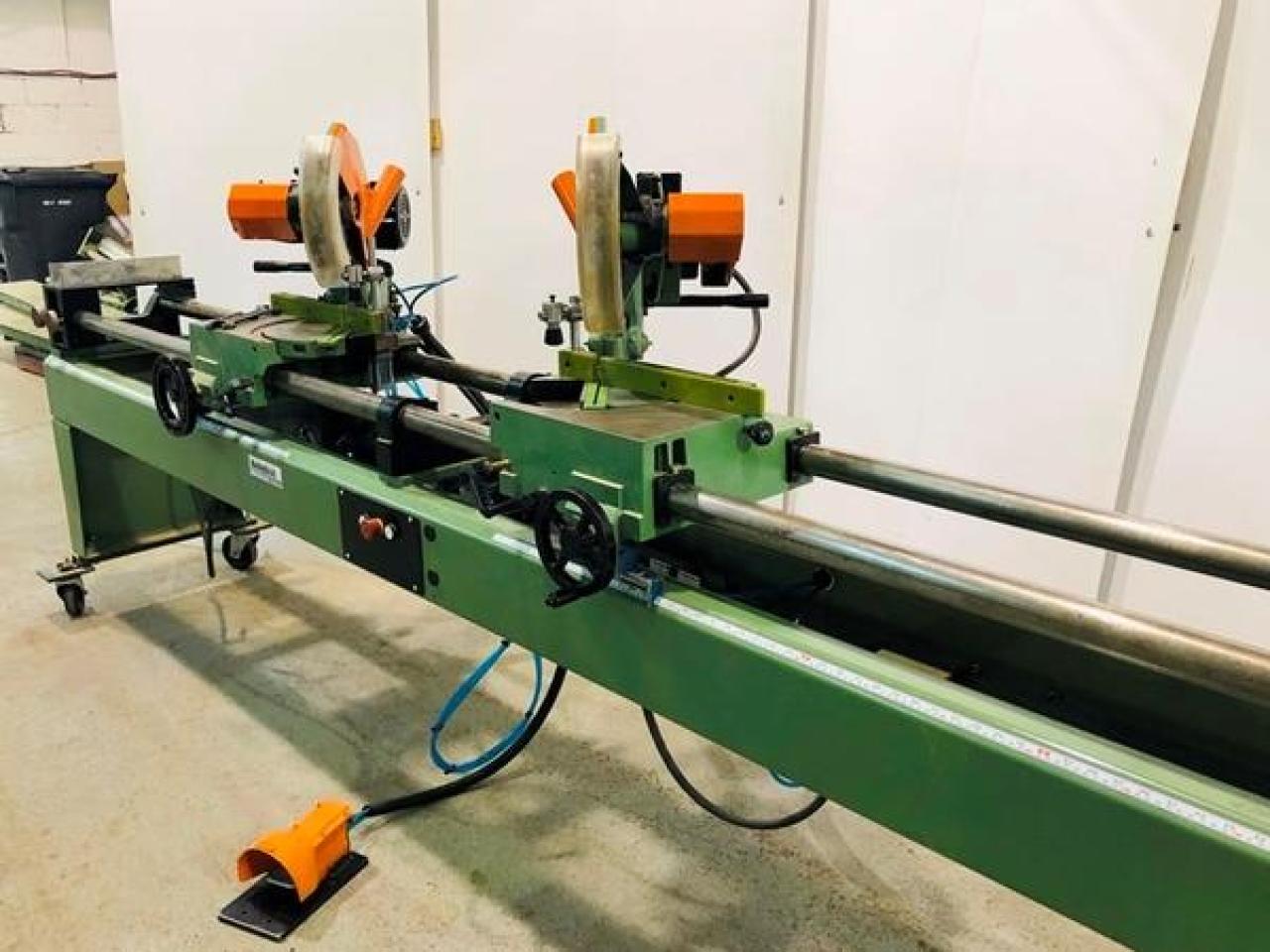

Double Mitre Saw
(Variable Stroke Oil-Pneumatic Cutting Movement)
Two (2) 1 HP motors / 600 Volts / 3 Phase
12" blade – 1" arbor bore
Minimum cutting length: 8½"
Maximum cutting length (with left stop removed): 110"
Maximum cutting length (with left stop installed): 103"
Maximum cutting width: 5¼"
Maximum cutting width at 45° angle: 3¾"
Maximum cutting height: 3¼"
Minimum cutting length at 45° inside angle: 14½"
Minimum cutting length at 45° outside angle: 31¼"
Foot pedal-operated cutting movement
Variable-speed oil-pneumatic cutting movement

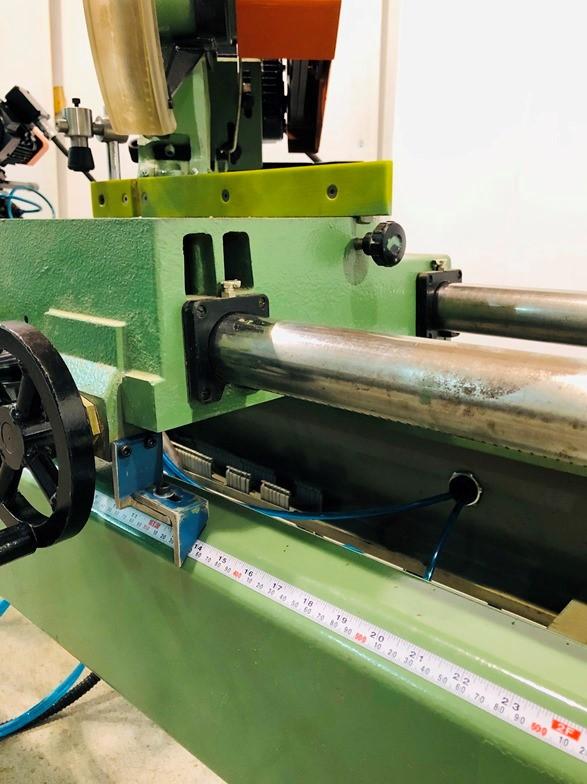

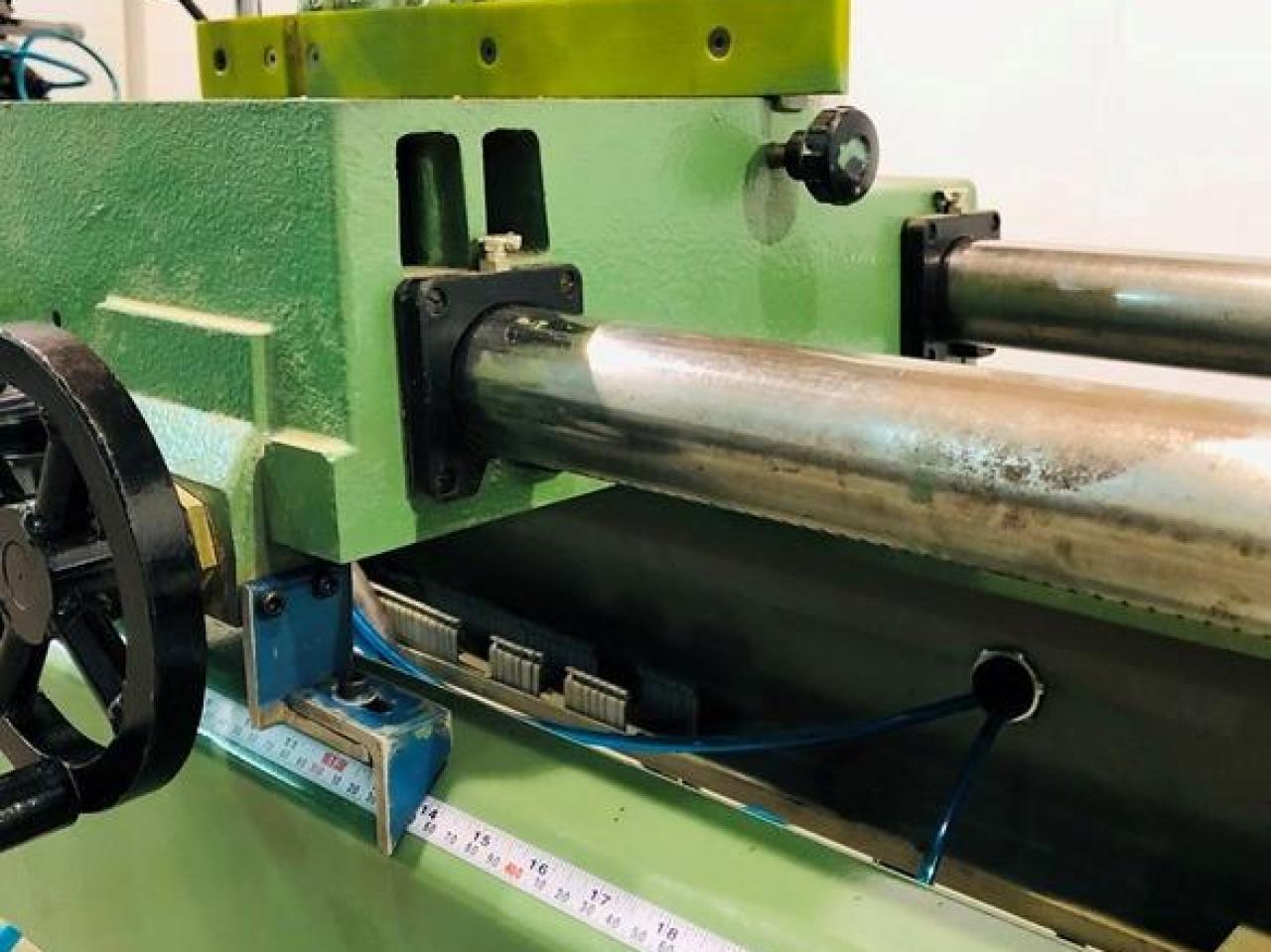

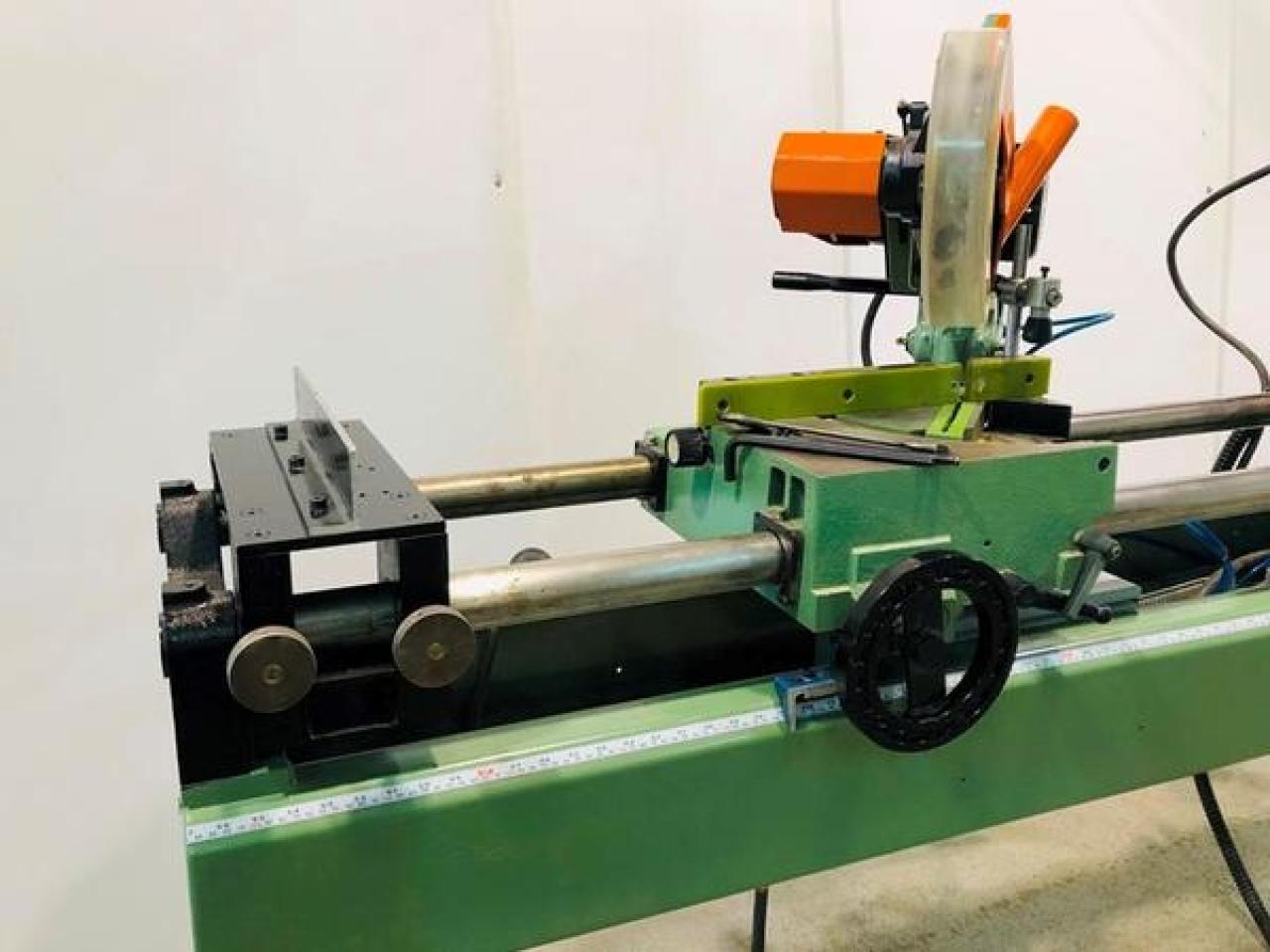

Manual adjustment to widen or narrow the cutting length
Two (2) 2" dust extraction outlets
Two (2) clamping cylinders
Overall dimensions: 143" length × 38" depth × 57" height
Weight: ±700 lbs
