Discover the BEL Series by Belfab, the ultimate choice for dust collection. Ranging from 5 HP to 20 HP, it offers high efficiency and a full range of features. Designed in compliance with NFPA. Optimized for maximum performance, it includes dust disposal options that are engineered to minimize downtime. Ideal for wood dust, the BEL Series limits airborne particles, ensuring safety and a clean workspace. Trust Belfab for superior dust collection and a healthier work environment!
BEL series features
The BEL Series offers four filter sizes with flexible blower configurations (5-20 HP) and two height options (Standard and XL) to fit various environments.

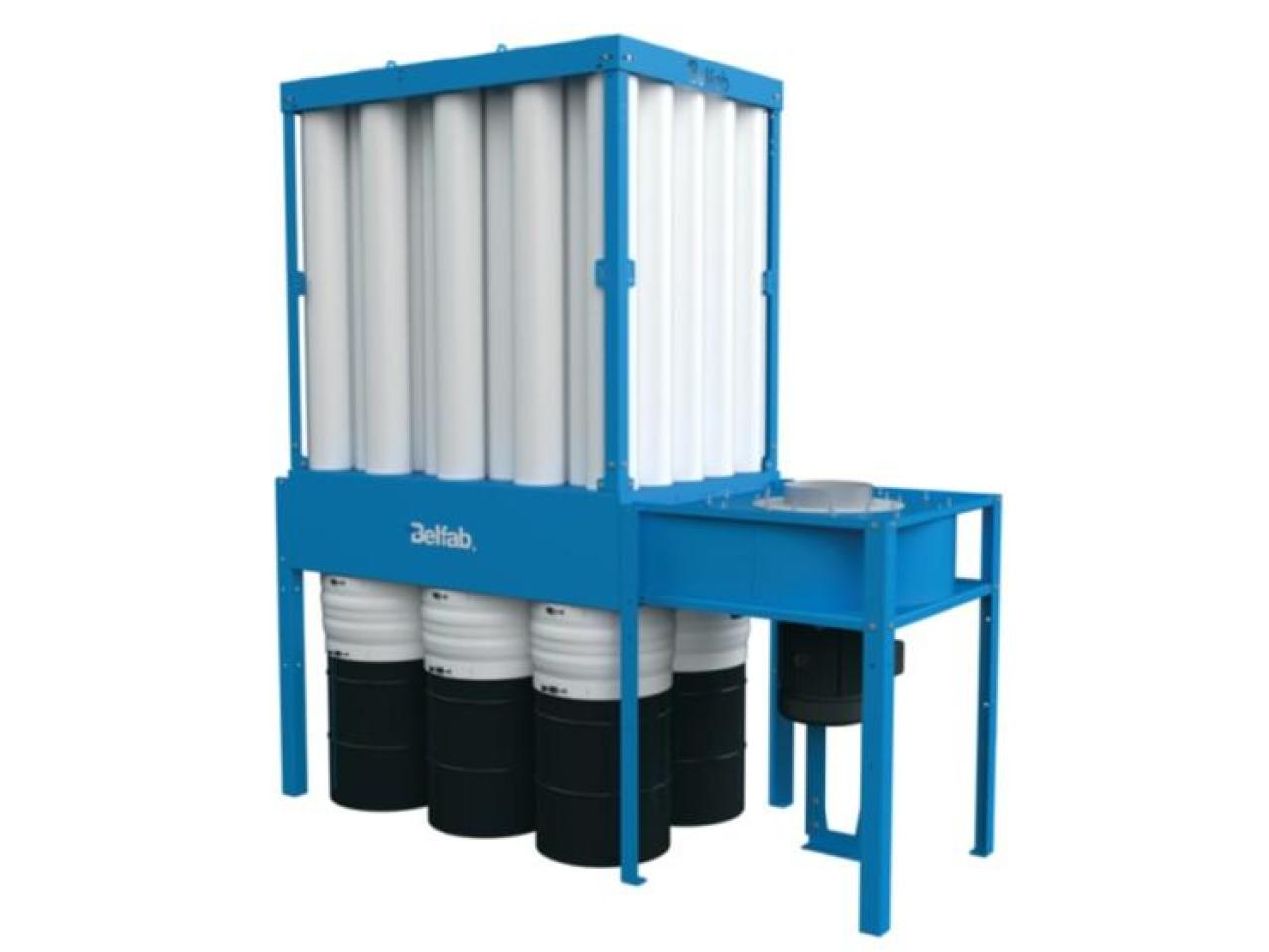

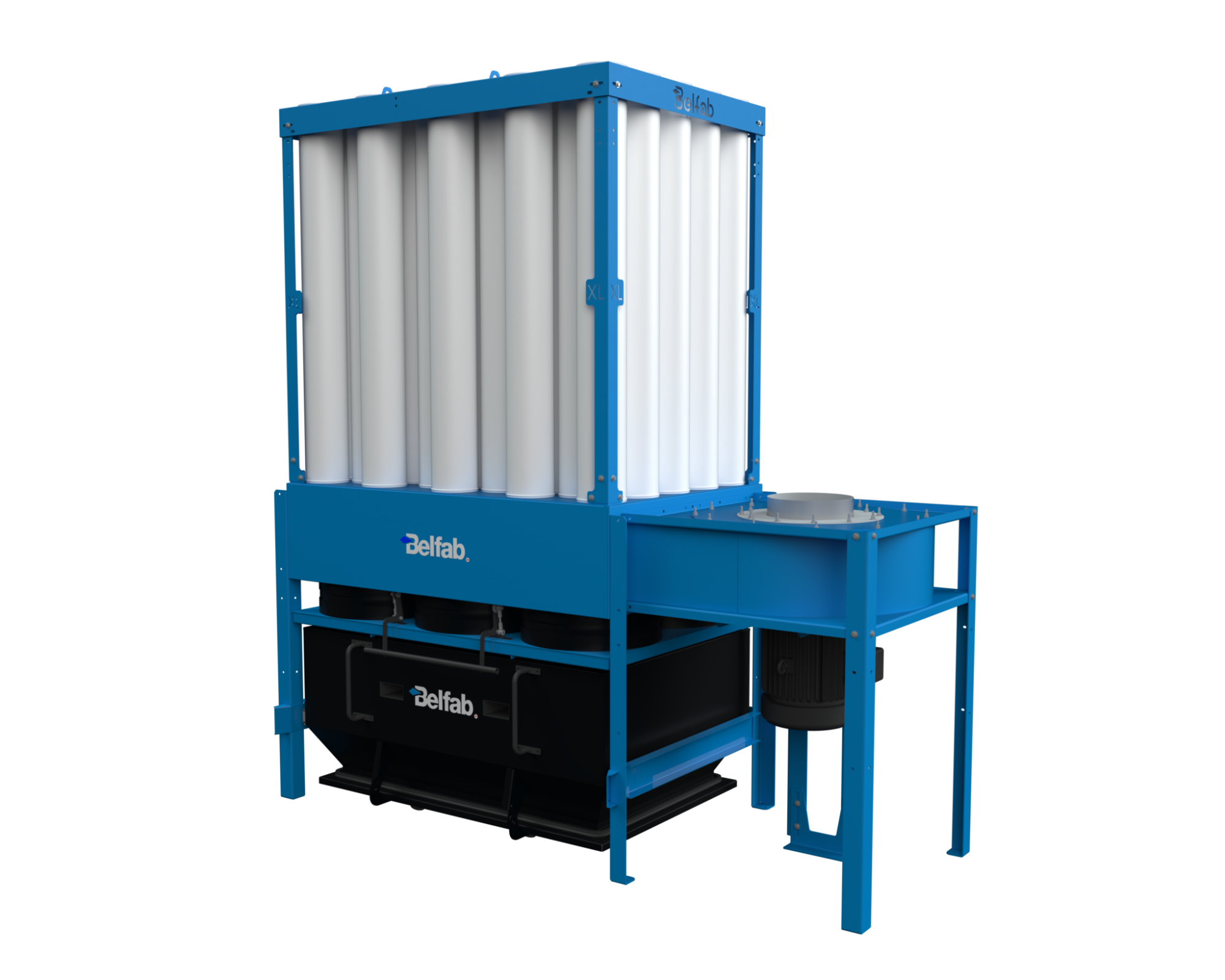

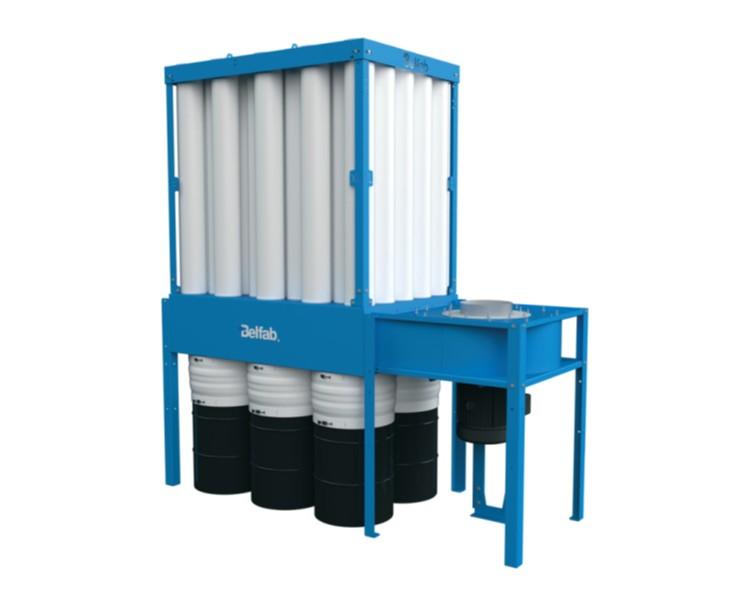

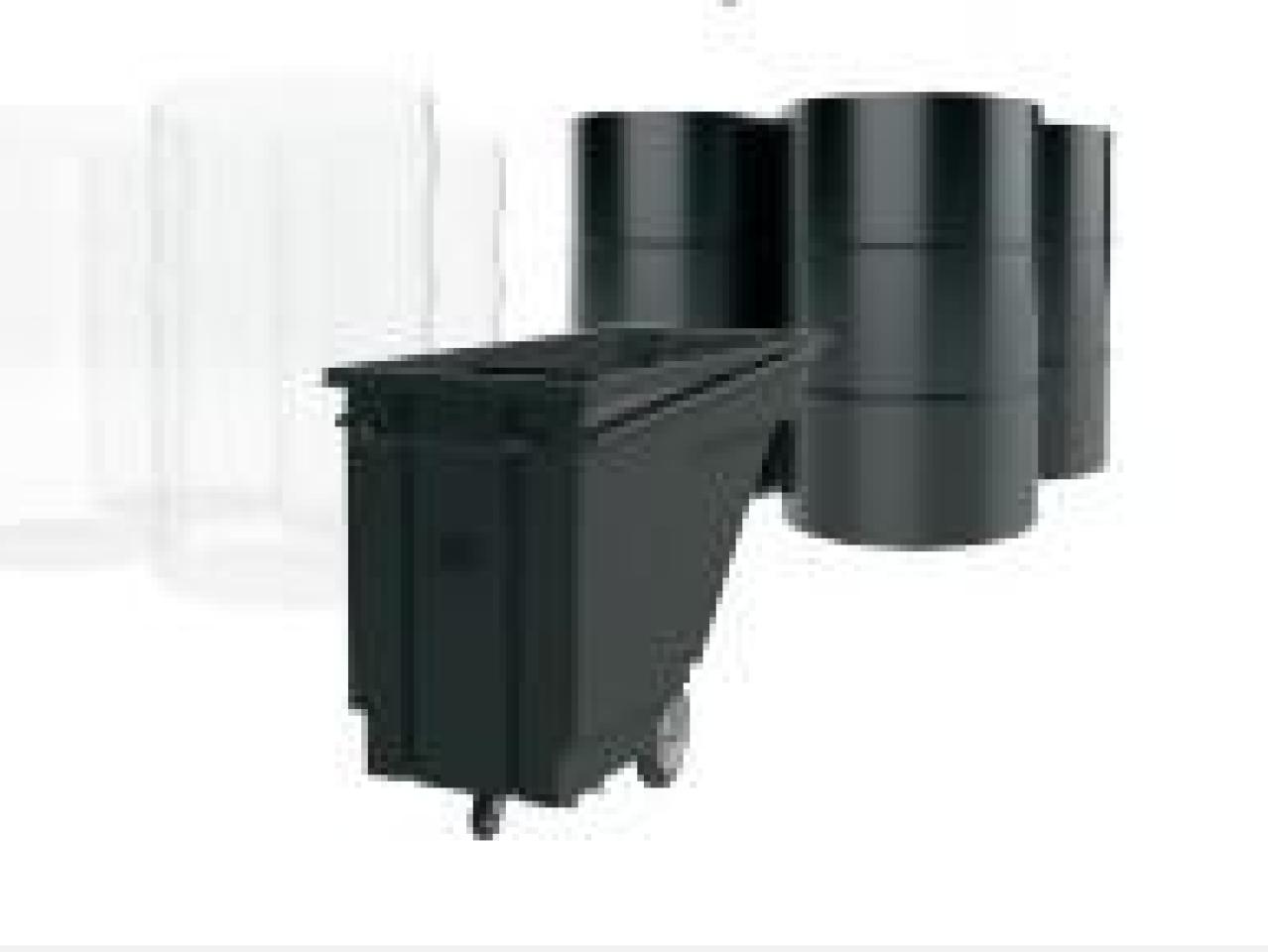

Choose from disposable bags, durable steel drums for heavy-duty applications, easy-to-maneuver tilt trucks or the New 360 gal dump bin for quick and efficient dust disposal in larger facilities.

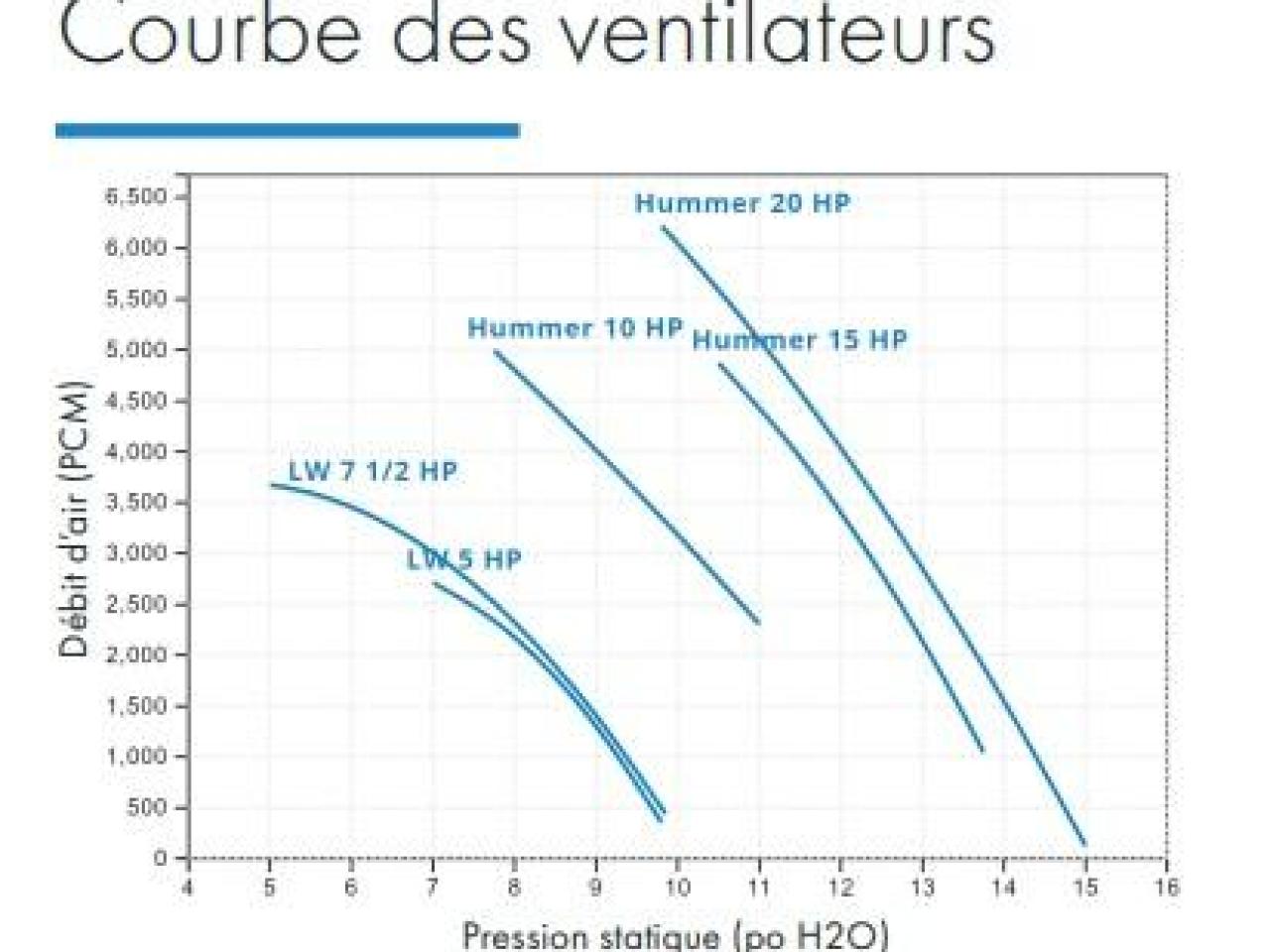

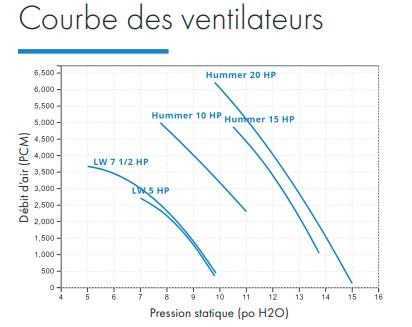

The quiet Hummer blower, available from 10 to 20 HP. The units are built with 14-gauge steel for durability and quiet operation. High-efficiency bean bag filters capture 99.99% of particles at 3.8 microns.

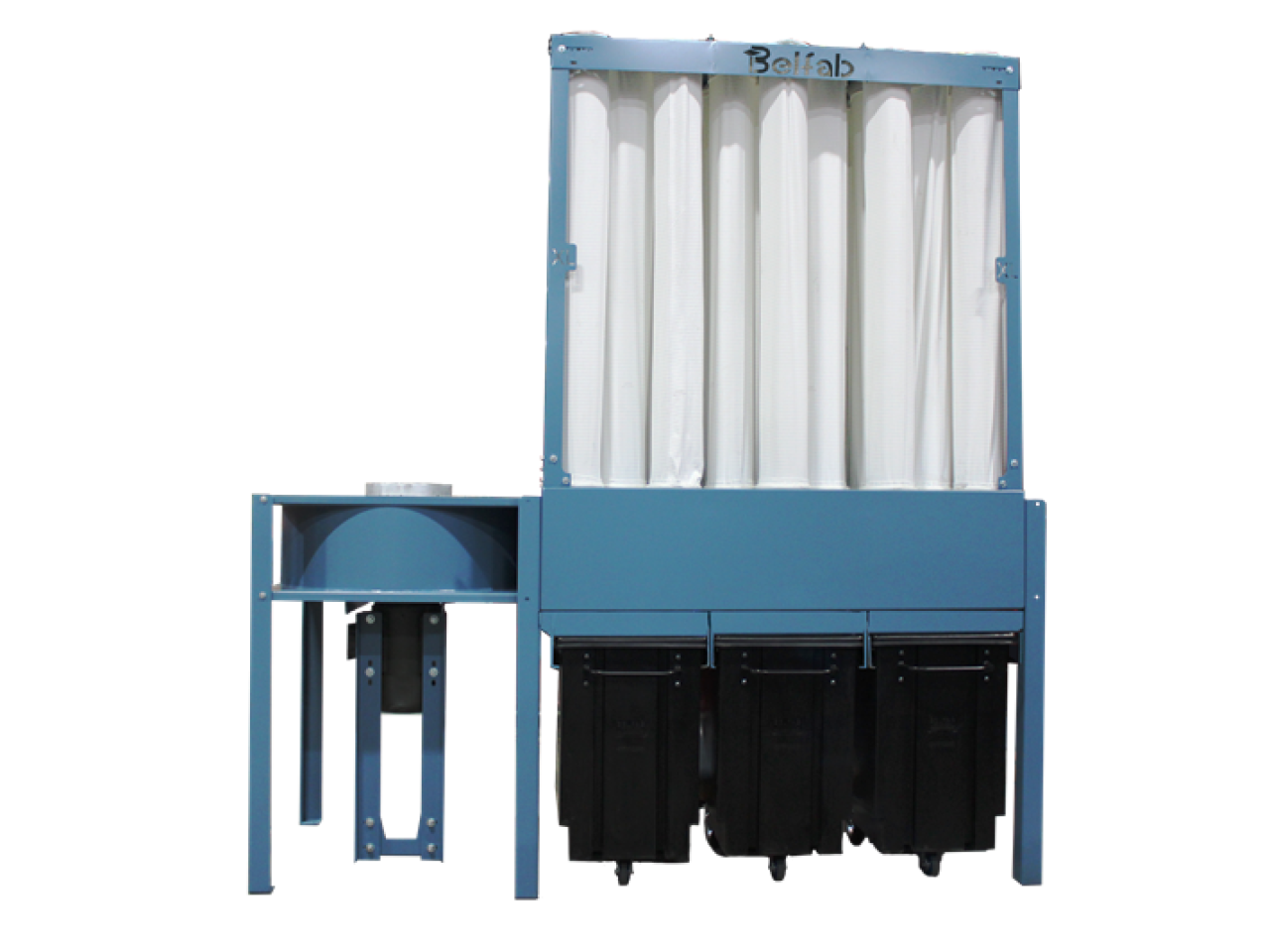

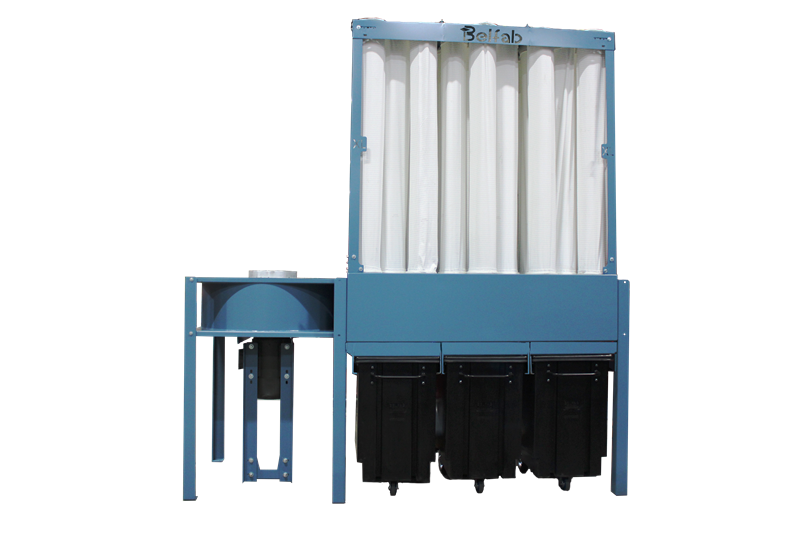

Technical Specifications – Model 150
Capacity: 5000 CFM
Motor Power: 15 HP
Filtration Area: 340 sq. ft.
Dimensions: 119" x 49" x 109" (H)
Noise Level: 81 dBA
Inlet Diameter: 14"
Collection Capacity: 6 bags (9 ft³ each)
Included Plastic Collection Bags: 30
Module Weight: 1462 lbs
Options:
Dust Discharge:
Disposable bags, drums, tipping carts, or 360-gallon tipping bin
Magnetic starter also available as an option, either stand alone or with 5 ft cables and connection ferrules. Starters and wiring are not installed and must be installed by a certified electrician.
Cleaning:
Automatic cleaning or automatic shaker
